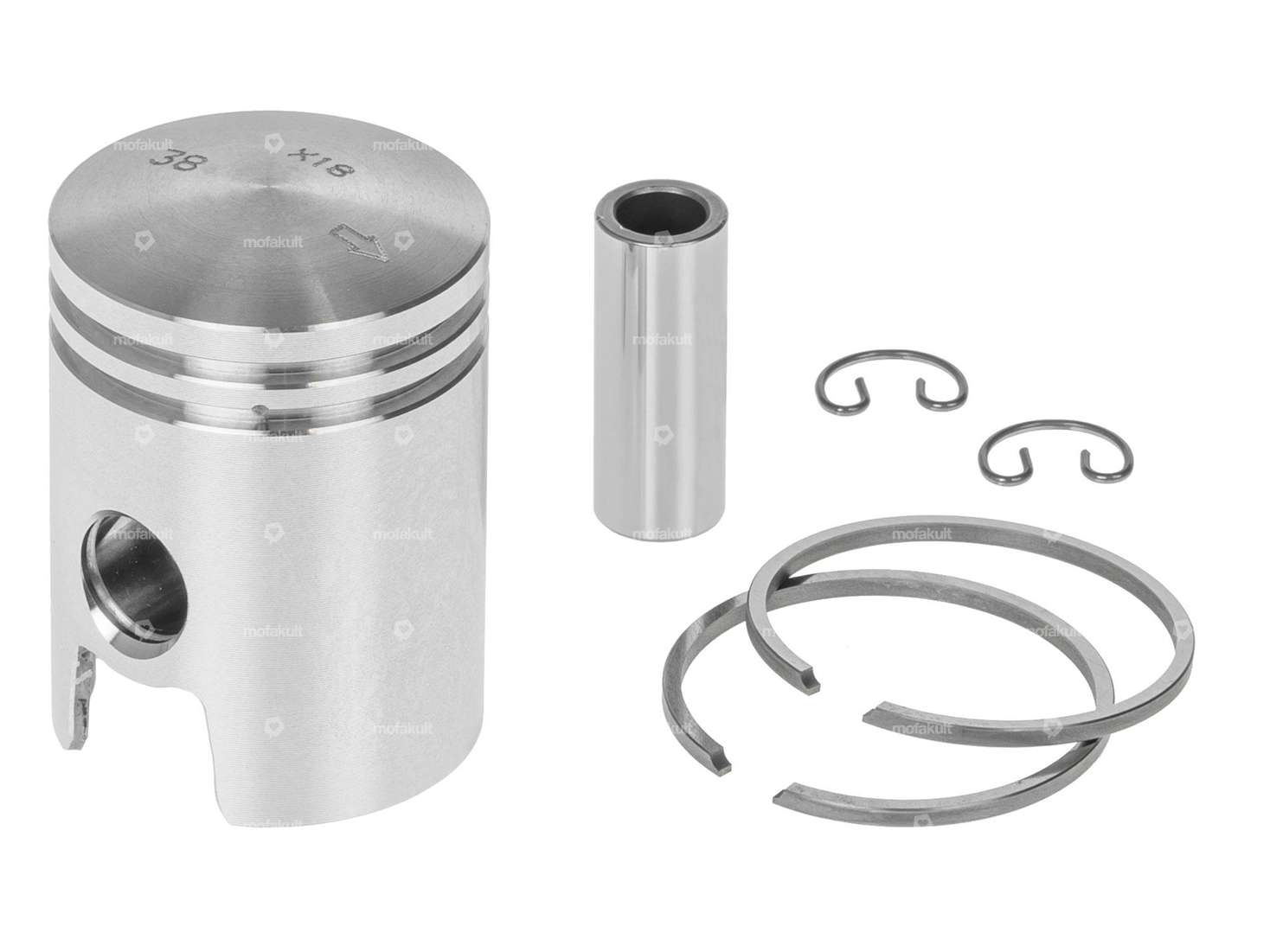

38.0 mm Meteor brand piston with two 2 mm rectangular piston rings with flank lock (FS) in original size, suitable for mopeds and mopeds with Sachs 502, 50/2, 503 2AL, AAL, 2BL, ABL CH engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin retainers etc. can be found under accessories.
Original Sachs spare part number: A2772
Quality product from the Italian manufacturer Meteor.
Details
Manufacturer | Meteor |
Ø outside piston (A) | 37.95 mm |
Ø piston pin (B) | 12 mm |
Compression height (C) | 28 mm |
Curvature (D) | 3 mm |
Total piston height (E) | 53 mm |
Number of piston rings (F) | 2 pcs |
Nominal diameter | 38 mm |
Piston ring mold | Rectangular ring |
Piston ring impact | Flank safety device (FS) |
Piston ring height | 2 mm |
Thick piston ring | 1.6 mm |
Weight | 79 g |
Pony spare part no. | A2772, A4358 |
Sachs spare part no. | 0286 377 010, 0286 378 005 |
Suitable for the following models
Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products
Meteor piston 39.2 mm oversize | Sachs 50/2 & 503
Manufacturer: Meteor · Ø outside piston (A): 39.2 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Weight: 88 g · Pony spare part no.: A2776 · Sachs spare part no.: 0286 377 014
EUR 56,20
Meteor piston 39.5 mm oversize | Sachs 50/2 & 503
Manufacturer: Meteor · Ø outside piston (A): 39.45 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Weight: 90 g
EUR 56,20
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Area of application: (Dis)assembly tool · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Number of components: 7 pcs
EUR 22,40

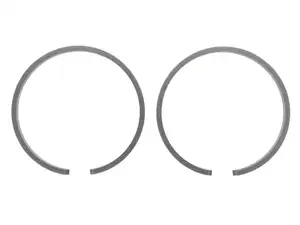

Meteor piston rings 38 x 2 mm (FS) (pair) | Sachs 50/2, 503
