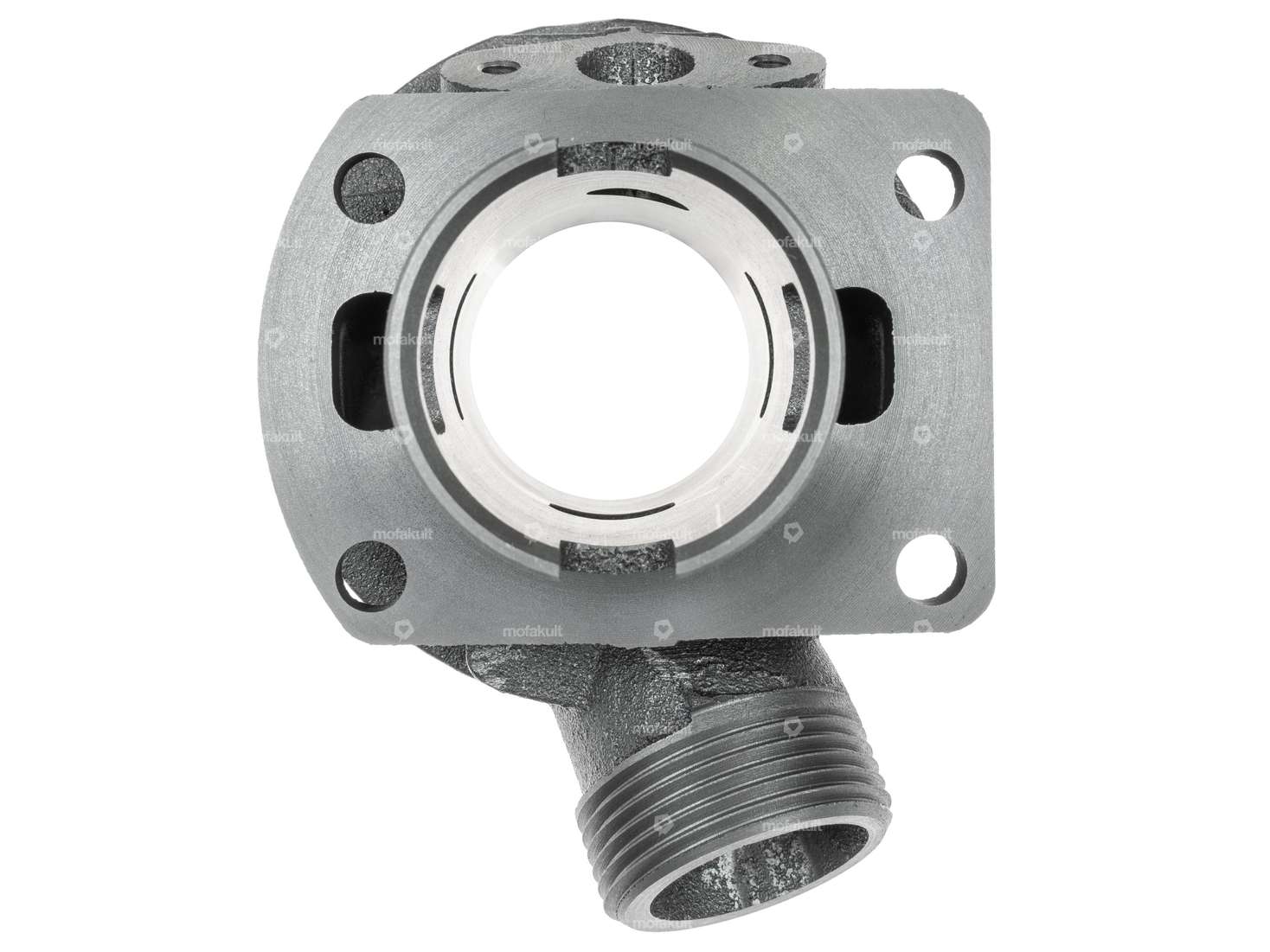

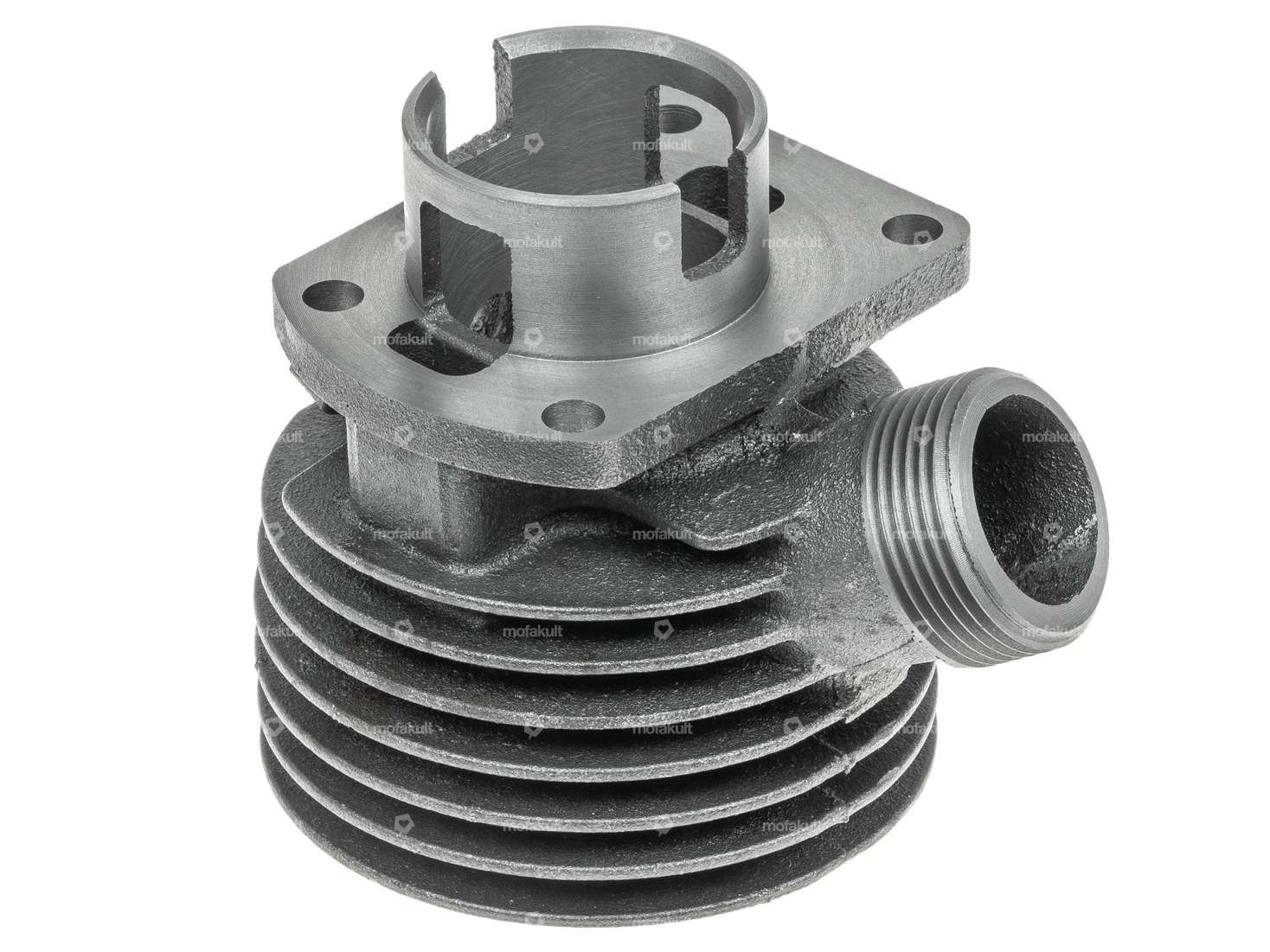

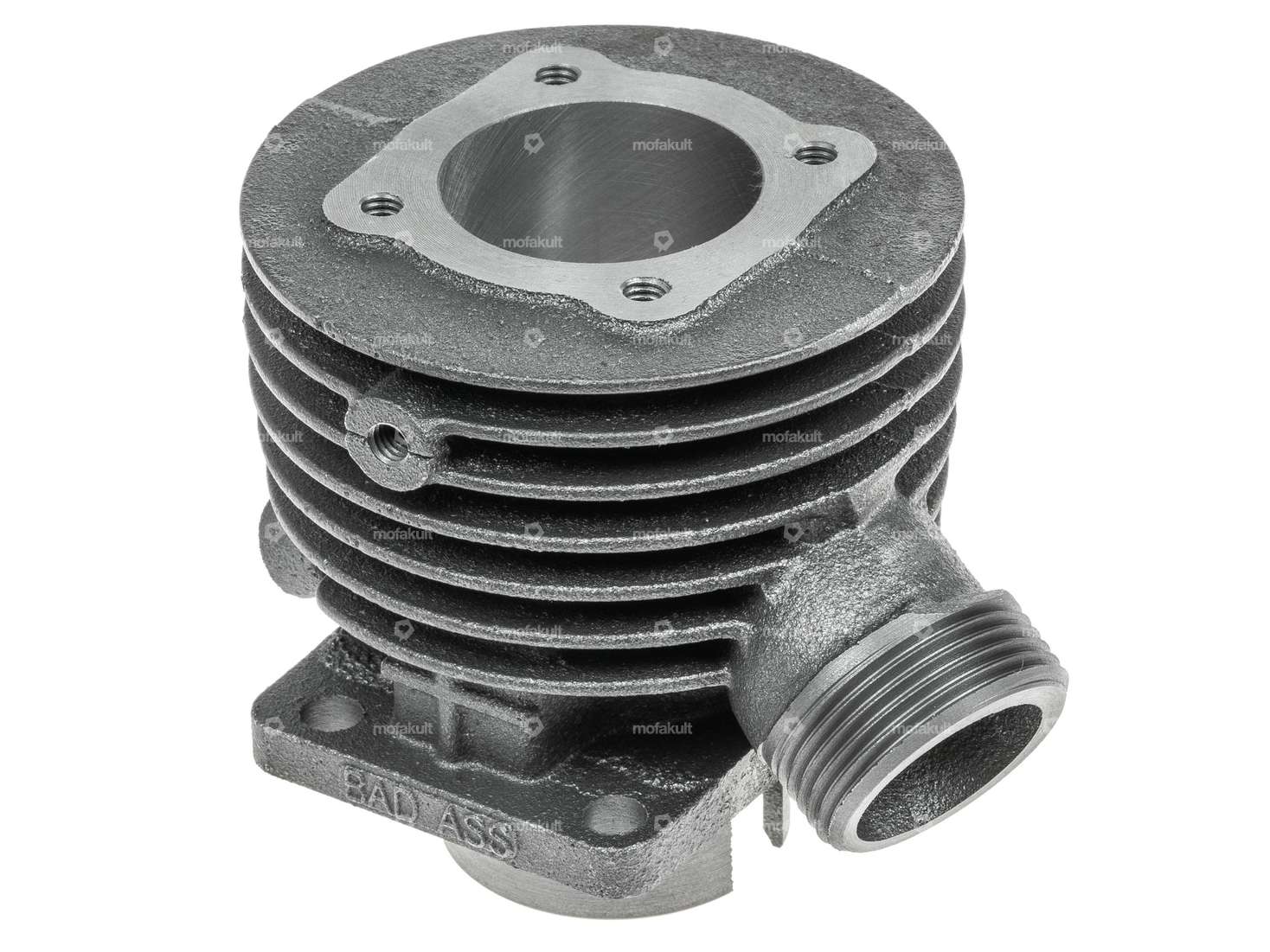

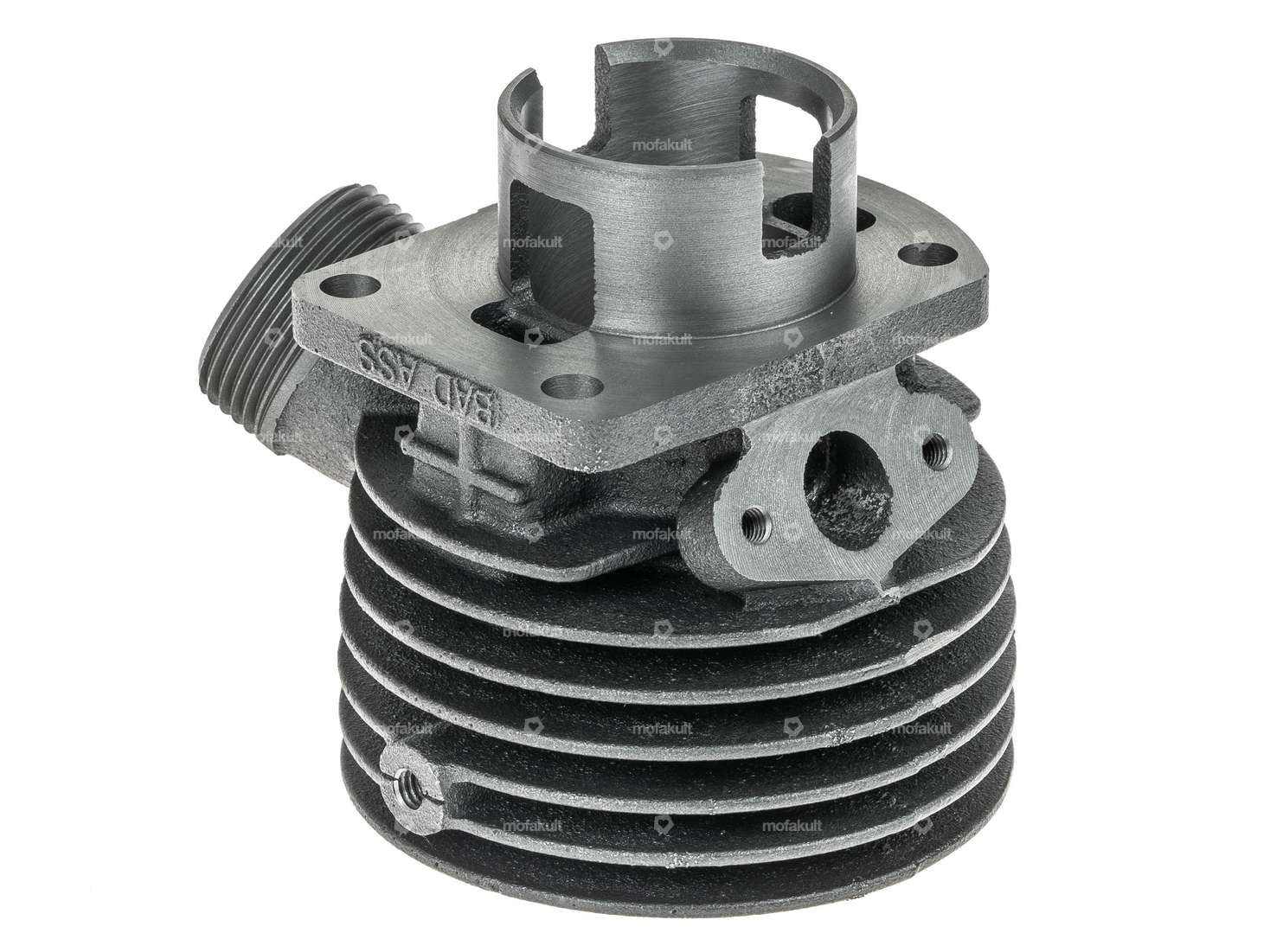

First 38 mm reproduction cylinder kit with slightly improved timing and optimized overrunning channels suitable for Swiss Sachs 50/2 (also known colloquially as 502) mopeds. This eliminates the laborious adaptation of DE replica cylinders.

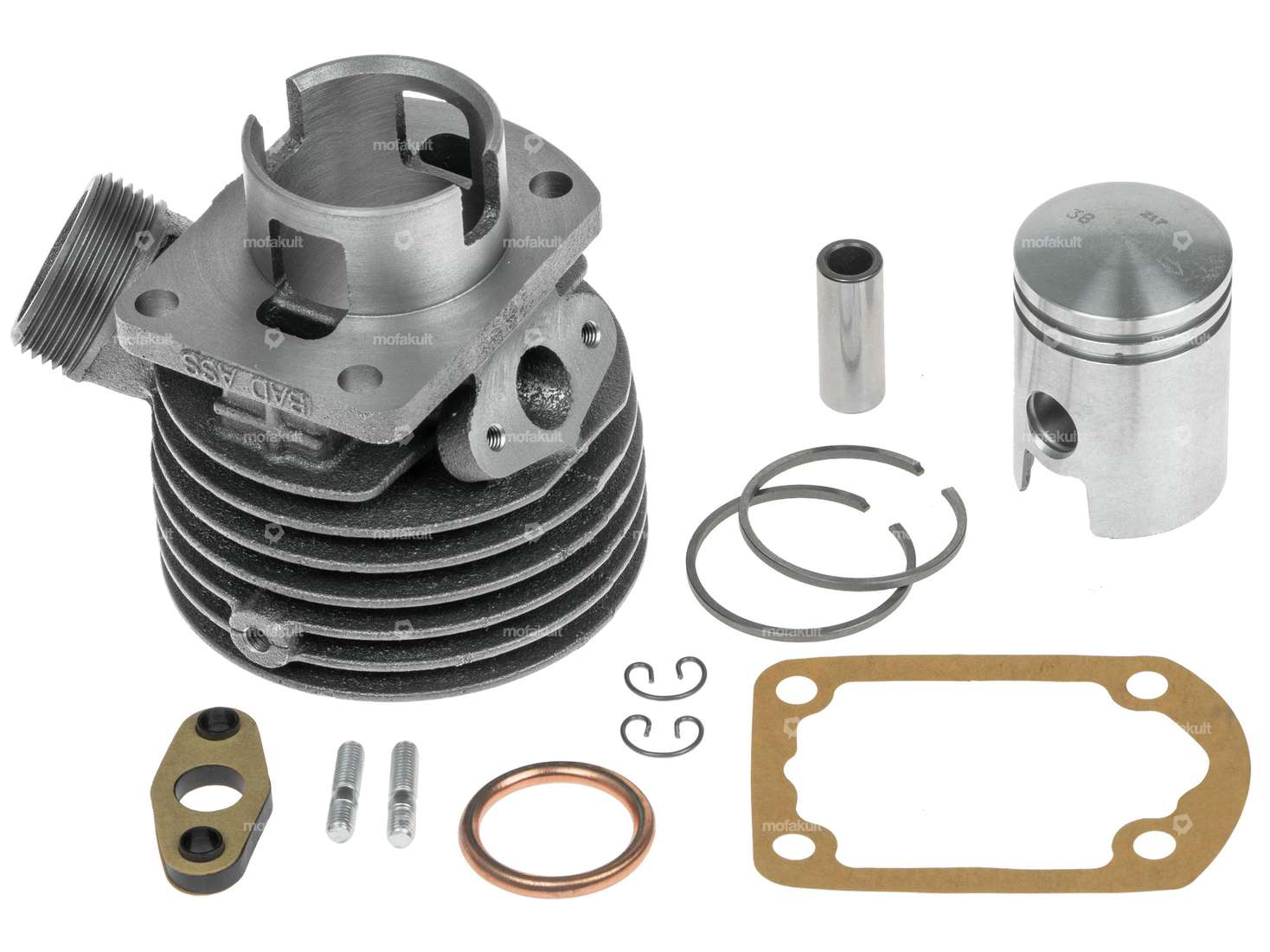

The set includes the following fixed parts:
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Pony spare part no.: A2772, A4358 · Sachs spare part no.: 0286 377 010, 0286 378 005 · Weight: 79 g
Hole pattern [mm]: 60 x 40 / 37 x 37 · Manufacturer: BAD ASS · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 38 mm · Ø cylinder neck: 43.9 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 13.3 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: Yes · Area of application: Standard
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M5x0.8 (standard thread) · Total length: 26 mm · Thread length: 14 mm, 7 mm · Strength class: 10.9 · Pony spare part no.: A1474 · Sachs spare part no.: 0241 031 101
Details
| Manufacturer | BAD ASS |
| Area of application | Standard |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Crankshaft stroke | 42 mm |
| Nominal diameter | 38 mm |
| Camouflaged | Yes |
| Hole spacing inlet | 31 mm |
| Number of fixing points | 4 pcs |
| Ø piston pin (B) | 12 mm |
| Hole pattern [mm] | 60 x 40 / 37 x 37 |
| Thread inlet | M5x0.8 (standard thread) |
| Outlet type | Union nut |
| Thread outlet | M35x2 (standard thread) |
| Alternative version of the Pony Spare part no. | A2539 |
| Alternative version of Sachs spare part no. | 0286 114 215 |
Suitable for the following models
| Sachs | 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) |
