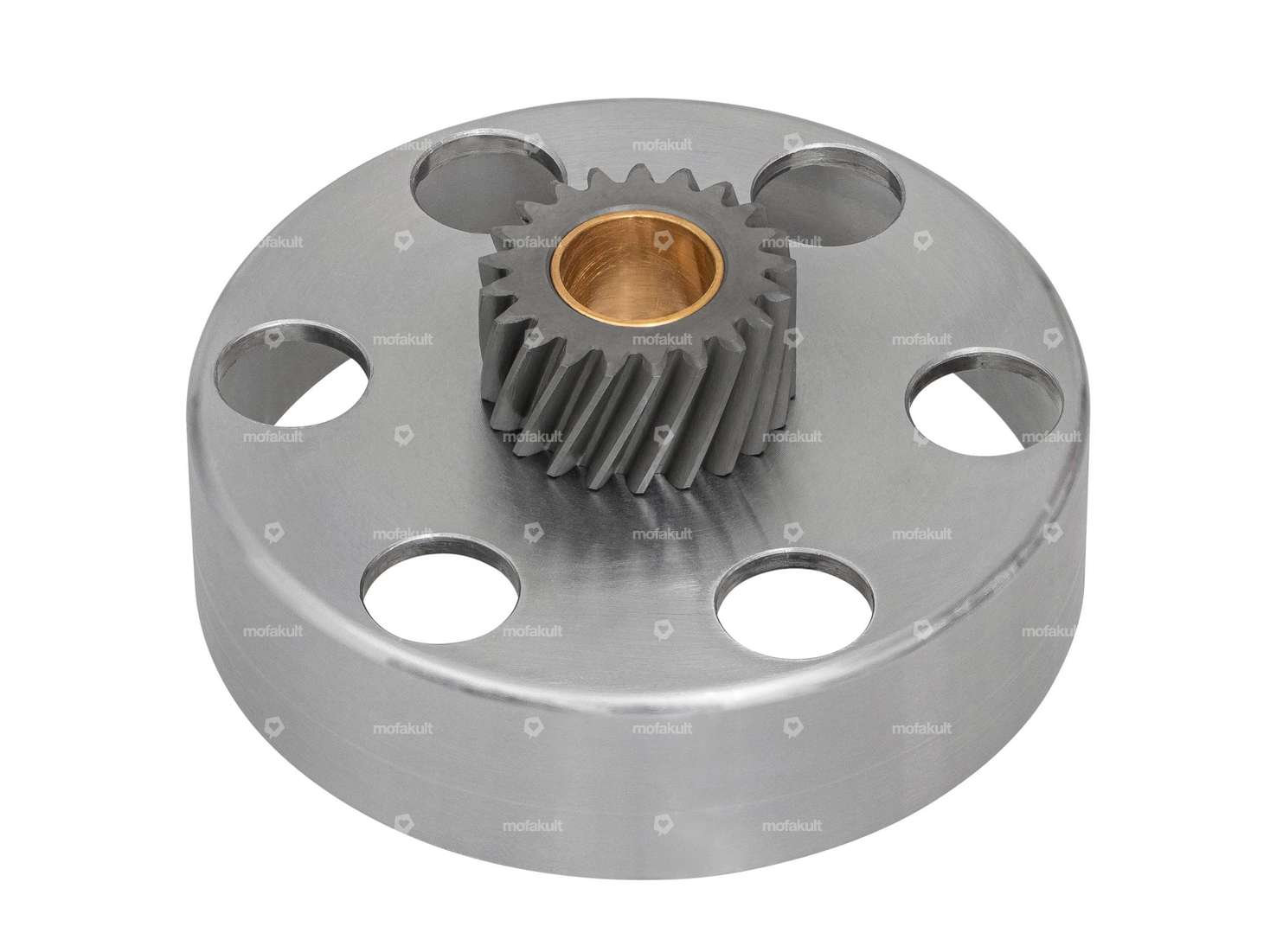

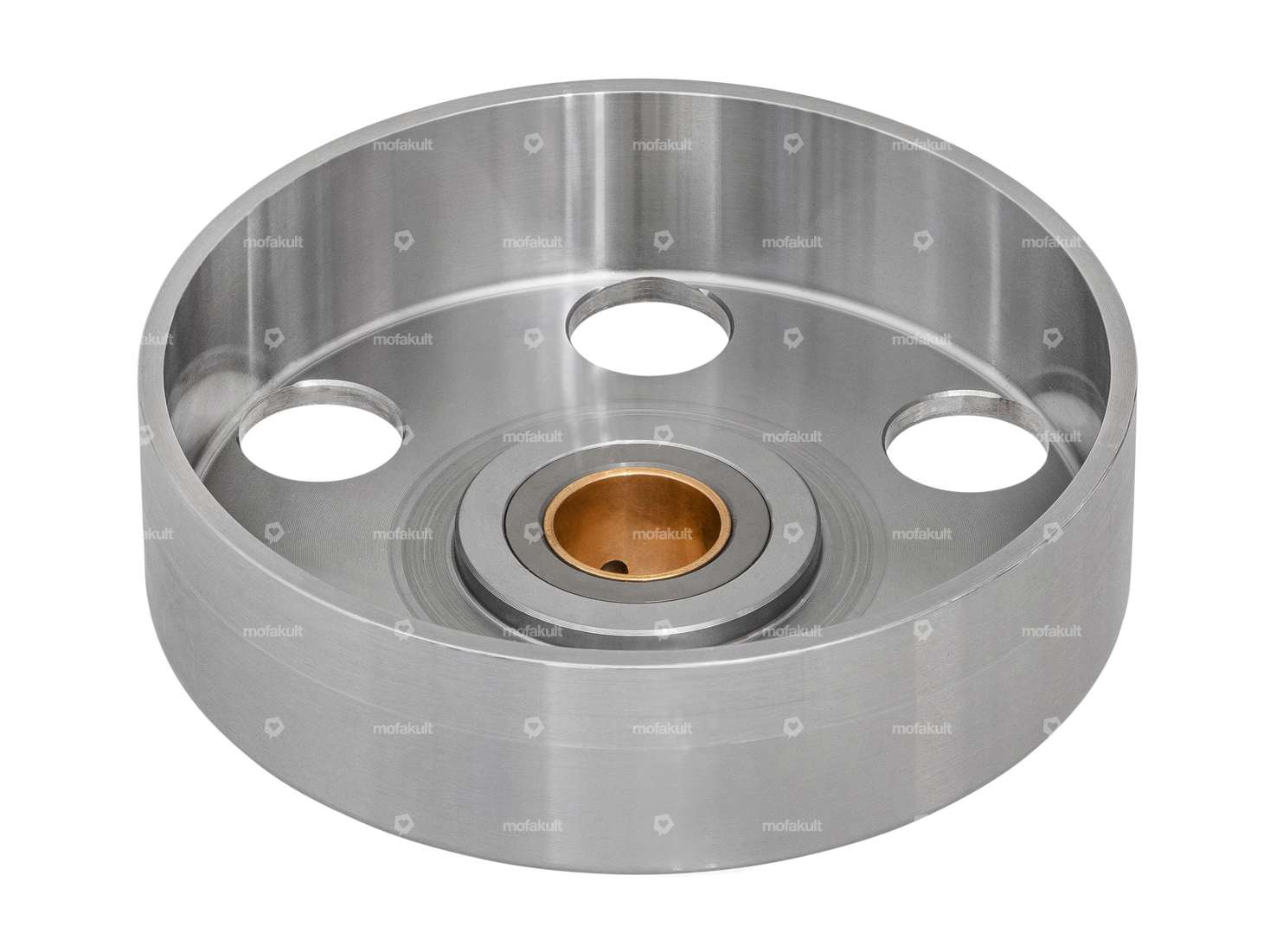

Reinforced, CNC-milled clutch bell for racing purposes. Designed for the highest loads.
Can only be used in conjunction with the KTM SX50 clutch. Well proven in racing.
Fits E50 engines of all Puch Maxi mopeds.
Turned version: can only be used in conjunction with a cable or kick starter!
Reinforced press fit. No more welding points necessary.
21 teeth, helically toothed.
The special sliding bushes are included in the scope of delivery.
Details
| Manufacturer | MBR |
| Area of application | Tuning |
| Toothing type | helical toothed |
| Number of teeth | 21 pcs |
Suitable for the following models
| Puch | E50 |
