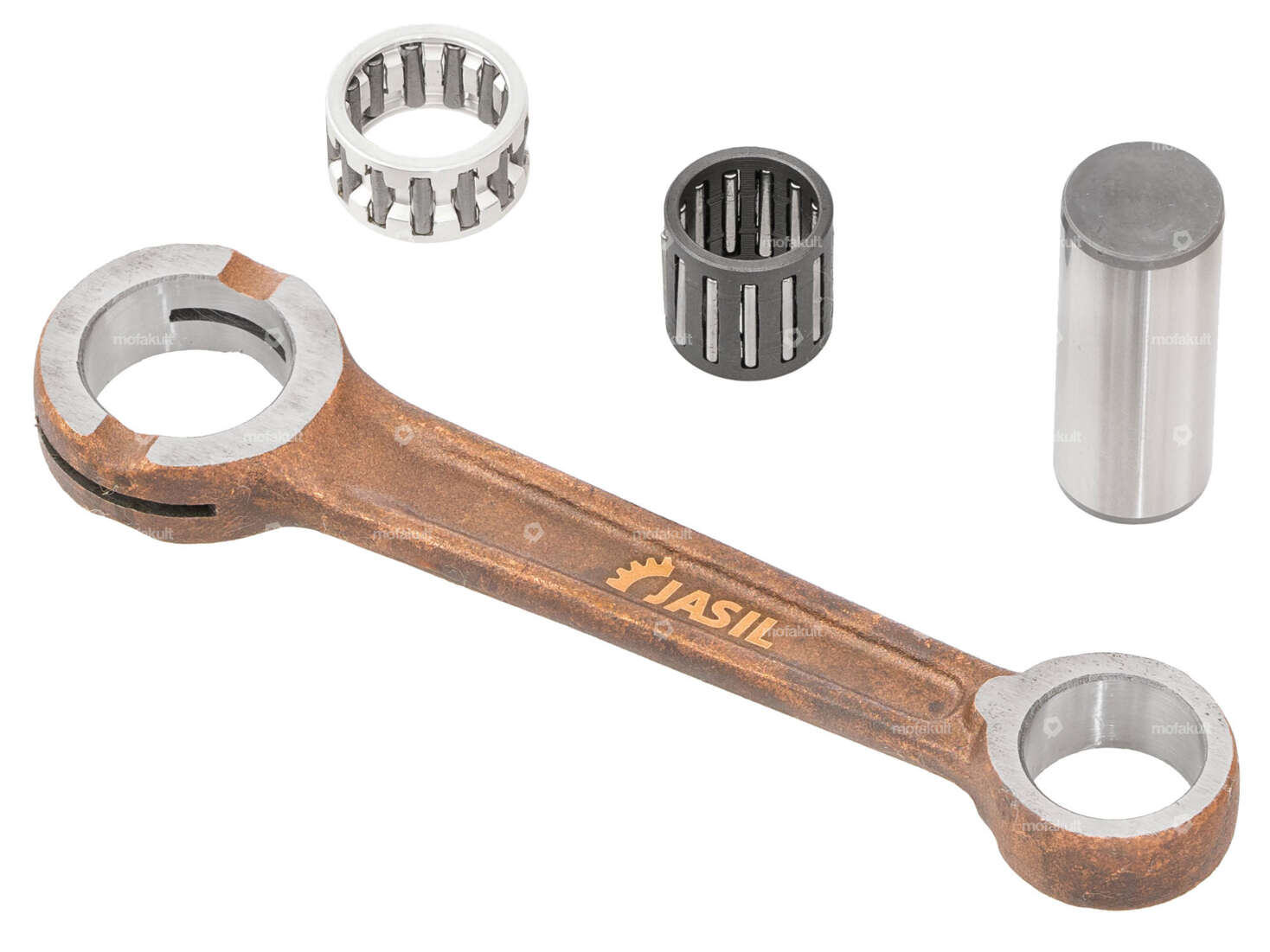

Complete connecting rod suitable for all Puch engine crankshafts.
Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.
Details
Manufacturer | Jasil |
Material | Steel |
Connecting rod length center-center | 90 mm |
Ø Connecting rod bolt | 14 mm |
Surface | copper-coated |
Ø lower connecting rod eye outside | 24.6 mm |
Ø upper connecting rod eye outside | 20.9 mm |
Ø lower bearing inside | 18 mm |
Total length | 114.5 mm |
Ø inside upper bearing | 15 mm |
Dimension lower bearing | 14/15 x 9.75 mm |
Thickness | 10 mm |
Dimension upper bearing | 12/15 x 14.7 mm |
Ø piston pin (B) | 12 mm |
Connecting rod pin length | 34 mm |
Area of application | Standard, Tuning |
Suitable for the following models
Puch | E50 ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
Accessories & related products
Motorex Automatic Motor Oil (ATF) 450 ml
Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony spare part no.: A2080 · Sachs spare part no.: 0263 014 002
EUR 11,20
EUR 24,89/l
Rito Crankshaft Racing | Puch E50
Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Thread length: 14 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Weight: 970 g · Area of application: Racing · Area of application: Tuning · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs
EUR 173,50
Rito connecting rod | Puch
Manufacturer: Rito · Thickness: 10 mm · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 90 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 28.2 mm · Ø upper connecting rod eye outside: 20.5 mm · Area of application: High End · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.7 mm · Dimension upper bearing: 12/15 x 14.7 mm · Ø piston pin (B): 12 mm · Connecting rod pin length: 34.15 mm · Total length: 114 mm
EUR 90,10

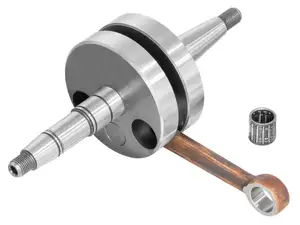

Jasil crankshaft | Puch E50
