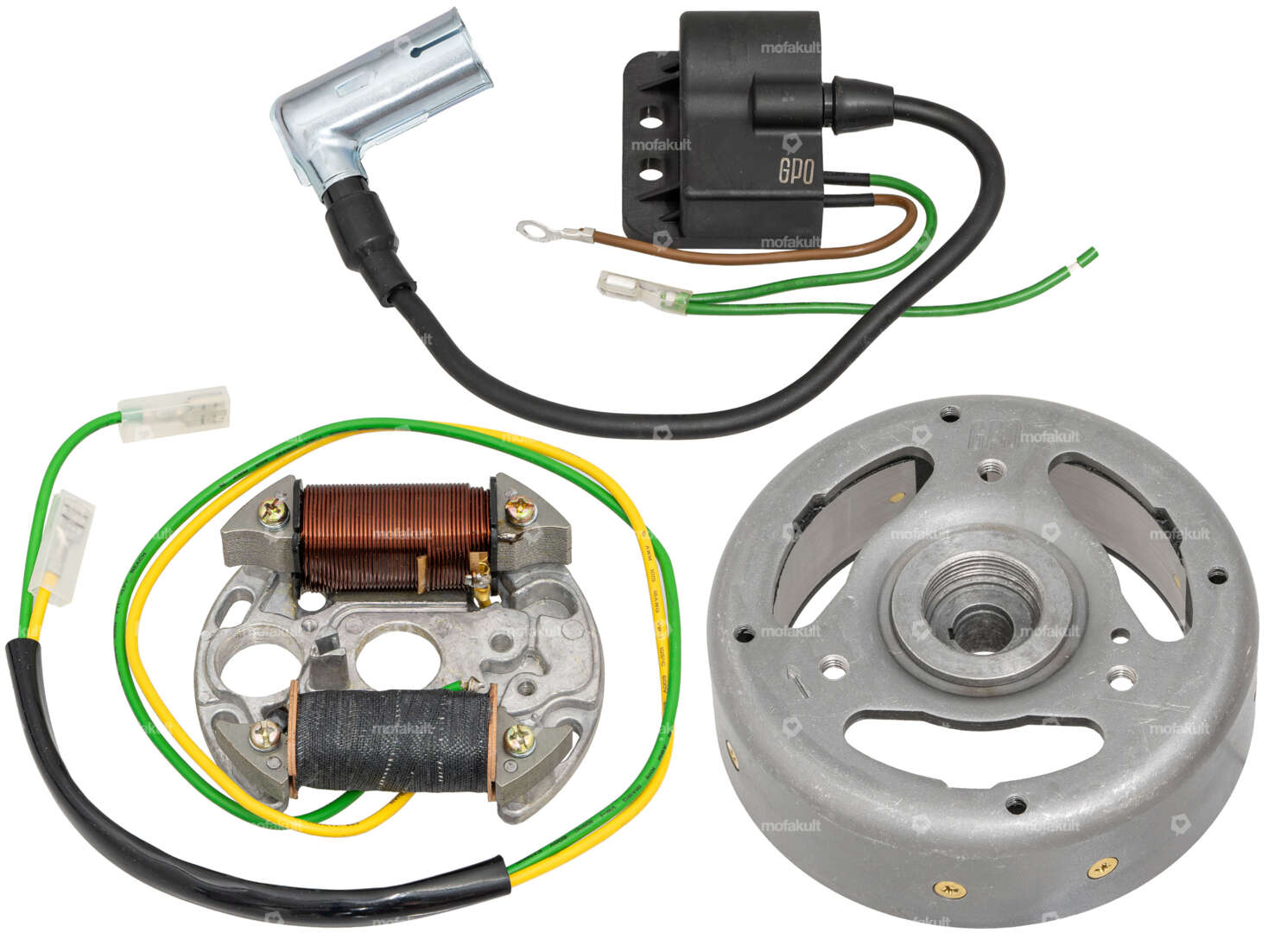

Complete electronic ignition with 12 volt light coil for single-speed automatic engines such as Puch Maxi S, N mopeds / mopeds with E50 engine.
The ignition has neither a capacitor nor an interrupter, making the ignition unit virtually wear-free.
The laborious adjustment of the breaker contacts is also no longer necessary with this ignition.
Direction of rotation: clockwise
Operating voltage of the light system: 12 volts
Power of the light system: 17 watts
Further attachments such as voltage regulator, spark plug, fastening screws, flywheel wedge, etc. can be found in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
The set includes the following fixed parts:
Manufacturer: GPO · Material: Steel, Plastic · Tension: 6 V, 12 V · Direction of rotation: right · Ø cone small inside: 11.8 mm · Ø cone large inside: 15 mm · Cone length: 17 mm · Cone ratio: 1:5 · Ø Internal flywheel: 91 mm · Ø Flywheel outside: 116.3 mm · Thread type: MF26x1.5 (fine pitch thread) · Thread length: 7 mm · Weight: 900 g · Height: 36 mm
Manufacturer: GPO · Material: Plastic · Color: black · Total length: 64 mm · Width: 54 mm · Height: 35 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.3 mm · Hole spacing: 18 mm · Area of application: Standard, Custom
Manufacturer: GPO · Material: Aluminum, Copper, Plastic, Steel · Color: gray · Tension: 6 V, 12 V · Number of cables: 2 pcs · Cable length: 580 mm · Ø inside: 18.5 mm · Ø Internal flywheel: 90 mm · Ø outside: 90 mm · Number of fixing points: 4 pcs · Ø bolt circle: 80 mm · Area of application: Standard, Performance
Details
| Manufacturer | GPO |
| Area of application | Standard |
| Tension | 12 V |
| Performance | 17 W |
| Direction of rotation | right |
| Ø mounting plate | 90 mm |
| Number of fixing points | 4 pcs |
| Mounting type | Screws |
| Ø Internal flywheel | 90 mm |
Suitable for the following models
| Puch |
