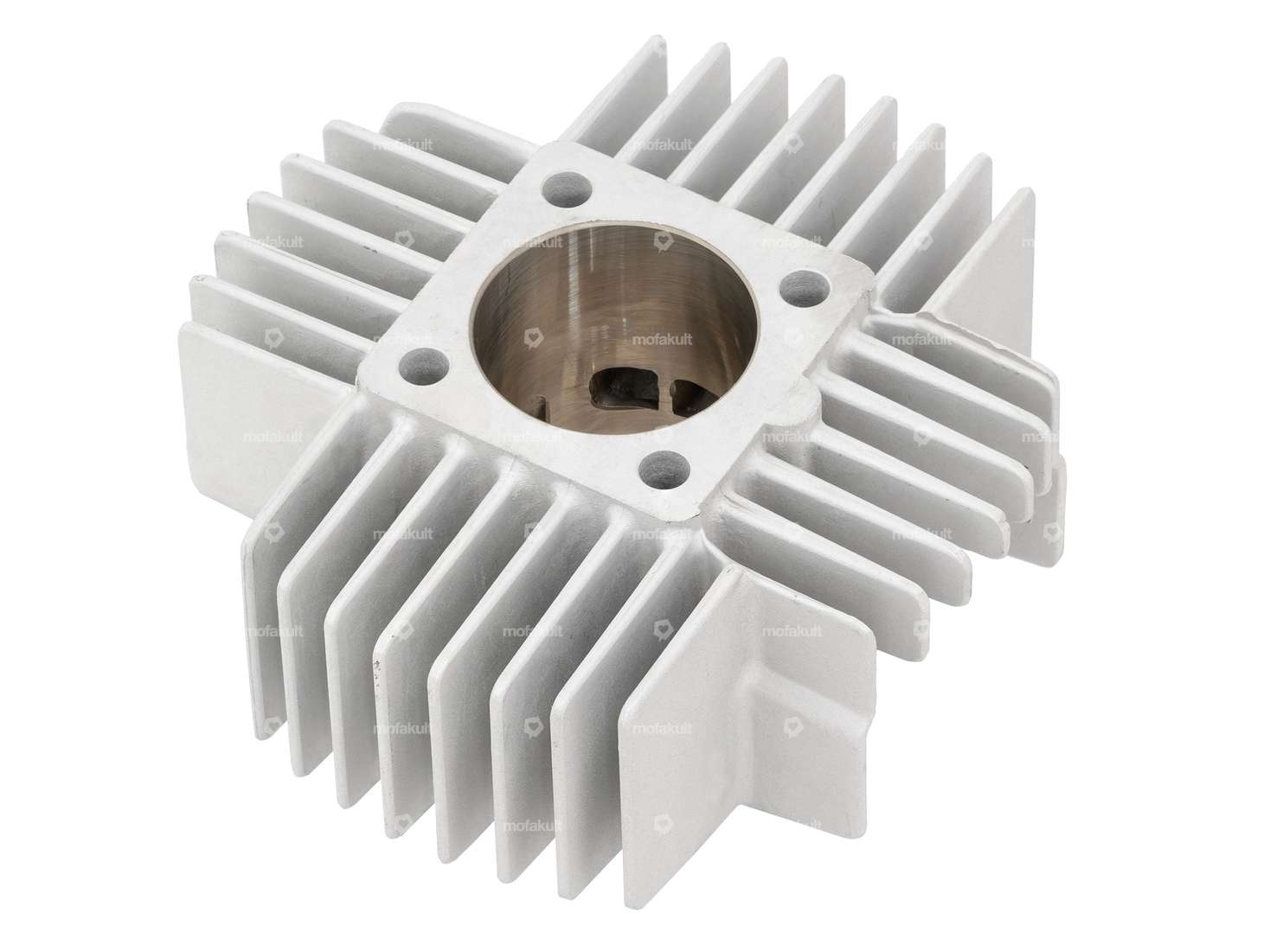

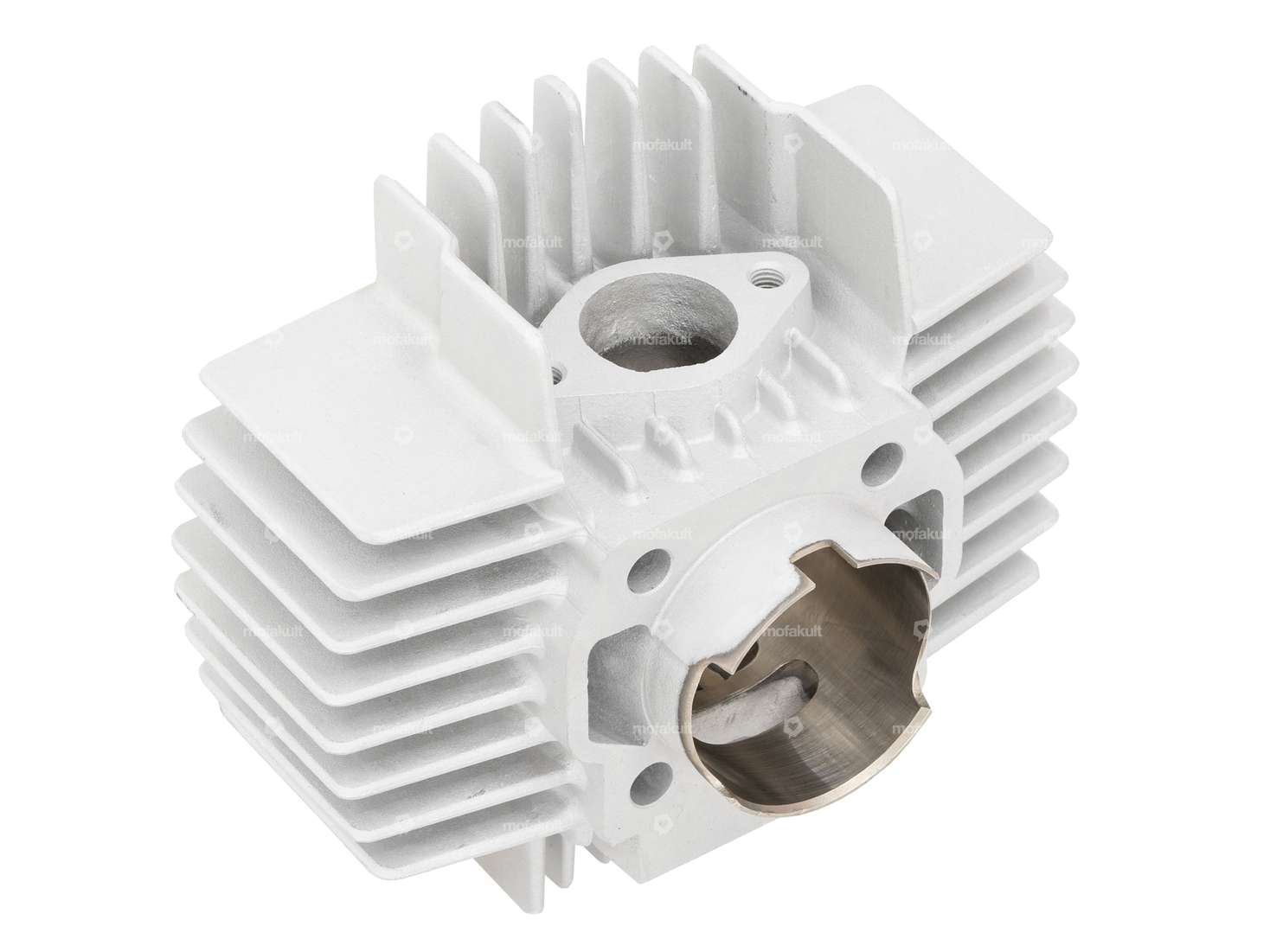

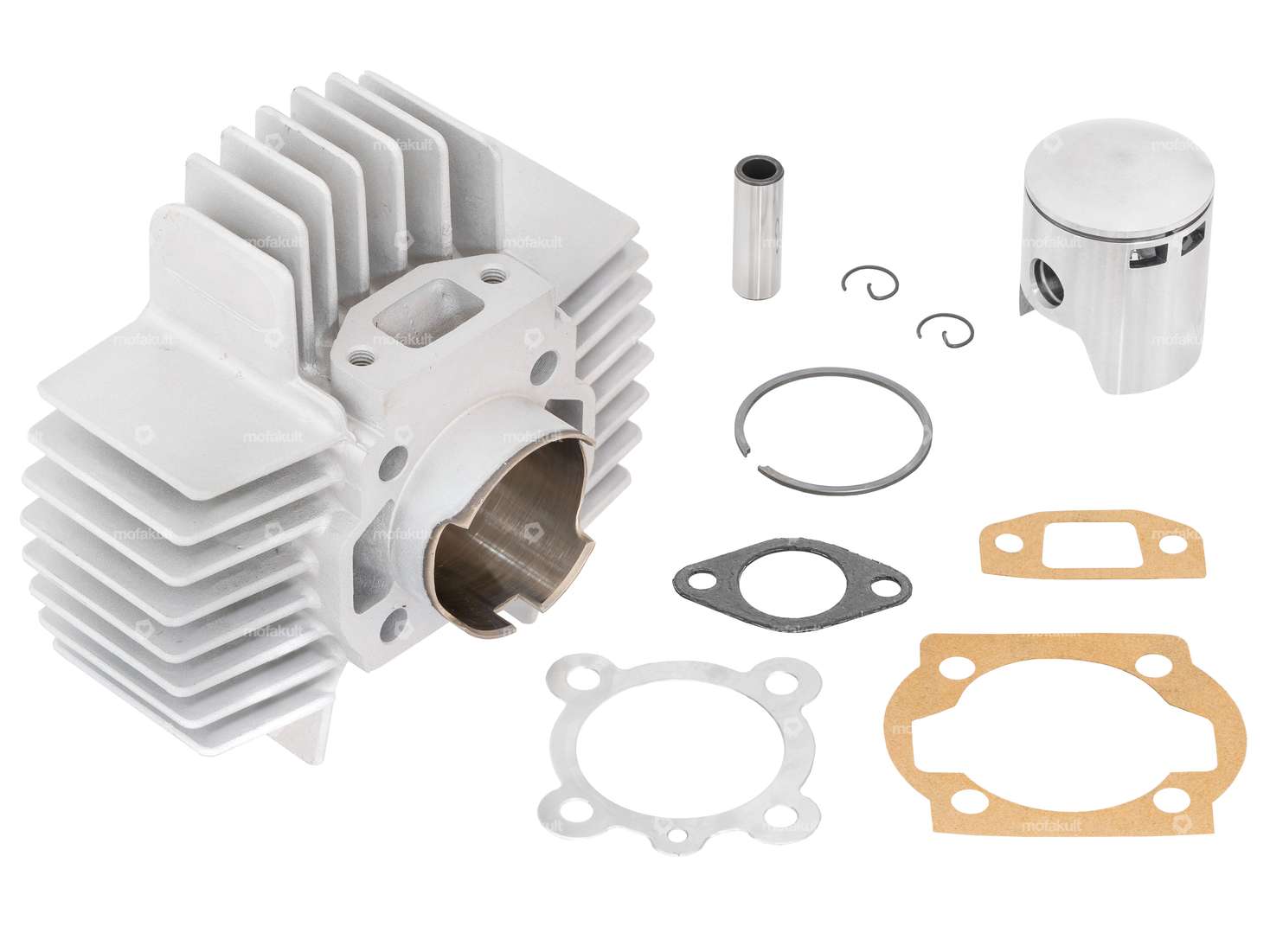

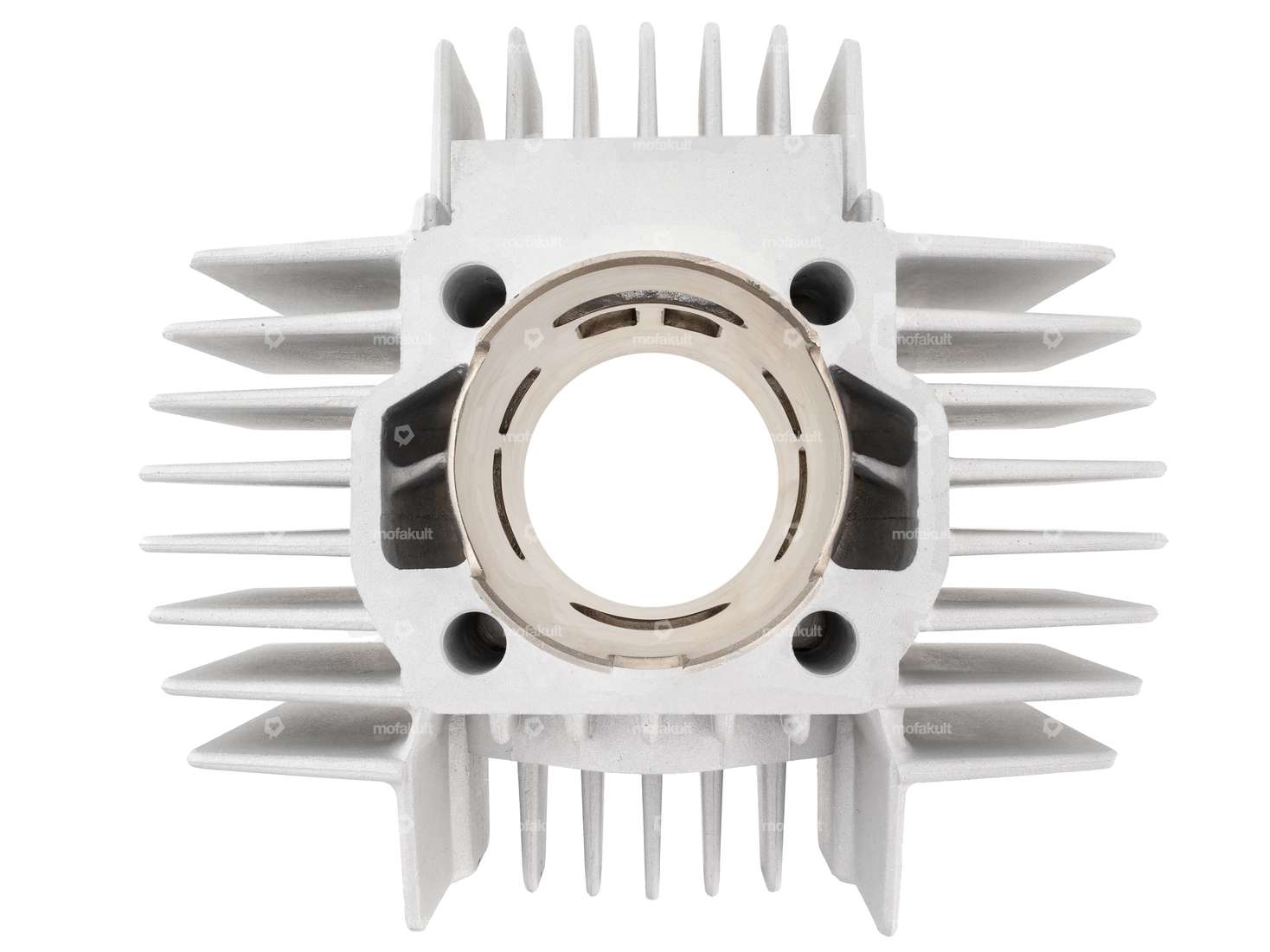

45 mm cylinder kit suitable for Puch Maxi S, N and X30 NS, NL.
The cylinder can be compared with an Airsal.
The cooling fins are slightly larger than the original ones.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
| Manufacturer | GPO |
| Camouflaged | No |
| Area of application | Tuning |
| Material | Cast aluminum |
| Surface | sandblasted |
| Displacement | 70 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 45 mm |
| Ø cylinder neck | 47.8 mm |
| Ø outlet inside | 24.6 mm |
| Inlet window | 21.8 x 14.6 |
| Thread inlet | M6x1 (standard thread) |
| Ø piston pin (B) | 12 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 44 x 44 |
| Decompressor | No |
| Hole spacing inlet | 38 mm |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
