Engine housing screw | Piaggio Ciao, SI, Bravo, Boxer

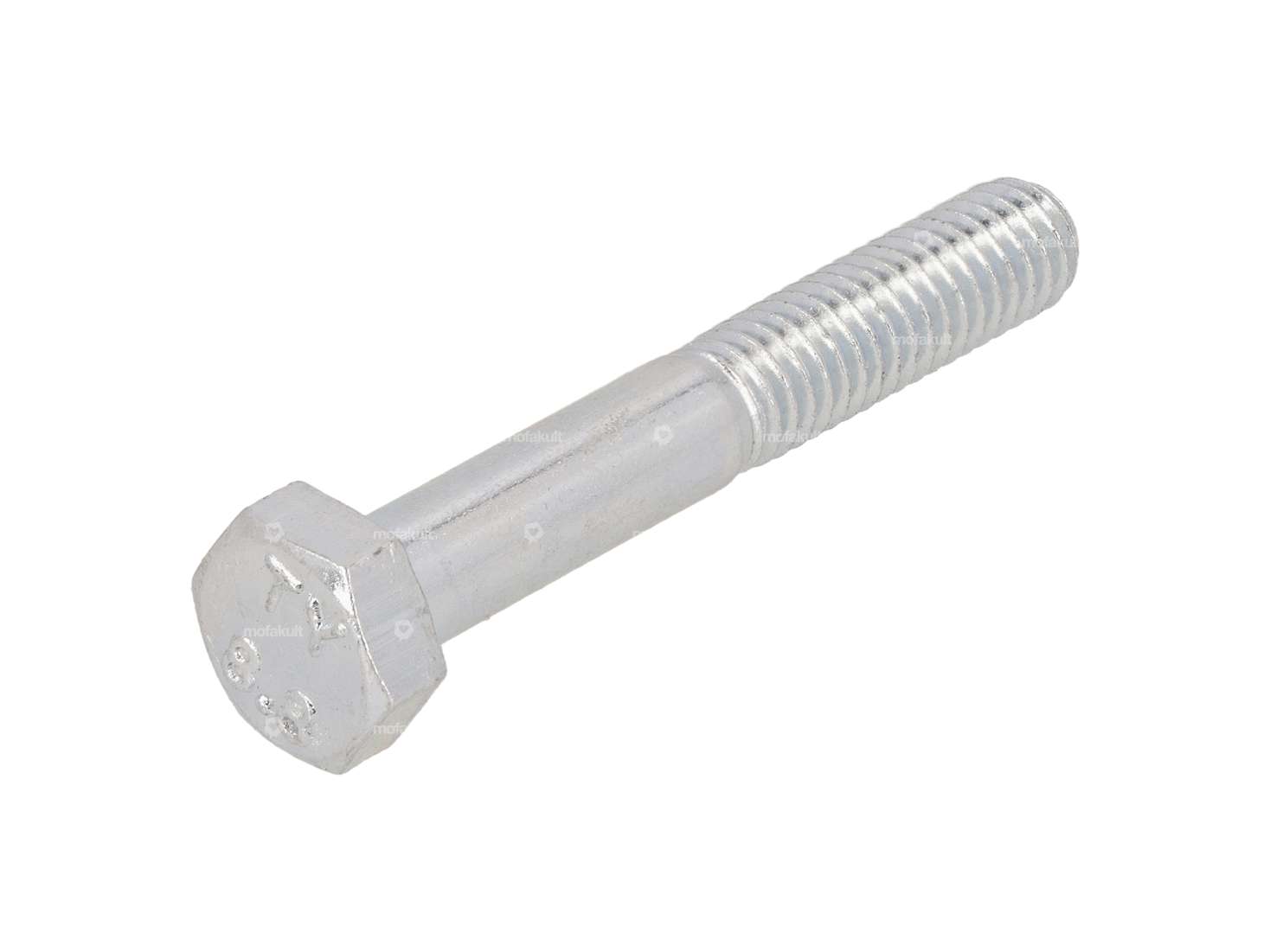

M6x30 hexagon head screw with galvanized shank (strength 10.9)

Material: Steel · Surface: blue galvanized · Thread type: M6x1 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Shank: Yes · Strength class: 10.9 · Shank length: 12 mm · Thread length: 18 mm · Width across flats SW: 10 mm

Washer M6 standard (6.4/12/1.6) galvanized

Material: Steel · Surface: blue galvanized · Thread size: M6 · Ø inside: 6.4 mm · Nominal diameter (thread): 6 mm · Ø outside: 12 mm · Thickness: 1.6 mm · Hardness [HV]: 140 HV · Pony spare part no.: A4515 · Sachs spare part no.: 0944 142 002

Nut M6 raised galvanized

Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut 1D · Thread type: M6x1 (standard thread) · Drive: External hexagon · Width across flats SW: 10 mm · Strength class: 8 · Height: 6 mm

Nut M6 galvanized

Material: Steel · Surface: blue galvanized · Area of application: Standard · Nut type: Hexagon nut 0.8D · Thread type: M6x1 (standard thread) · Drive: External hexagon · Height: 4.8 mm · Strength class: 8 · Width across flats SW: 10 mm

GPO screw set engine housing galvanized | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Thread type: M6x1 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Shank: Yes · Strength class: 8.8 · Width across flats SW: 10 mm

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Spark plug socket: M4 · Cable available: No · Color: silver · Suppressed: Yes · Resistance: 1000 Ω · Ø cable: 5 mm · Ø cable: 7 mm · Pony spare part no.: A2099 · Sachs spare part no.: 0265 100 00

Oil filler plug with sealing ring | Puch Maxi

Material: Steel · Surface: blue galvanized · Thread type: M10x1.5 (standard thread) · Drive: Slot · Screw head: Lens head · Ø External head: 14 mm · Total length: 14.6 mm · Number of components: 2 pcs · Thread length: 6 mm · Puch spare part no.: 364.1.10.660.1

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Material: Steel · Surface: blue galvanized · Number of components: 1 pcs · Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Cable length: 2200 mm · Area of application: Standard

GPO bulb 6V - 15W (P26s) with collar, 1 filament

Manufacturer: GPO · Test mark: none · Color: white · Bulb holder: P26s · Ø base: 26 mm · Tension: 6 V · Performance: 15 W · Ø Lamp head: 25 mm · Total length: 43 mm · Resonance: No

swiing® revival stud bolt M6 x 106 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 12 mm · Thread length: 20 mm · Puch spare part no.: 360.1.10.034.1

Malossi cylinder head for 44 - 47 mm cylinder kit | Piaggio Ciao, Bravo 1, Boxer

Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Area of application: Racing · Ø cylinder: 44 - 47 mm · Total length: 122 mm · Number of fixing points: 3 pcs · Candle thread: long · Height: 60 mm · Width: 87 mm · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No

Nut M6 raised galvanized

Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut 1D · Thread type: M6x1 (standard thread) · Drive: External hexagon · Width across flats SW: 10 mm · Strength class: 8 · Height: 6 mm

Nut M6 galvanized

Material: Steel · Surface: blue galvanized · Area of application: Standard · Nut type: Hexagon nut 0.8D · Thread type: M6x1 (standard thread) · Drive: External hexagon · Height: 4.8 mm · Strength class: 8 · Width across flats SW: 10 mm

Choke lever red Dell'Orto SHA Type 3 | Piaggio Ciao PX, C24

Material: Plastic · Material: Steel · Surface: blue galvanized · Carburetor type: SHA (type 3) · Ø outside: 4 mm · Total length: 92 mm · Height: 21.5 mm · Width: 16 mm · Choke control: Hand choke · Piaggio spare part no.: 188772 · Piaggio spare part no.: 297837

M6x40 hexagon head screw with galvanized shank

Material: Steel · Surface: blue galvanized · Thread type: M6x1 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Total length: 44 mm · Shank: Yes · Strength class: 8.8 · Shank length: 18 mm · Thread length: 22 mm · Width across flats SW: 10 mm
