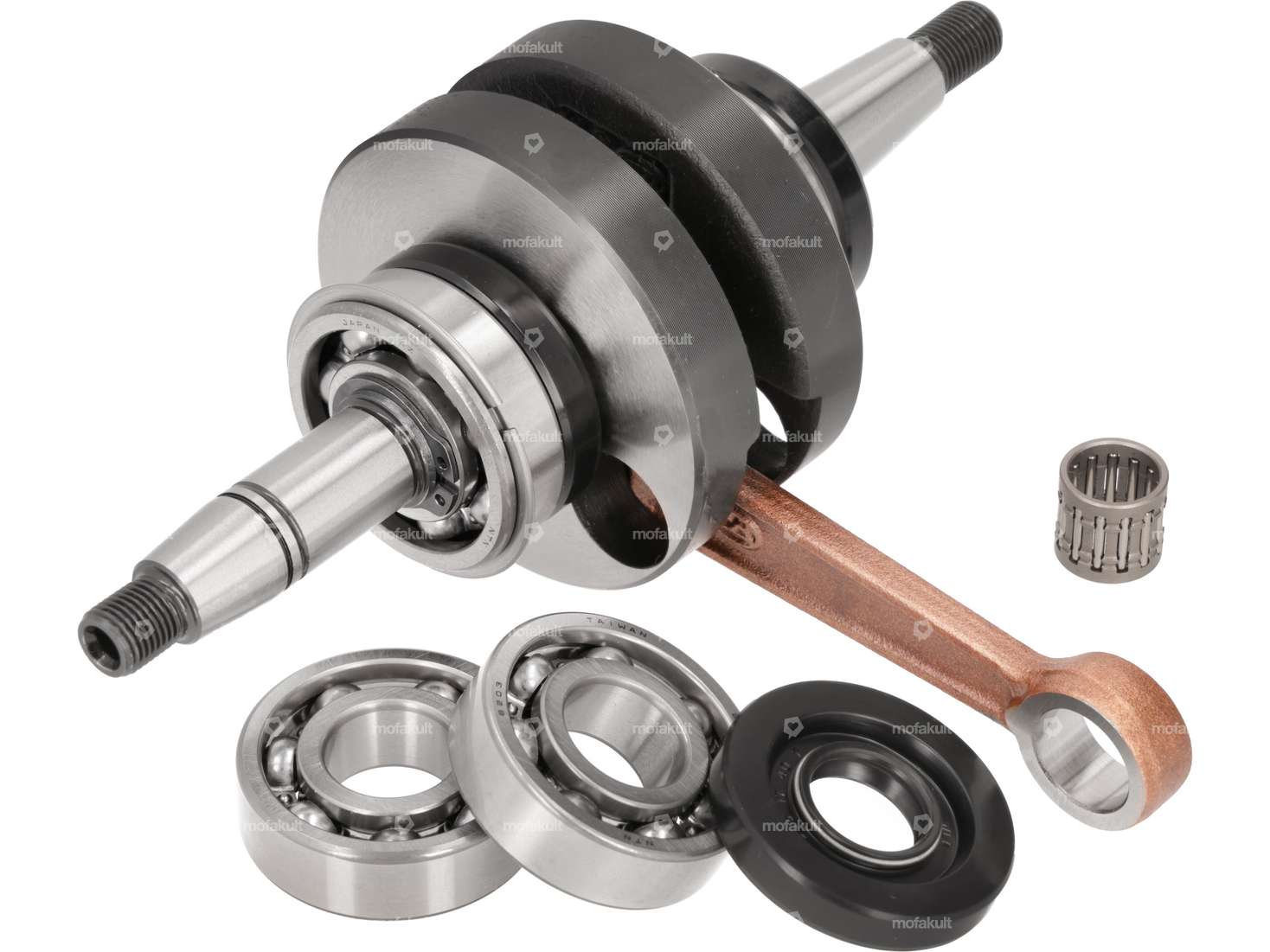

Original crankshaft suitable for Puch Maxi S / N mopeds, as well as Supermaxi LG1 mopeds with 1-speed E50 engine.
High-quality and precisely fitting standard crankshaft weighing 873 grams. This crankshaft was designed for use in original engines. The solid connecting rod is fitted with a Ø 14 mm connecting rod bolt.
Dimensions of the crankshaft:
- Total length of clutch-side crankpin: 74 mm
- Total length of clutch-side crankpin: 67 mm
- Length 1. Heel (clutch side): 9 mm
- Length 2nd heel (clutch side) 14.5 mm
- Length 3rd heel (clutch side) 25 mm
- Ø 1st heel (clutch side): 22 mm
- Ø 2nd heel (clutch side): 17 mm
- Ø 3rd heel (clutch side): 15 mm
- Thread (coupling side): MF10x1 mm
- Length of shoulder (on coupling side): 26.6 mm
- Ø shoulder (on end face): 17 mm
- Thread (on end face): MF10x1 mm
- Ø Crank webs: 69.9 mm
- Width of crank webs: 34 mm
- Ø Connecting rod eye top: 15 mm
- Ø Connecting rod pin bottom: 14 mm
- Conrod length (center-to-center): 90 mm
- Stroke: 43 mm
- Weight (including connecting rod). Connecting rod): 873 grams
- Needle bearing dimensions: Ø 12 / 15 x 14.2 mm (axe 12)
The two standard ball bearings and oil seals are already fitted on the crankshaft.
The two ball bearings, the oil seal from the rear gear and the needle bearing are also included in the scope of delivery. Depending on the gearbox, only one of the two bearings is required.
Branded product from the manufacturer DMP.
Details
| Dimension needle bearing | 12 / 15 x 14.2 (axe 12) |
| Manufacturer | DMP |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Connecting rod length center-center | 90 mm |
| Weight | 873 g |
| Total length of crankpin on clutch side | 74 mm |
| Total length crankpin ignition side | 66 mm |
| Ø crank webs | 69.9 mm |
| Area of application | Standard |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread length | 10 mm |
| Wide crank webs | 34 mm |
| Length 1st paragraph | 9 mm |
| Length 2nd paragraph | 14.5 mm |
| Length 3rd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 22 mm |
| Ø 2nd shoulder (on the clutch side) | 17 mm |
| Ø 3rd step (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.6 mm |
| Number of gears | 1 pcs |
Suitable for the following models
| Puch | E50 |
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing cage: Silver cage · Ø inside: 12 mm · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Width: 16.2 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos spare part no.: 035548
EUR 15,70
swiing® revival screw set Motor Inox | Puch E50
Manufacturer: swiing® revival parts · Area of application: Standard · Material: Chrome steel (stainless steel) · Surface: blank · Drive: Hexagon socket · Drive: Slot · Screw head: Countersunk head · Screw head: Cylinder head · Puch spare part no.: 900.1216 · Puch spare part no.: 900.1308
EUR 22,40
swiing® ingenious crankshaft High End with mounted bearings (Version 2.0) | Puch E50
Manufacturer: swiing® ingenious parts · Area of application: High End · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Weight: 968 g · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs
EUR 201,60
Not in stock
Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C
Manufacturer: Elring · Area of application: Chemistry · Material: Silicone · Contents [ml]: 70 ml · Color: gray · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Temperature resistance (min.): -60 - 315 °C · Gap dimension (max.): 2 mm
EUR 22,40
EUR 320,00/l
Dirko Dichtmasse rot (Silikon) Hochtemperatur 70 ml dauerelastisc
Manufacturer: Elring · Area of application: Chemistry · Color: red · Contents [ml]: 70 ml · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm
EUR 25,80
EUR 368,57/l
DMP Crankshaft Standard | Puch E50
Manufacturer: DMP · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 14.5 mm · Total length of crankpin on clutch side: 74 mm · Weight: 873 g · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.6 mm · Number of gears: 1 pcs
EUR 95,70
DMP crankshaft full cheeks | Puch E50
Manufacturer: DMP · Area of application: High End · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 10 mm · Thread length: 14.5 mm · Total length of crankpin on clutch side: 74 mm · Weight: 977 g · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.6 mm · Number of gears: 1 pcs
EUR 135,10

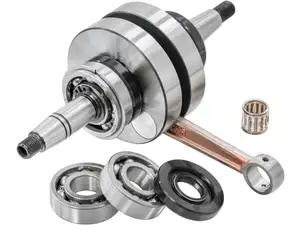

DMP crankshaft full cheeks with mounted bearings | Puch E50
