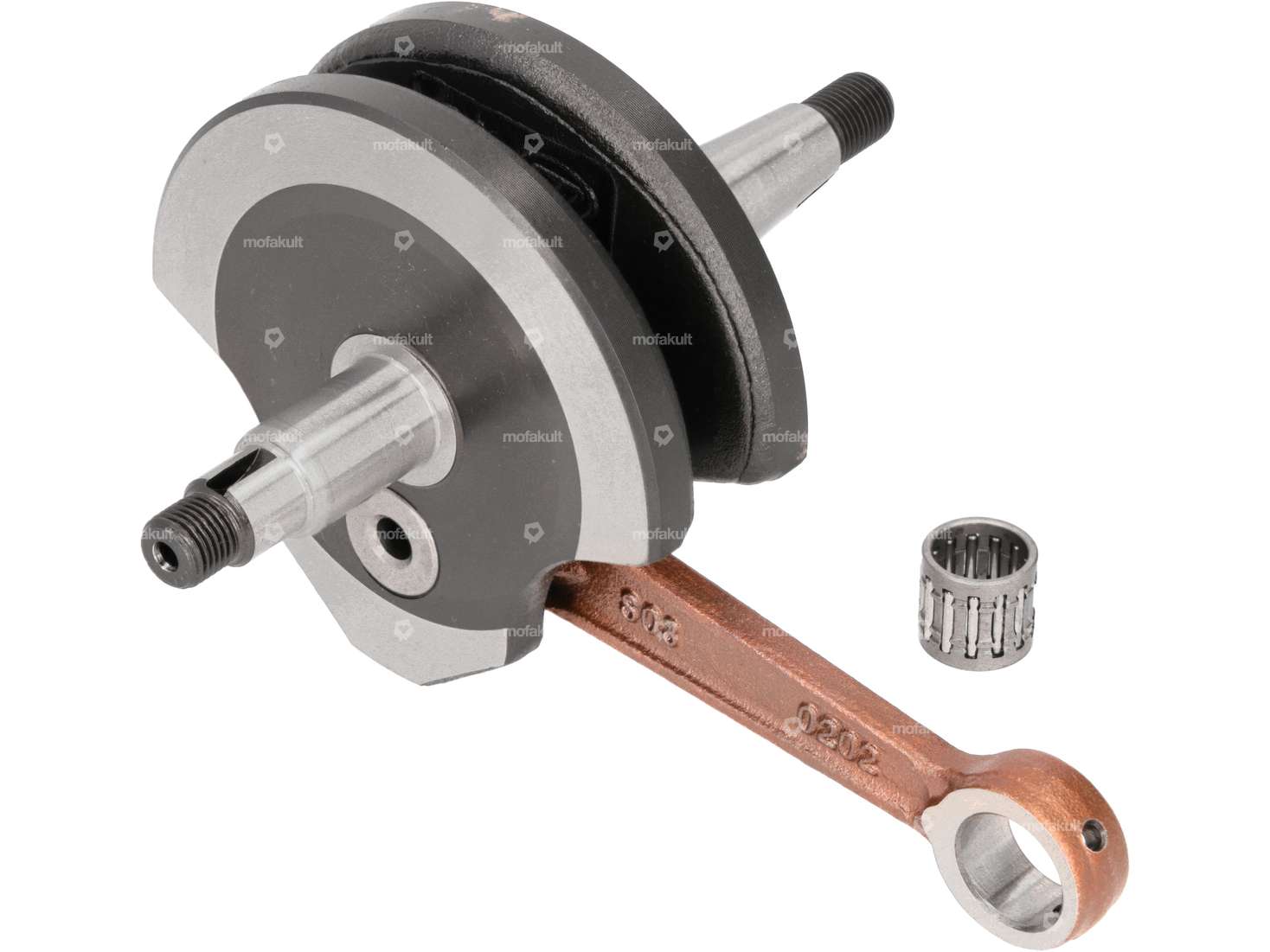

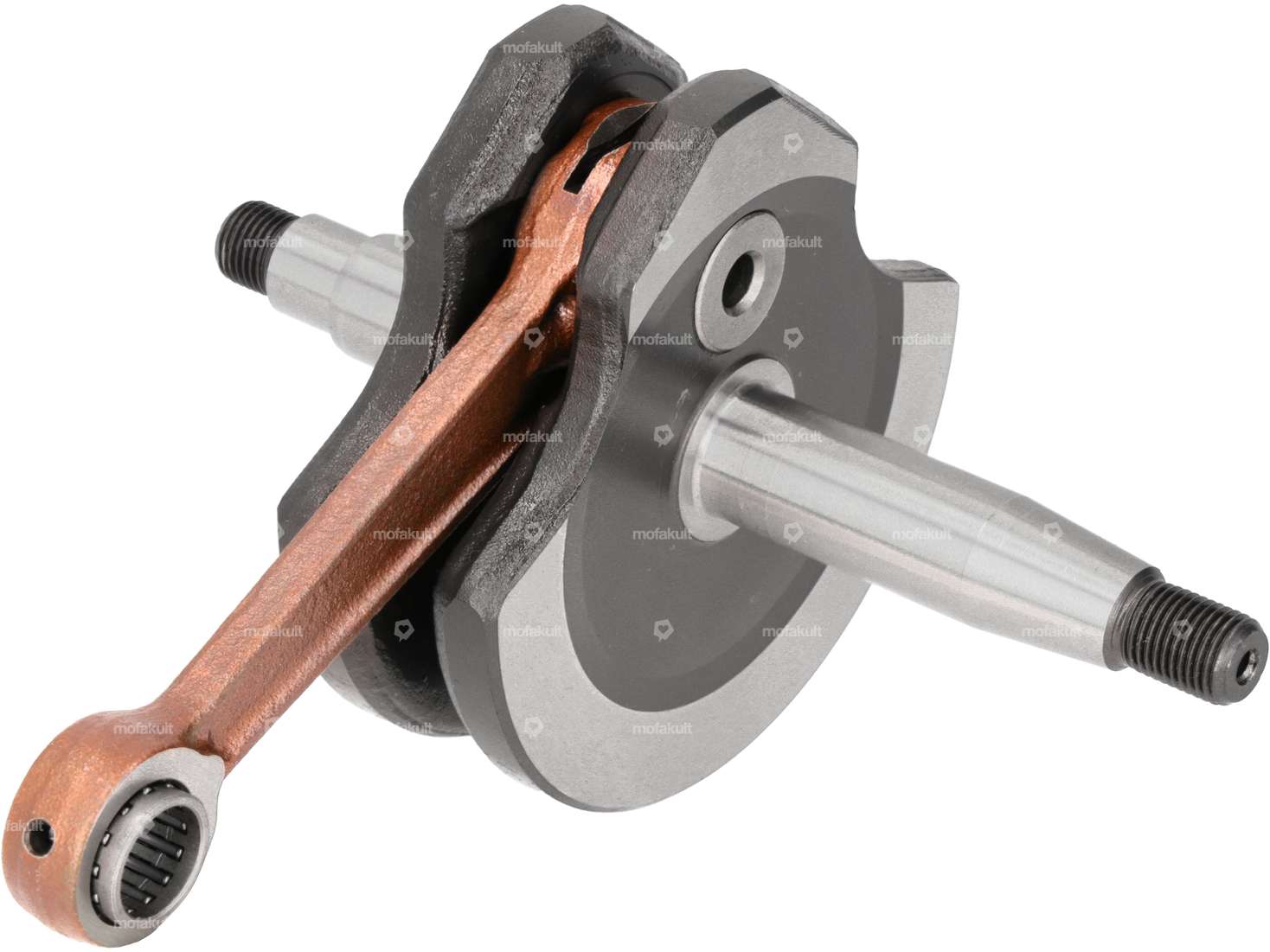

Crankshaft suitable for your Zündapp Bergsteiger M25, M50 & Belmondo moped, moped and small motorcycle with 247 engine.
Total length of clutch-side crankpin: 40.4 mm
Total length of clutch-side crankpin: 65 mm
Length 1st shoulder (clutch side): 21 mm
Length 2nd shoulder (clutch side) 9.6 mm
Ø 1st shoulder (clutch side): 15 mm
Ø 2nd shoulder (clutch side): 12 mm
Thread (coupling side): MF10x1 mm
Length of shoulder (on coupling side): 35 mm
Ø shoulder (on coupling side): 15 mm
Thread (on end face): MF10x1 mm
Ø crank webs: 85 mm
Width of crank webs: 30 mm
Ø connecting rod eye top: 15 mm
Ø connecting rod pin bottom: 16 mm
Connecting rod length (center-to-center): 91.5 mm
Stroke: 42 mm
Weight (including connecting rod). Connecting rod): 892 grams
The drive shaft is supplied with the corresponding needle bearing.
You can find a full cheek shaft for your Belmondo, as well as other attachments, in the accessories section.
Details
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 42 mm |
| Ø coupling pin / vario pin | 15 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Connecting rod length center-center | 91.5 mm |
| Total length of crankpin on clutch side | 40.4 mm |
| Total length crankpin ignition side | 65 mm |
| Ø crank webs | 85 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 16 mm |
| Weight | 892 g |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread length | 14 mm, 8.5 mm |
| Dimension needle bearing | 12 /15 x 14.2 mm (axe 12) |
| Wide crank webs | 30 mm |
| Ø 1st step (on the coupling side) | 21 mm |
| Ø 2nd shoulder (on the clutch side) | 9.6 mm |
| Length of shoulder (ignition side) | 35 mm |
Suitable for the following models
| Zündapp |
Accessories & related products
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony Spare part no.: A4222 · Alternative version of Sachs spare part no.: 0232 157 001 · Tomos spare part no.: 035548
EUR 13,40

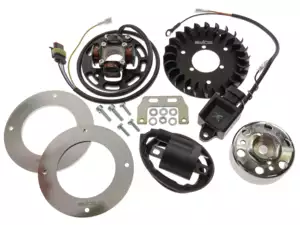

HPI racing ignition set 12V with light 60W | Puch X30 Velux / Sachs 503 / Zündapp Belmondo
Manufacturer: HPI · Manufacturer: swiing · Tension: 12 V · Performance: 60 W · Direction of rotation: left · Direction of rotation: right · Ø mounting plate: 90 mm · Ø cable: 7 mm · Area of application: Tuning
EUR 422,60
swiing® ingenious 44 mm cylinder kit tuning with head | Zündapp Bergsteiger M25, M50 (Type 247)
Nominal diameter: 44 mm · Manufacturer: Vertex · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 42 mm · Thread inlet: M6x1 (standard thread) · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: No · Camouflaged: No · Area of application: Tuning
EUR 270,40
Dirko Dichtmasse rot (Silikon) Hochtemperatur 70 ml dauerelastisc
Manufacturer: Elring · Area of application: Chemistry · Color: red · Contents [ml]: 70 ml · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm
EUR 25,80
EUR 368,57/l

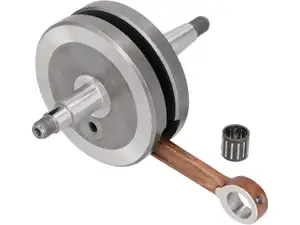

Jasil crankshaft full cheek long stroke | Zündapp Belomondo (Type 247), Bergsteiger M25, M50
