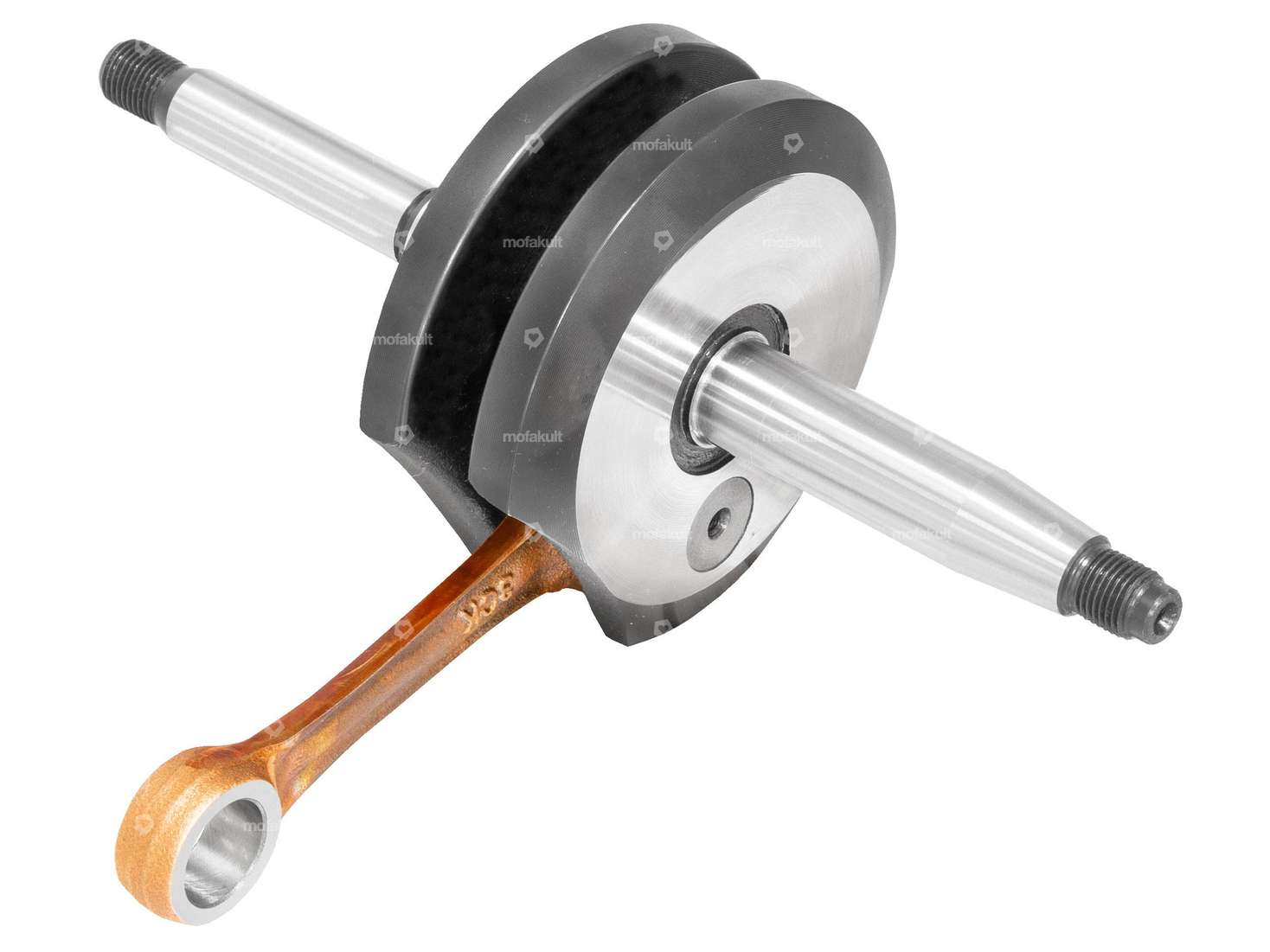

Crankshaft suitable for mopeds / mopeds with Sachs 505, 535 A1 and 535 AV engines.
Dimensions of the crankshaft:
- Total length of clutch-side crankpin: 77.5 mm
- Total length of crankpin on the clutch side: 73.5 mm
- Length of 1st shoulder (clutch side): 18 mm
- Length 2nd shoulder (clutch side) 44 mm
- Ø 1st shoulder (clutch side): 15 mm
- Ø 2nd heel (clutch side): 11.6 mm
- Thread (coupling side): MF10x1 mm
- Length of shoulder (on coupling side): 42.5 mm
- Ø shoulder (on the coupling side): 15 mm
- Thread (on end face): MF10x1 mm
- Ø Crank webs: 79.9 mm
- Width of crank webs: 34.3 mm
- Ø Connecting rod eye top: 15 mm
- Ø Connecting rod pin bottom: 14 mm
- Connecting rod length (center-to-center): 85 mm
- Stroke: 44 mm
- Weight (including connecting rod). Connecting rod): 956 grams
- Needle bearing dimension: Ø 12 / 15 x 14.2 mm (axe 12)

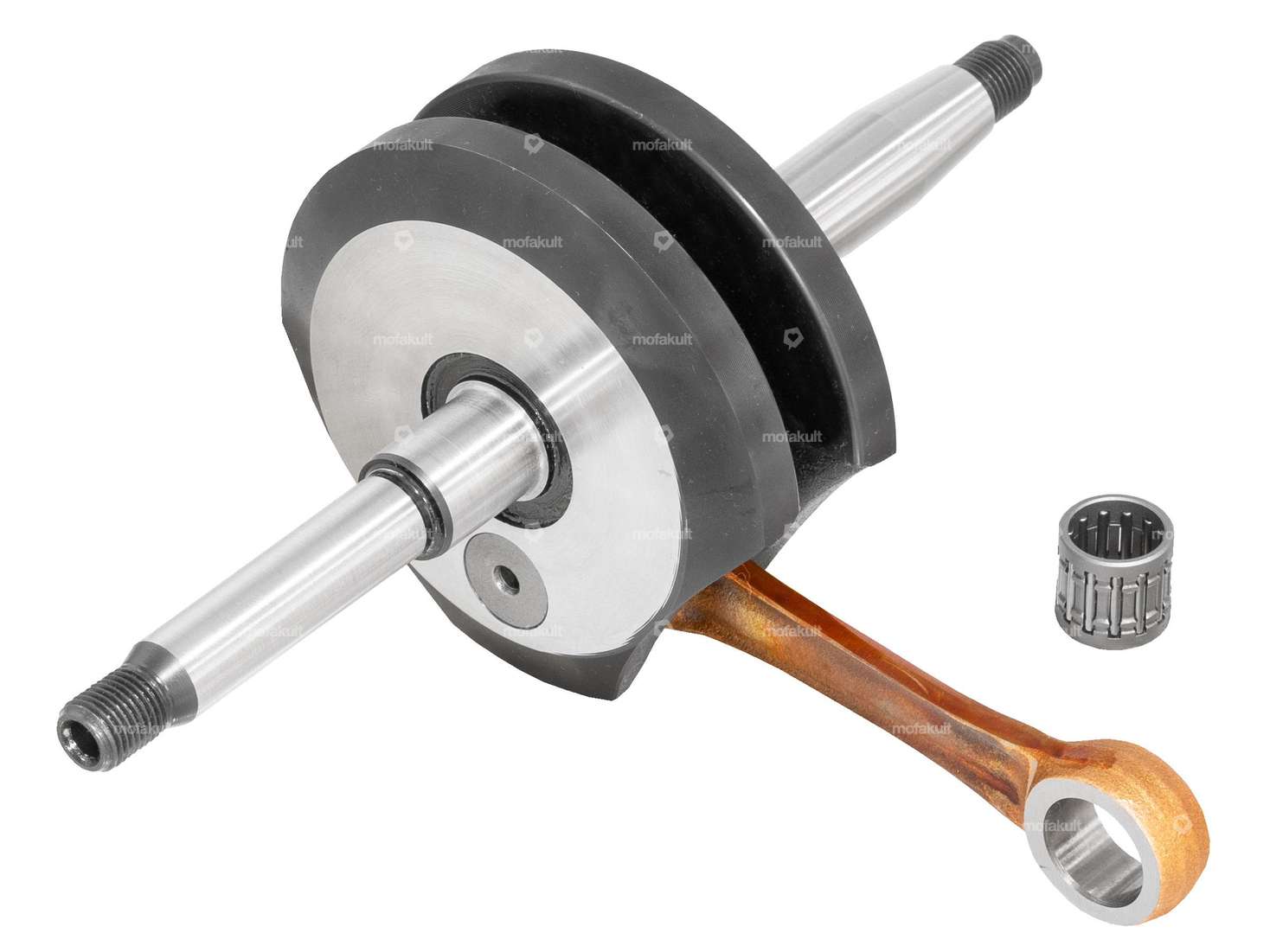

The needle bearing is included in the scope of delivery.
Original Pony spare part number: A4477
Details
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Area of application | Standard |
| Material | Steel |
| Crankshaft stroke | 44 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Connecting rod length center-center | 85 mm |
| Total length of crankpin on clutch side | 77.5 mm |
| Total length crankpin ignition side | 73.5 mm |
| Ø crank webs | 79.9 mm |
| Ø piston pin (B) | 12 mm |
| Thread length | 12 mm |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Weight | 956 g |
| Ø Bearing seat (ignition side) | 15 mm |
| Wide crank webs | 34.3 mm |
| Length 1st paragraph | 18 mm |
| Length 2nd paragraph | 44 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 11.6 mm |
| Length of shoulder (ignition side) | 42.5 mm |
| Number of gears | 1 pcs, 2 pcs |
| Pony spare part no. | A4477 |
Suitable for the following models
| Sachs | 505 (mit Tretwelle) |
Accessories & related products
Airsal 43.5 mm cylinder kit incl. mounting parts | Sachs 504, 505, 508
Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Nominal diameter: 43.5 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 14 mm · Inlet window: 23.8 x 14.8 · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56 (61) x 56 · Outlet type: clamped · Decompressor: M10x1.5 · Hole spacing inlet: 31 mm
EUR 225,30
Jasil crankshaft full cheeks | Sachs 505, 535 A1, 535 AV
Manufacturer: Jasil · Area of application: Standard · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Total length of crankpin on clutch side: 77.5 mm · Total length crankpin ignition side: 74 mm · Ø Bearing seat (clutch side): 14.95 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 14.95 mm · Alternative version of Sachs spare part no.: A4477
EUR 169,00
Jasil crankshaft original | Sachs 505, 535 A1, 535 AV (A4477)
Manufacturer: Jasil · Area of application: Standard · Cheek type: standard · Total length of crankpin on clutch side: 77.5 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 15 mm · Pony spare part no.: A4477
EUR 150,90
