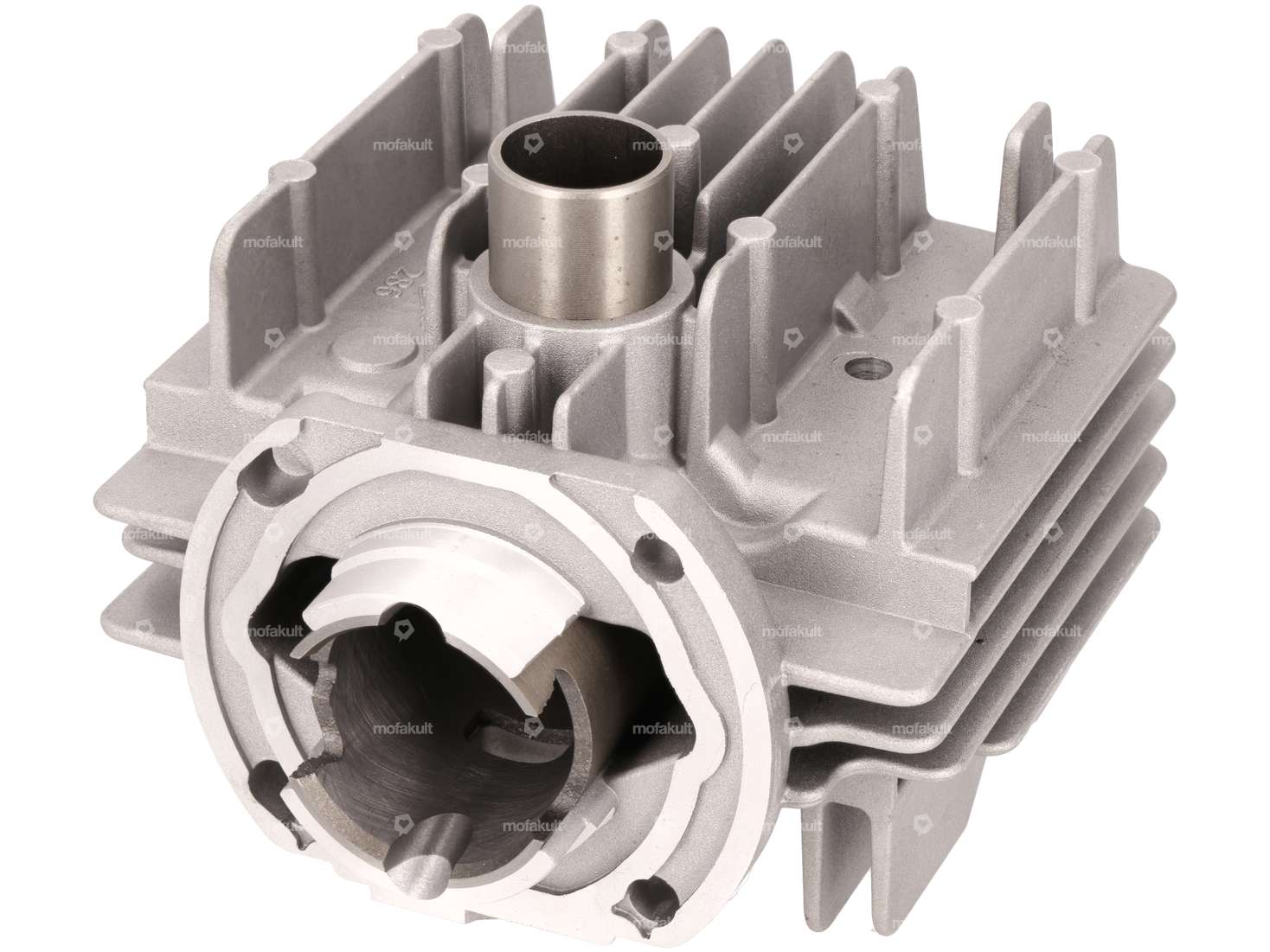

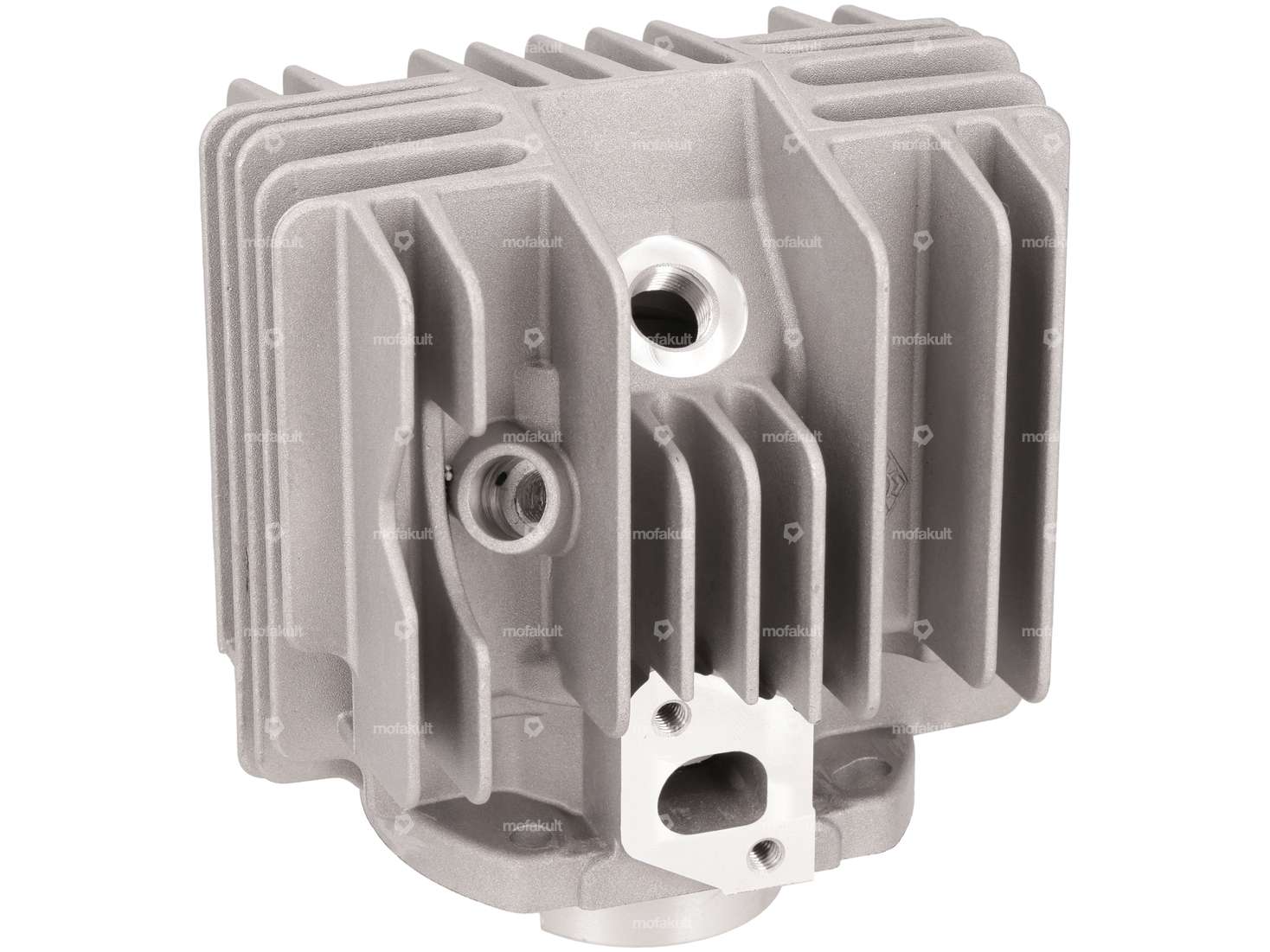

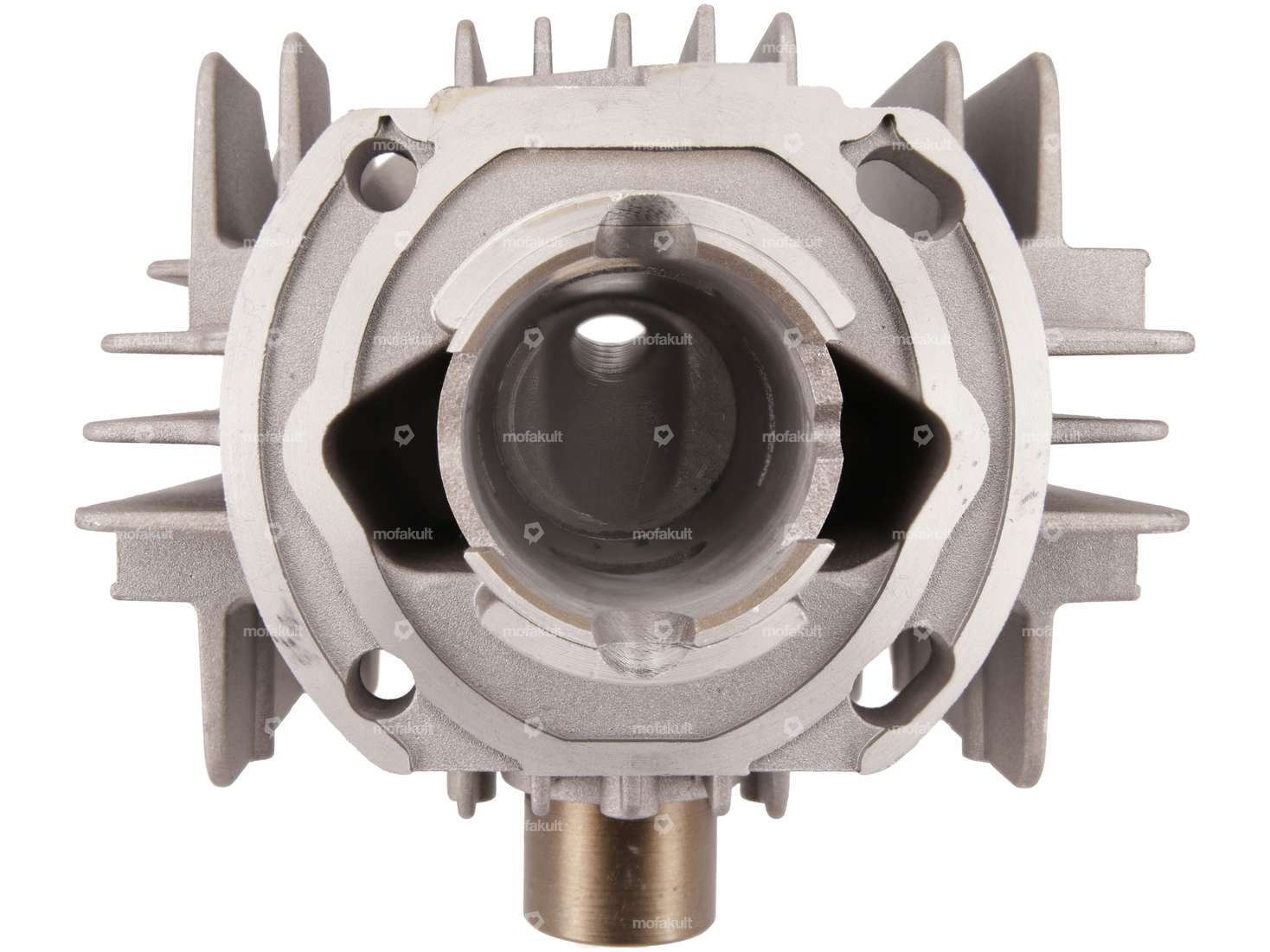

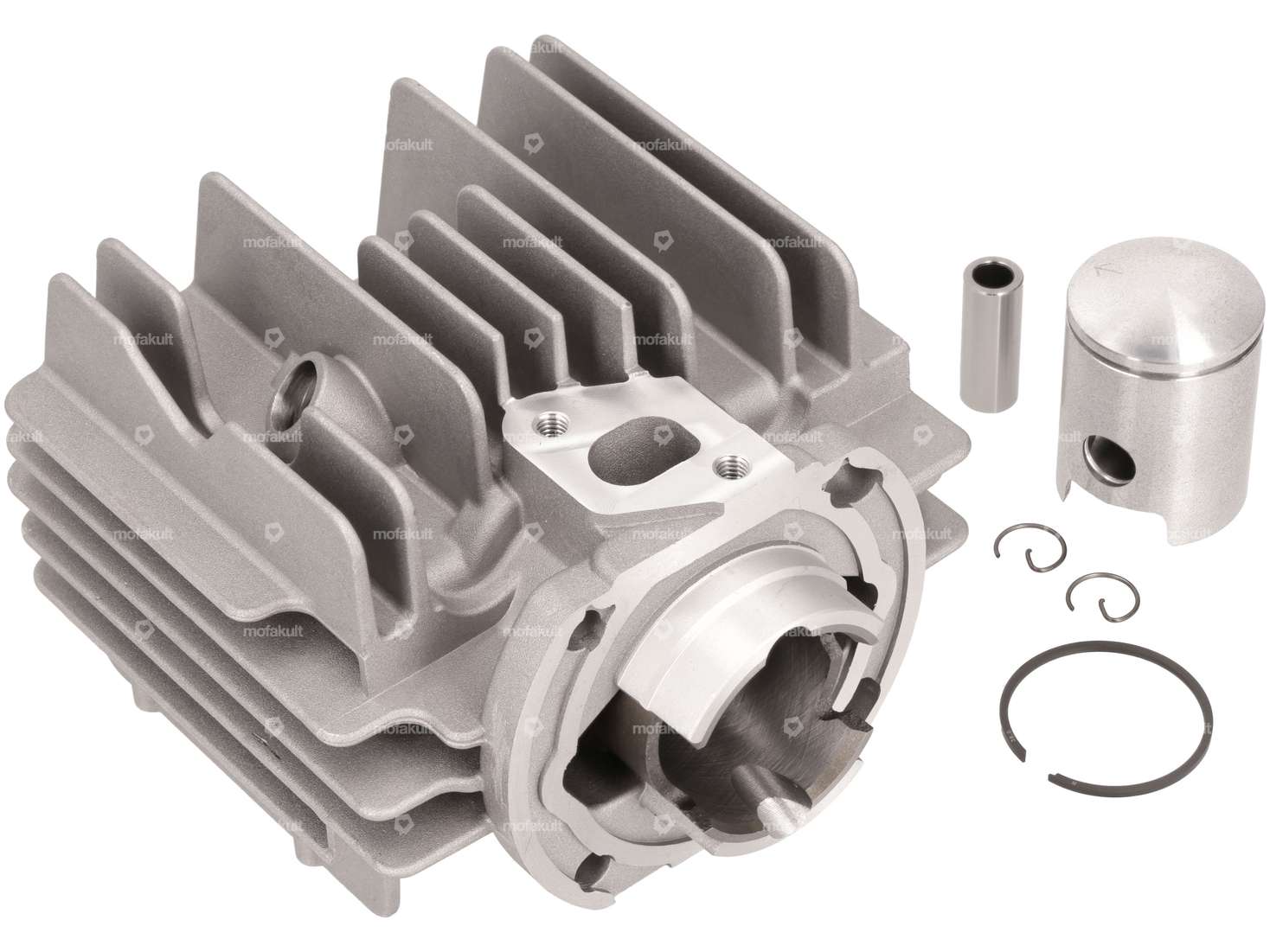

38 mm aluminum cylinder with steel liner, suitable for Sachs 504, 505 & 508 engines, which were installed in Hercules Prima 2, 3, 4, 5, Optima and Pony City mopeds, among others.
Details
| Material | Aluminum |
| Displacement | 50 ccm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 38 mm |
| Ø cylinder neck | 51.9 mm, 49.4 mm |
| Ø Outlet outside | 25.9 mm |
| Inlet window | 18 x 13.4 |
| Ø outlet inside | 22.5 mm |
| Thread inlet | M6x1 (standard thread) |

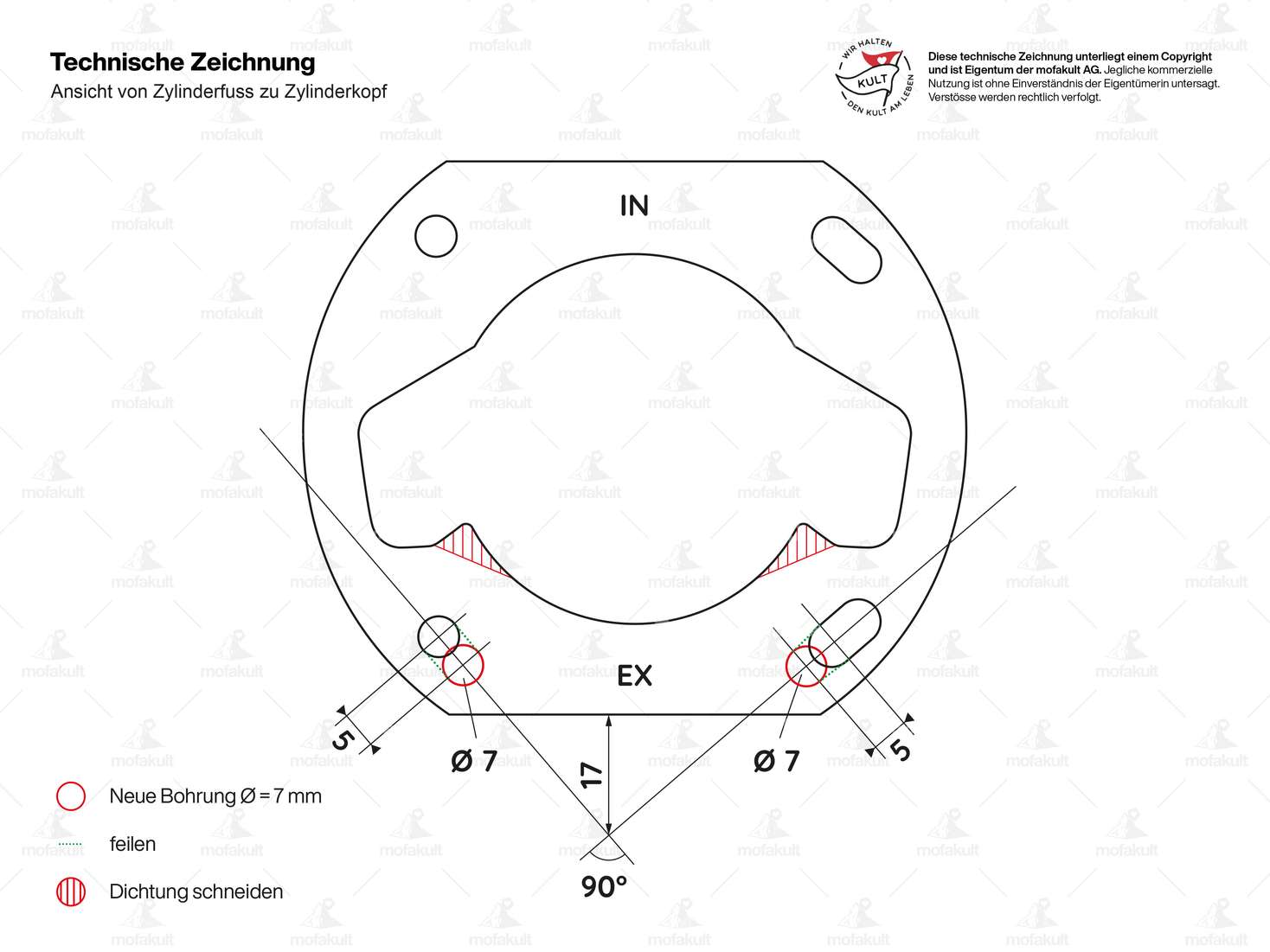

| Hole pattern [mm] | 55 x 55 |
| Number of fixing points | 4 pcs |
| Decompressor | M10x1.5 |
| Outlet type | straight |
| Hole spacing inlet | 31.5 mm |
Suitable for the following models
| Sachs | 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) |
| Hercules | Prima - 2, 3, 4, 5 |
