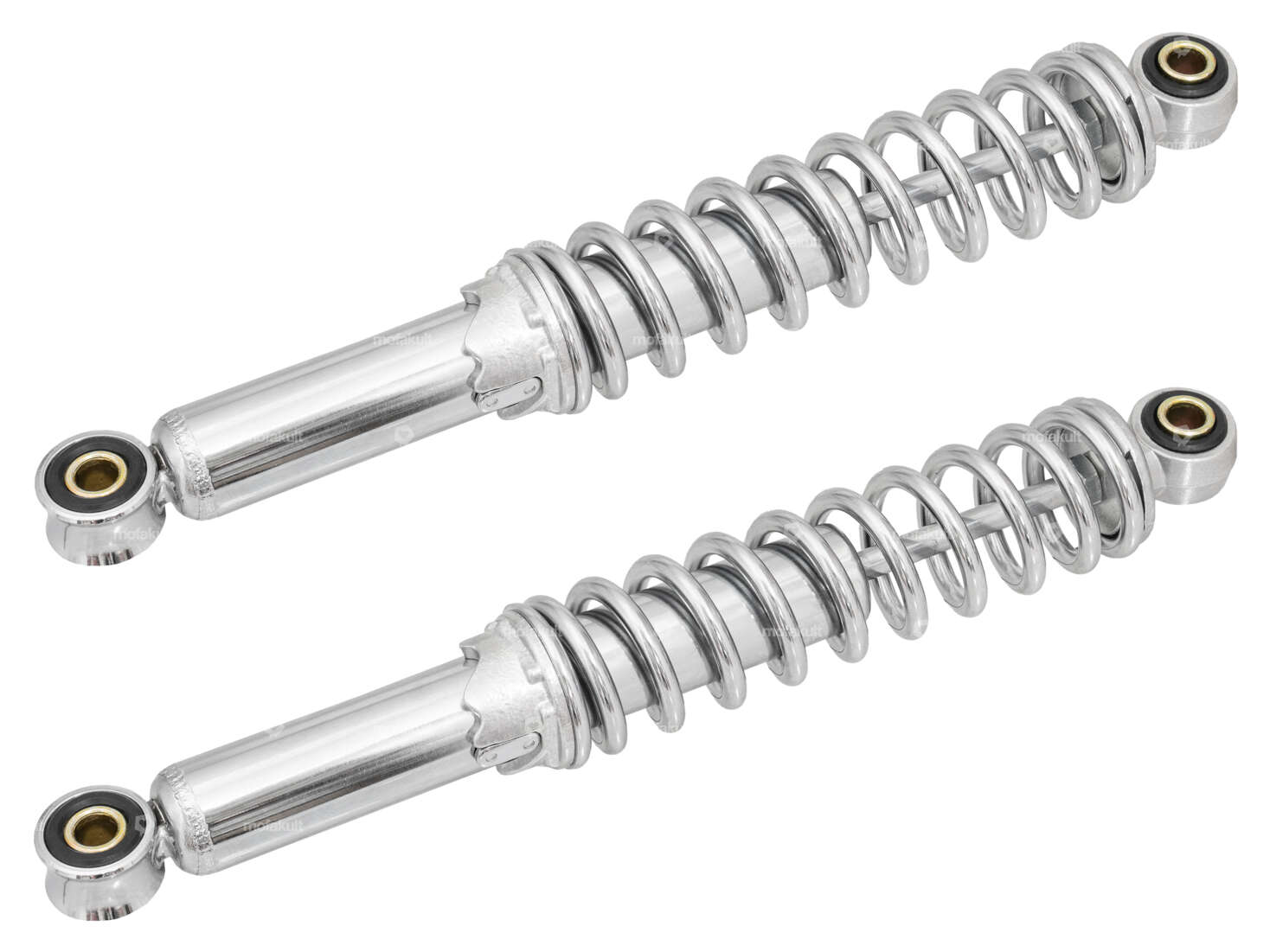

Chrome-plated, adjustable shock absorbers for your moped, moped and small motorcycle.
The height or preload of the shock absorbers can be adjusted using the special spring mount.
The rear springs should always be secured with large washers to prevent the plastic bushes from shifting in the event of lateral forces.
The scope of delivery includes one pair.
Rear springs from other manufacturers, the matching adjustment key, washers and fastening material can be found in the accessories section.
Branded product from the manufacturer Xtreme.
Details
Manufacturer | Xtreme |
Surface | chrome-plated |
Color | Chrome |
Damping type | Spring |
Adjustable | Yes |
Ø Fastening inside | 10 mm |
Ø spars | 30 mm |
Mounting type | Nuts & bolts |
Ø outside | 49 mm |
Total length | 300 mm |
Number of fixing points | 2 pcs |
