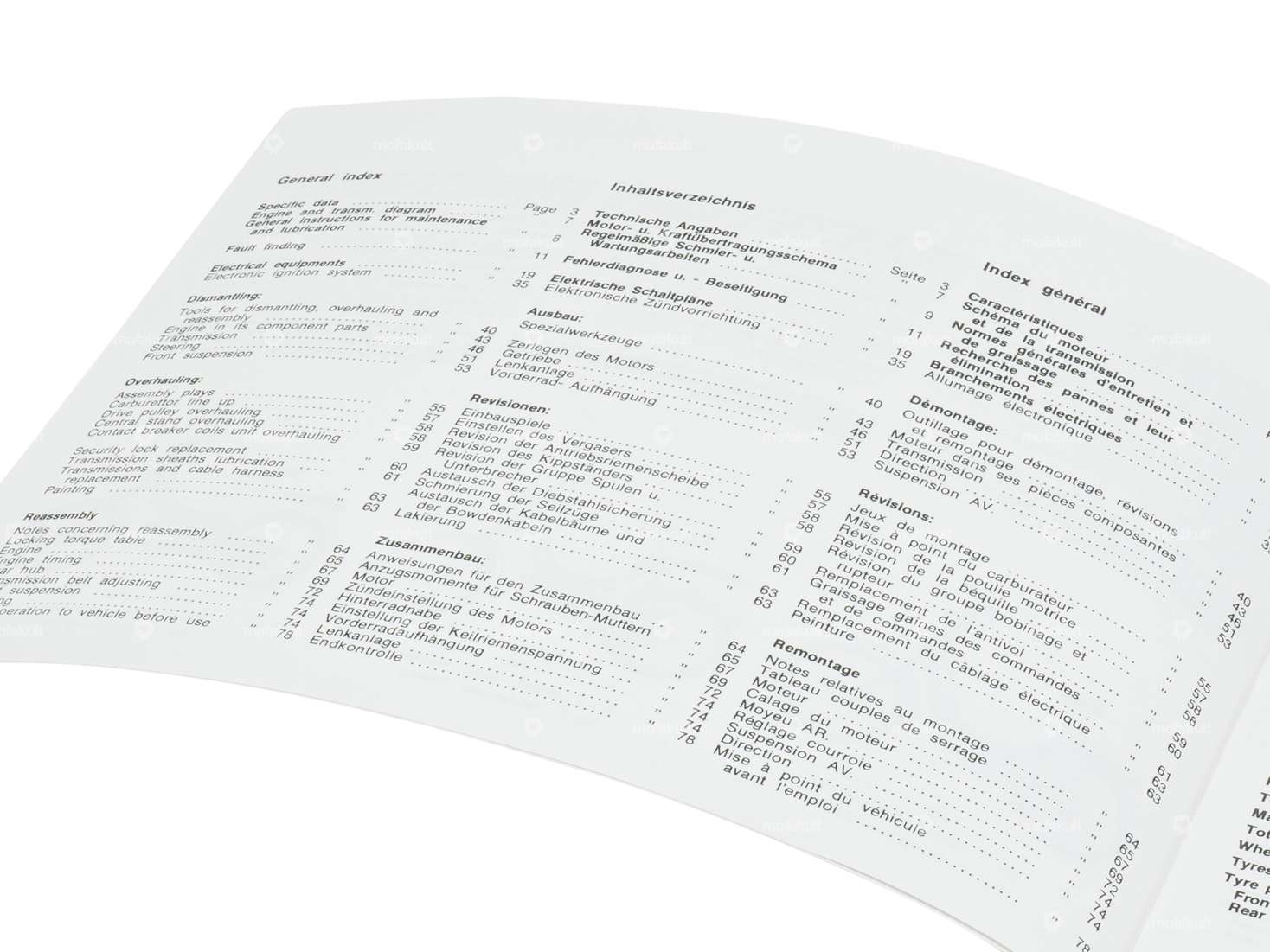

Carousel Image 2
Carousel Image 3

For: Piaggio

30794

Workshop manual | Piaggio Ciao, SI, Bravo

Home
| Workshop & standard parts
| Miscellaneous
| Literature & Posters
EUR 40,90

Incl. 20% VAT.

Trilingual workshop manual for the Ciao, Si and Bravo models of the Italian Piaggio Vespa Gilera Bianchi Group.

The most important assembly and repair instructions are described with the aid of many technical drawings, exploded views and diagrams. This manual makes troubleshooting much easier.

Format: A4 (297 x 210 mm)

Pages: 78

Language: German, English, French

High-quality facsimile (reproduction) of the original edition.

Further operating instructions, spare parts catalogs and repair manuals can be found in the accessories section.

Details

MaterialPaper
Width210 mm
DIN formatA4
Number of pages78 pcs
Height297 mm

Suitable for the following models

Piaggio

Ciao - Ciao, Ciao, Ciao, Ciao

Si

Bravo/Superbravo
