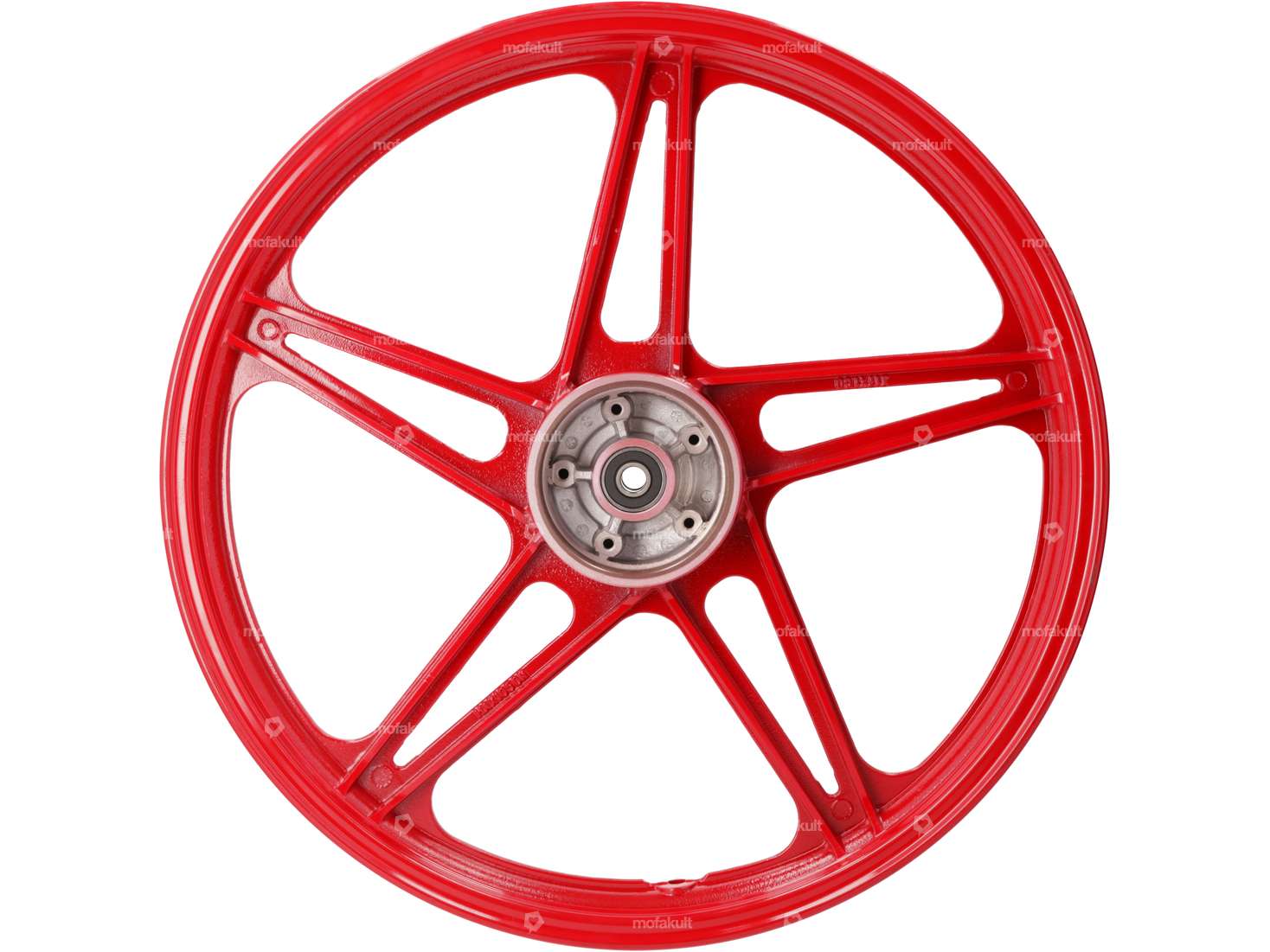

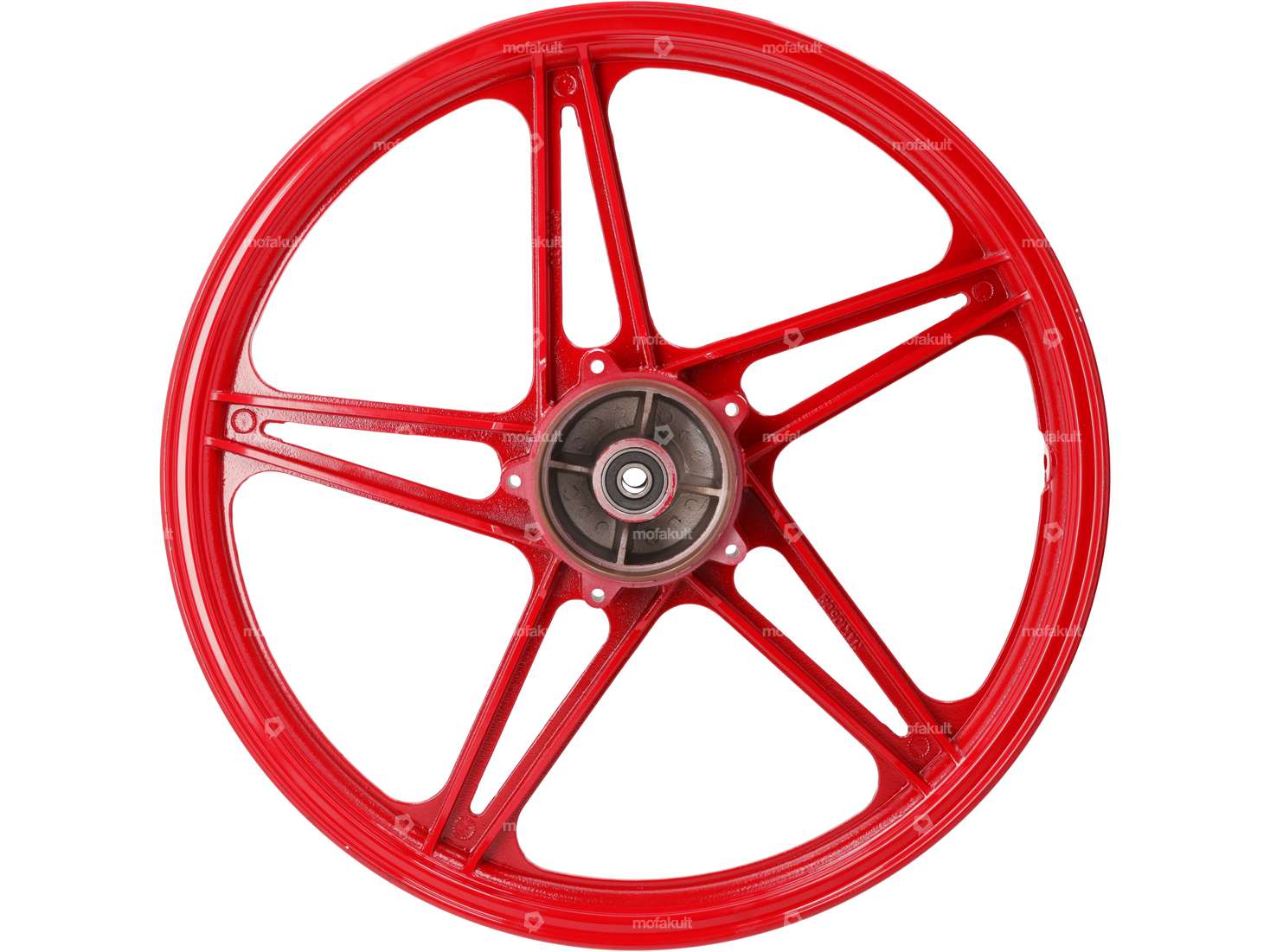

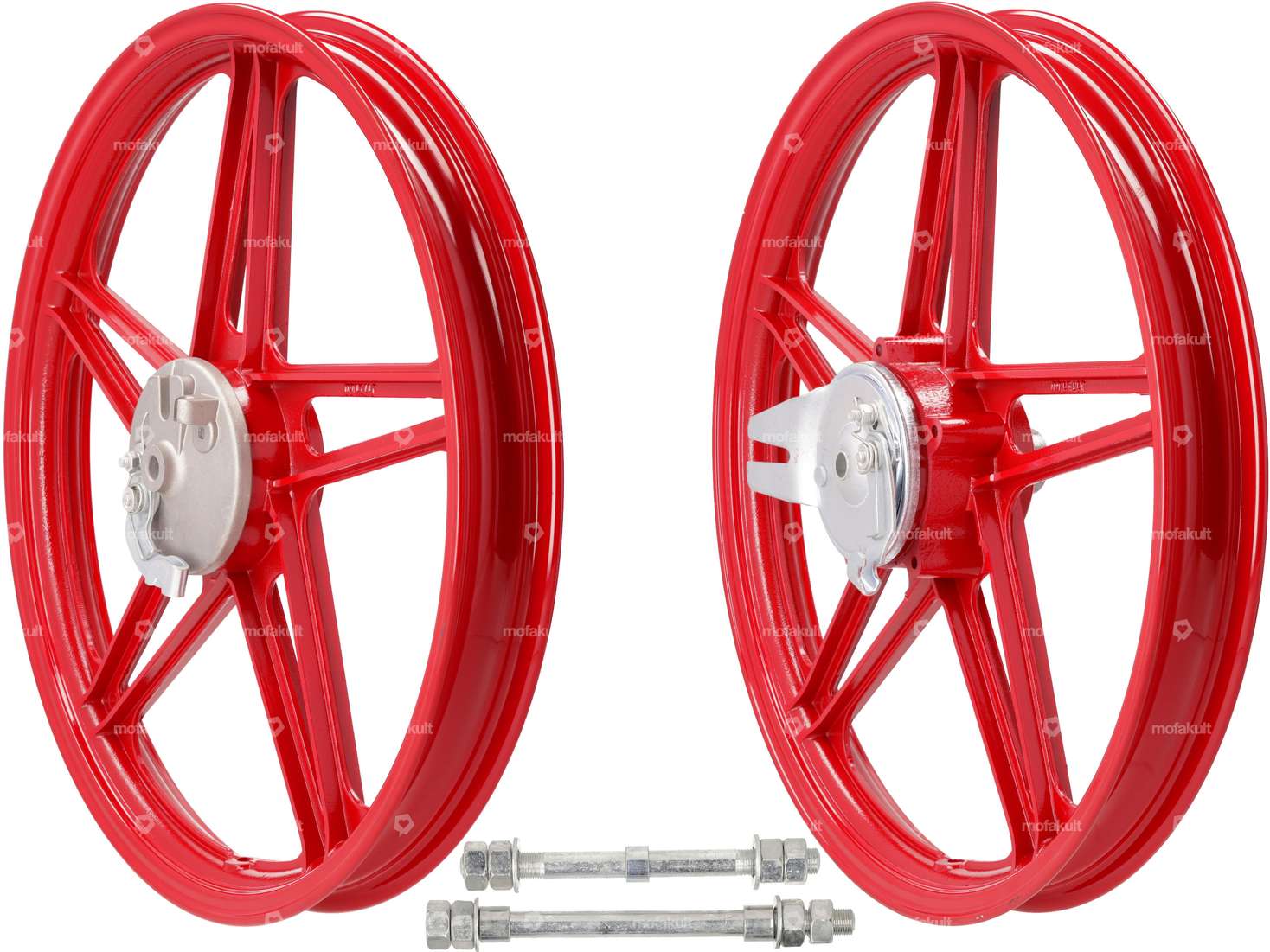

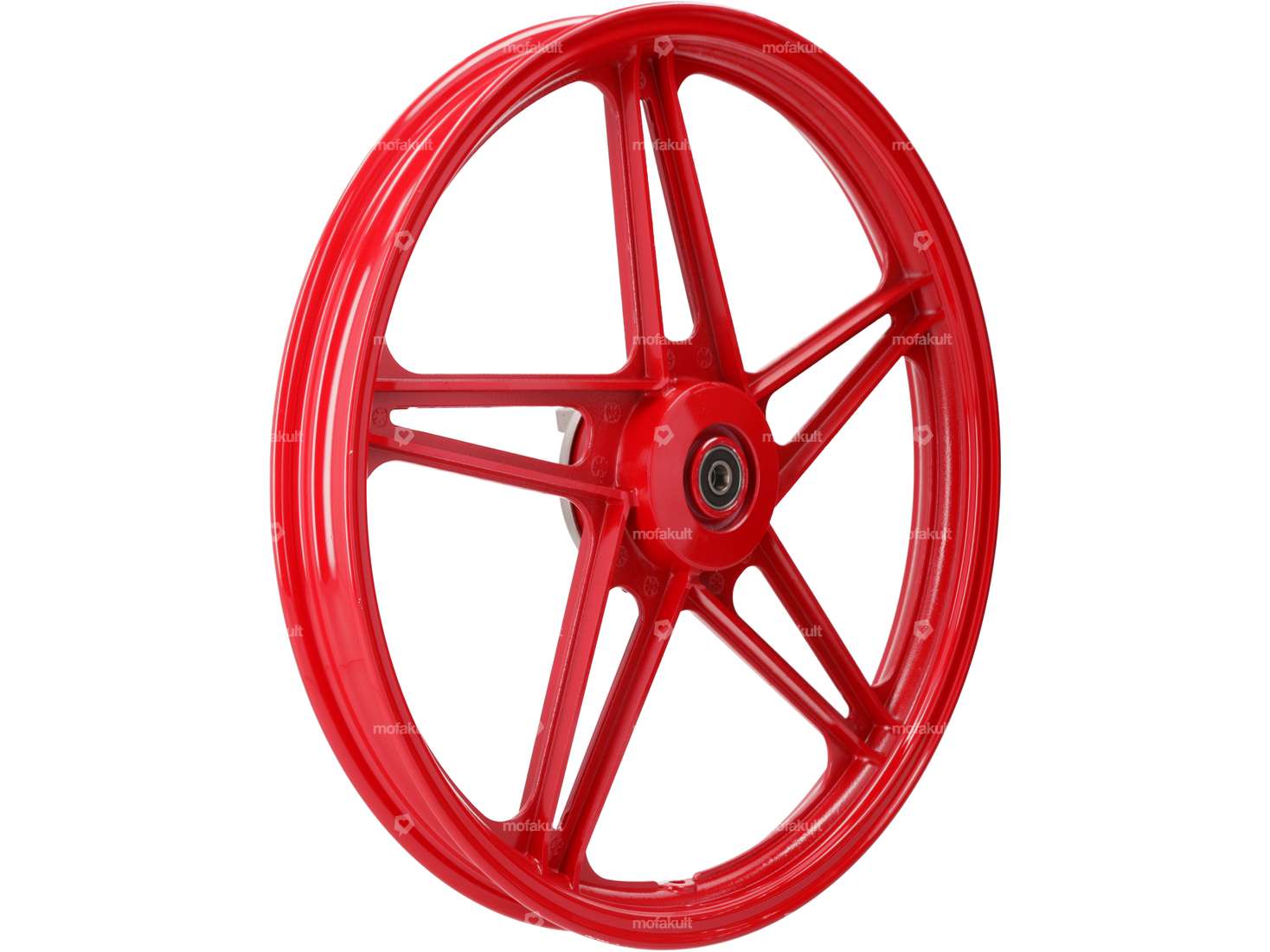

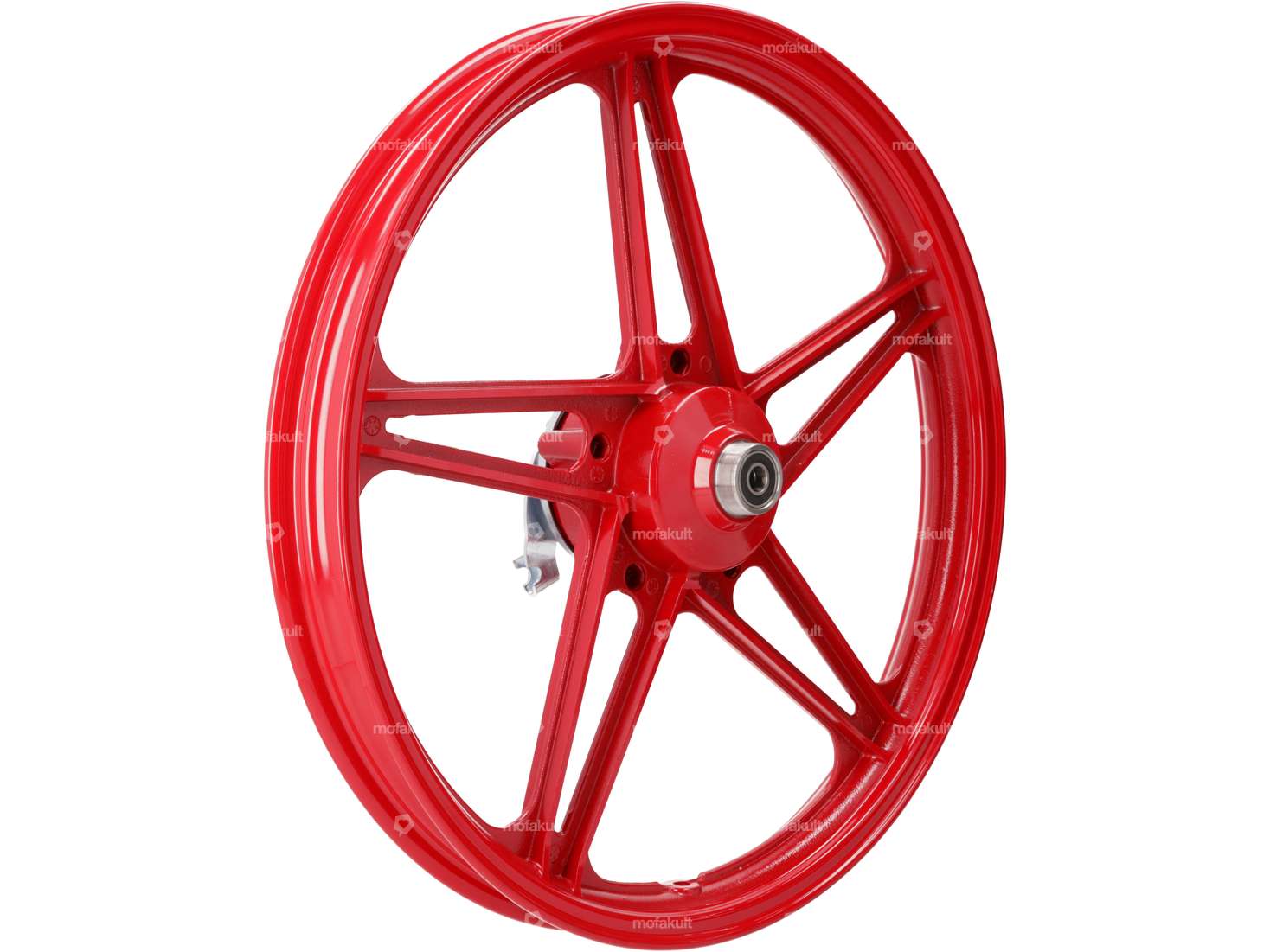

17 inch cast wheels front and rear with brake plate.
The aluminum rims are made to fit your Peugeot 103; fit with minor adjustments also under various other mopeds / mopeds / small motorcycles. Compare the dimensions listed below.
Ø outside: 457 mm
Rim width outside: 56 mm
Rim width inside: 40.64 mm (1.6”)
Ø inner bearing: 12 mm
Pitch circle sprocket mounting: 115 mm
Ø thread for freehub: 34.75 mm
Ø sprocket mount: 97.2 mm
Width of slot for brake cam: 8.25 mm
Ø Brake drum f. / h.: 90 mm
Length of front wheel axle: 155 mm
Length of rear wheel axle: 185 mm

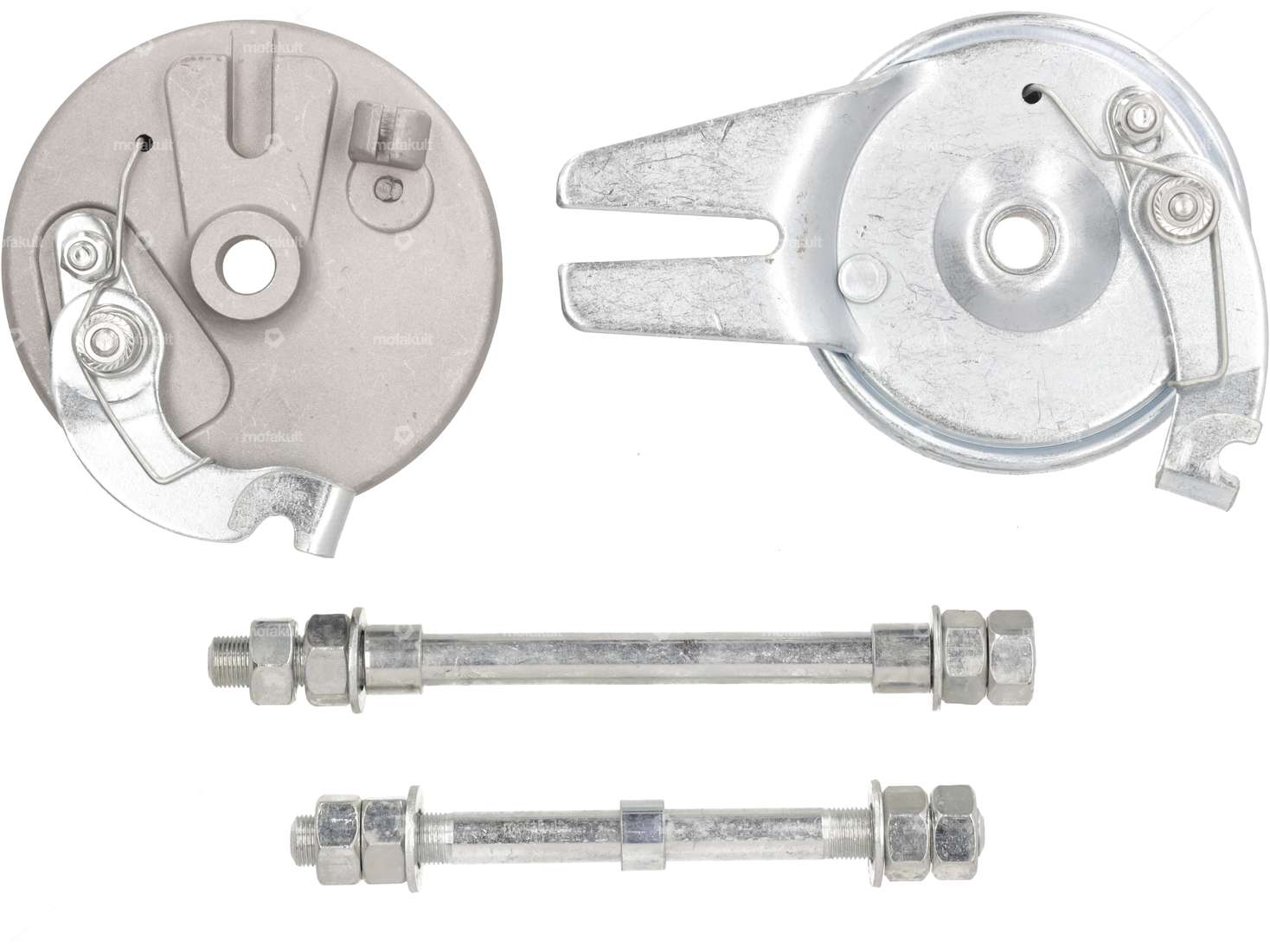

The wheel axle is also included in the scope of delivery and the ball bearings are already pressed in.
Sprockets, tires and hoses can be found in the accessories section.
Details
| Ø axle | 11.8 mm |
| Material | Cast aluminum |
| Surface | varnished |
| Color | red |
| Nominal diameter | 457 mm |
| Rim well depth | 11.5 mm |
| Wheel size [inch] | 17 " |
| Overall width outside | 56 mm |
| Ø Brake drum | 90 mm |
Suitable for the following models
| Universal | |
| Peugeot |
