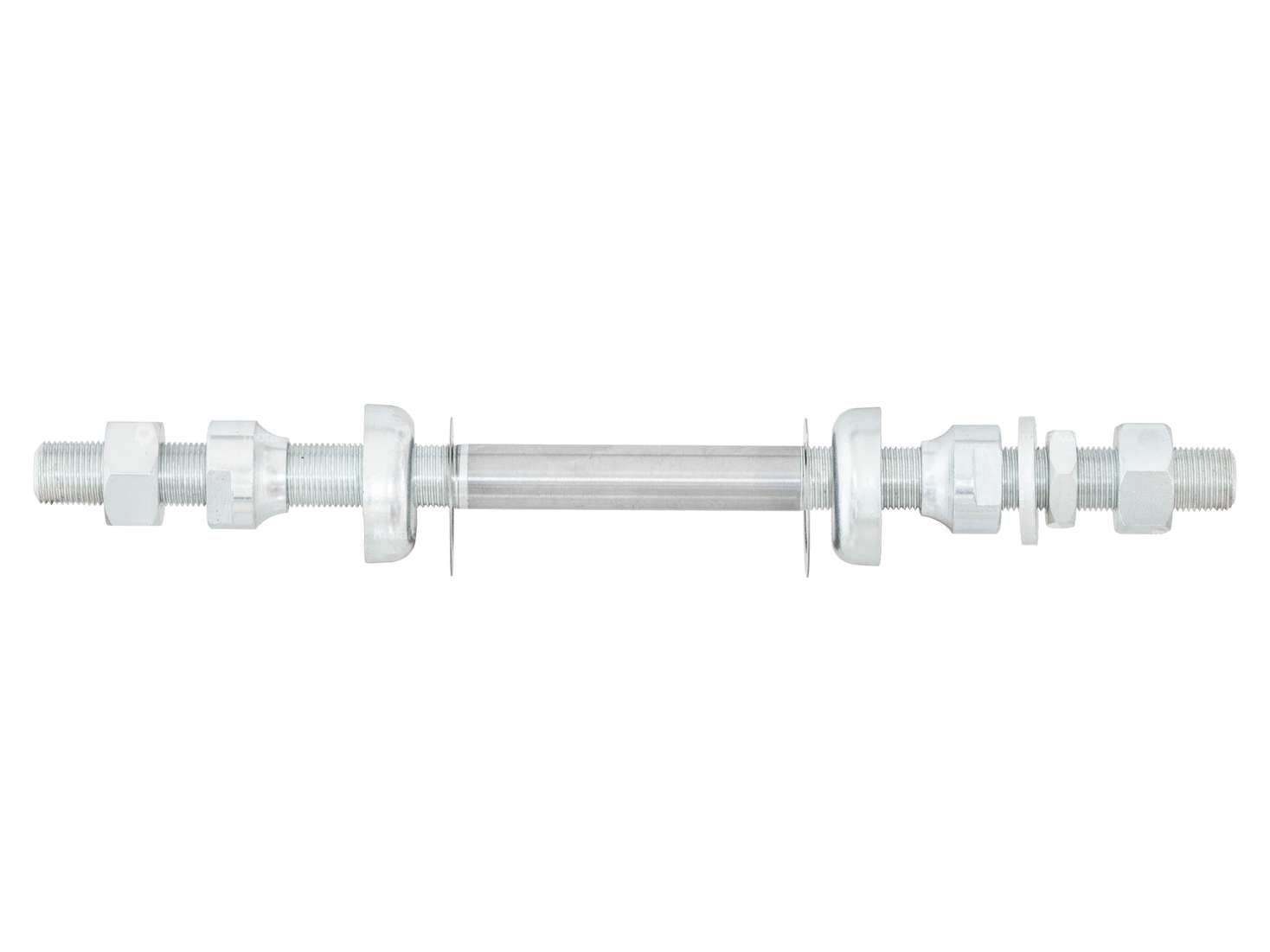

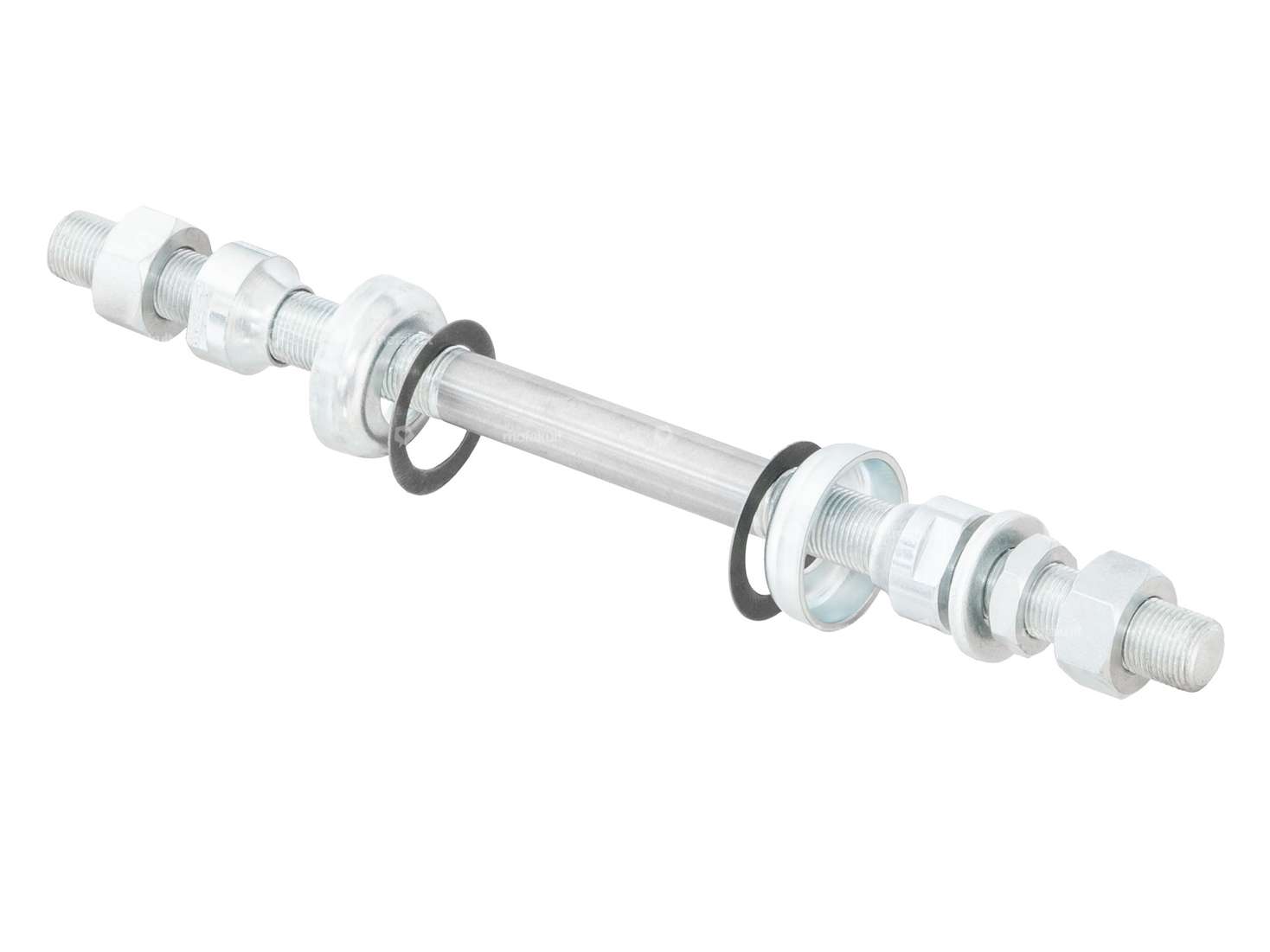

Socket axle M12x218 made of galvanized steel for your moped, moped and small motorcycle.
The axle can be used for both front wheels and rear wheels. Due to the large width, it is increasingly used as a rear wheel axle. If necessary, the threaded shaft must be shortened on both sides.
The complete rear axle set is also equipped with the following parts:
- 2 pieces of M12 x 1 nuts (SW19 / 10 mm)
- 1 piece of spacer washer (Ø 24 x 2.8 mm)
- 2 pieces of bearing cone (D20 x d14 mm / SW17)
- 2 pieces of bearing shells (Ø outside: 29.3 / Ø inside: 26 mm / Ø bore: 15.5 mm / length: 9.2 mm)
- 1 piece M12 x 1 nuts (SW17 / 5 mm)
- 2 pieces dust ring (Ø outer: 29.15 mm / Ø inner: 20.5 mm / thickness: 0.4 mm)
To ensure that you can enjoy your new axle for a long time, we recommend that you order the higher-quality swiing cones in the accessories section at the same time.
You can find more axle parts in the accessories section.
Details
| Material | Steel |
| Surface | blue galvanized |
| Thread type | MF12x1 (fine pitch thread) |
| Total length | 218 mm |
| Thread length | 78 mm |
| Ø shaft | 12 mm |
| Shank length | 71 mm |
Suitable for the following models
| Puch | |
| Sachs |
