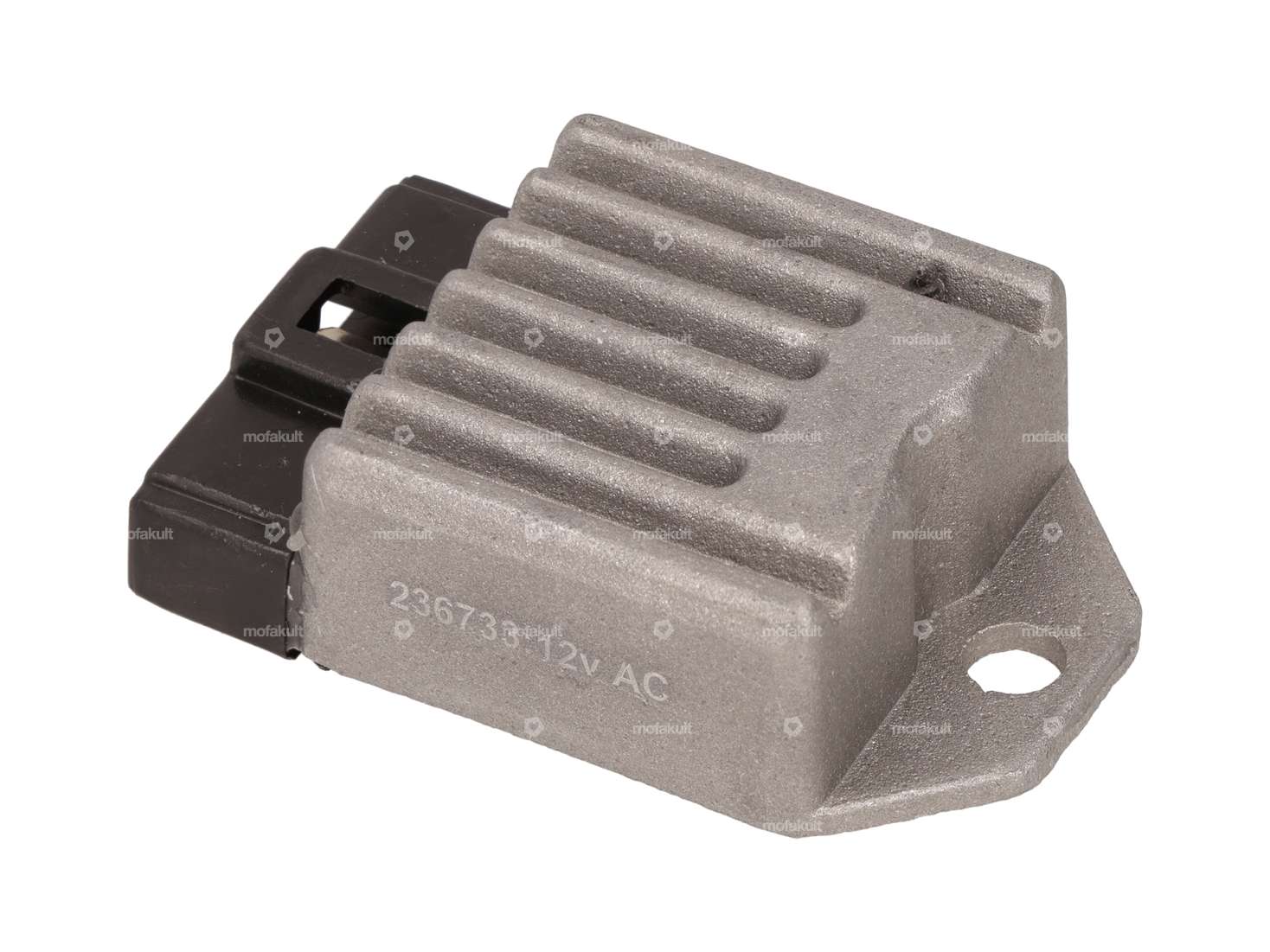

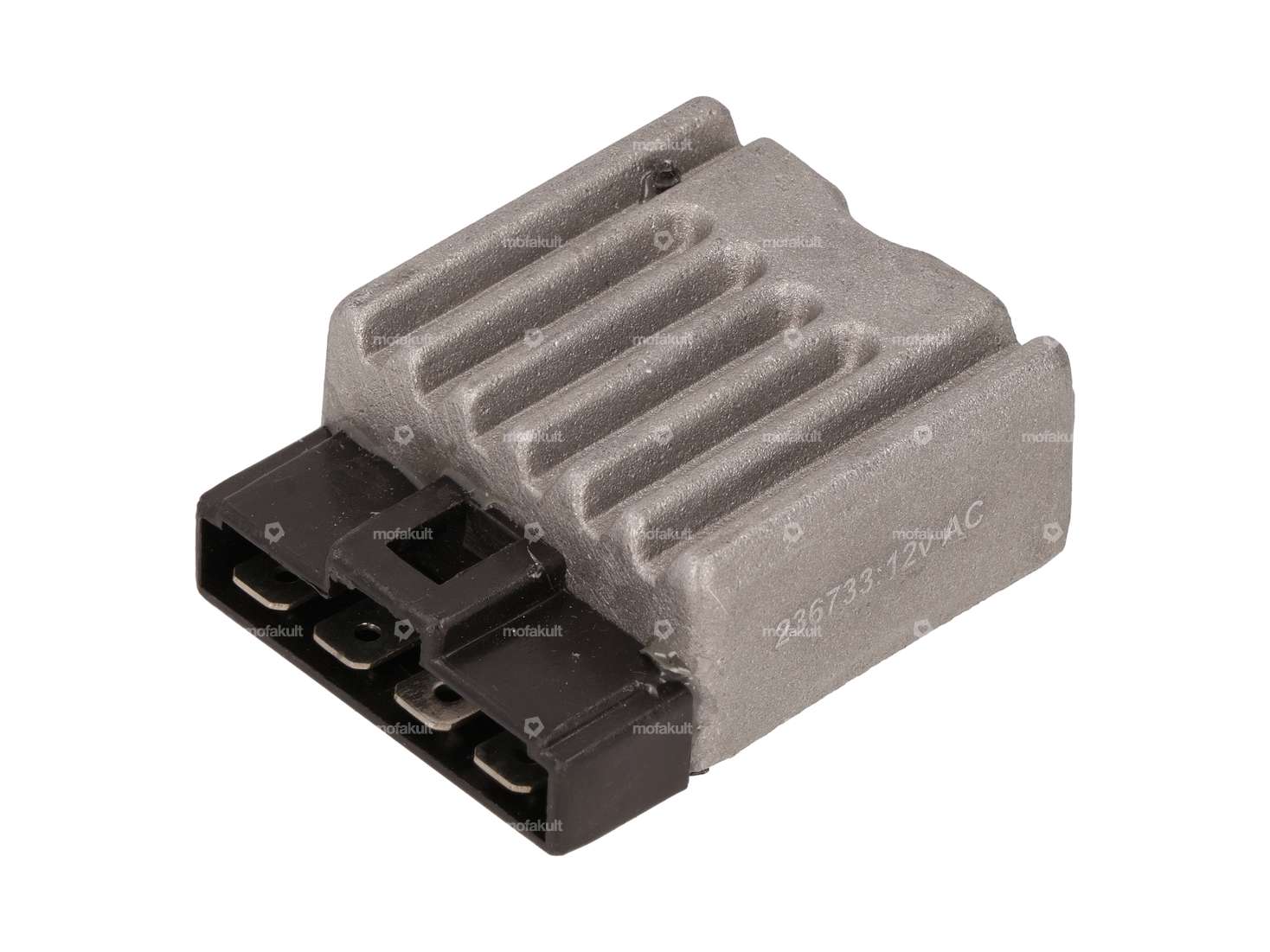

12V voltage regulator, which can be installed with adaptations on Tomos models without electric start.
Pin 1: AC = 12 V AC (must be connected to pin 3) is regulated to 12-14 volts
Pin 2: GND = ground (vehicle frame)
Pin 3: AC = 12 V AC (must be connected to pin 3) is regulated to 12-14 volts
Pin 4: Empty (No function)
Attention, all 3 pins must be connected, otherwise the correct function is not guaranteed, the original existing plug must be reversed and extended depending on the model & year.
Original Tomos spare part number: 236733
Details
| Ø mounting hole | 6 mm |
| Manufacturer | Tomos |
| Material | Aluminum |
| Tension | 12 V |
| Type of current | Alternating current (AC), Direct current (DC) |
| Mounting type | Screws |
| Tomos OEM number | 236733 |
Suitable for the following models
| Tomos |
