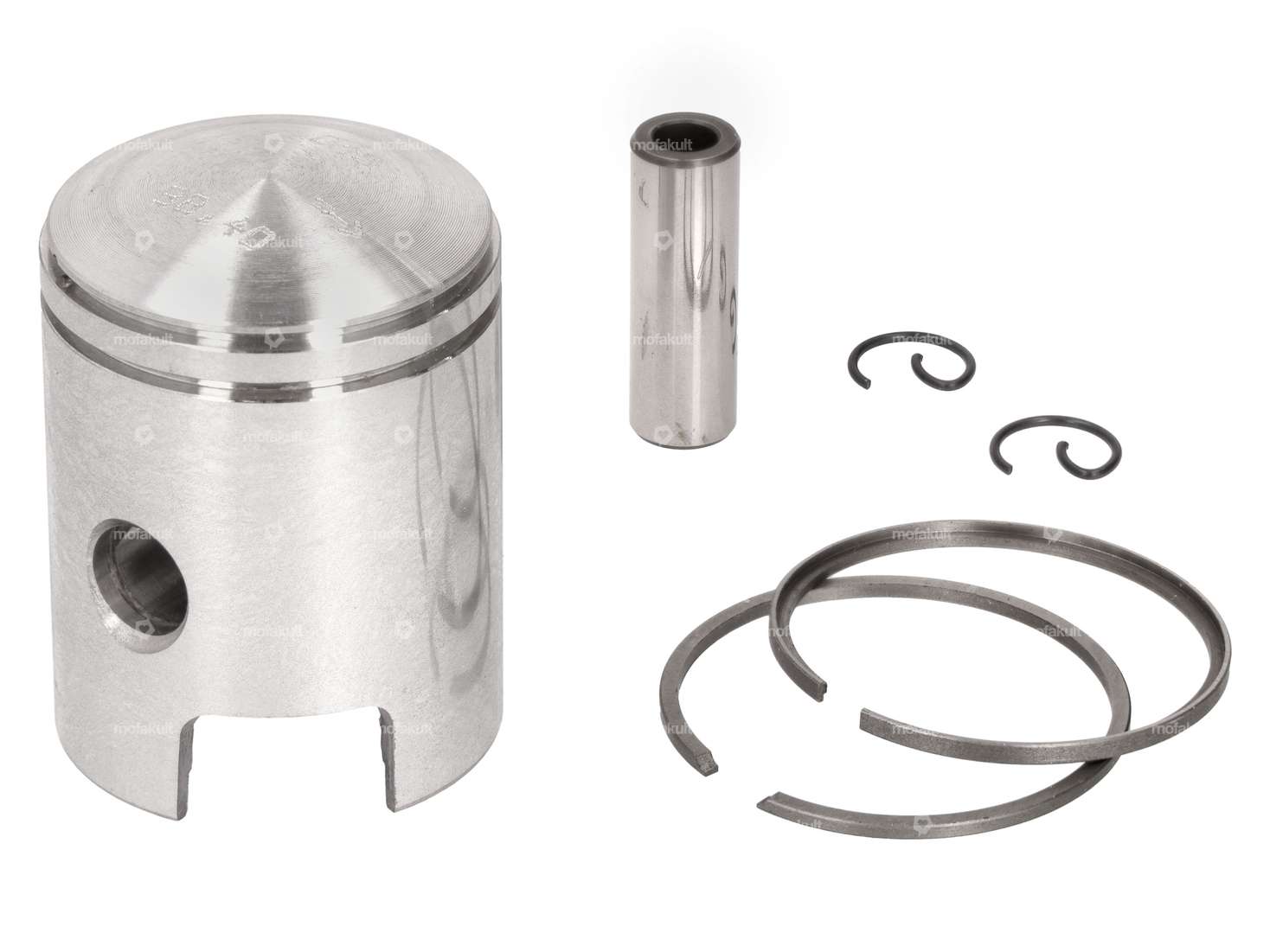

Original 38.40 mm Vertex piston as supplied by Piaggio for some years of Piaggio Ciao, Si, Bravo, Boxer and Grillo mopeds / mopeds (without catalytic converter).
The kit includes a rectangular piston ring with side protection (FS) and an L-shaped piston ring with internal protection (IS).
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if applicable, the corresponding cylinder in the cylinder kit. You will find the corresponding cylinder in the accessories section.
Original Piaggio spare part number: 196115
Quality product from the Italian manufacturer Vertex.
NOS – New from old stock.
Details
| Nominal diameter | 38.4 mm |
| Manufacturer | Vertex |
| Thick piston ring | 1.9 mm, 1.5 mm |
| Ø outside piston (A) | 38.34 mm |
| Compression height (C) | 26.6 mm |
| Curvature (D) | 3.4 mm |
| Total piston height (E) | 52 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring, L-ring |
| Piston ring impact | Flank safety device (FS), Internal fuse (IS) |
| Piston ring height | 2 mm, 1.6 mm |
| Ø piston pin (B) | 10 mm |
| Piston weight | 76 g |
| Piaggio OEM number | 196115 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Area of application: (Dis)assembly tool · Number of components: 7 pcs · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 23,30
Meteor piston 38.2 - 40.2 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo Boxer
Manufacturer: Meteor · Ø outside piston (A): 38.2 mm · Ø outside piston (A): 38.4 mm · Ø outside piston (A): 38.6 mm · Ø outside piston (A): 38.8 mm · Compression height (C): 26.6 mm · Curvature (D): 3.3 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38.2 mm · Nominal diameter: 38.4 mm · Nominal diameter: 38.6 mm · Nominal diameter: 38.8 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm
EUR 70,20

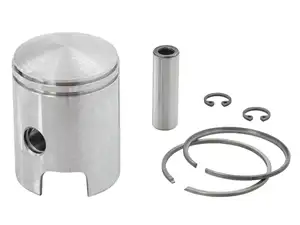

Piston Ø 38.6 (10 mm KoBo) NOS | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Piaggio · Thick piston ring: 1.5 mm · Thick piston ring: 1.9 mm · Ø outside piston (A): 38.54 mm · Compression height (C): 26.6 mm · Curvature (D): 3.4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38.6 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Piston ring height: 1.6 mm · Piston ring height: 2 mm · Piston weight: 77 g · Piaggio OEM number: 196116
EUR 93,70
