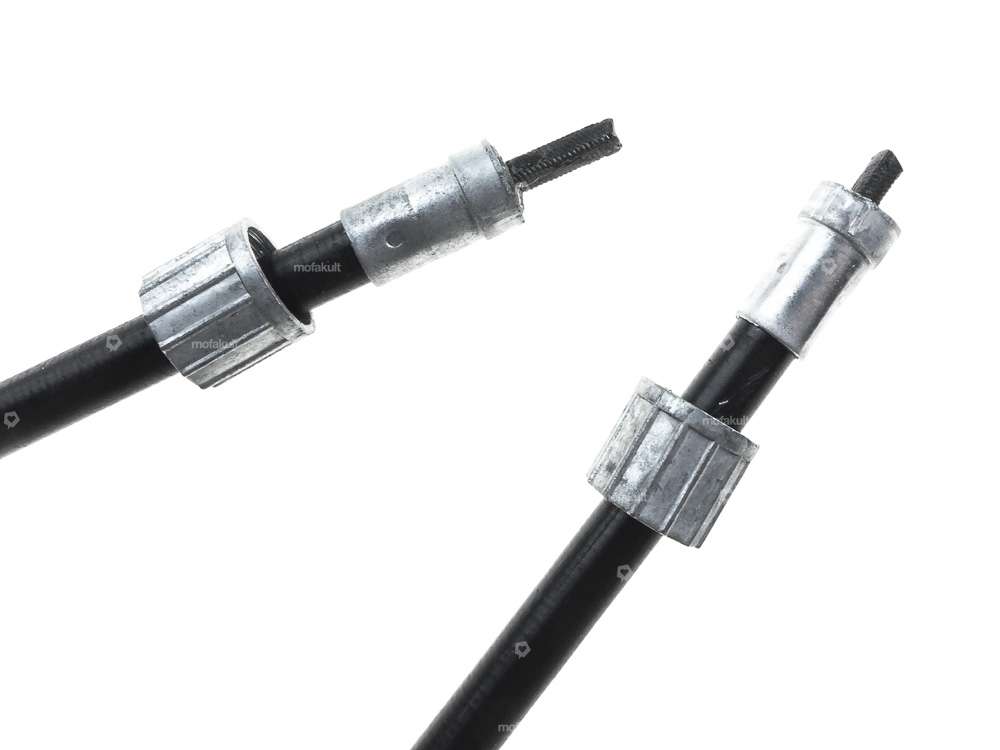

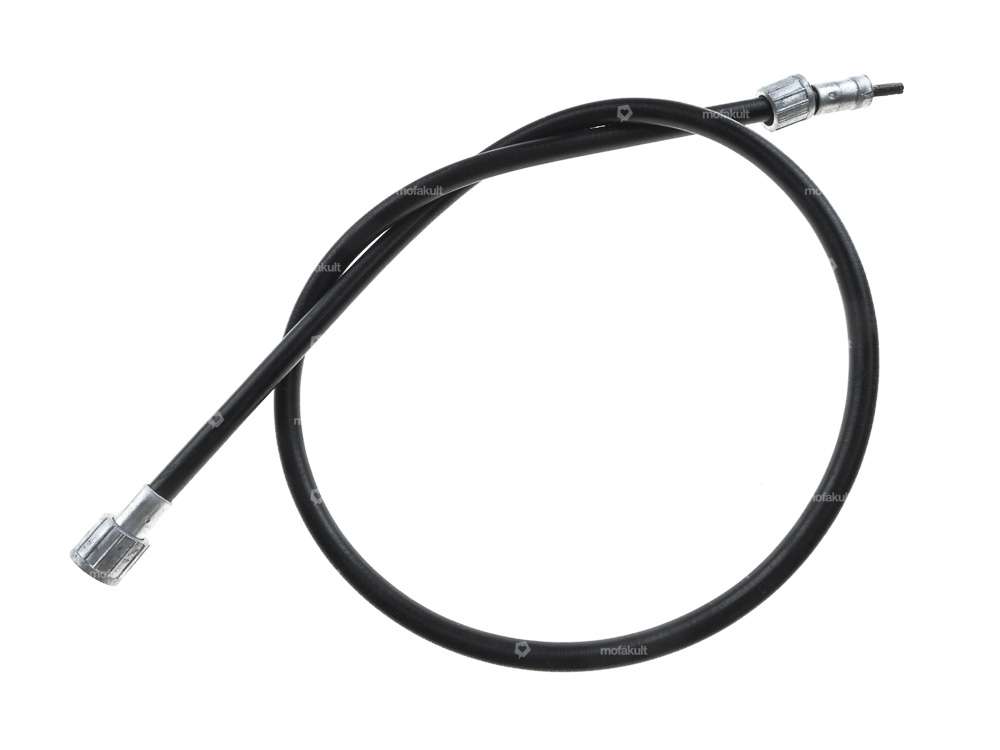

Transval speedometer cable 72 cm

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Ø wire: 2.5 mm · Length spring hook: 19 mm · Length spring hook: 53 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Ø outside: 14 mm · Ø inside: 9 mm · Total length: 122 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

Nut flywheel M10x1 SW15 serrated

Material: Steel · Surface: galvanized (blue) · Ø outside: 19.8 mm · Nut type: Flange nut · Width across flats SW: 15 mm · Drive: External hexagon · Height: 10.5 mm · Area of application: Standard · Thread type: MF10x1 (fine pitch thread)

Fortune / Merrick 2.00-2.50 x 16/17" inner tube

Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 " · Tire height [%]: 100 · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Valve type: TR4 Auto valve

swiing® revival stud bolt M6 x 106 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

GPO bulb 12V - 5W (BA9s) 1-filament rear light

Manufacturer: GPO · Bulb holder: BA9s · Color: white · Tension: 12 V · Performance: 5 W · Total length: 23 mm · Ø base: 9 mm · Height: 23.6 mm · Test mark: none · Ø Lamp head: 11 mm · LED: No

Transval speedometer cable attachment 1.9 / 2.55 mm

Manufacturer: Transval · Color: black · 4-edge speedometer cable: 1.9 mm · 4-edge speedometer cable: 2.55 mm · Total length: 11 mm

Transval speedometer 60 km/h Ø 48 mm (black dial)

Manufacturer: Transval · Color: black · Ø Receptacle: 48 mm · Maximum speed: 60 Km/h · 4-edge speedometer cable: 2.55 mm · Depth: 50 mm · Thread type: MF10x1 (fine pitch thread)

GUIA light switch replica black

Manufacturer: GUIA · Material: Plastic · Housing material: Steel · Color: black · Substructure material: Steel · Functions: High beam (headlights) · Functions: Horn · Functions: Light off · Functions: Low beam · Functions: Motor stop · Number of positions: 3 pcs · Ø Handlebars: 22 mm

NGK LB10E spark plug cap / 10 kΩ suppressed

Manufacturer: NGK · Material: Plastic · Material: Rubber · Color: black · Spark plug socket: SAE · Cable available: No · Suppressed: Yes · Resistance: 10000 Ω · Ø cable: 5 mm · Ø cable: 7 mm
