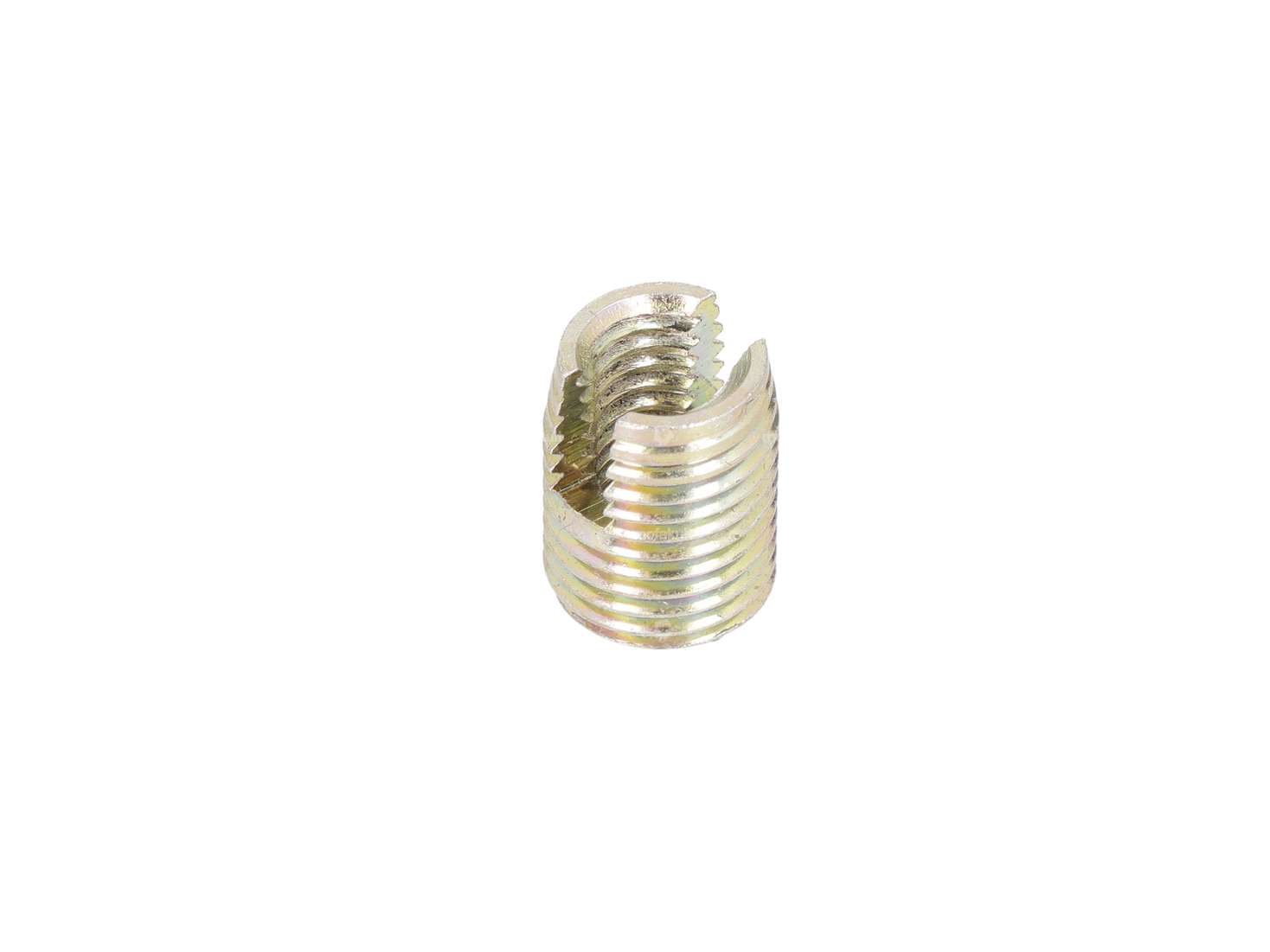

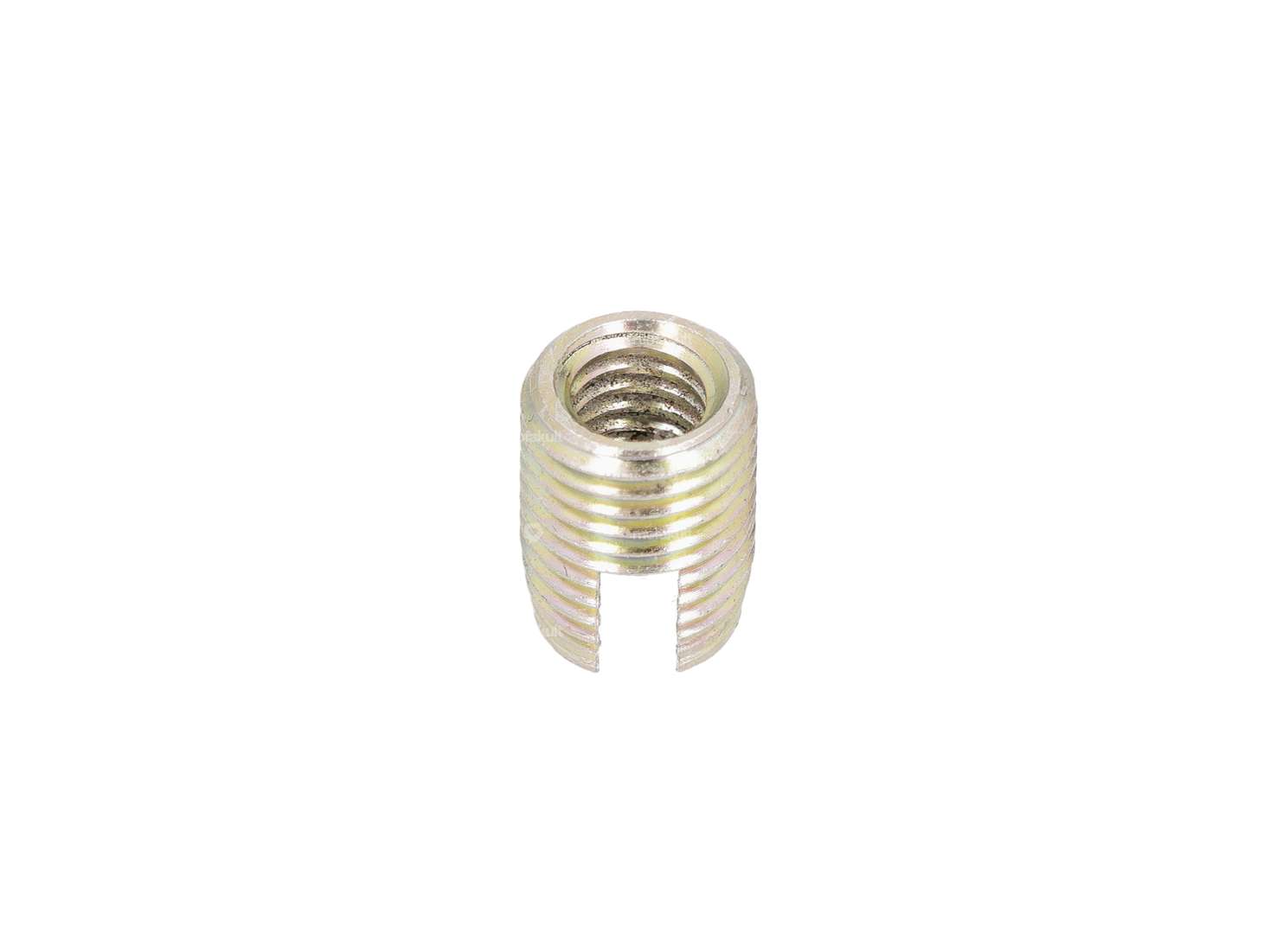

Self-tapping thread insert for repairing defective M6 threads.
The thread works in aluminum.
The broken thread must be drilled out to Ø 8 mm so that the thread insert can be fitted. The external thread cuts a new, firm hold when screwed into the aluminum. Ideally, the bushing should also be secured with Loctite.
External thread: M9 x 1
Internal thread: M6
Total length: 12 mm
Core hole: Ø 8 mm
Price per piece.
Matching threadlocker and repair bushes in other diameters can be found in the accessories
Details
| Ø bore | 8 mm |
| External thread | M9x1 (fine pitch thread) |
| Internal thread | M6x1 (standard thread) |
| Total length | 12 mm |
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: blue · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Temperature resistance (min.): -75 - 200 °C · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
EUR 25,30
EUR 2.530,00/l
Loctite 638 High-strength adhesive 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: green · Contents [ml]: 10 ml · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Temperature resistance (min.): -75 - 150 °C · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
EUR 25,30
EUR 2.530,00/l
Loctite 638 High-strength adhesive 50 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: green · Contents [ml]: 50 ml · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Temperature resistance (min.): -75 - 150 °C · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
EUR 78,40
EUR 1.568,00/l
Loctite 270 High-strength threadlocker 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Steel · Area of application: Chemistry · Contents [ml]: 10 ml · Color: green · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Hazard warning: Toxic to aquatic organisms (with long-term effects) · Signal word: Attention · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Temperature resistance (min.): -55 - 180 °C · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 5 N/m · Breakaway torque (according to material): 31 N/m · Breakaway torque (according to material): 33 N/m
EUR 25,30
EUR 2.530,00/l
Loctite 242 medium-strength threadlocker 50 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Steel · Area of application: Chemistry · Contents [ml]: 50 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: May irritate the respiratory tract · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: medium strength · Temperature resistance (min.): 0 - 150 °C · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 300 sec · Breakaway torque (according to material): 7.9 N/m · Breakaway torque (according to material): 17 N/m
EUR 84,20
EUR 1.684,00/l
Loctite 278 High-strength threadlocker 50 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Steel · Area of application: Chemistry · Contents [ml]: 50 ml · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 1200 sec · Temperature resistance (min.): -55 - 200 °C · Breakaway torque (according to material): 42 N/m
EUR 84,10
EUR 1.682,00/l
Loctite 270 High-strength threadlocker 50 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Steel · Area of application: Chemistry · Contents [ml]: 50 ml · Color: green · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Hazard warning: Toxic to aquatic organisms (with long-term effects) · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Temperature resistance (min.): -55 - 180 °C · Breakaway torque (according to material): 5 N/m · Breakaway torque (according to material): 31 N/m · Breakaway torque (according to material): 33 N/m
EUR 84,10
EUR 1.682,00/l
