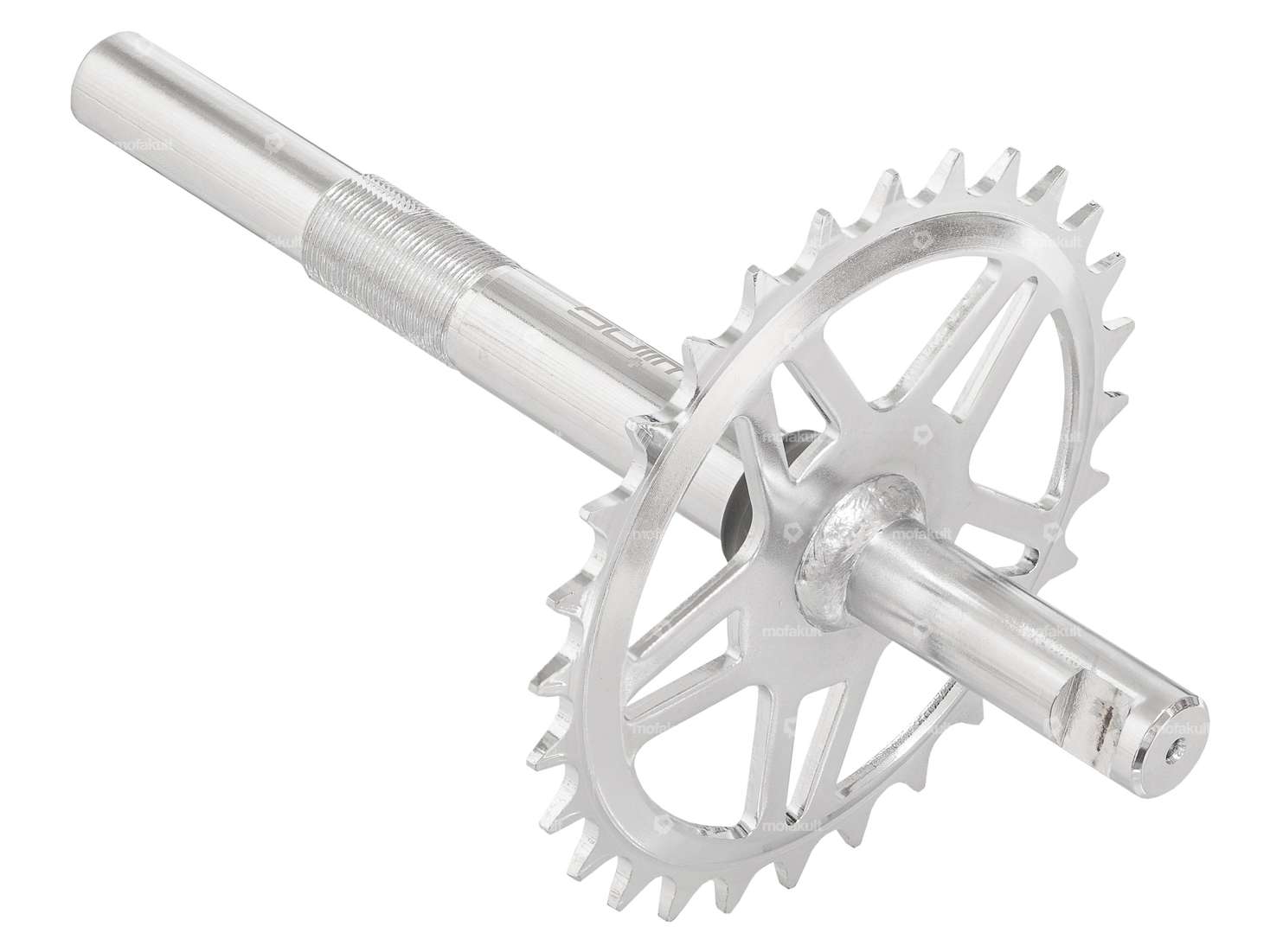

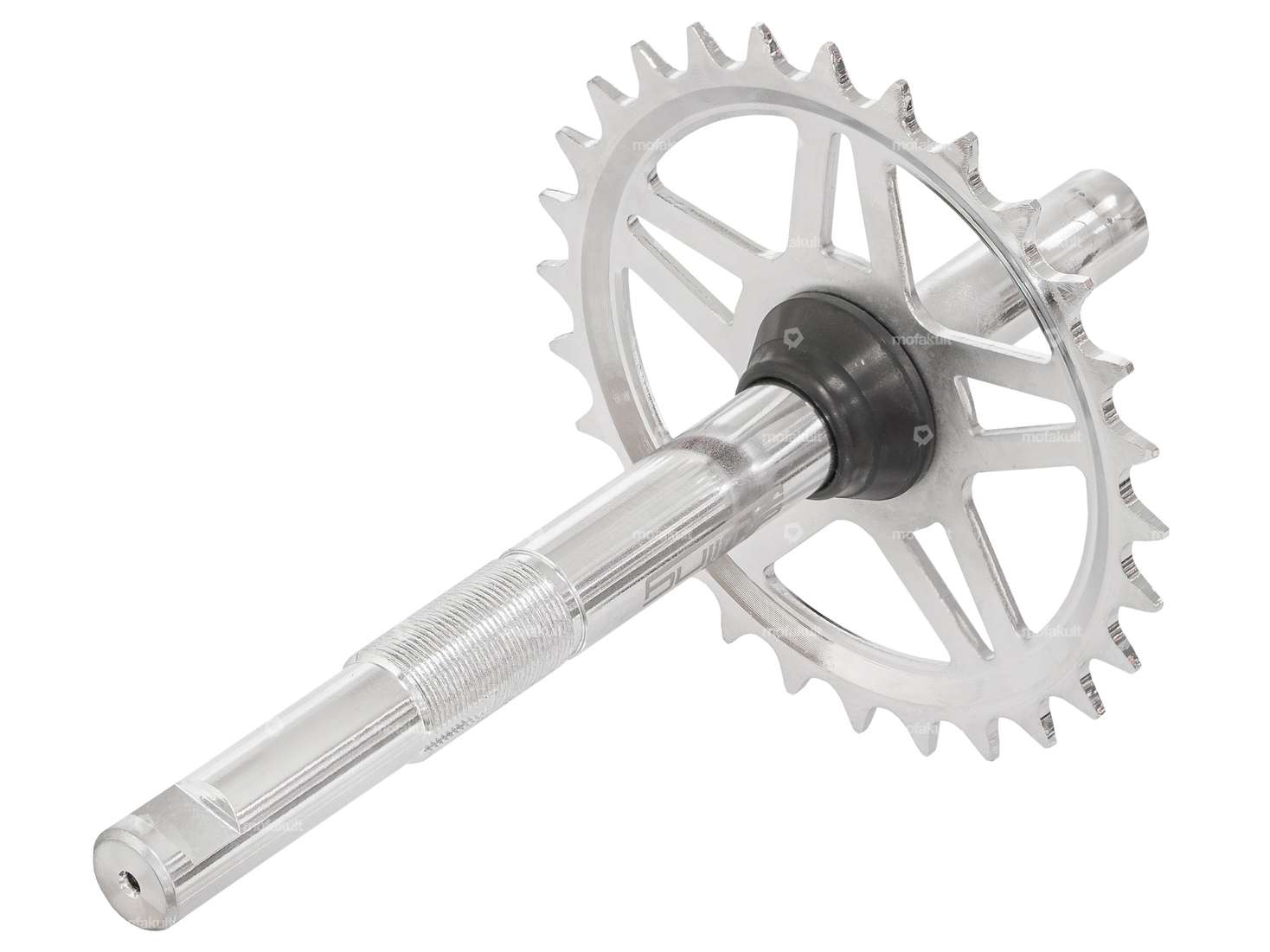

Chrome-plated pedal shaft with ring for Tigra Pionier P30-74 and P30-R | Sachs Caravelle (Standard, Jaguar, Bodan, M40, S30) and other classic car models.
The hardened bearing cone was firmly mounted on the axle using Loctite adhesive.
With the corresponding 18-24G left-hand thread nut, the bearing play of the axle can be precisely adjusted.
Total length: 210 mm
Ø crank mount: 15.8 mm
Ø axle (center): 17.8 mm
Shaft length from rim: 150 or 60 mm
Number of teeth: 28
Thread: 18 - 24G li (Ø 18 mm left-hand thread)
For matching ball bearings, cranks, pedals and other attachments, see accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Total length | 210 mm |
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | chrome-plated |
| Pedal shaft type | with thread |
| Color | Chrome |
| Chain pitch | 1/2" x 3/16" |
| Number of teeth | 28 pcs |
| Wavelength from wreath | 150 mm, 60 mm |
| Ø Pedal arm holder | 15.8 mm |
| Ø Bearing support | 17.8 mm |
| Thread type | 18x24G LH |
Suitable for the following models
| Puch | |
| Sachs |
