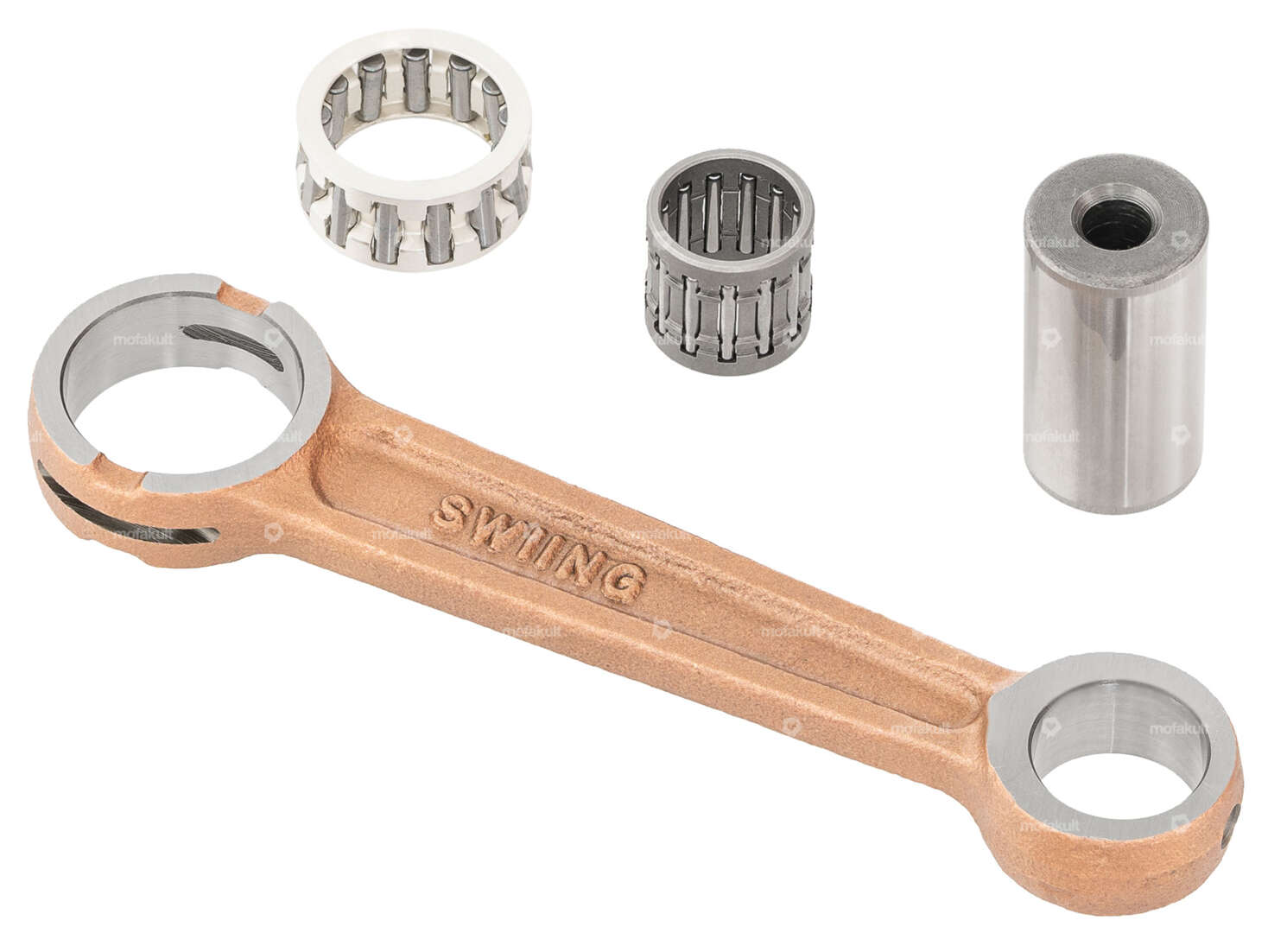

Complete connecting rod suitable for crankshafts of various mopeds, mopeds and small motorcycles with Zündapp engines.
- Dimension connecting rod bolt: Ø16 x 33.8 mm
- Connecting rod length (center - center): 91 mm
- Total length of connecting rod: 115 mm
- Thickness: 10 mm
- Outer diameter of the lower connecting rod eye: 27 mm
- Outer diameter of the upper connecting rod eye: 23 mm
- Lower needle bearing (silver ball): Ø21/16 x 9.7 mm
- Upper needle bearing: Ø15/12 x 14.2 mm
- Ø for piston pin: 12 mm
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Total length | 115 mm |
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Area of application | Standard, Tuning |
| Surface | copper-coated |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 91 mm |
| Ø Connecting rod bolt | 16 mm |
| Ø lower connecting rod eye outside | 27 mm |
| Ø upper connecting rod eye outside | 23 mm |
| Ø lower bearing inside | 21 mm |
| Ø inside upper bearing | 15 mm |
| Dimension lower bearing | 16/21 x 9.7 mm |
| Dimension upper bearing | 12/15 x 14.2 mm |
| Thickness | 10 mm |
| Connecting rod pin length | 33.8 mm |
Suitable for the following models
| Zündapp Belmondo | |
| Zündapp |
