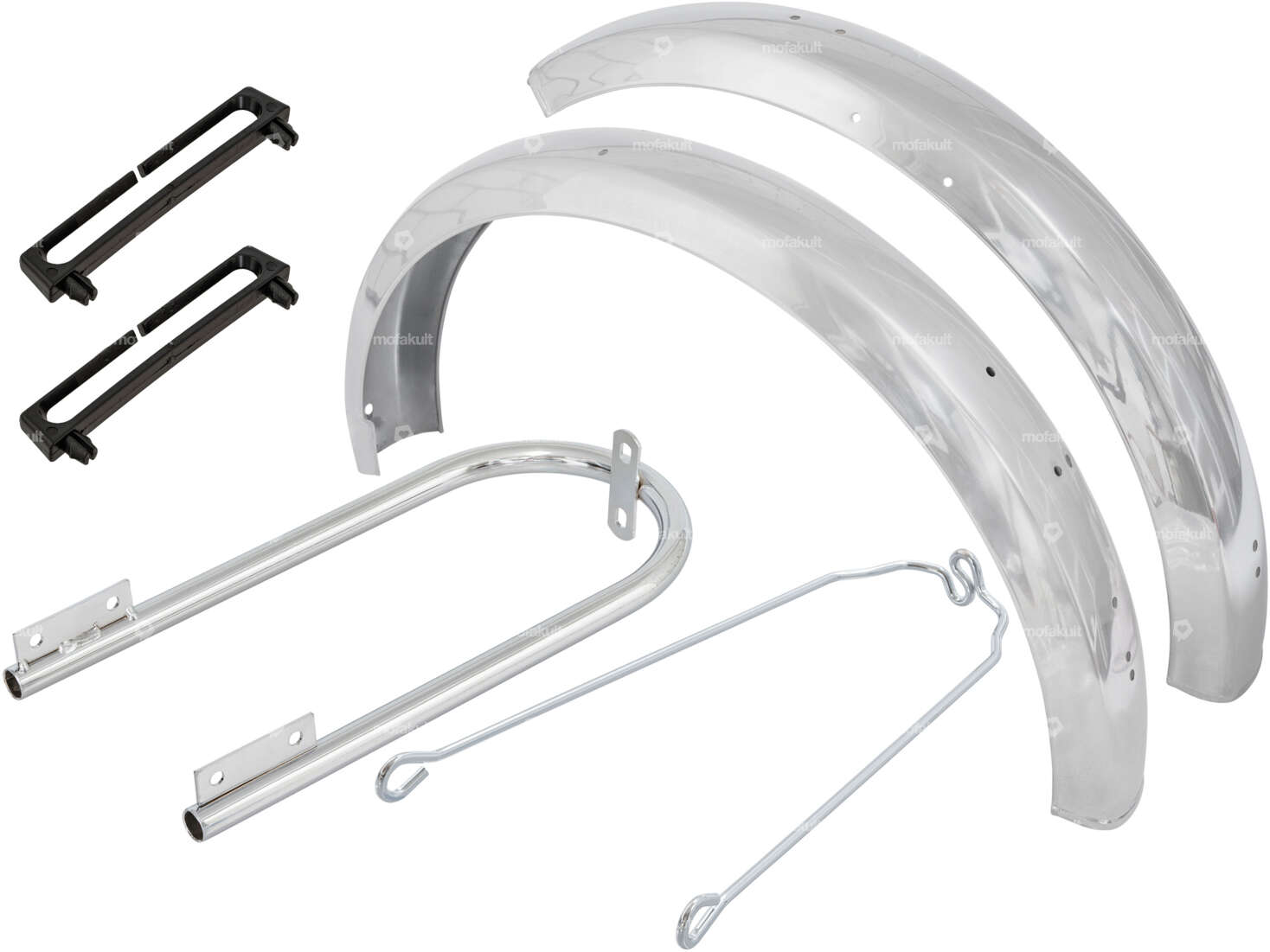

Mudguard set consisting of the front and rear mudguard made of stainless steel from the brand swiing® revival as well as a chrome-plated mudguard strut and reinforcement arch from the brand GPO for your Puch X30 NS, NL, NG-2AH, N-2AH, X30-A and Sprinter moped / moped.
The high-gloss polished surface ensures a first-class look and gives your moped the necessary shine.
As the front mudguard is folded on both sides and the rear mudguard is folded at the rear, the risk of injury is considerably reduced. Furthermore, it is still possible to use an edge protector or splash guard flap on the front mudguard. Corresponding holes must still be drilled if required.
For mounting the side and lower mudguard struts on the front mudguard, all original holes are already present.
To mount the enclosed cable guides, holes are also already present on both sides of the mudguard.
The rear mudguard has all the original mounting holes, the cut-out for the air filter and the tabs for the cable routing.
The set consists of the following individual parts:
- swiing® revival front mudguard Art. No. 11579
- swiing® revival rear mudguard Art. No. 11580
- GPO mudguard attachment Art. No. 18122
- GPO mudguard arch Art. No. 22941
- 2 pcs. Cable guides Art. No. 10029
Technical data for front mudguard:
- Material: Chrome steel (stainless steel)
- Shape: Partly round
- Width of mudguard profile (A): 80 mm
- Height of mudguard profile (B): 40 mm
- End: Folded closed on both sides
- Material: Chrome steel (stainless steel), highly polished
- Total height from support surface to top edge (C): 185 mm
- Total length over ends (D): 565 mm
- Circumference (E): 700 mm
Technical data rear mudguard:
- Material: chrome steel (stainless steel)
- Shape: part-round
- Width mudguard profile (A): 80 mm
- Height mudguard profile (B): 40 mm
- Endings: front side not folded / rear side closed folded
- Material: Chrome steel (stainless steel), highly polished
- Total height from support surface to top edge (C): 320 mm
- Total length over ends (D): 635 mm
- Circumference (E): 1005 mm
Technical data mudguard arch:
- Material: steel, chrome-plated
- Total height of arch: 270 mm
- Width (outer edges of flat bars): 115 mm
- Hole spacing of lateral holes: 35 mm
- Drilling diameter: 5.9 mm
Technical data lower strut:
- Material: Steel, chrome-plated
- Total length: 305 mm
When you purchase this complete set, you will receive a substantial percentage off the retail price of the individual parts.
Other parts for your wheel fairing, such as stainless steel polish or fastening material, can be found in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
The set includes the following fixed parts:
Manufacturer: swiing® revival parts · Material: Plastic · Color: black · Total length: 74 mm · Height: 12.5 mm · Mounting type: Plug connection · Number of fixing points: 2 pcs · Hole spacing: 63 mm
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Wheel size [inch]: 17 " · Total length: 270 mm · Distance mudguard - center hole: 212 mm, 247 mm · Ø outside: 14 mm · Outer width: 130 mm · Mounting type: Nuts & bolts · Number of fixing points: 6 pcs · Hole spacing: 35 mm · Ø mounting hole: 5.9 mm, 6.4 mm · Wide intake: 115 mm
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Wheel size [inch]: 17 " · Total length: 305 mm · Distance mudguard - center hole: 300 mm · Outer width: 160 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø mounting hole: 12.5 mm
Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: not folded, closed folded · Shape of the mudguard: partly round · Total length over ends: 635 mm · Scope: 1005 mm · Wide mudguard profile: 80 mm · Height of mudguard profile: 40 mm · Total height from support surface to top edge: 320 mm · Mounting type: Screws
Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: closed folded · Shape of the mudguard: partly round · Total length over ends: 565 mm · Scope: 700 mm · Wide mudguard profile: 80 mm · Height of mudguard profile: 40 mm · Total height from support surface to top edge: 185 mm · Mounting type: Nuts & bolts
Details
| Manufacturer | swiing® revival parts, GPO |
| Material | Chrome steel (stainless steel) |
| Surface | chrome-plated, polished |
| Color | Chrome |
| Wheel size [inch] | 17 " |
| Folding the ends | closed folded, not folded |
| Shape of the mudguard | partly round |
| Mounting type | Nuts & bolts |
Suitable for the following models
| Puch |
