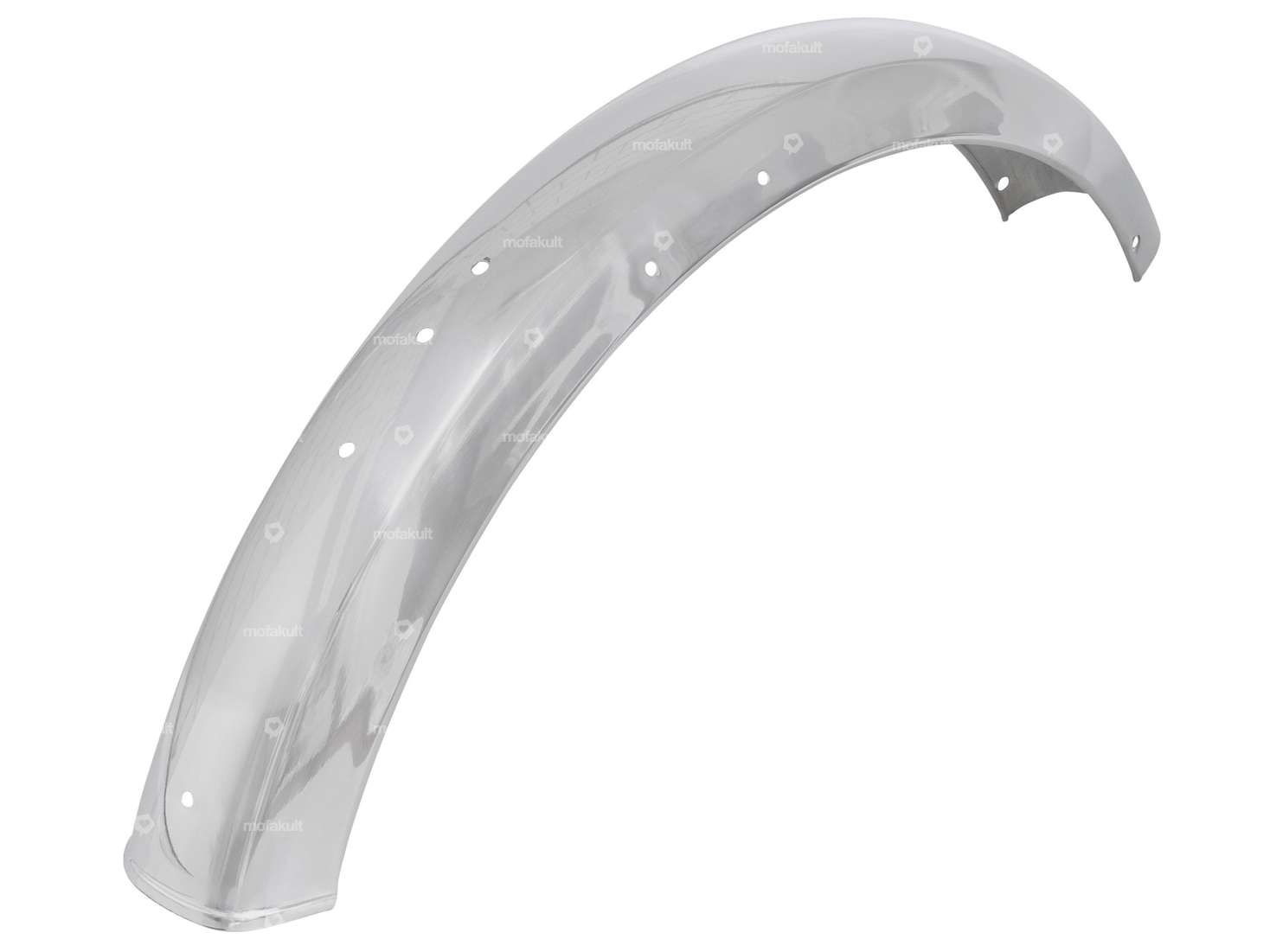

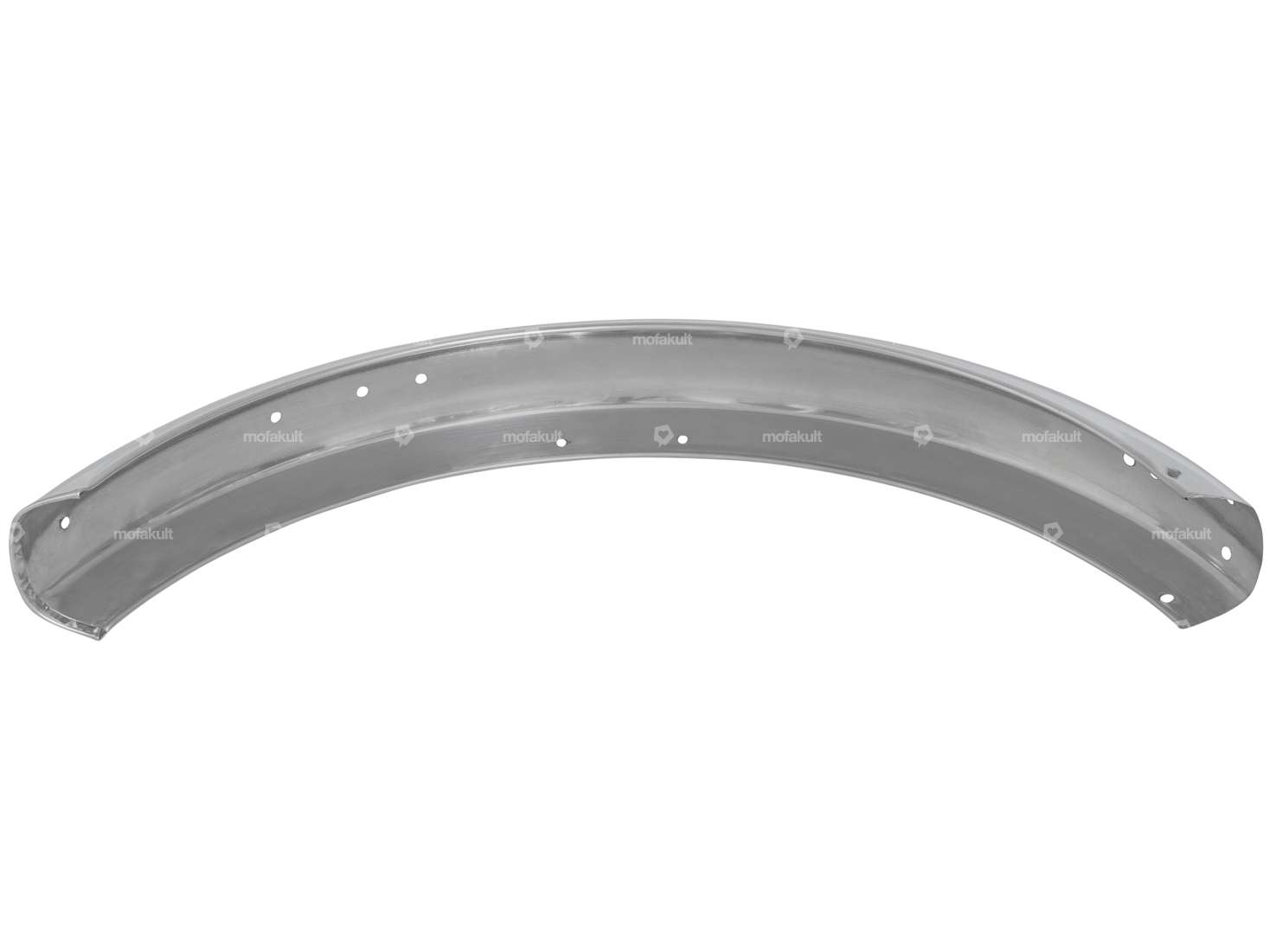

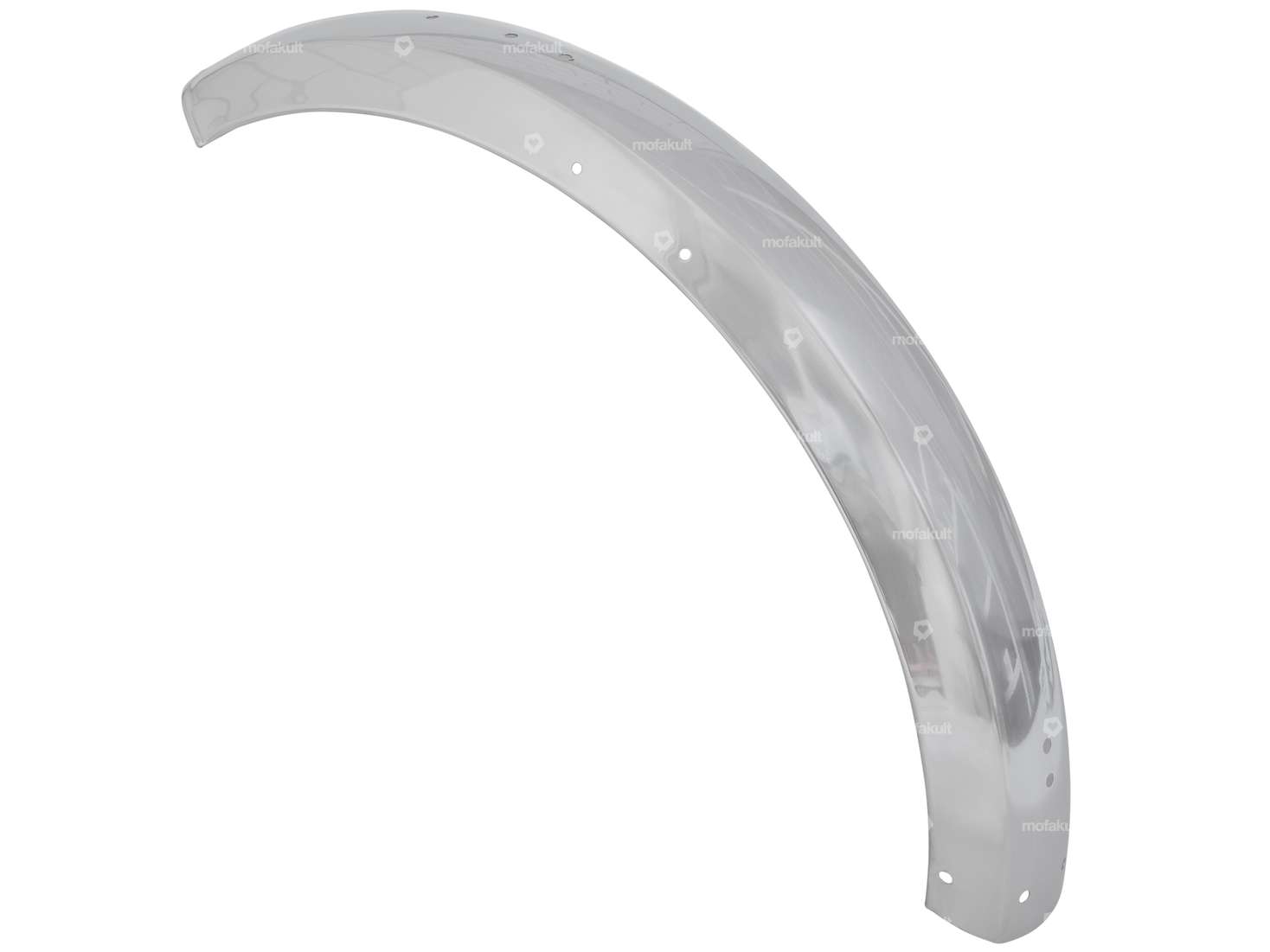

Front mudguard made of stainless steel for your Puch Maxi S or N moped with 17-inch rims.
The highly polished surface ensures a first-class look and gives your moped the necessary shine.
As the mudguard is folded at the front, there are no sharp edges in the direction of travel, which significantly reduces the risk of injury.
All original holes are provided for mounting the lower mudguard struts and the upper pipe bend.
The holes on both sides of the mudguard are provided for mounting the original cable guides.
Furthermore, there are four holes for mounting an edge protector or splash guard flap.
Finally, there are two additional holes on the top for universal purposes, e.g. a decorative figure.
Shape: part-round
Width of mudguard profile (A): 80 mm
Height of mudguard profile (B): 40 mm
End: closed folded / not folded
Material: chrome steel (stainless steel), highly polished
Total height from support surface to top edge (C): 185 mm
Total length over ends (D): 570 mm
Circumference (E): 715 mm
Further parts for your wheel fairing, such as stainless steel polish or fastening material, can be found in the accessories section.
Nostalgic product for the highest demands from the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (stainless steel) |
| Surface | polished |
| Color | Chrome |
| Folding the ends | folded, not folded |
| Shape of the mudguard | partly round |
| Total length over ends | 570 mm |
| Scope | 715 mm |
| Wide mudguard profile | 80 mm |
| Height of mudguard profile | 40 mm |
| Mounting type | Nuts & bolts |
| Total height from support surface to top edge | 185 mm |
| Wheel size [inch] | 17 " |
Suitable for the following models
| Puch |
