Reinforcement set for all manual Sachs clutches of the 503, 50/2, 50/3, 50/4 series
The revised version, the springs fit perfectly and the paint no longer chips off.
The total force is 40% stronger compared to 9 original springs. (Stage 2, red)

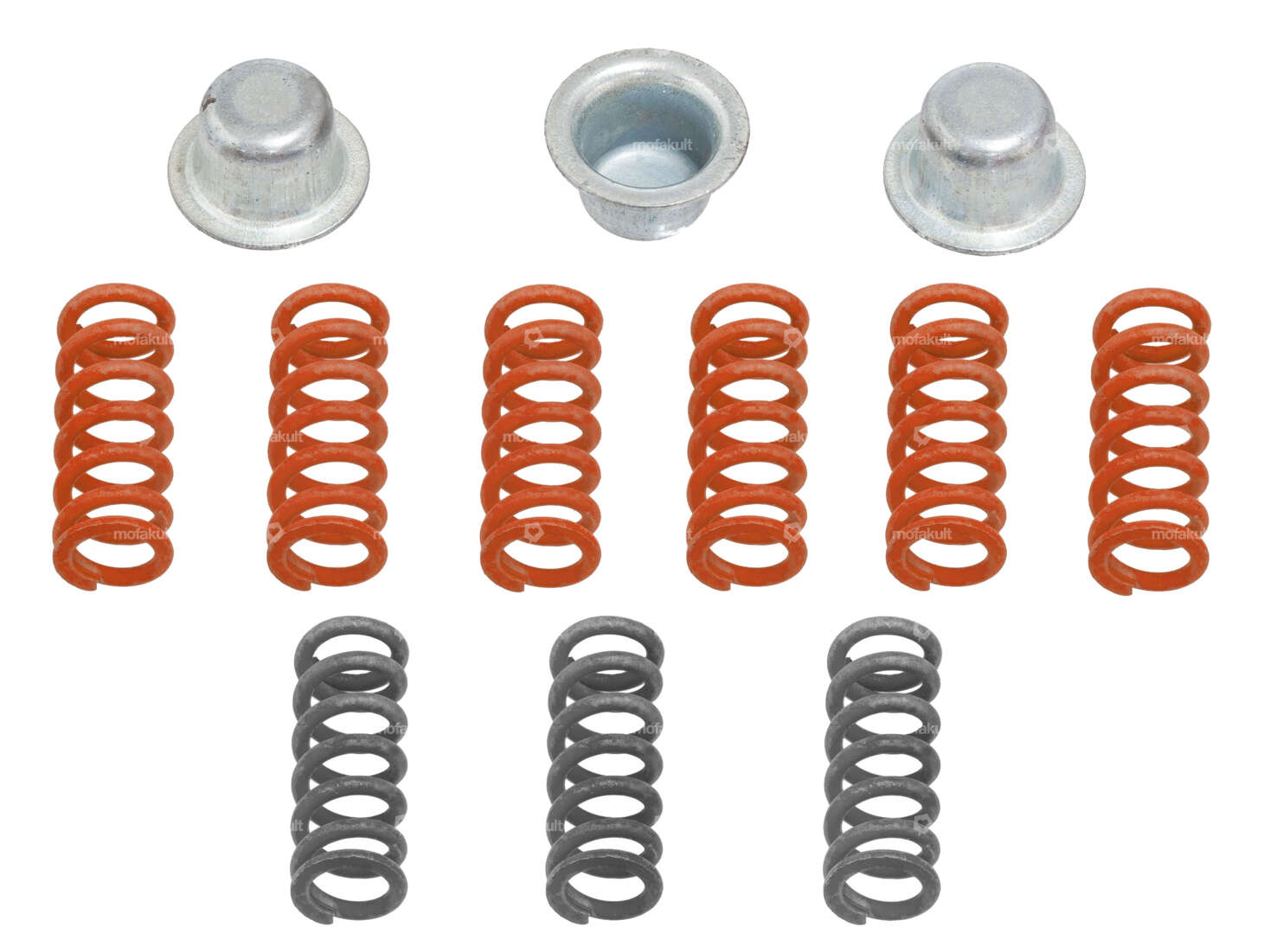

The clutch reinforcement set consists of 3 springs, 6 red and 3 original clutch springs.
Installation instructions:
- The red springs are slightly conical and must be placed on the spring plate with the larger end facing downwards!
- The 3 original springs are fitted together with the clutch pins.
We do not recommend using stronger springs, or even 9 red springs, as this increases the force too much and can damage the clutch basket bearing.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Ø inside | 5.6 mm |
| Manufacturer | swiing® ingenious parts |
| Area of application | Tuning |
| Material | Spring steel |
| Surface | coated |
| Number of springs | 9 pcs |
| Ø outside | 8.75 mm |
| Thickness | 1.4 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - 2AL / 2BL |
