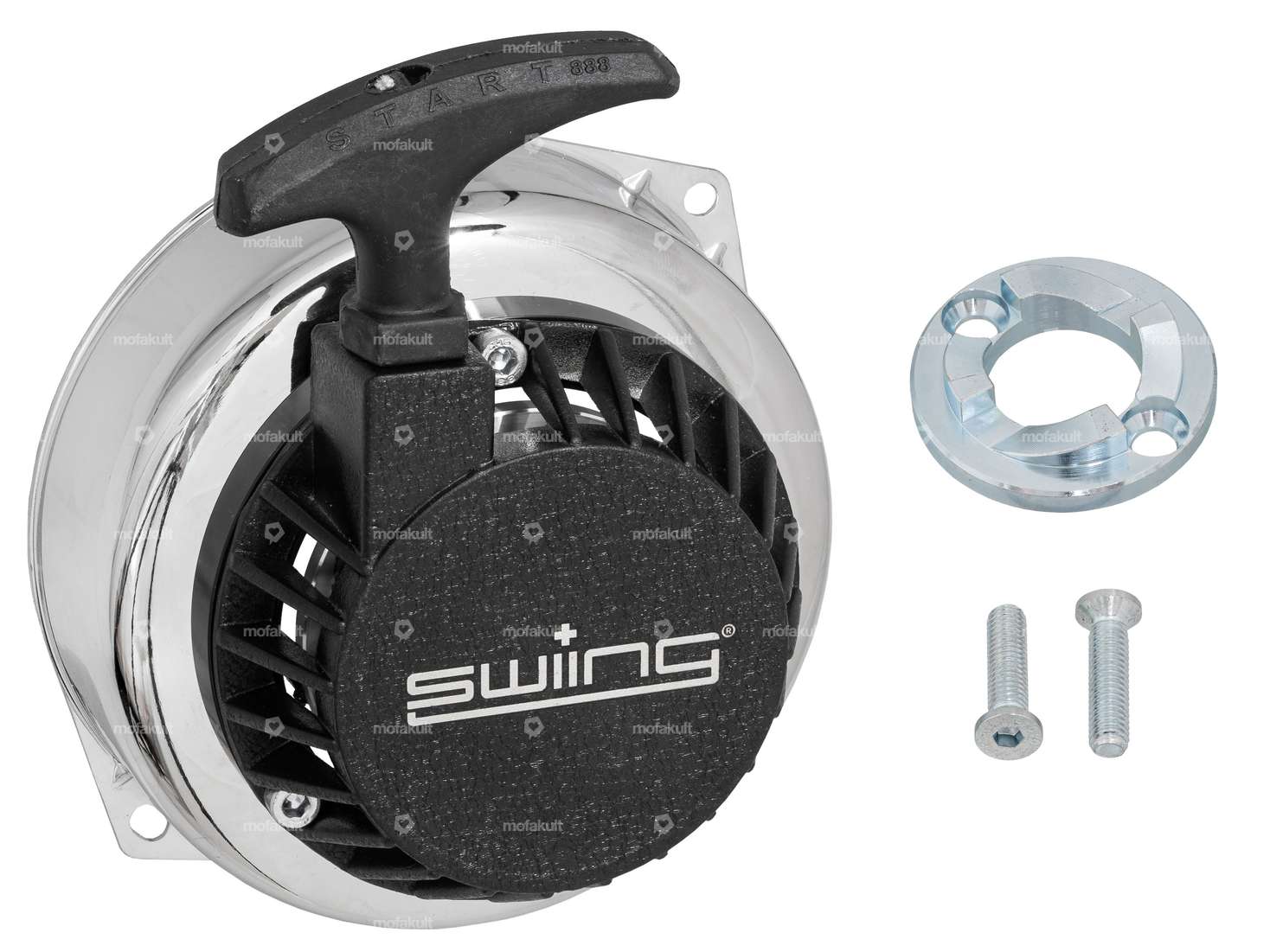

Ready-to-install rope starter for clockwise rotating Puch E50 engines on your Puch Maxi S / N or Puch Supermaxi LG1 moped / moped. Can only be fitted in conjunction with a PVL license plate.
Made in Switzerland. Designed for the highest loads and proven in racing.
Installation:

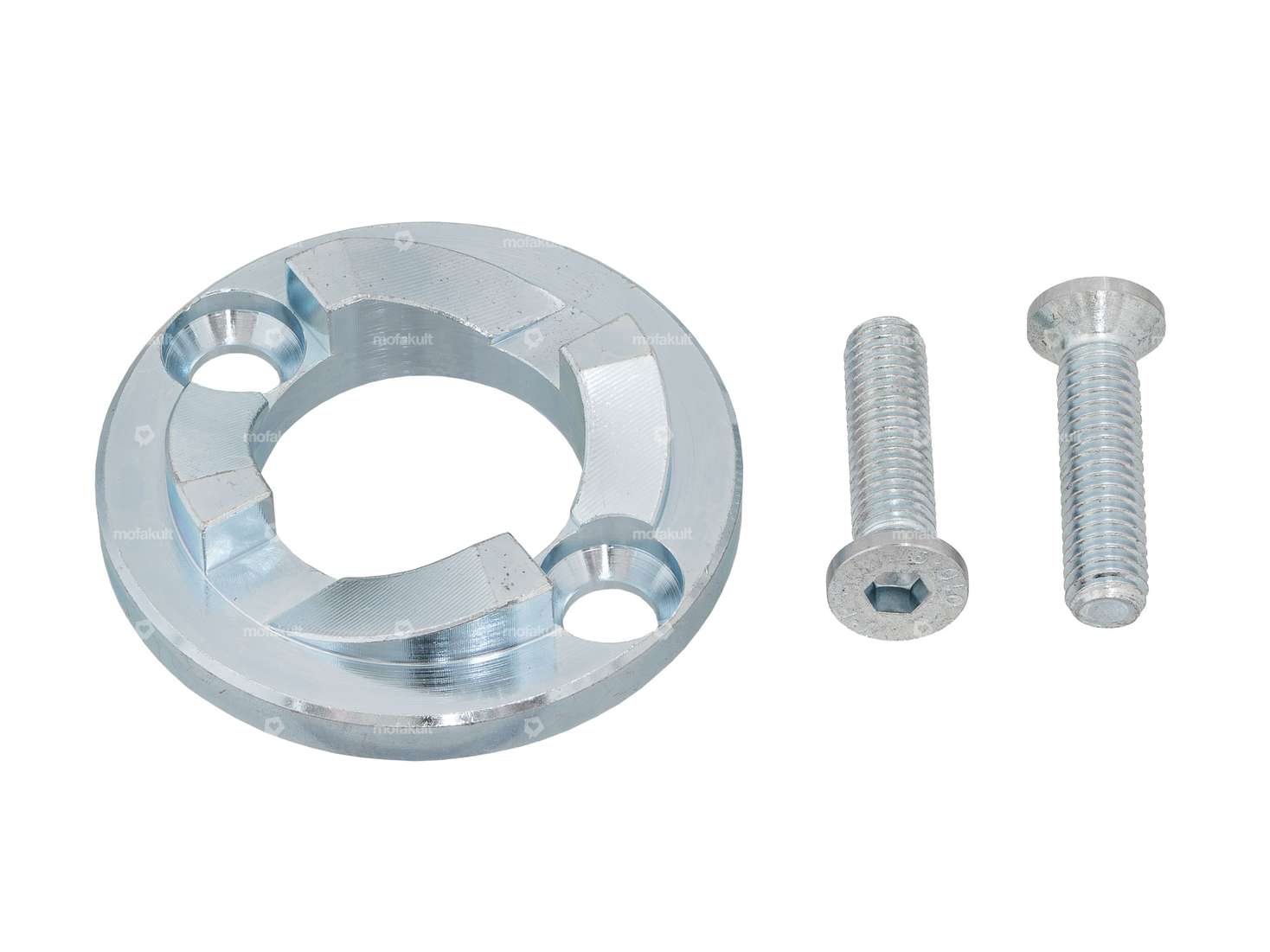

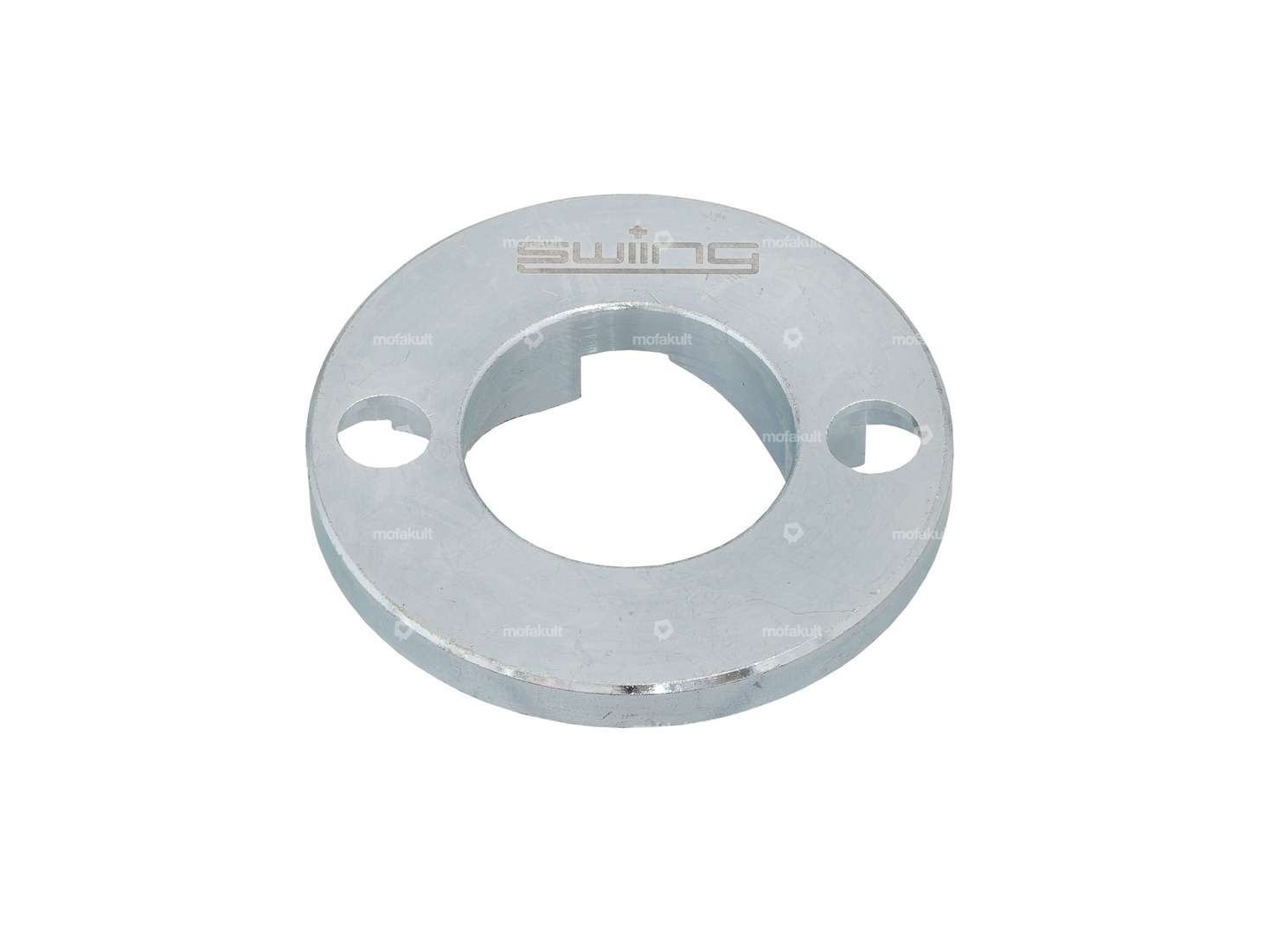

1. Starter pinion: Clean the PVL pole wheel, then screw the counterpart for the pull-wire starter onto the pole wheel (secure the enclosed screws with Loctite).

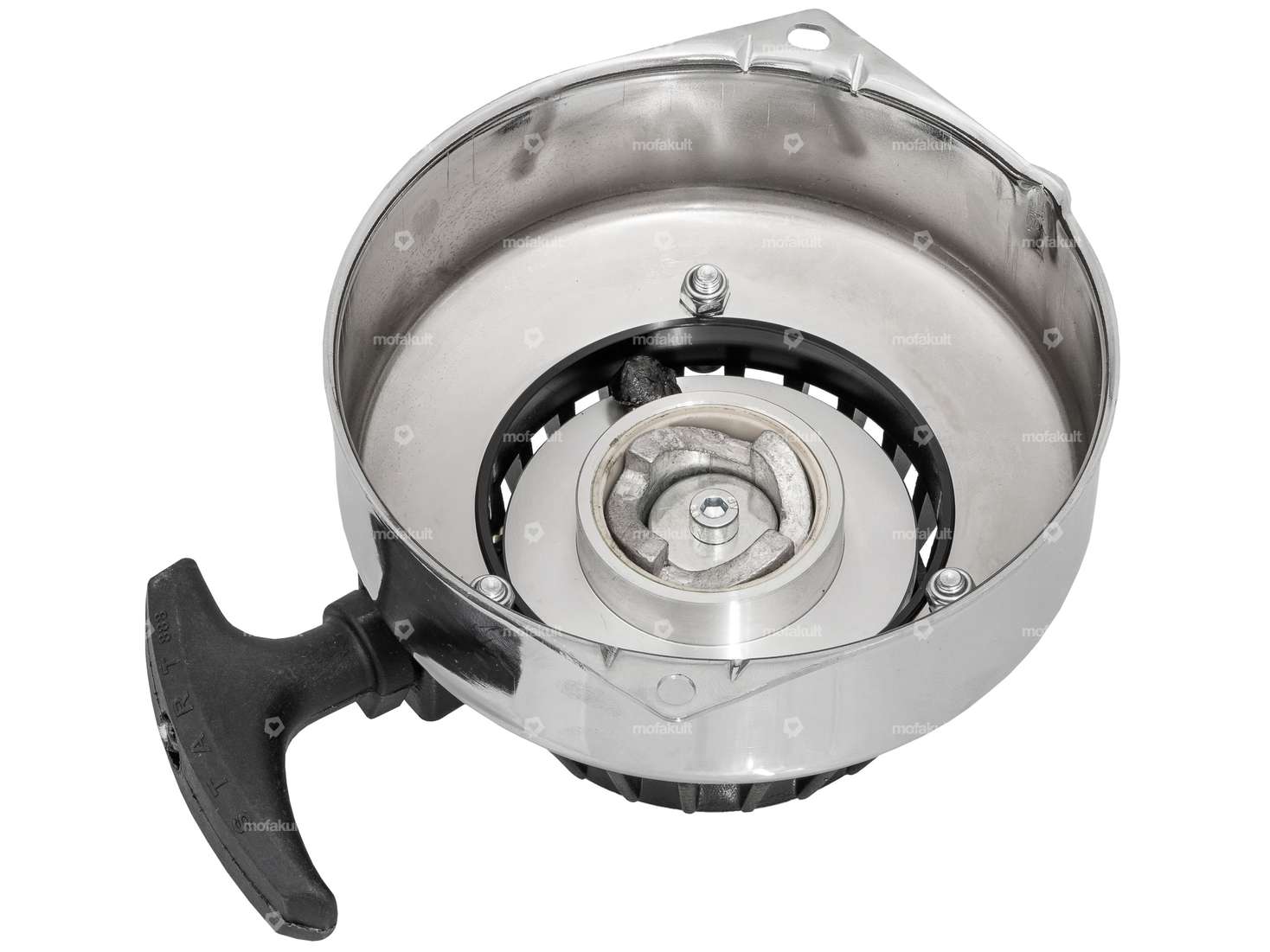

2. Cable starter: Position the starter housing correctly and tap lightly with a plastic hammer until the cable starter fits perfectly. It can then be screwed into place.
Application:
1. Before starting, pull the cable slowly a few times so that the engine turns over empty (must be done before each start attempt).
2. Pull out the cable starter handle until it engages fully and you encounter resistance. Then pull through in one go.
Tip: Wear gloves! Hold the handle firmly.
Note: The pedal mechanism can no longer be operated as the pedal arms would come into contact with the housing of the pull starter. Therefore, footrests, a longer pedal axle or a pedal axle extension must be fitted.
Other helpful parts for the cable starter conversion such as Loctite, racing gloves, replacement cord, rubber mallet etc. can be found in the accessories section. You can find them in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Ø outside | 130 mm |
| Total length | 170 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Steel, Plastic |
| Surface | chrome-plated, raw |
| Color | Chrome |
| Ignition system | PVL |
| Width | 150 mm |
| Height | 80 mm |
| Hole spacing | 138 mm |
| Number of fixing points | 2 pcs |
Suitable for the following models
| Puch | E50 |
