swiing® ingenious mirror mount M10 aluminum black

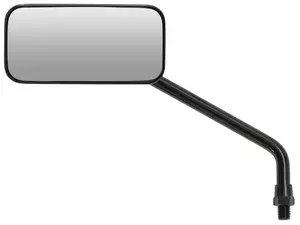

Mirror "Chopper" left black

Thread type: MF10x1.25 (fine pitch thread) · Material: Steel · Thread size: M10 · Mirror surface length: 110 mm · Wide mirror surface: 55 mm · Mirror rod length: 160 mm · Color: black

Mirror mount M10 aluminum matt

Material: Aluminum · Surface: anodized · Color: silver · Thread size: M10 · Width: 18 mm · Clamping diameter: 22 mm · Height: 55 mm · Total length: 52 mm

Mirror "Chopper" left chrome

Material: Steel · Color: Chrome · Surface: chrome-plated · Thread size: M10 · Mirror surface length: 110 mm · Thread type: MF10x1.25 (fine pitch thread) · Wide mirror surface: 55 mm · Mirror rod length: 160 mm

Mirror mount M10 aluminum red

Material: Aluminum · Surface: anodized · Color: red · Thread size: M10 · Width: 18 mm · Clamping diameter: 22 mm · Height: 55 mm · Total length: 52 mm · Internal thread: MF10x1.25 (fine pitch thread)

Screw M4x10 cylinder head hexagon socket low head stainless steel

Total length: 14 mm · Material: Chrome steel (stainless steel) · Number of components: 1 pcs · Thread type: M4x0.7 (standard thread) · Drive: Hexagon socket · Screw head: Cylinder head · Ø External head: 7 mm · Shank: No · Thread length: 10 mm

Airsal 45 mm cylinder kit 70 ccm camouflaged | Puch

Nominal diameter: 45 mm · Manufacturer: Airsal · Material: Cast aluminum · Area of application: Tuning · Camouflaged: Yes · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø piston pin (B): 12 mm · Hole spacing inlet: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Inlet window: 23.5 / 20 x 15 · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Decompressor: Yes · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44

Black bench seat

Manufacturer: Made in Portugal · Total length: 300 mm · Ø Saddle tube holder: 22 mm · Material: Imitation leather · Width: 215 mm · Spring-loaded: No · Lettering: No · Color: black · Number of fixing points: 1 pcs · Height: 80 mm · Height: 115 mm

Rear light glossy chrome - red

Height: 45 mm · Depth: 55 mm · Width: 65 mm · Material: Plastic · Test mark: none · Color: Chrome · Color: red · Mounting type: Nuts & bolts · Bulb holder: BA9s · Ø Receptacle: 3.5 mm · Number of fixing points: 1 pcs · Battery operated: No

GPO control bearing set M26x1 mm | Puch

Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Ø inside: 26.8 mm · Ø mounting frame: 31 mm · Ø outside: 41 mm · Color: silver

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Total length: 122 mm · Material: Spring steel · Surface: blue galvanized · Ø inside: 9 mm · Ø outside: 14 mm

swiing® revival 17" rear fender Inox | Puch Maxi N

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Color: Chrome · Surface: polished · Folding the ends: closed folded · Folding the ends: not folded · Shape of the mudguard: angular · Total length over ends: 625 mm · Scope: 940 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Mounting type: Nuts & bolts · Total height from support surface to top edge: 285 mm · Wheel size [inch]: 17 "

Front reinforcement / mudguard arch chrome (cheap)

Material: Steel · Outer width: 143 mm · Surface: chrome-plated · Color: Chrome · Mounting type: Nuts & bolts · Distance mudguard - center hole: 207 mm · Distance mudguard - center hole: 242 mm · Ø outside: 16 mm · Wide intake: 128 mm · Ø mounting hole: 6.2 mm · Hole spacing: 35 mm · Number of fixing points: 6 pcs · Wheel size [inch]: 17 " · Total length: 270 mm

Pedestal bearing shell | Puch

Total length: 70 mm · Material: Aluminum · Material: Steel · Width: 46 mm · Surface: blue galvanized · Surface: raw · Color: silver · Hole spacing: 41 mm · Mounting type: Screws · Number of fixing points: 3 pcs · Height: 20 mm

GPO mushroom air filter grille, Bing SRE (Ø=20 mm)

Manufacturer: GPO · Total length: 113 mm · Camouflaged: No · Area of application: Tuning · Material: Metal · Material: Rubber · Filter type: Grille · Ø Internal connection: 20 mm · Length rubber part: 63.5 mm · Length of filter section: 49 mm · Ø outside: 61 mm · Color: Chrome · Color: black · Mounting type: Bride · Mounting type: Plug connection clamped

GPO pedal crank left chrome (original Puch)

Thread type: FG14.3 (9/16" 20G) · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Crank length (center-center): 156 mm · Ø Pedal wedge: 9.5 mm · Color: Chrome · Ø Pedal axle: 16 mm · Total length: 181 mm · Cranking (offset): 52 mm
