With this Holex tool, you can determine the top dead center of the piston to an accuracy of 0.01 mm and thus set the ignition perfectly.
Universally applicable for Puch, Puch Maxi, Sachs, Piaggio Ciao & SI, Hercules, Pony, Tomos, Kreidler, Alpa, Zündapp mopeds, mopeds and small motorcycles.

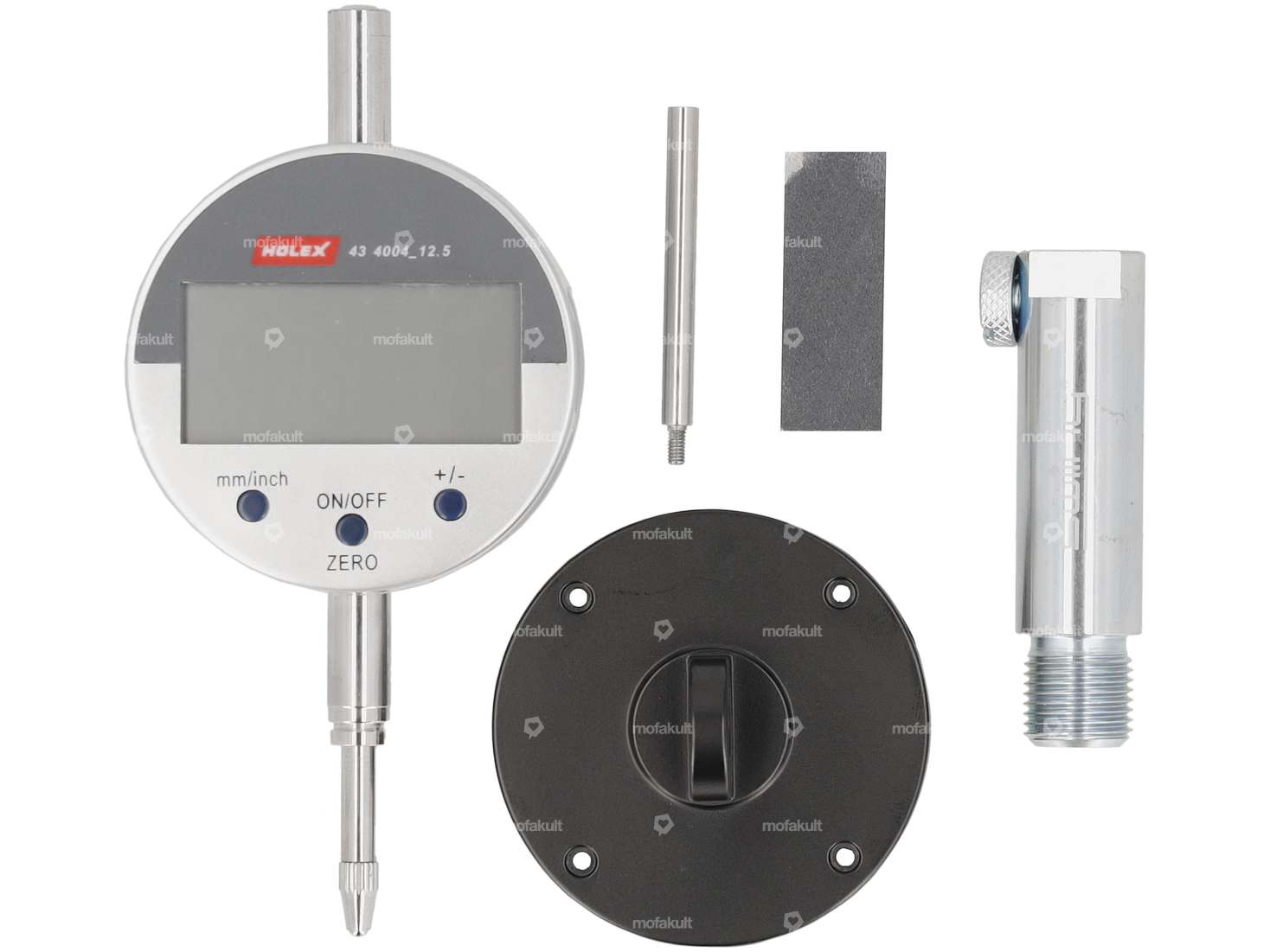

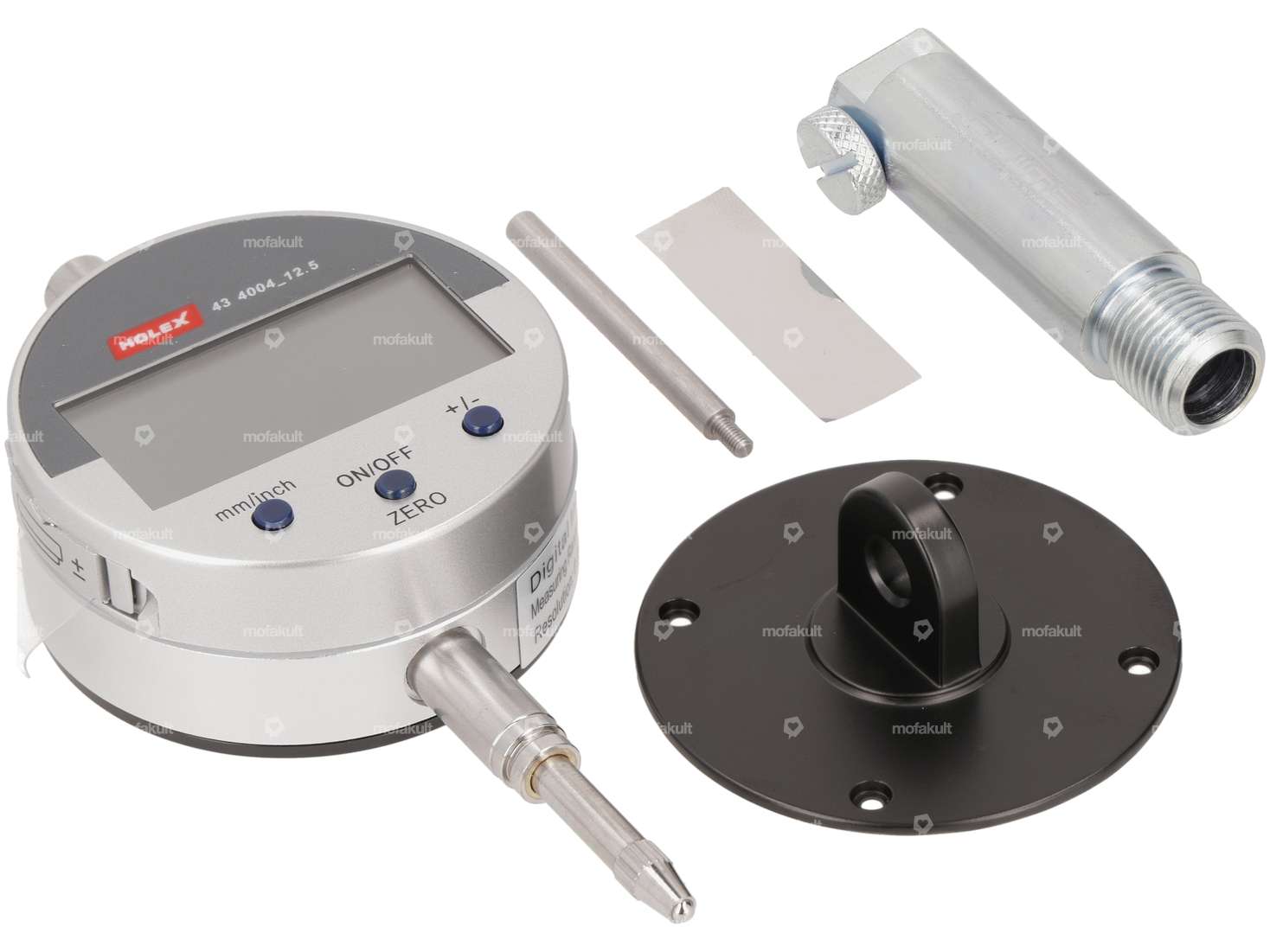

Scope of delivery of the TDC dial gauge:
- 0.01 mm dial gauge for between breaker contacts
- Dial gauge (incl. plastic box)
- Mounting piece with M14x1.25 thread
- Dial gauge extension
- Button battery for dial gauge

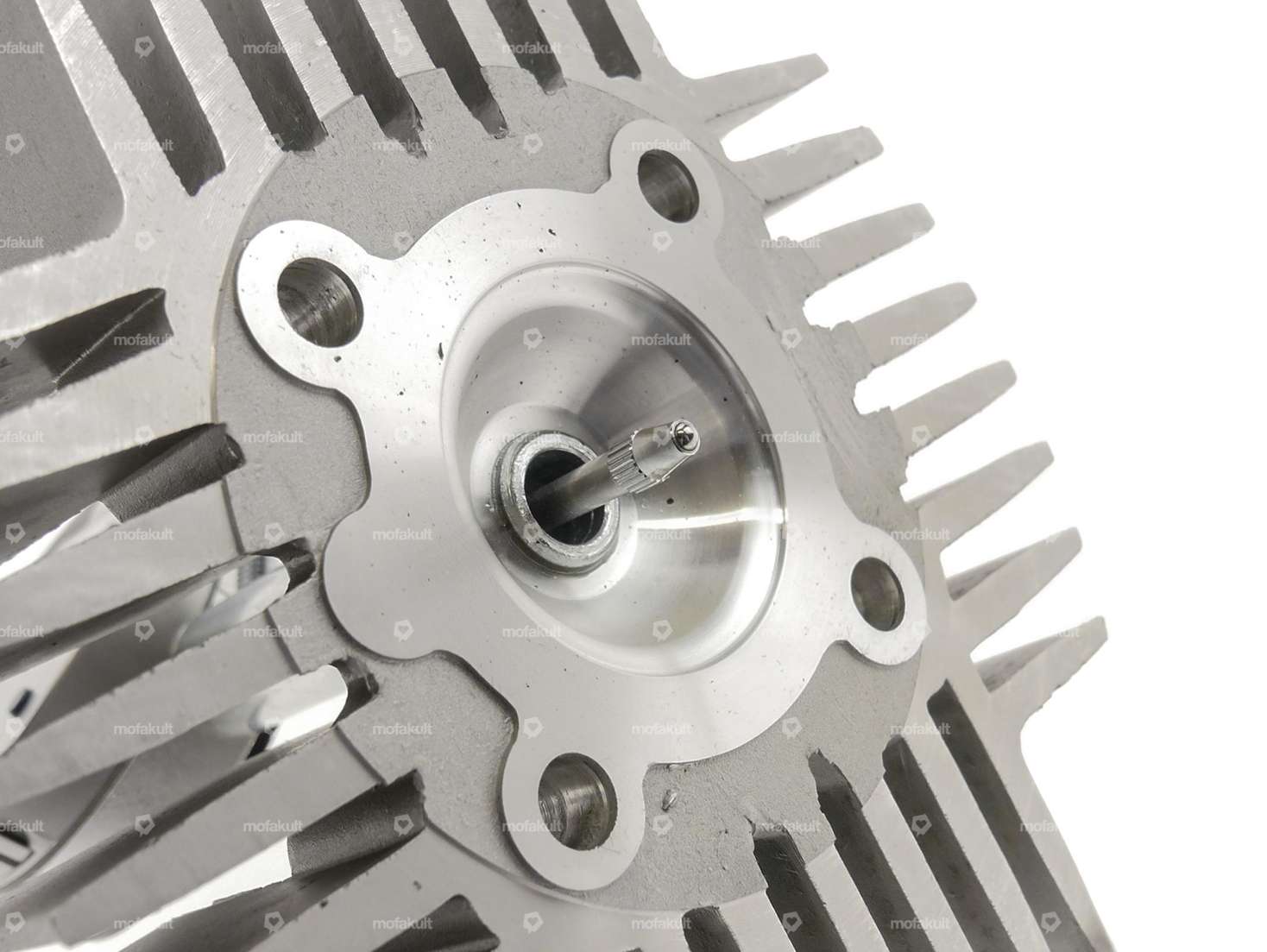

Figures 2 & 3 serve to illustrate the operation.
The set includes the following fixed parts:
Manufacturer: Made in Germany · Area of application: Measuring tool · Material: Steel · Surface: blank · Number of components: 1 pcs · Total length: 40 mm, 45 mm · Diameter: 4 mm · Thread type: M2.5x0.45 (standard thread) · Thread length: 5 mm
Area of application: Measuring tool · Material: Metal · Measuring range [mm]: 0 - 12.5 mm · Reading accuracy [mm]: 0.01 mm · Ø Clamping shaft: 8 mm · Calibration: C1
Area of application: Measuring tool · Thickness: 0.01 mm · Measuring range [mm]: 0.01 mm
Manufacturer: swiing® ingenious parts · Area of application: Measuring tool · Material: Steel · Surface: blue galvanized · Number of components: 1 pcs · Total length: 62 mm · Diameter: 15.9 mm · Ø Clamping shaft: 9.1 mm · Thread type: MF14x1.25 (fine pitch thread) · Thread length: 10.5 mm
Details
Reading accuracy [mm] | 0.01 mm |
Thread type | MF14x1.25 (fine pitch thread) |
Manufacturer | swiing® ingenious parts |
Area of application | Measuring tool |
Number of components | 4 pcs |
Suitable for the following models
Universal | |
Puch | |
Sachs | |
Zündapp Belmondo | |
Solex | |
Tomos | |
Bye Bike |
