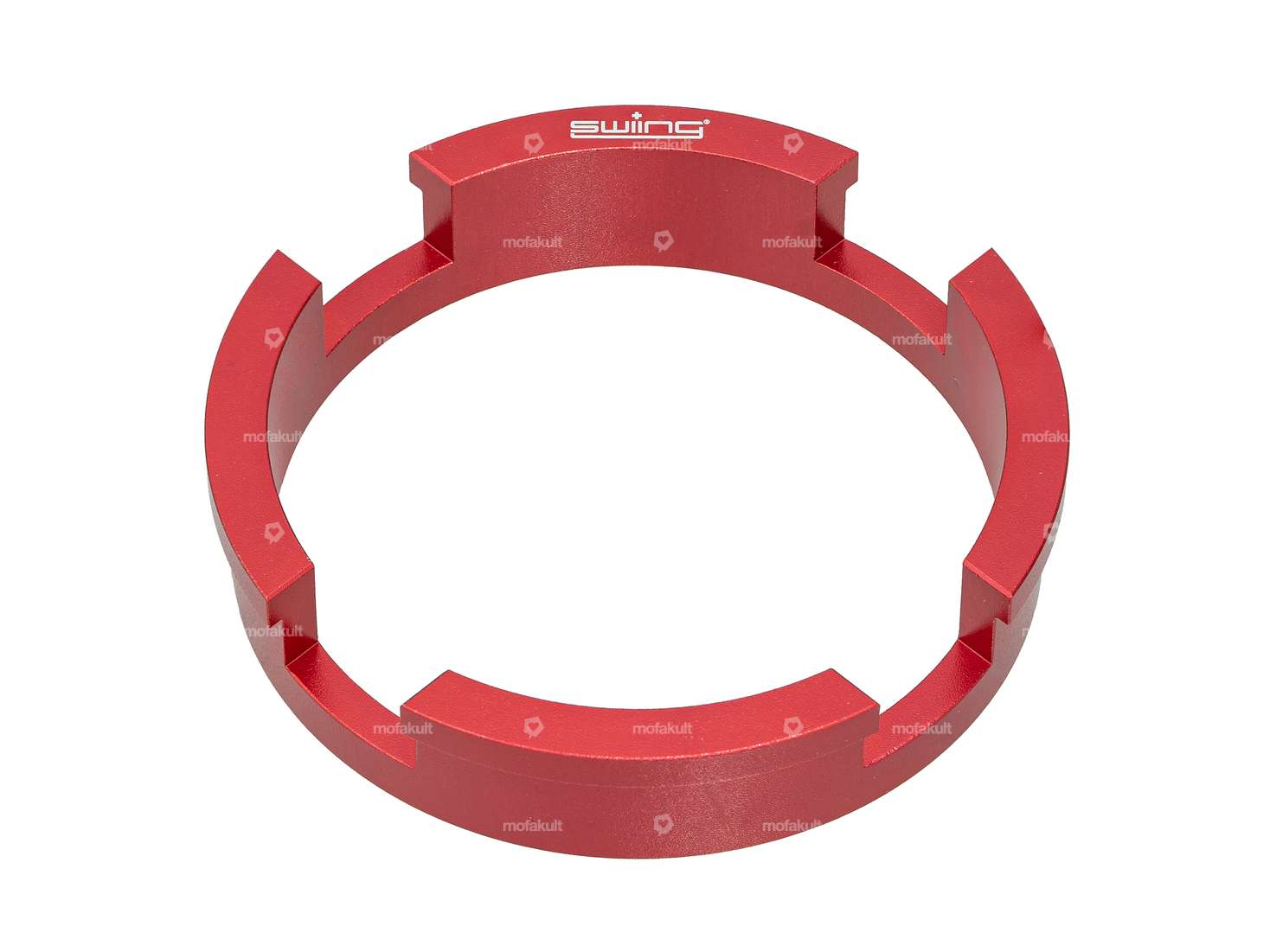

Centering aid for mounting sprockets on Sachs HR-90 and Sachs HR-905 sprocket hubs on your moped, moped and small motorcycle.

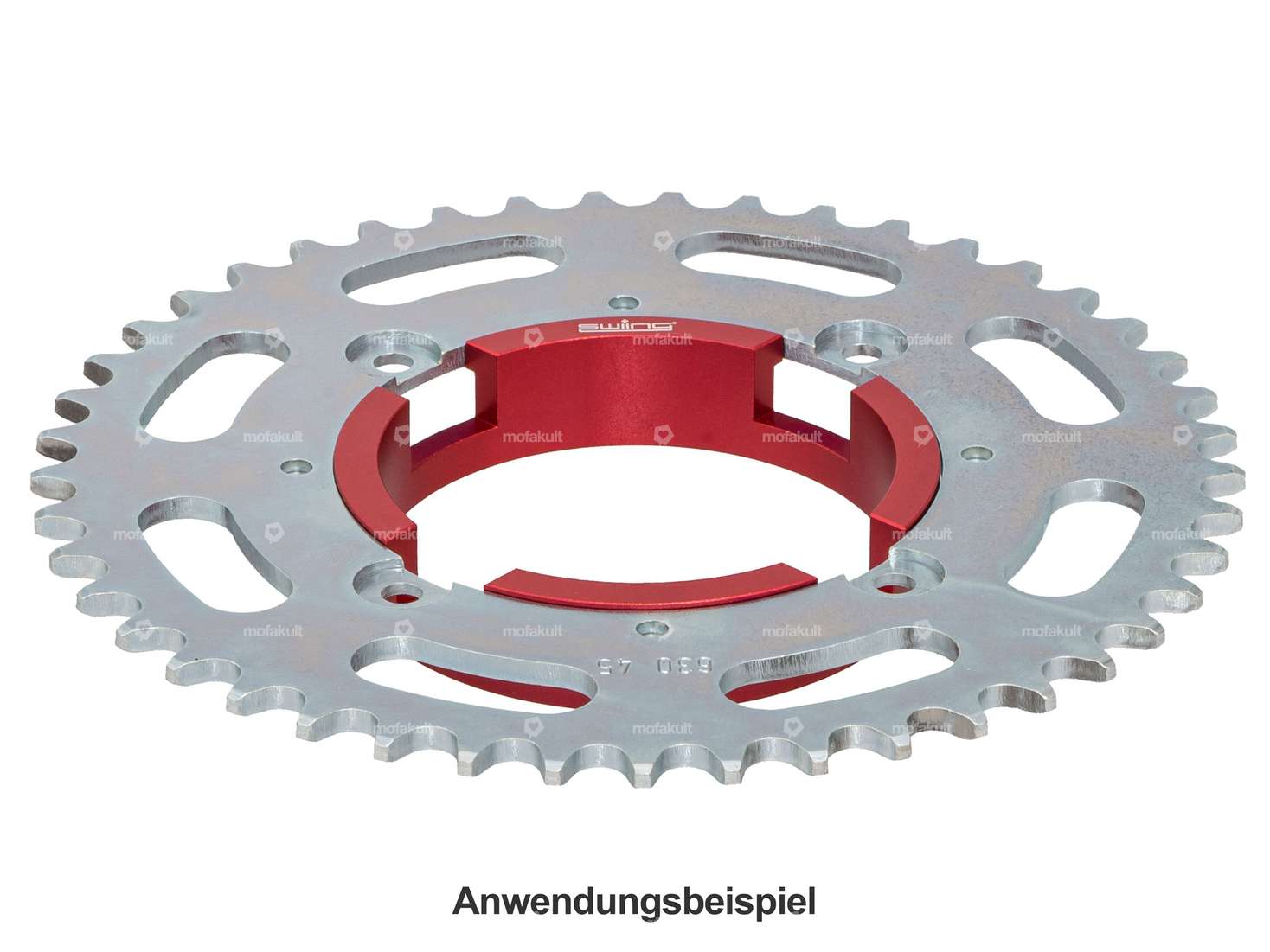

The drilling jig is placed in the sprocket and then inserted into the brake drum. The sprocket is now cleanly centered on the brake drum. The holes for the mounting bolts can now be drilled perfectly centered.

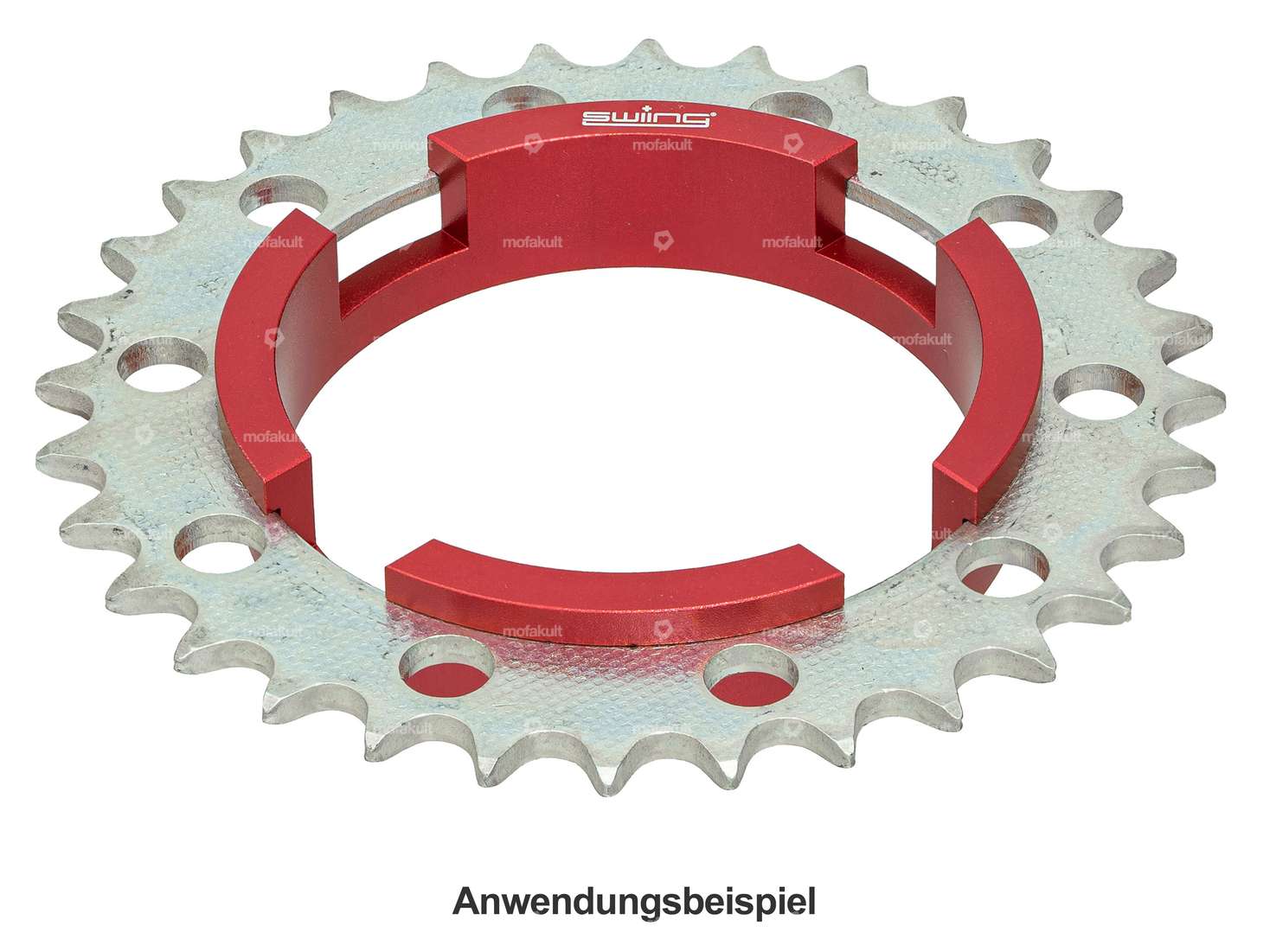

The assembly jig can also be used if the sprocket is to be welded back together. The spider can be tacked centrally using the recesses on the side. After removing the centering tool, the spider can still be fully welded to the hub.

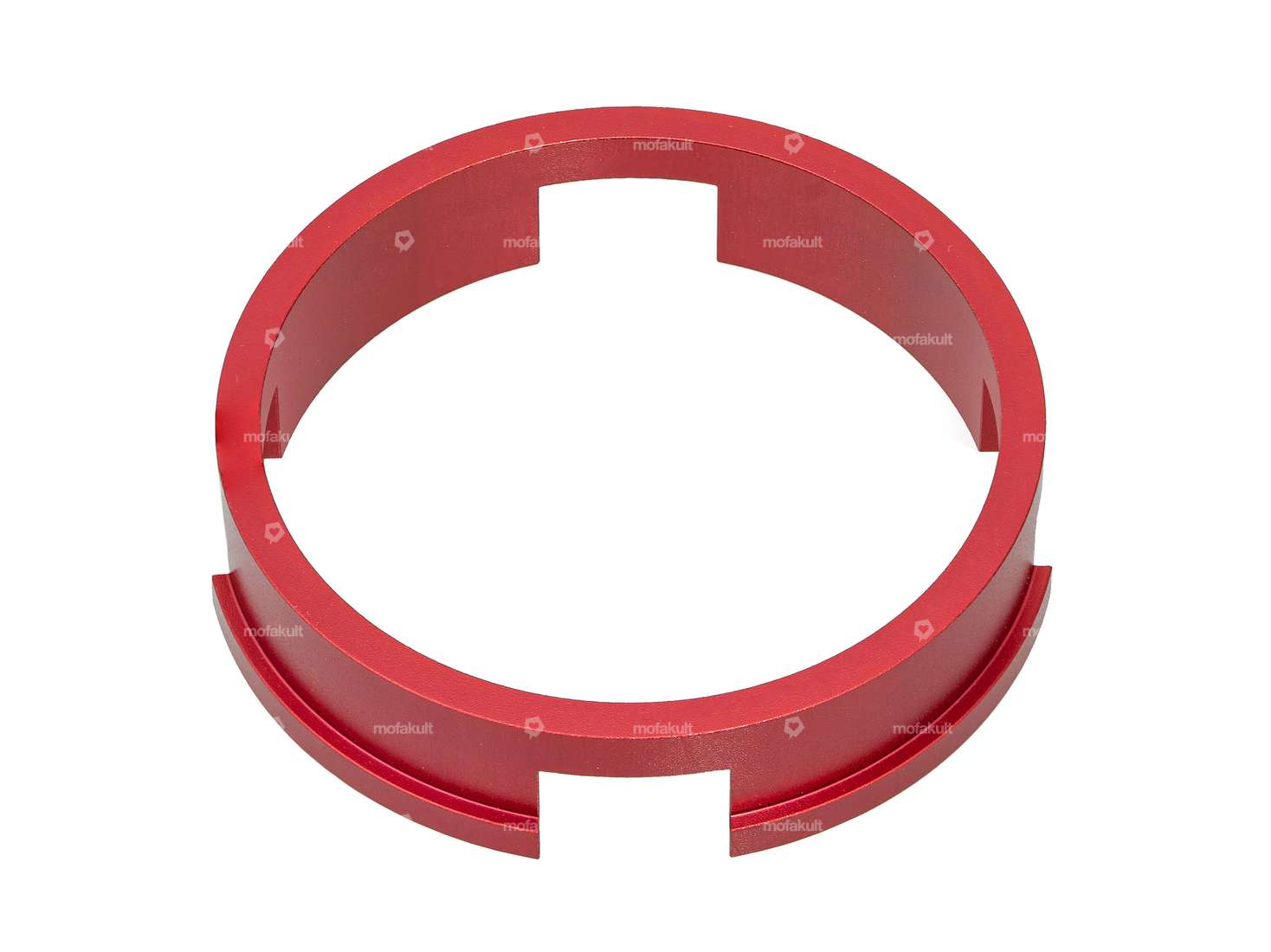

Ø Outer shaft: 89.9 mm
Ø Outer collar: 93.9 mm
Total height: 20.0 mm
Ø Inner: 80.0 mm
Material: Aluminium, red anodized
If the brake drums are heavily worn, the play can easily be compensated with spacer film.
You can find the corresponding feeler gauge tape and other add-on parts in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Ø inside | 80 mm |
| Material | Aluminum |
| Surface | anodized |
| Height | 50 mm |
| Ø outside | 93.9 mm |
| Area of application | Special tool |
Suitable for the following models
| Puch | |
| Sachs | |
| Zündapp Belmondo | |
| Cilo |
