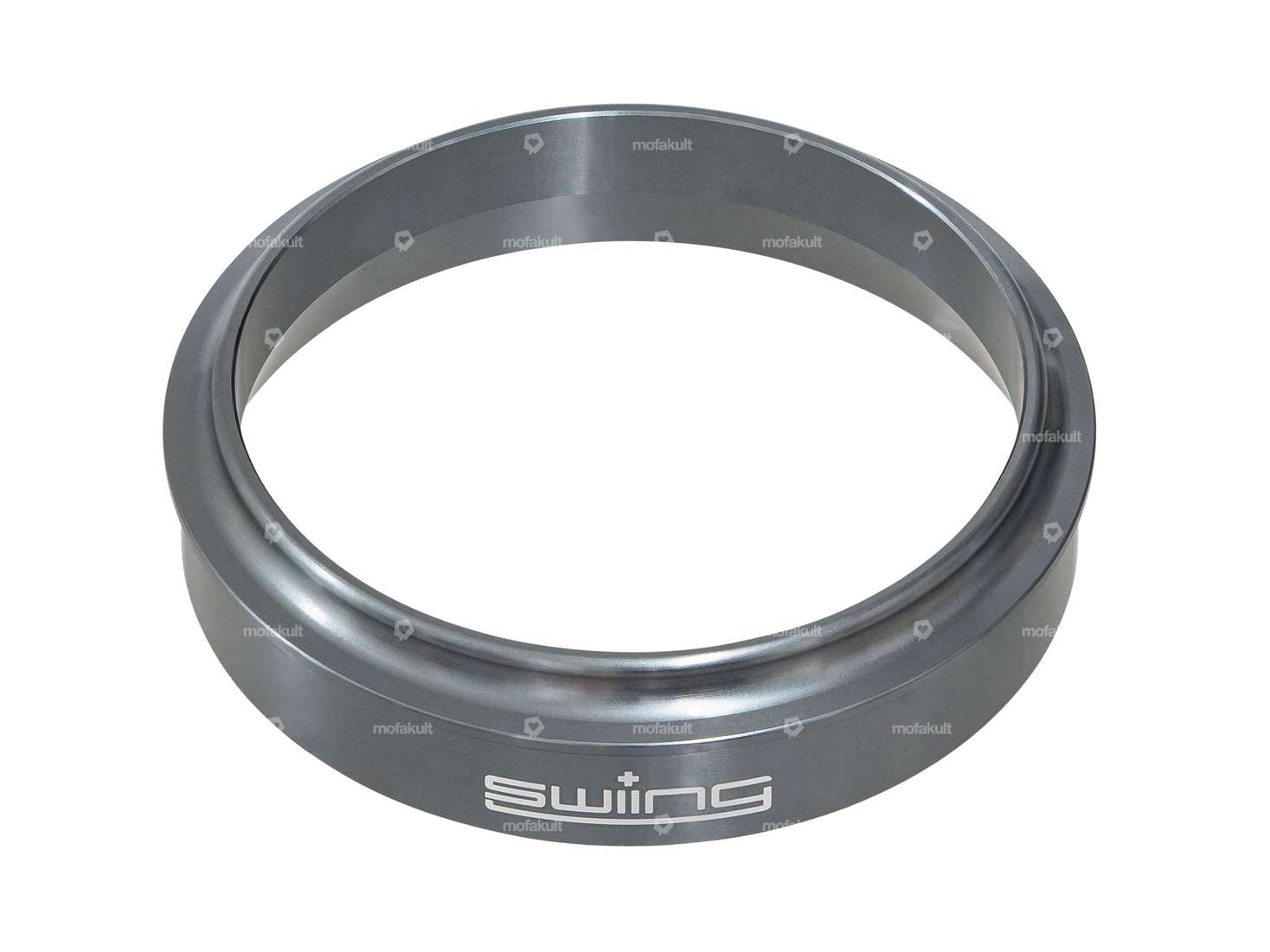

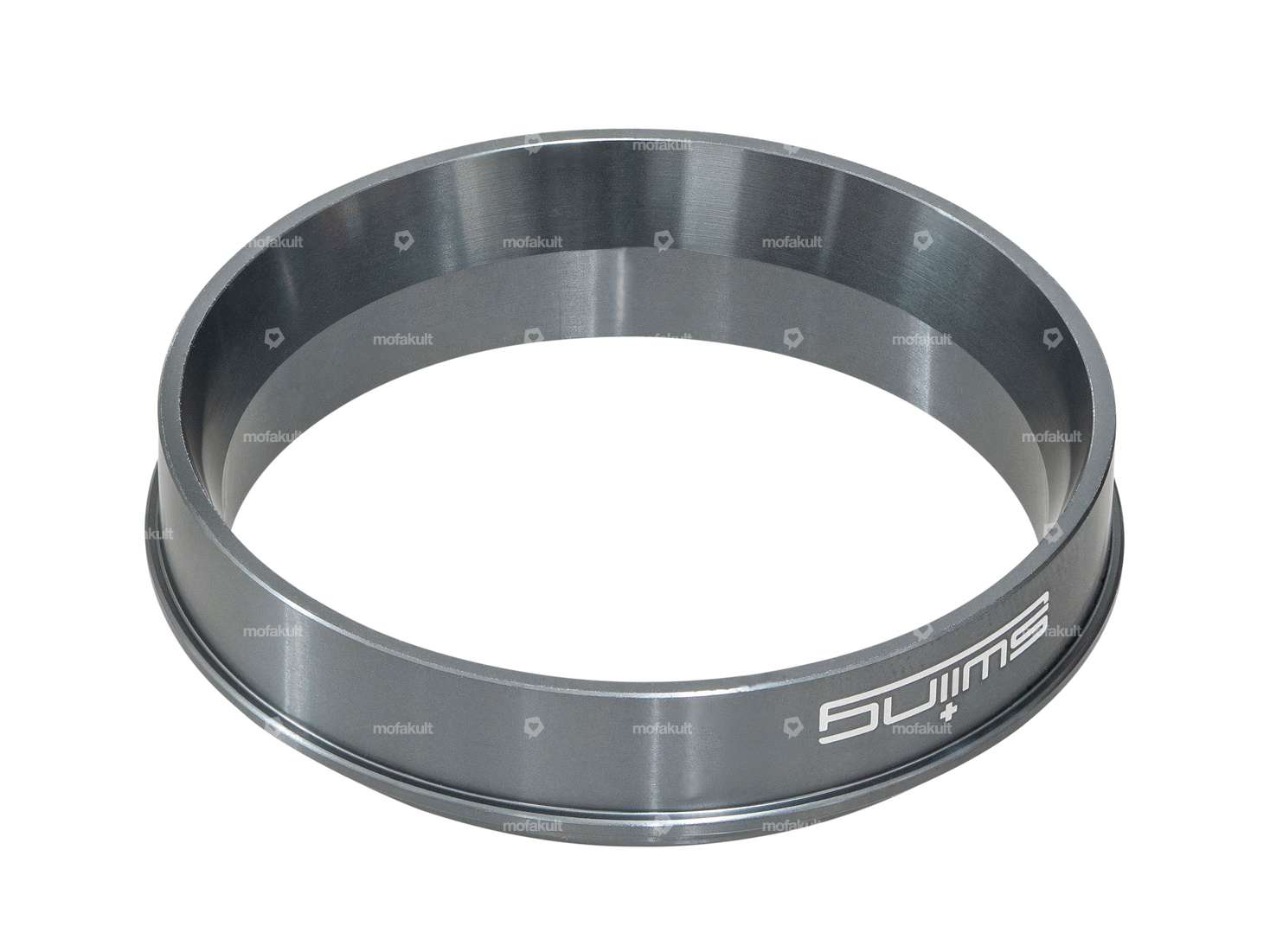

Special aluminum flange, nickel-plated, to mount a larger carburetor on Pony / Cilo Beta 521 mopeds / mopeds.

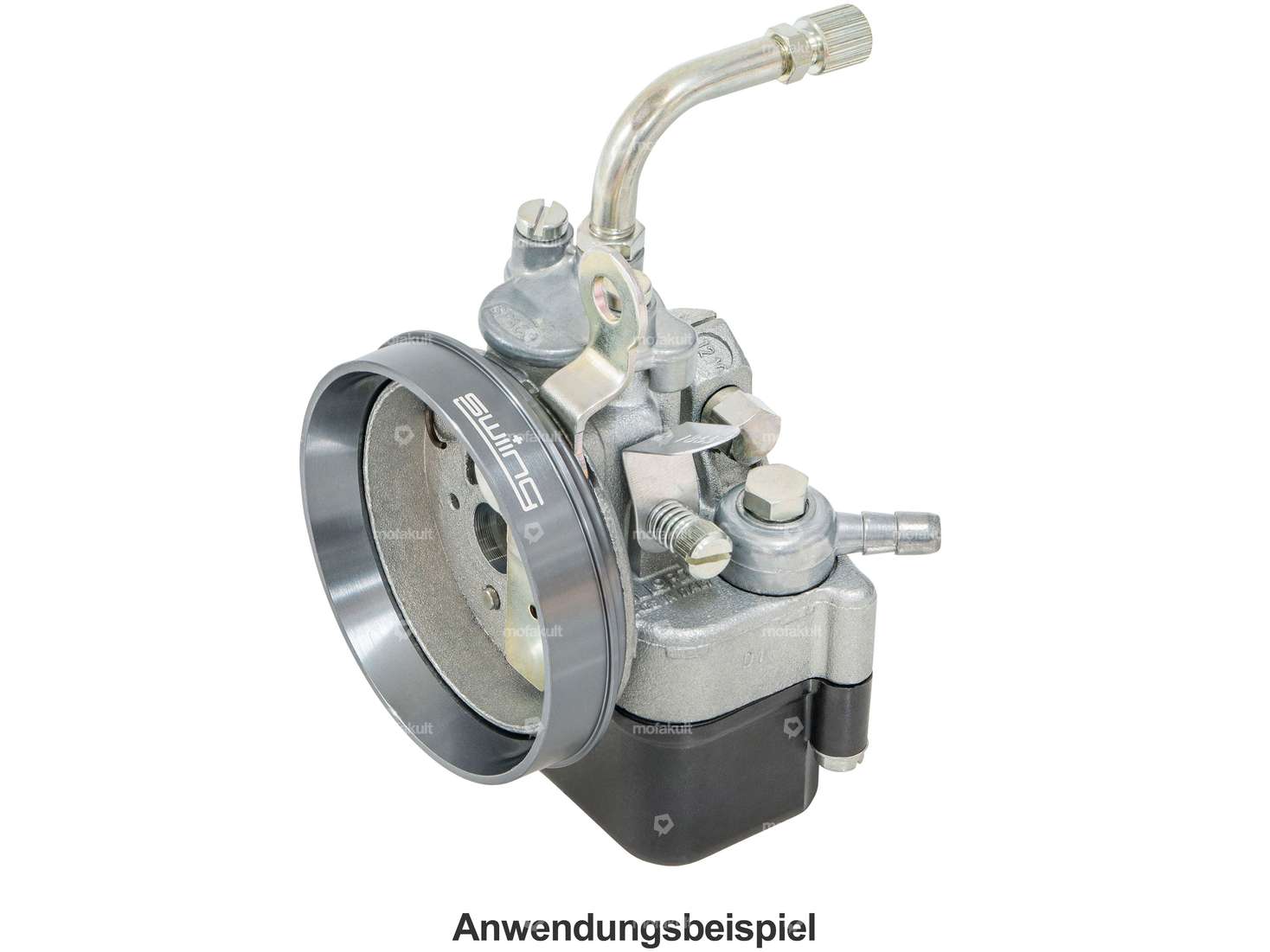

This ring can be glued to conventional SHA 9 - 13 mm carburetors from Dell'Orto.
Dimension of the ring:
Ø inside: 51 mm
Ø outside: 59 mm
Length: 14 mm
Attention: To be able to mount the carburetor with the original air filter box, the flange must be glued on with Loctite 638 and an air filter mat must be inserted in the air filter box. It is no longer possible to fit the air filter screen!
You can find the attachment parts under accessories.
Exclusive product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | nickel-plated |
| Ø inside | 51 mm |
| Total length | 14 mm |
| Ø outside | 59 mm |
| Mounting type | glue |
Suitable for the following models
| Universal | |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta 521 (Motor) |
