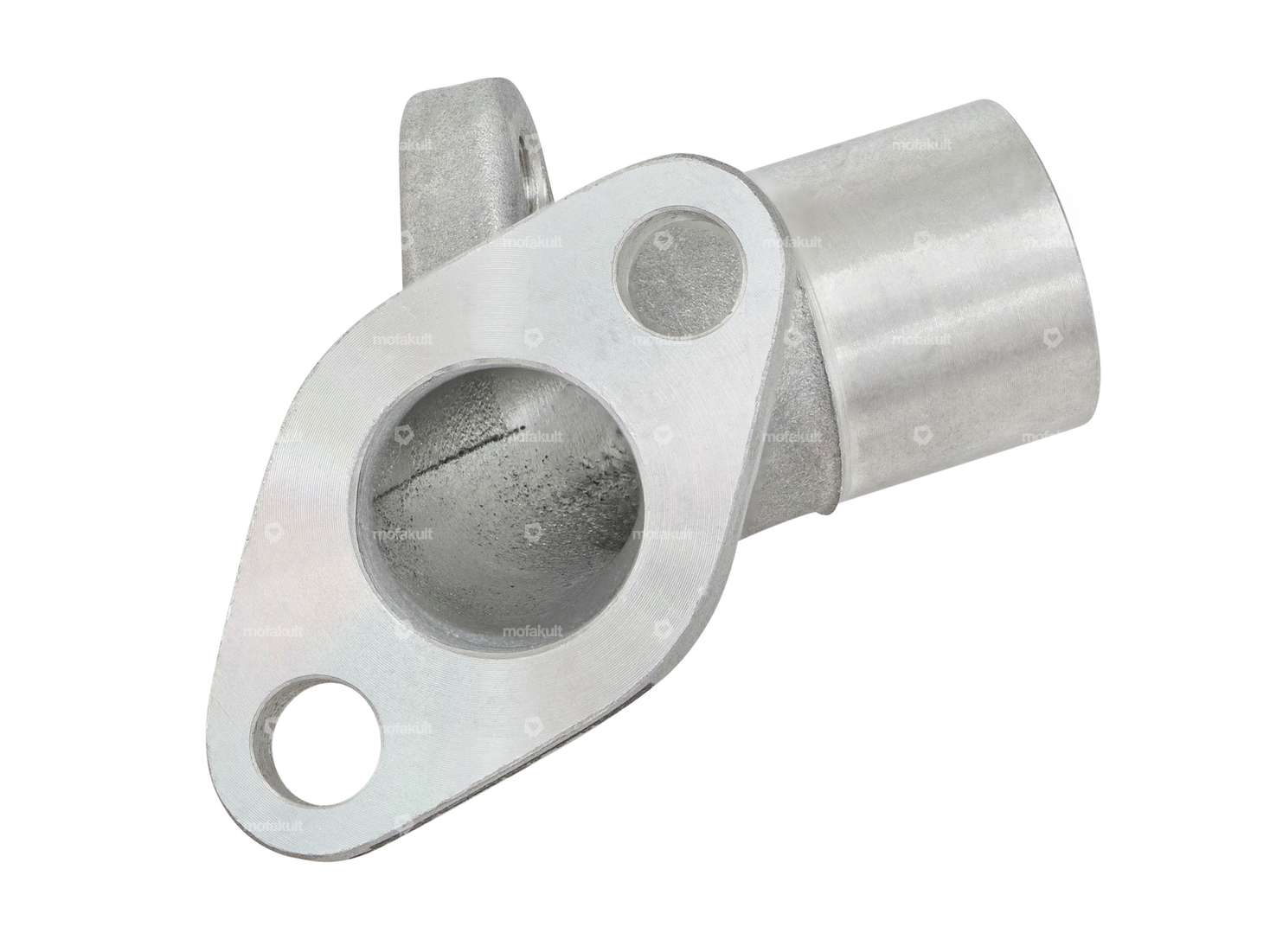

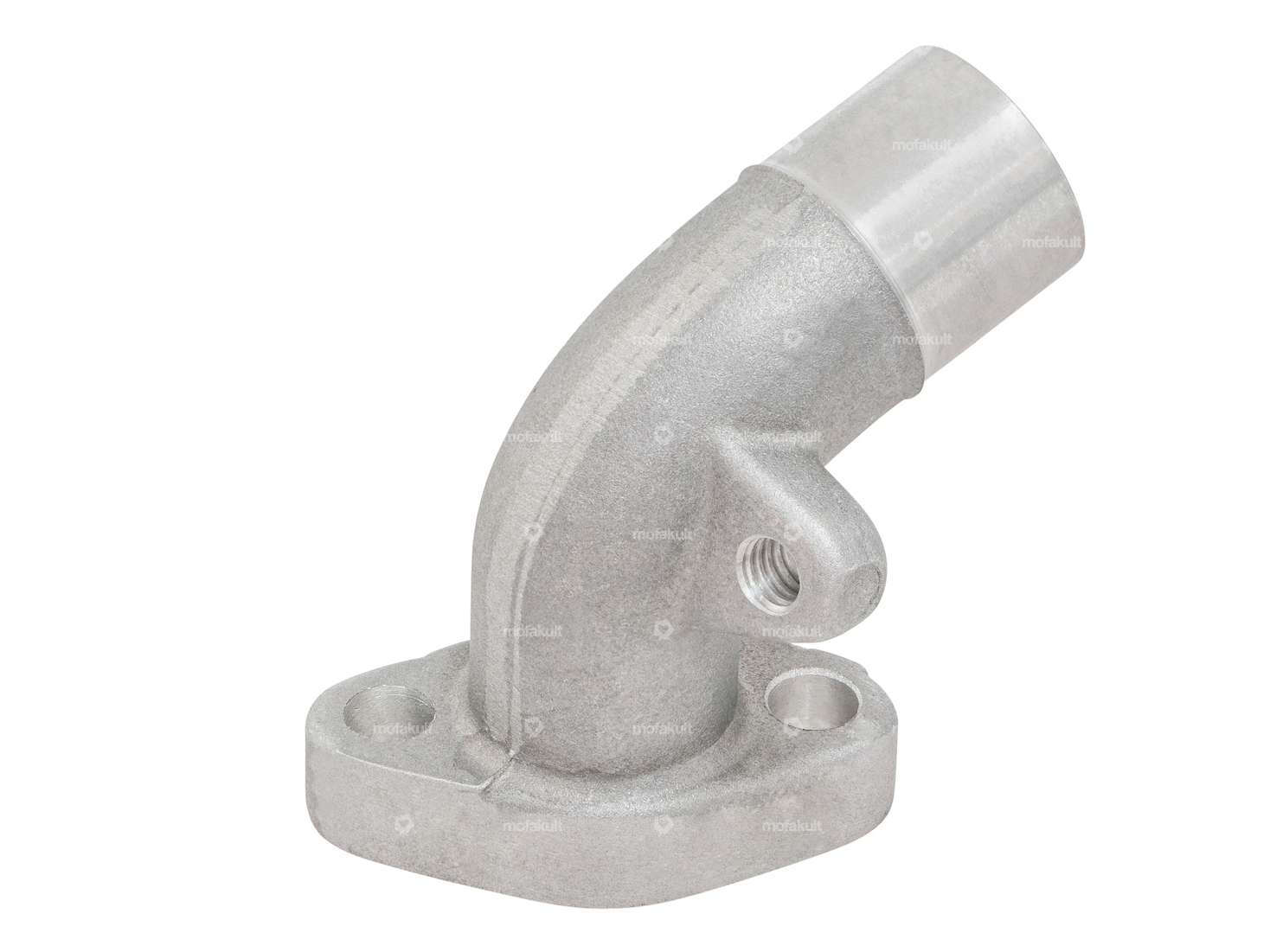

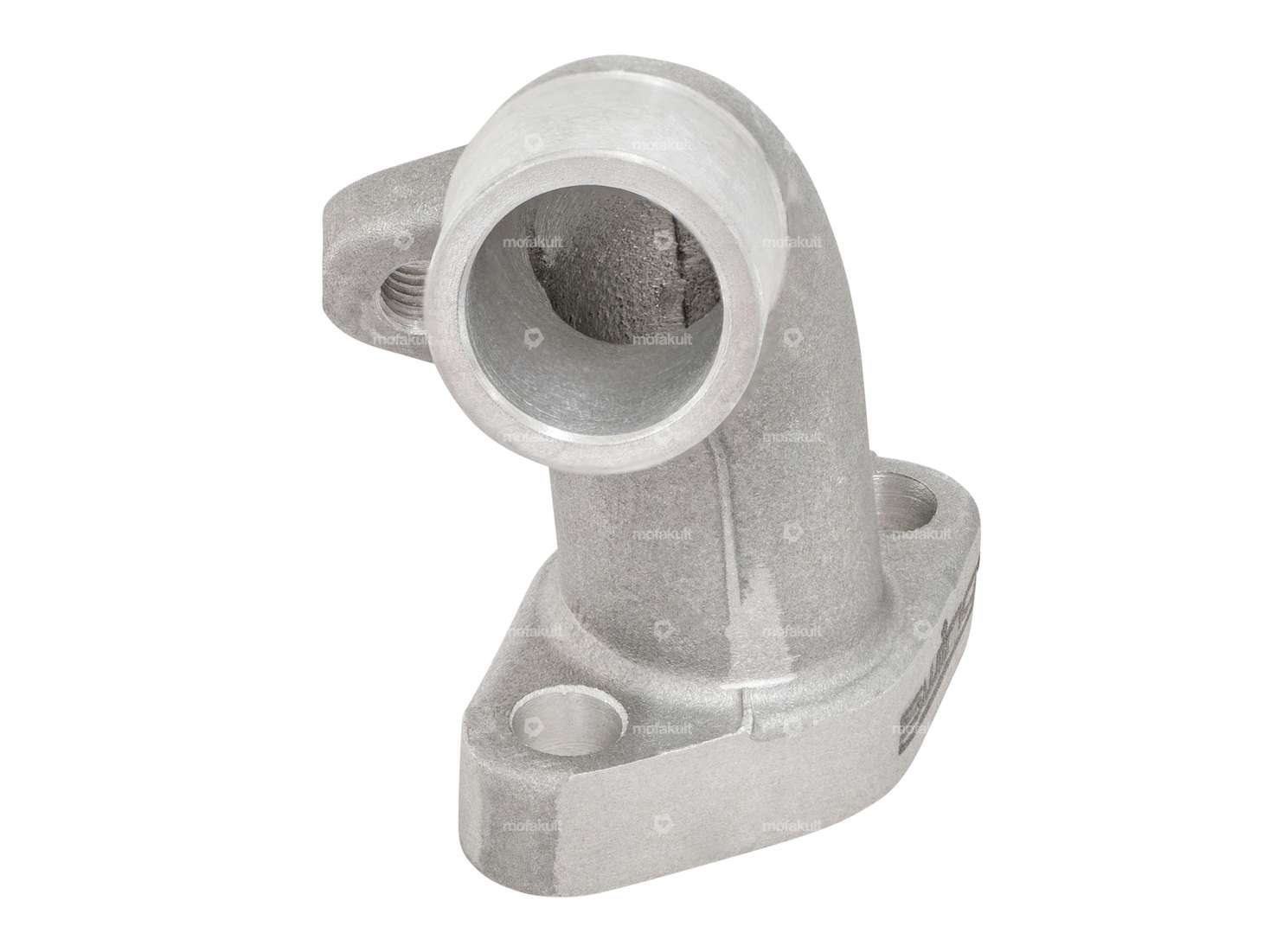

Short (50 mm) intake manifold for manual Sachs 503 2AL / 2BL mopeds / mopeds.
- Ø carburetor connection: 20 mm
- Ø inside: continuous 15 mm
- Hole spacing: 32 mm
- Threaded lug: M6

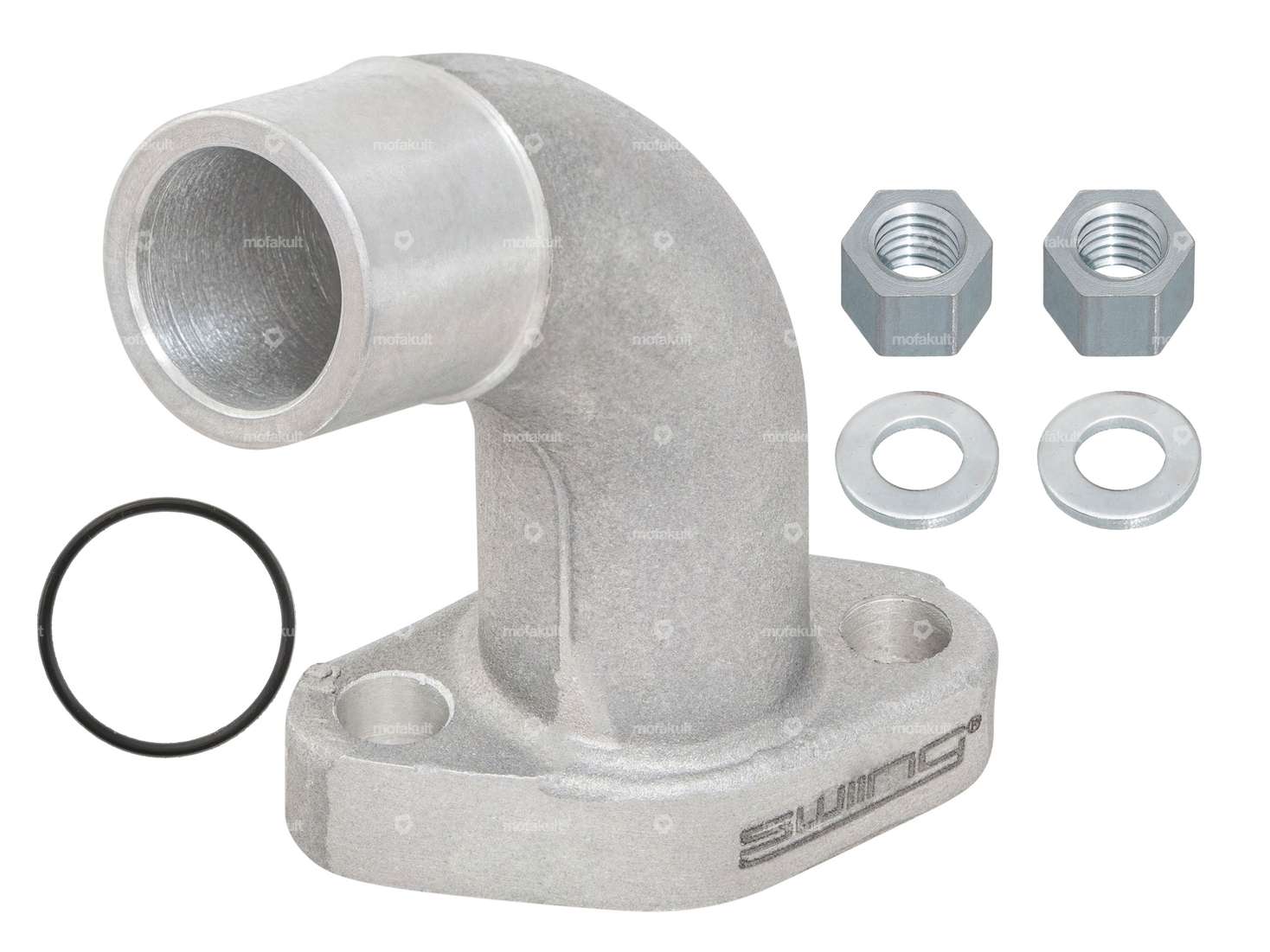

For easier installation, M6 nuts with reduced key width and matching washers are already included in the scope of delivery. An O-ring is also included to ensure a reliable seal between the carburettor and the connecting piece.
Details
| Total length | 50 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Ø inside | 15 mm |
| Ø External connection | 20 mm |
| Thread type | M6x1 (standard thread) |
| Area of application | Tuning |
| Number of fixing points | 2 pcs |
| Hole spacing inlet | 32 mm |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
