Intake manifold and air filter for Sachs mopeds, mopeds and small motorcycles with 50/2 (502), 50/3 or 50/4 engine.

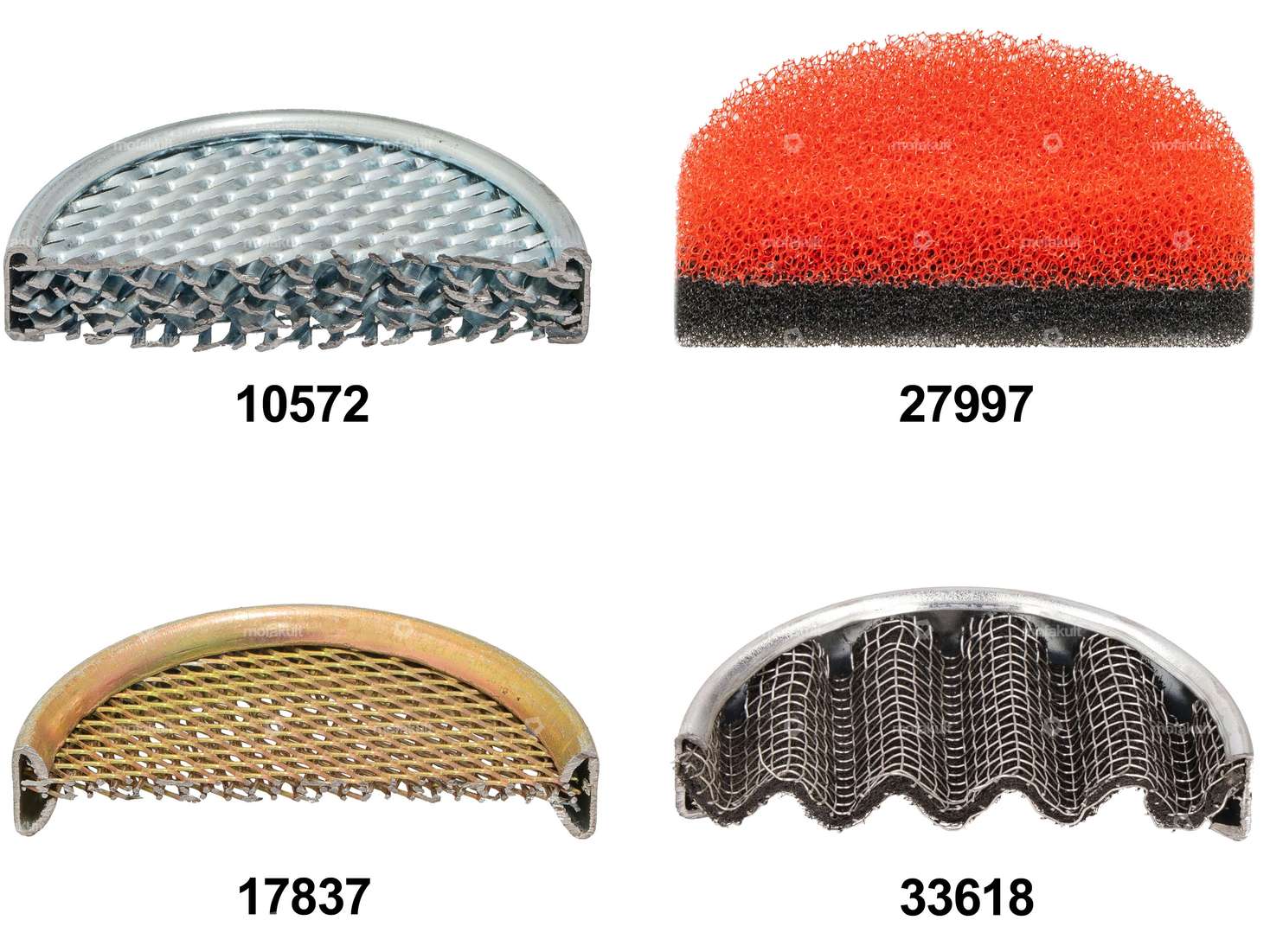

The very short intake path in combination with the 15 mm Bing carburetor leads to a considerable increase in performance. If the amount of air drawn is still too large, you can use item 17273 as an insert.
Installation note! – As the space between the cylinder, engine block and frame is very tight, the following must be observed during installation:
- The stud bolts from the cylinder must be removed. The M5x12 bolts to be used are included.
- The «swiing» lettering on the intake manifold must face upwards, as the flange of the manifold has a slight angle.
- The chamfered surface of the air filter housing must face downwards.
- The manifold, carburettor and air filter must be pre-assembled. Only then can the entire assembly be used.

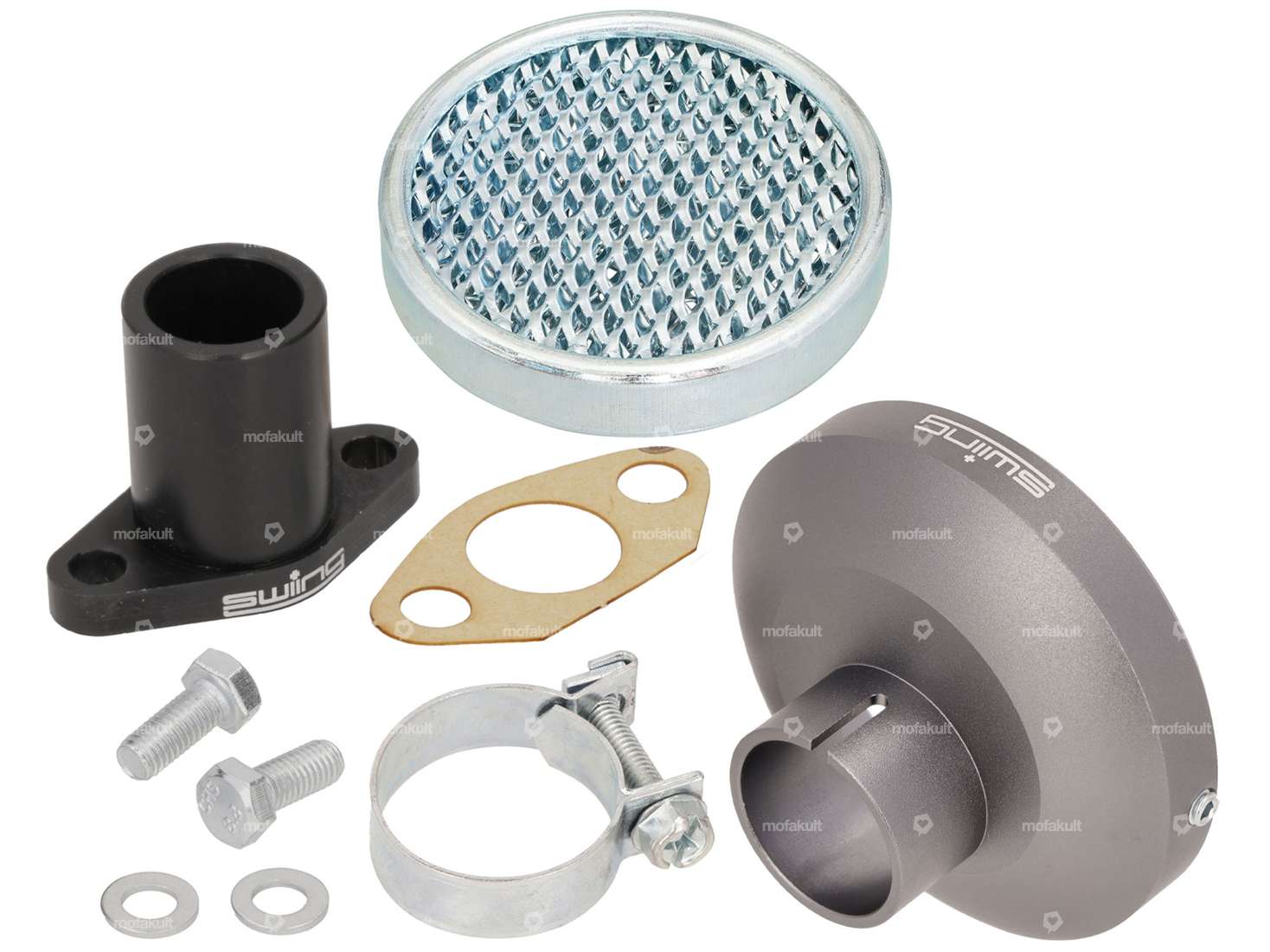

Scope of delivery as per image 1.
Exclusive product for the highest demands of the quality brand swiing®.
The set includes the following fixed parts:
Manufacturer: swiing® ingenious parts · Camouflaged: No · Color: gray · Material: Aluminum · Filter type: Grille · Total length: 29 mm · Length of filter section: 9.5 mm · Ø Internal connection: 20 mm · Ø outside: 56 mm · Mounting type: Screws, Bride · Area of application: Tuning
Manufacturer: swiing® ingenious parts
Details
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | anodized |
| Ø inside | 15 mm |
| Mounting type | Screws |
| Ø External connection | 20 mm |
| Area of application | Tuning |
| Hole spacing inlet | 31 mm |
| Number of fixing points | 2 pcs |
| Color | black-matt |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
