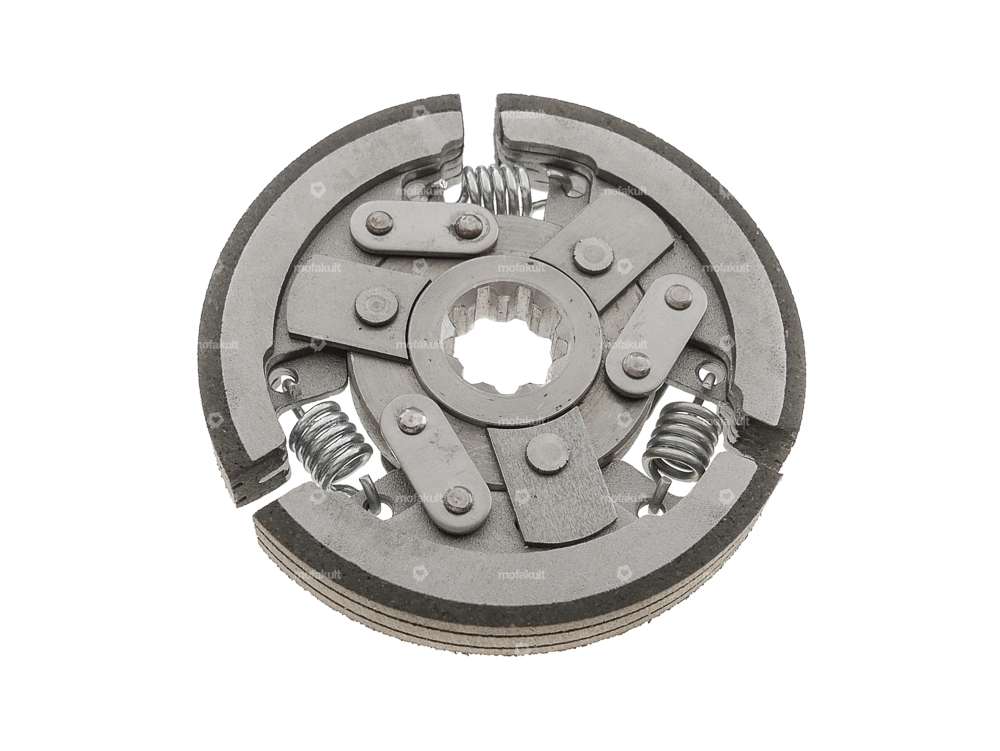

Original clutch for the first gear of the Puch 2-speed automatic engine ZA50, which was installed on the Puch Supermaxi LG2 and X30 NG-2AH.

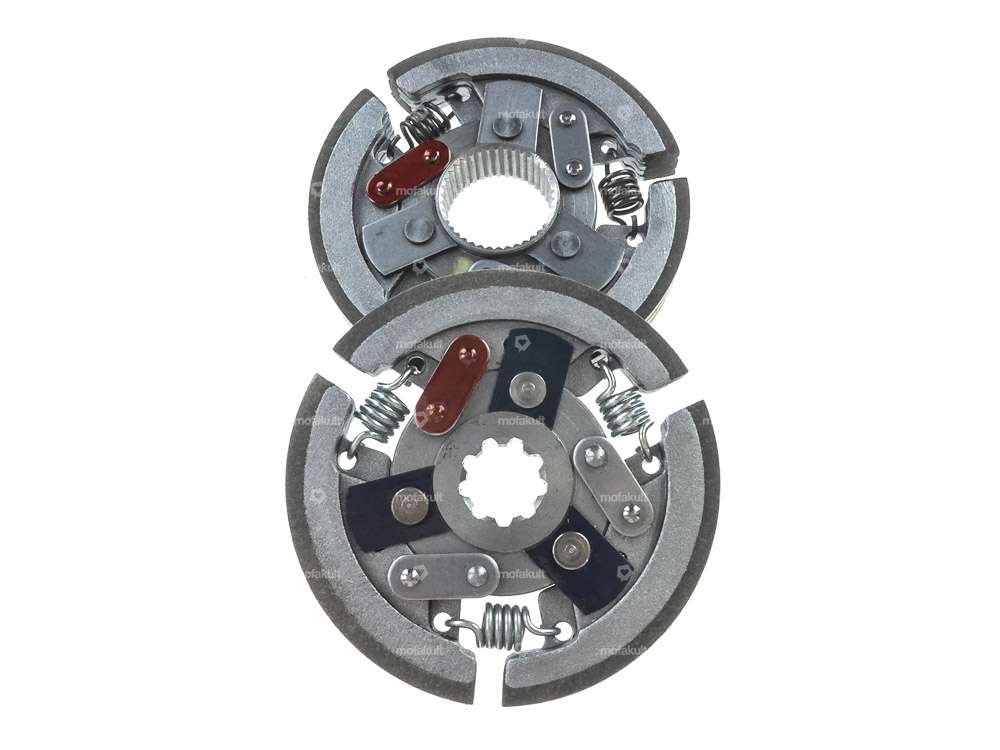

Installation instructions: Figure 3 shows the correct installation position of the clutch unit.
Make sure that the red marked connecting links point in the right direction.
The clutch must be installed correctly to ensure functionality.
Not suitable for performance-enhanced engines.
Alternatives and other great products can be found below in the accessories section.
Italian quality product from the manufacturer Surflex in original equipment quality.
Details
| Manufacturer | Surflex |
| Material | Steel, Composite materials |
| Area of application | Standard, Original |
| Recording type | Interlocking |
| Number of jaws | 3 pcs |
| Number of springs | 3 pcs |
| Ø inside | 14 mm, 17 mm |
| Thickness | 12 mm |
| Ø outside | 83.5 mm |
Suitable for the following models
| Puch | ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) |
