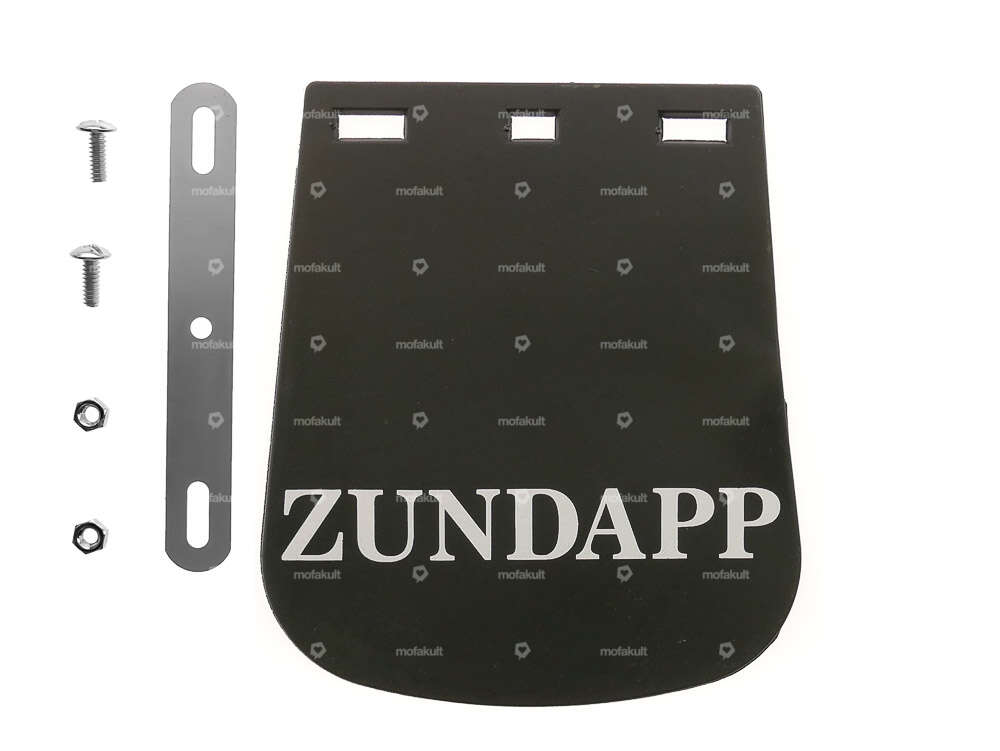

Splash guard "Zündapp" lettering

Union pedals plastic standard

Manufacturer: Union · Material: Plastic · Material: Steel · Thread type: FG14.3 (9/16" 20G) · Surface: rubberized · Color: black · Width across flats SW: 15 mm · Drive: Hexagon socket · Drive: Outer edge · Height: 29 mm · Total length: 129 mm · Width: 77 mm · Reflectors: Yes

Mitas 2.25 x 17" tires MC11 Semi-Slick Whitewall

Color: black · Color: white · Manufacturer: Mitas · Tire width [inch]: 2.25 " · Tire width [mm]: 57.15 · Width [inch]: 2 1/4 · Wheel size [inch]: 17 " · Old designation: 21 x 2.25 · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: MC11 · Tire type: Semi-slick · White wall: Yes · Tubeless (yes/no): Tubetype TT (requires hose)

Stop nut M7 galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Self-securing nut · Height: 7.3 mm · Drive: External hexagon · Thread type: M7x1 (standard thread) · Width across flats SW: 11 mm · Thread depth: 4.8 mm · Area of application: Standard · Strength class: 8

GPO grips manual Magura look black

Manufacturer: GPO · Total length: 105 mm · Material: Rubber · Color: black · Ø inside: 24 mm · Ø outside: 28 mm · Ø outside: 50 mm

Alligator end piece for indoor cable, aluminum (per piece)

Number of connections: 1 pcs · Manufacturer: Alligator · Material: Aluminum · Surface: raw · Color: silver · Ø outside: 3.1 - 4 mm · Total length: 12 mm · Ø inside: 2.2 mm · Area of application: Standard · Number of components: 1 pcs

Fuel tap vertical M16x1 (with union nut) outgoing at the bottom red

Possible lever positions: open / closed / reserve · Material lever: Plastic · Thread type: MF16x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: below · Mounting type: Union nut · Spare tube shape: straight · Ø fuel hose connection: 6 mm · Reserve level: 45 mm

GPO ignition plate 6 / 12V CDI ignition

Manufacturer: GPO · Material: Aluminum · Material: Copper · Material: Plastic · Material: Steel · Tension: 6 V · Tension: 12 V · Area of application: Performance · Area of application: Standard · Color: gray · Ø inside: 18.5 mm · Ø outside: 90 mm · Number of cables: 2 pcs · Ø bolt circle: 80 mm · Ø Internal flywheel: 90 mm · Cable length: 580 mm · Number of fixing points: 4 pcs

GPO flywheel left-turning 6 / 12V CDI ignition

Manufacturer: GPO · Material: Steel · Tension: 6 V · Tension: 12 V · Direction of rotation: left · Thread type: MF26x1.5 (fine pitch thread) · Ø Internal flywheel: 90.9 mm · Ø Flywheel outside: 116.5 mm · Cone ratio: 1:5 · Weight: 900 g

Spoke single (2.5 x 180 mm) galvanized steel front wheel NOS | Piaggio Ciao

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Length from hook: 180 mm · Nominal diameter (thread): 2.8 mm · Ø spoke head: 4.8 mm · Ø spoke: 2.5 mm · Hook length: 7.9 mm · Hook angle: 90 ° · Thread length: 12.4 mm

Fuel tap vertical M16x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Plastic · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: below · Spare tube shape: straight · Thread type: MF16x1 (fine pitch thread) · Reserve level: 75 mm · Mounting type: Union nut
