Spare parts catalog for the Puch X30 models ST, L and LA (Velux).

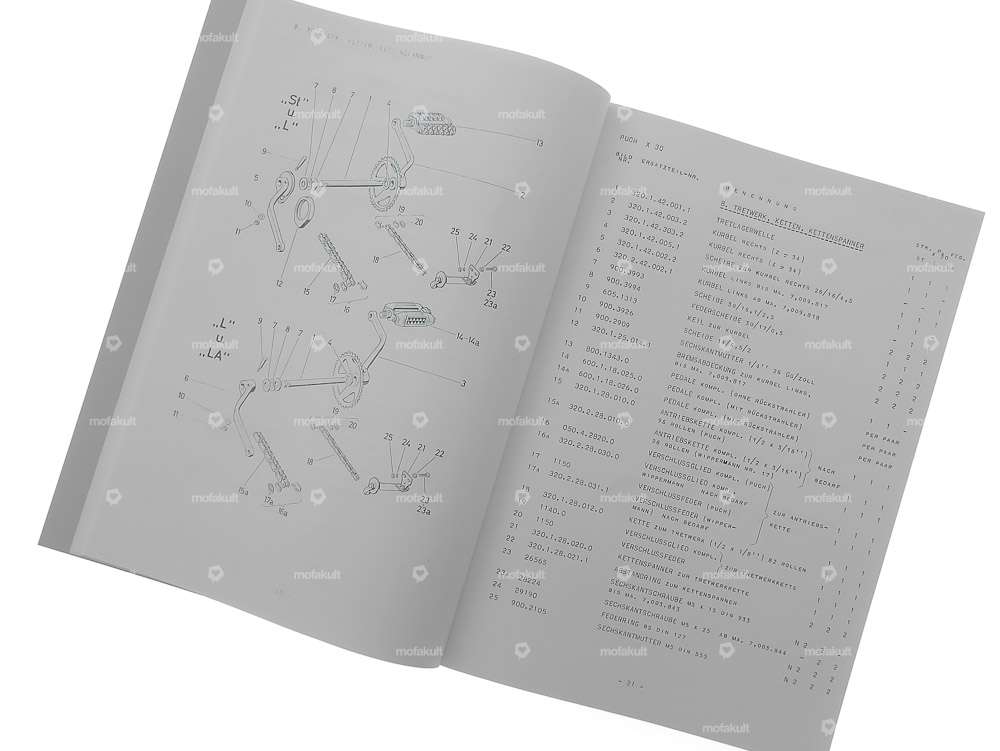

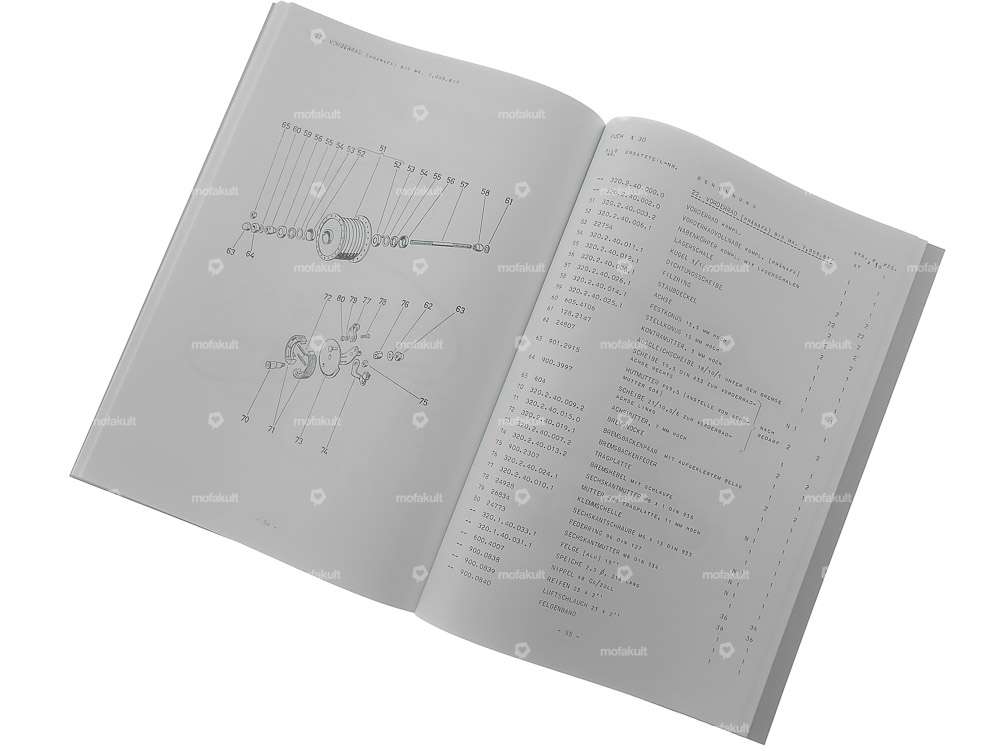

The complete moped was recorded in exploded drawings. Each individual component is provided with part number, spare part number and assembly location.
Super Swiss catalog from 1964 with 70 interesting pages.
Details
Material | Paper |
Number of pages | 70 pcs |
Suitable for the following models
Puch | Z50 (X30 Velux) |
