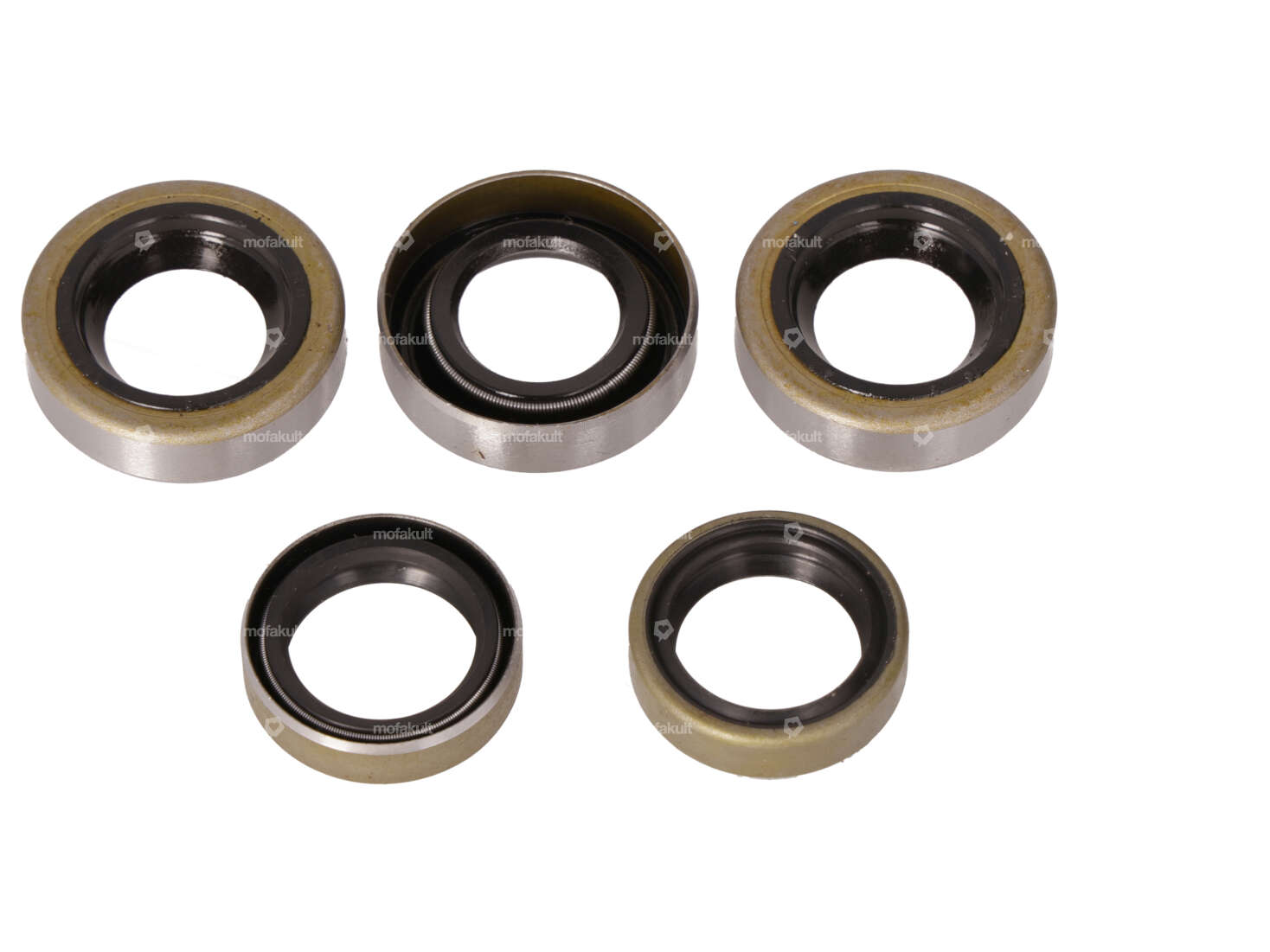

Shaft seal ring set for Ilo / Jlo G50 engines in your moped, moped or small motorcycle.
The following radial shaft seal rings (colloquially known as oil seals) are included:
3x shaft seal ring 14/21/7 B
2x shaft seal ring 15.8/22.2/6.1 B DUO
Both versions have a sheet metal basket and are therefore easy to fit. For an even better seal, the use of Loctite shaft-hub adhesive is recommended.
You can find the described adhesive and other spare parts for your ILO unit in the accessories section.
| Surface | raw |
| Shaft seal type | B - With sheet metal outer casing / one sealing lip., B DUO - With sheet metal outer casing / two sealing lips. |
| Area of application | Standard |
| Material | Sheet metal (steel), Rubber |
| Place of use | Motor housing |
| Ø inside | 14 mm, 15.8 mm |
| Width | 7 mm, 6.1 mm |
| Ø outside | 21 mm, 22.2 mm |
| ILO / JLO |
Ratings
Accessories & related products
Loctite 638 Joining shaft-hub high-strength 10 ml
Temperature resistance (min.): -75 - 150 °C · Color: green · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Area of application: Chemistry · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
EUR 25,90
EUR 2.590,00/l

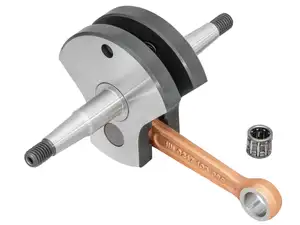

Crankshaft | ILO G50, V50
