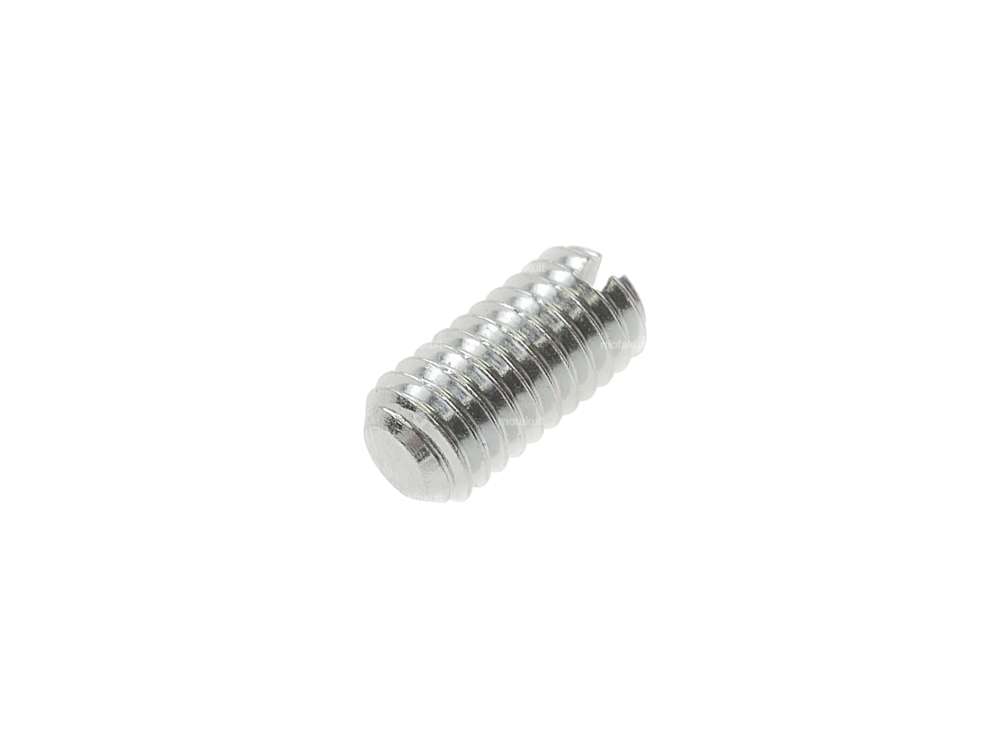

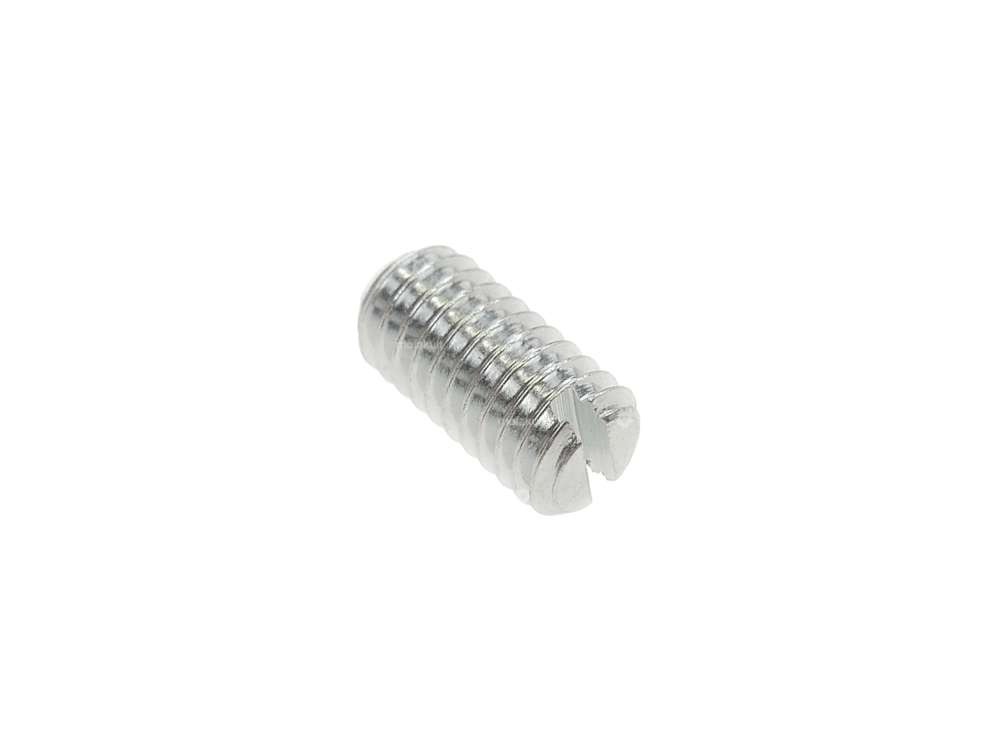

Set screw M6x12mm clutch | Sachs 50/2 ML, 503 2AL/2BL (A1371)

ESJOT sprocket 34 teeth 4-hole coaster black

Manufacturer: ESJOT · Material: Steel · Color: black · Surface: powder-coated · Ø inside: 94 mm · Chain type: 415H · Chain pitch: 1/2" x 3/16" · Number of teeth: 34 pcs · Thickness: 4.5 mm · Hole spacing: 74 mm · Number of fixing points: 4 pcs · Ø bolt circle: 105.5 mm · Ø mounting hole: 6.4 mm

Magura set screw M6x34 mm lock nut SW8

Width across flats Screw: 8 mm · Manufacturer: Magura · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Ø Receptacle: 7.05 mm · Ø cable holder: 3.05 mm · Slotted: No · Total length: 34 mm · Thread type: M6x1 (standard thread) · Width across flats nut: 8 mm · Thread length: 24 mm

Magura cable holder

Ø Nipple hole: 6.2 mm · Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Color: silver · Ø outside: 8 mm · Total length: 14.5 mm · Ø Cable bushing: 4 mm · Ø Bundle: 10 mm · Area of application: Standard

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

GPO bulb 6V - 21/5W (BA15d) 2-filament

Manufacturer: GPO · Bulb holder: BA15d · Color: white · Tension: 6 V · Performance: 5 W · Performance: 21 W · Total length: 48 mm · Ø base: 15 mm · Test mark: none · Ø Lamp head: 25 mm · LED: No

NSK BO15 shoulder ball bearing 15/40/10 (A4502)

Bearing type: Shoulder bearing · Stock number: BO15 · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Material: Brass · Material: Steel · Surface: blank · Width: 10 mm · Ø outside: 40 mm · Ø inside: 15 mm · Area of application: Standard · Pony OEM number: A4502 · Sachs OEM no.: 0932 007 001

Shaft seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Temperature resistance (min.): -30 - 100 °C · Manufacturer: Sachs · Material: NBR · Place of use: Pinion shaft · Surface: coated · Width: 3.5 mm · Ø outside: 31.5 mm · Ø inside: 14.96 mm · Area of application: Standard · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 100 · Sachs OEM no.: 0230 011 200

Pressure pin clutch Sachs 50/2, 503 (A1792)

Ø outside: 4.8 mm · Total length: 47 mm · Pony OEM number: A1792 · Sachs OEM no.: 0249 047 000

GPO clutch trigger (M27x1.25 / M20x1) | Sachs 502, 503

Width across flats (trigger): 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Material: Steel · Surface: blackened · Total length: 57 mm · Area of application: (Dis)assembly tool · Thread type: MF20x1 (fine pitch thread) · Thread type: MF27x1.25 (fine pitch thread) · Strength class: 8.8

swiing® revival clamping device clutch | Sachs 503, 50/2, 50/3, 50/4

Manufacturer: swiing® revival parts · Material: Aluminum · Material: Steel · Surface: anodized · Surface: galvanized (blue) · Ø outside: 75 mm · Number of components: 4 pcs · Ø inside: 64 mm · Height: 16 mm · Area of application: Special tool · Thread type: M6x1 (standard thread) · Thread length: 40 mm · Sachs OEM no.: 0276 057 000
