Repair instructions for the Sachs 50 type Saxonette automatic engine from Fichtel & Sachs AG.

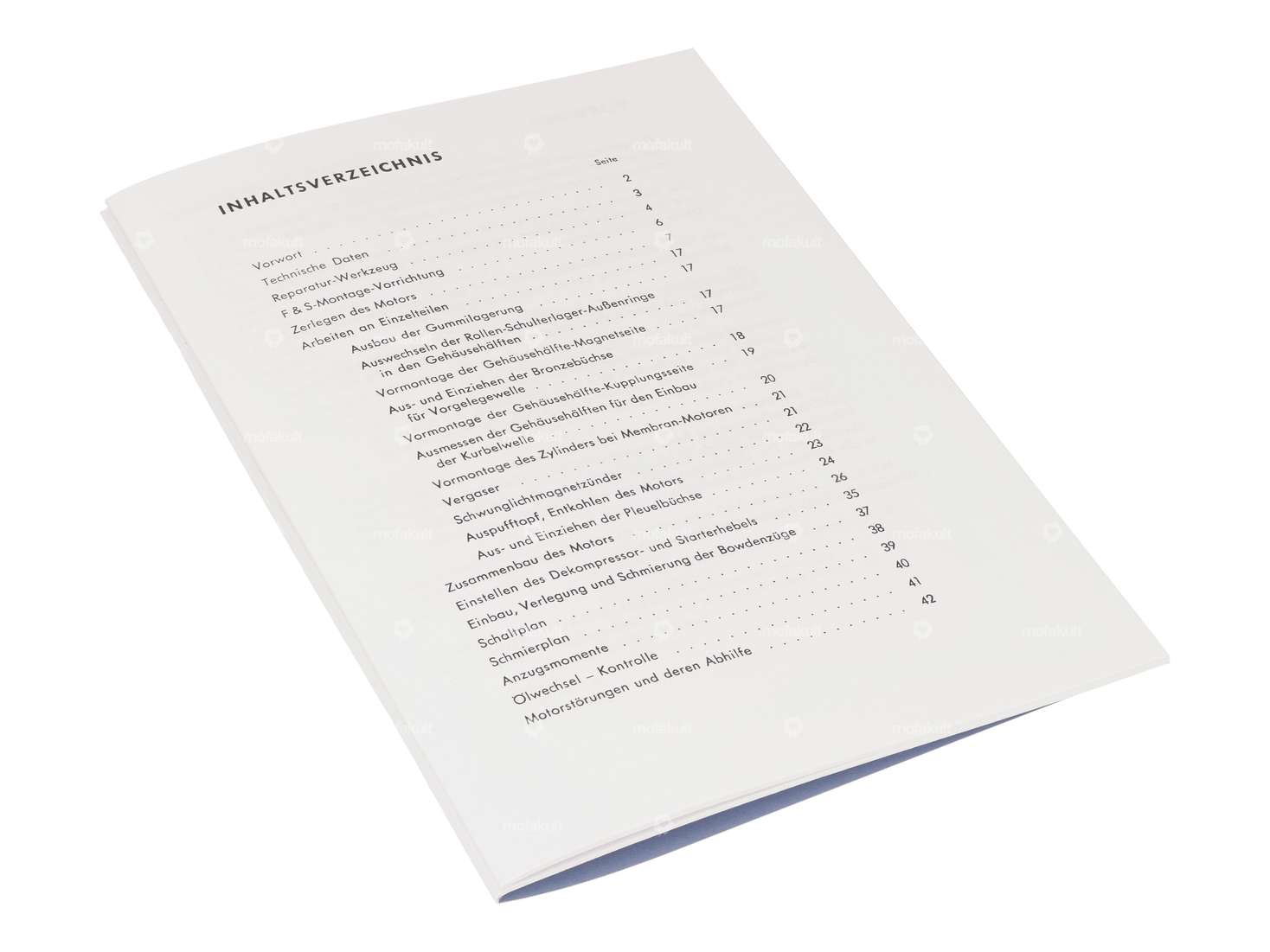

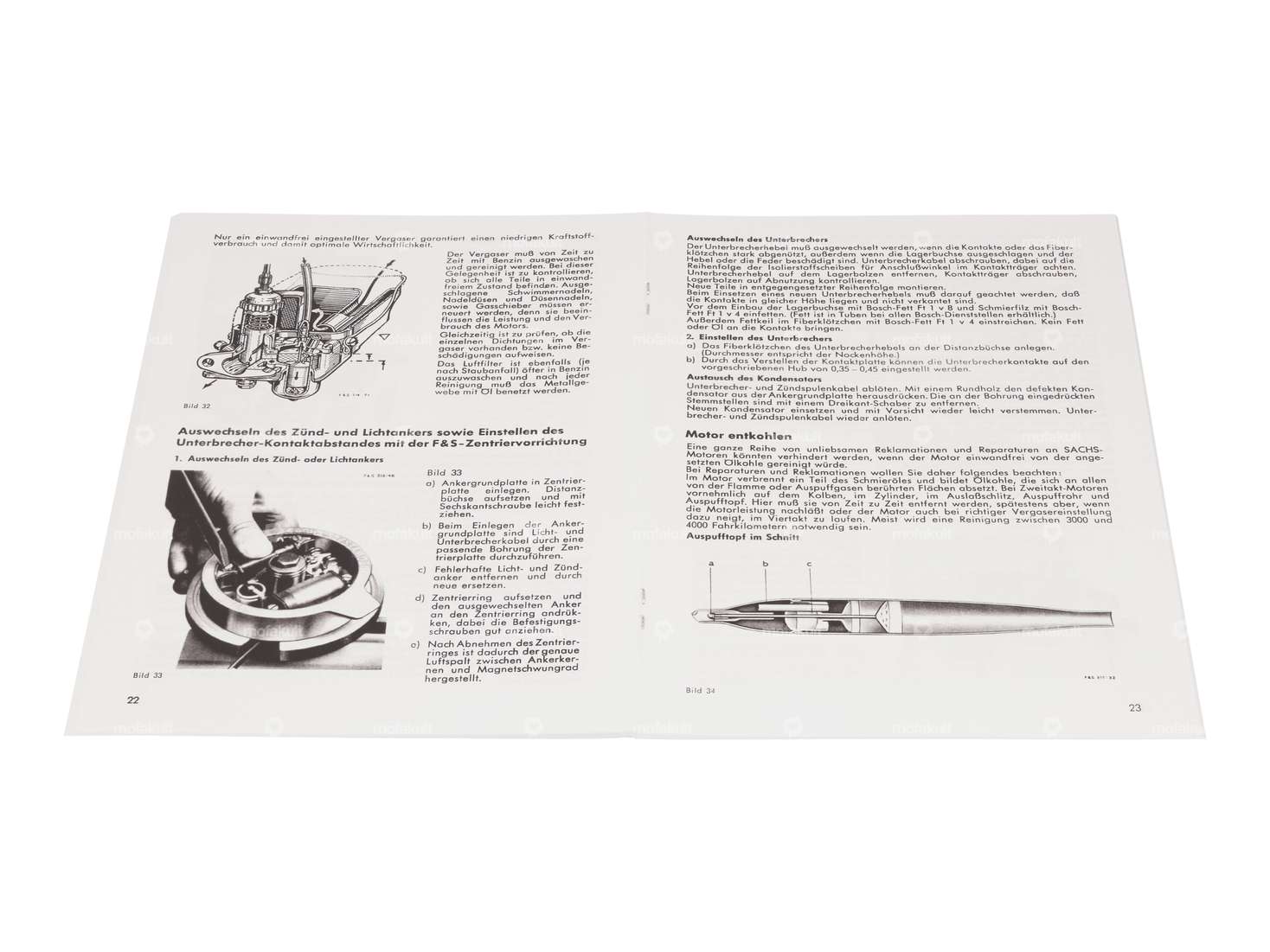

Very helpful, informative booklet. Among other things, it explains the operating elements, repair, maintenance and adjustment work. No workshop with Sachs mopeds should be without this detailed instruction manual.
Size: A5 (148 x 210 mm)
Pages: 44
Language: German
High-quality facsimile (reproduction) of the original edition.
Further workshop manuals, spare parts catalogs and repair manuals can be found in the accessories section.
Details
| Material | Paper |
| Width | 148 mm |
| DIN format | A5 |
| Height | 210 mm |
| Number of pages | 44 pcs |
Suitable for the following models
| Sachs | 502 (Saxonette) - AL, AML |
