Repair instructions for Garelli engines with horizontal cylinders for various models such as:
- Europed 25 (Art. 692–743)
- Europed 25 L (Art. 692–735)
- Europed 25 SL (Art. 692–689)
- Europed 25 SL (Art. 692–808)
- Europed 40 SL (Art. 692–646)
- Bonanza 25 L (Art. 692–670)
- Duoped 40 SL (Art. 692–557)

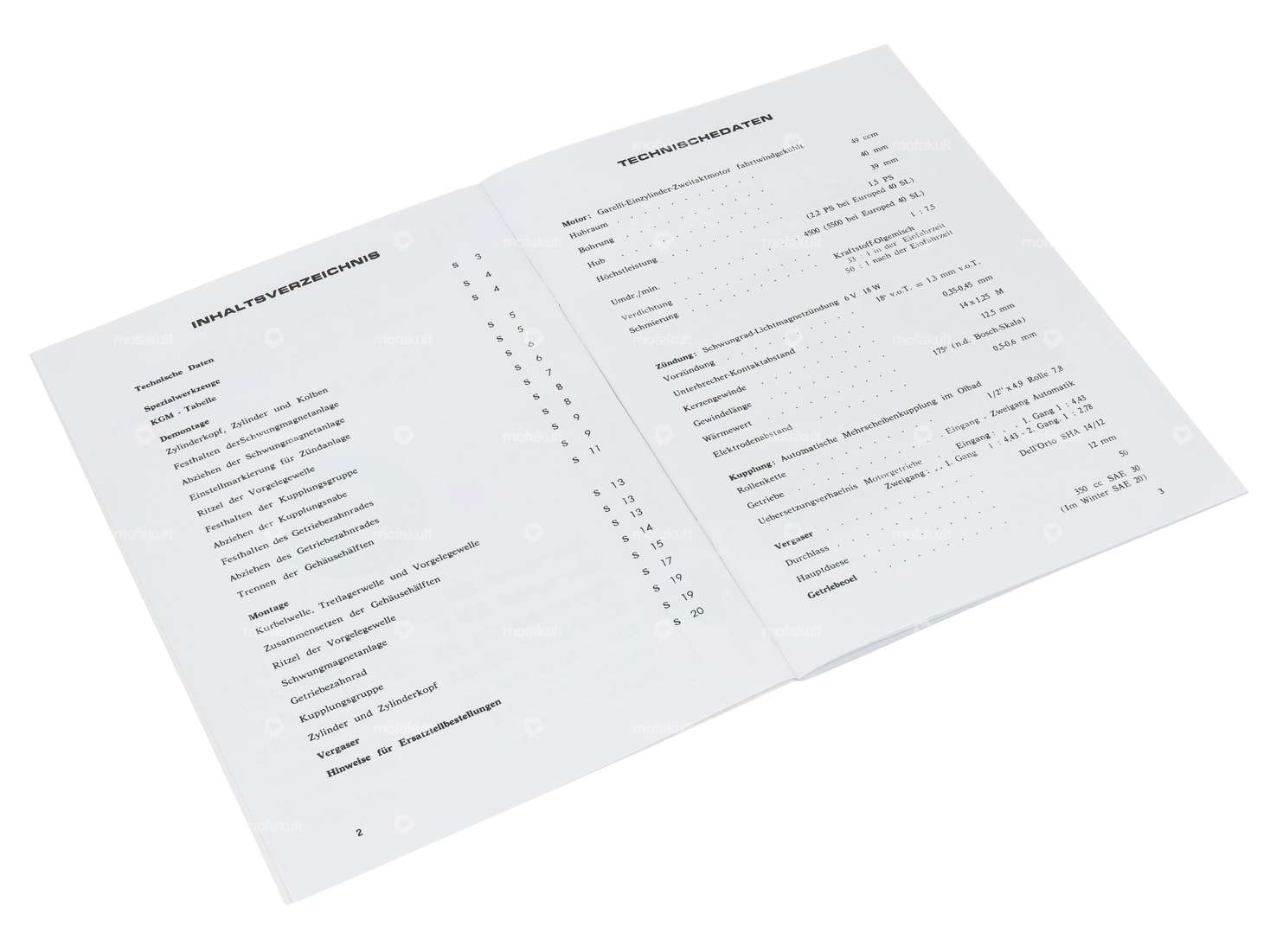

Informative leaflet explaining disassembly, assembly and adjustment work, among other things. No workshop should be without this instruction manual.
Format: A5 (148 x 210 mm)
Pages: 20
Language: German
High-quality facsimile (reproduction) of the original edition.
For more workshop manuals, spare parts catalogs and repair instructions, see the accessories section.
Details
| Width | 148 mm |
| Height | 210 mm |
| Material | Paper |
| DIN format | A5 |
| Number of pages | 20 pcs |
Suitable for the following models
| Garelli |
