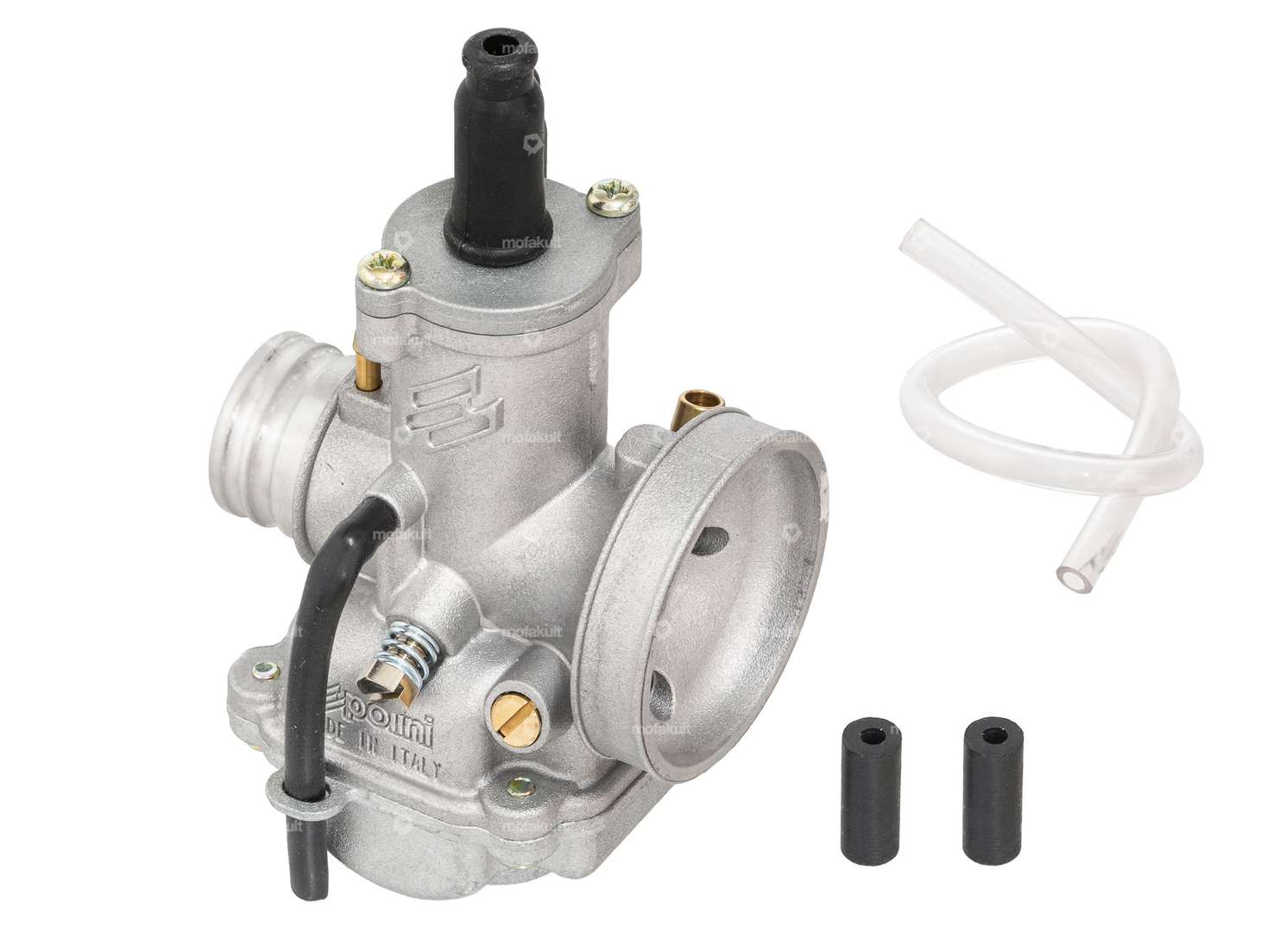

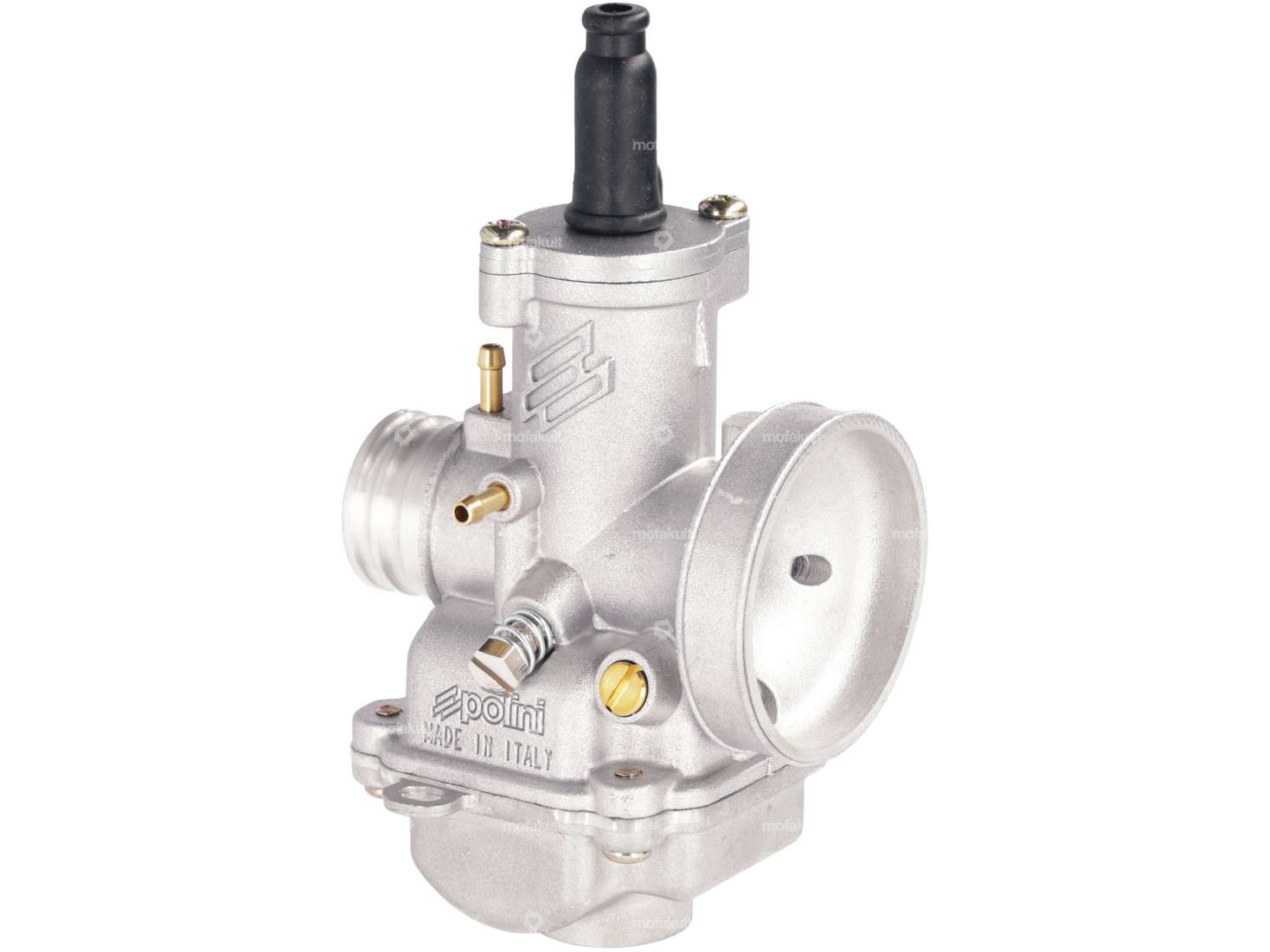

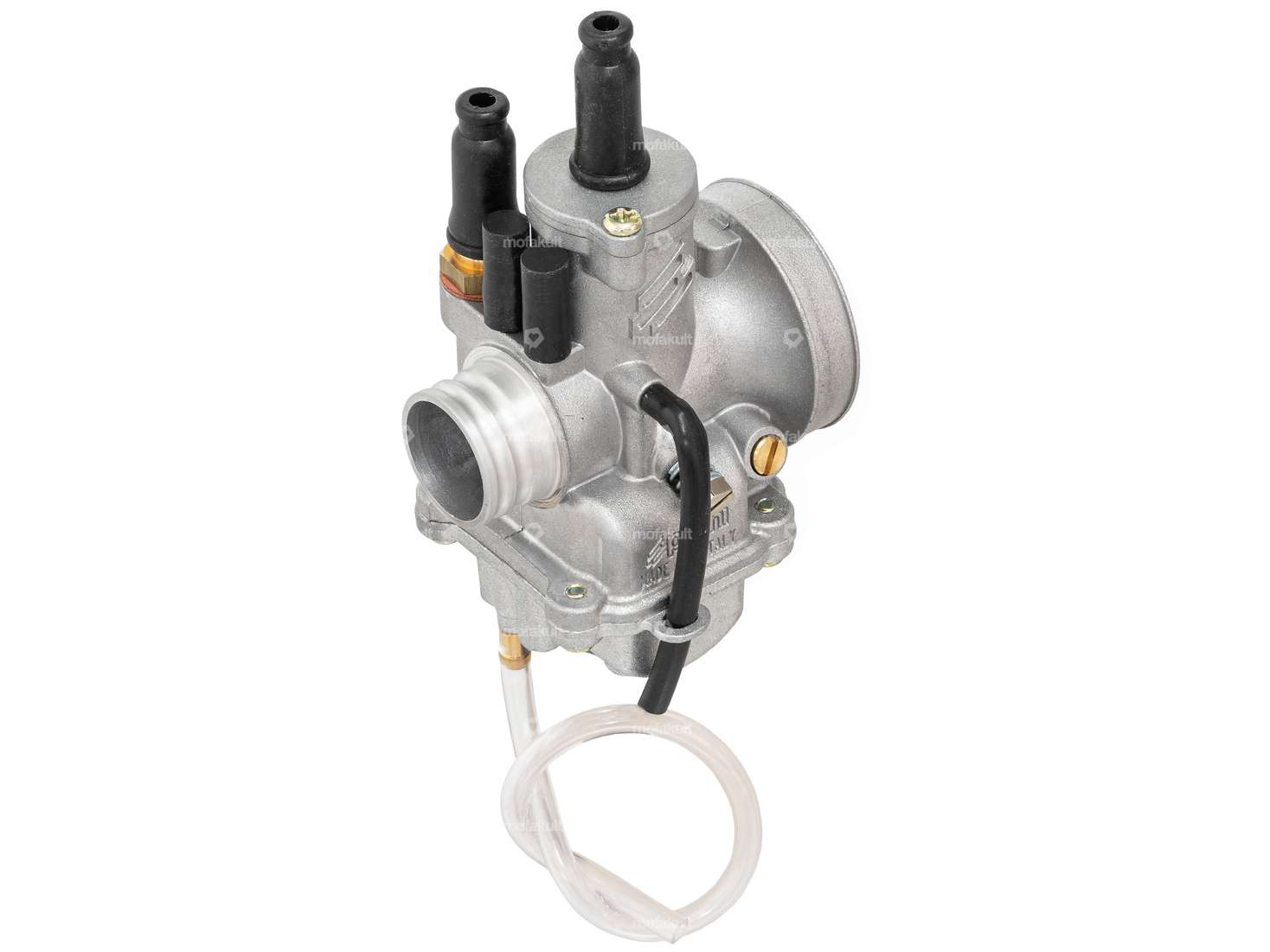

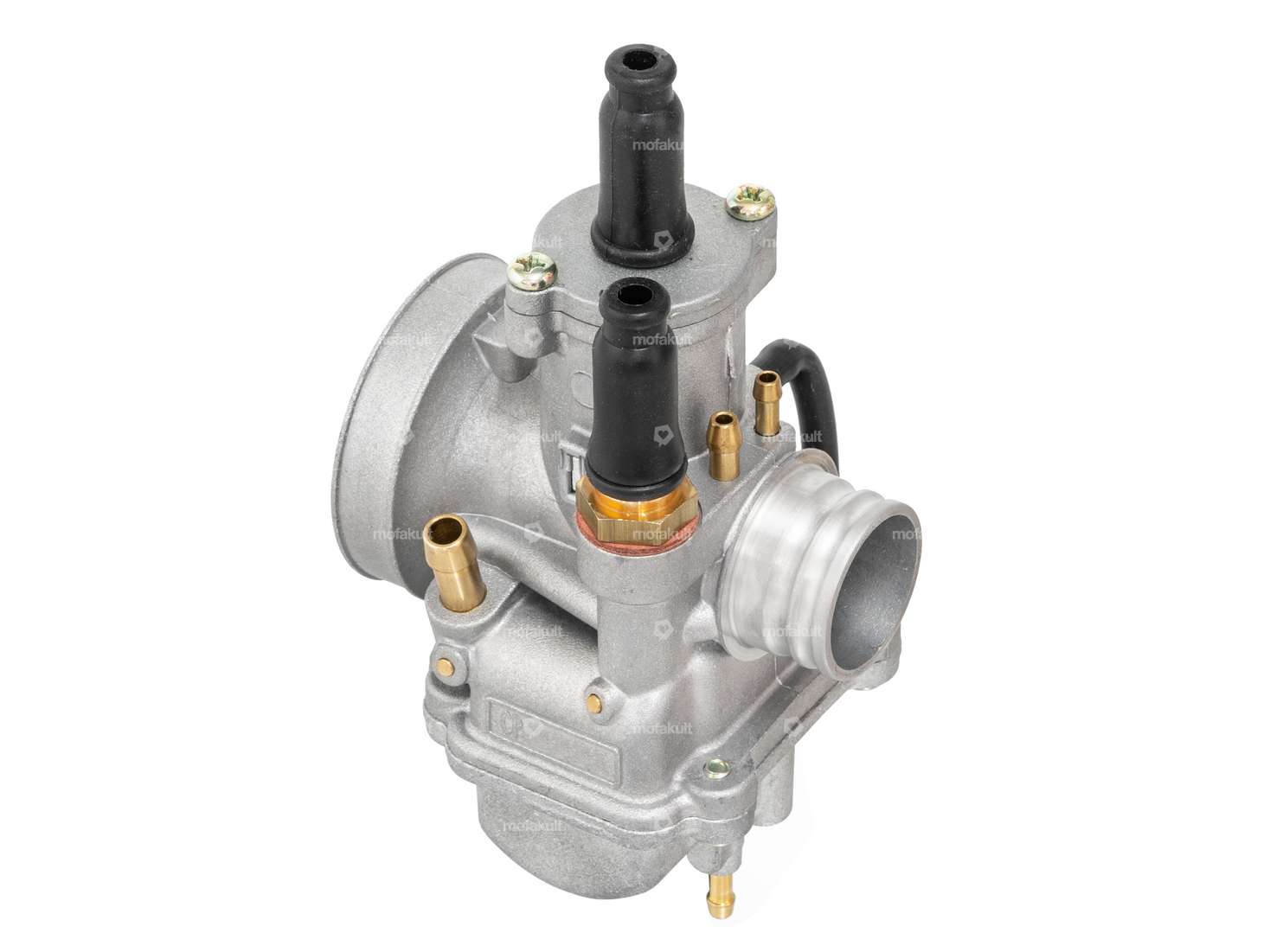

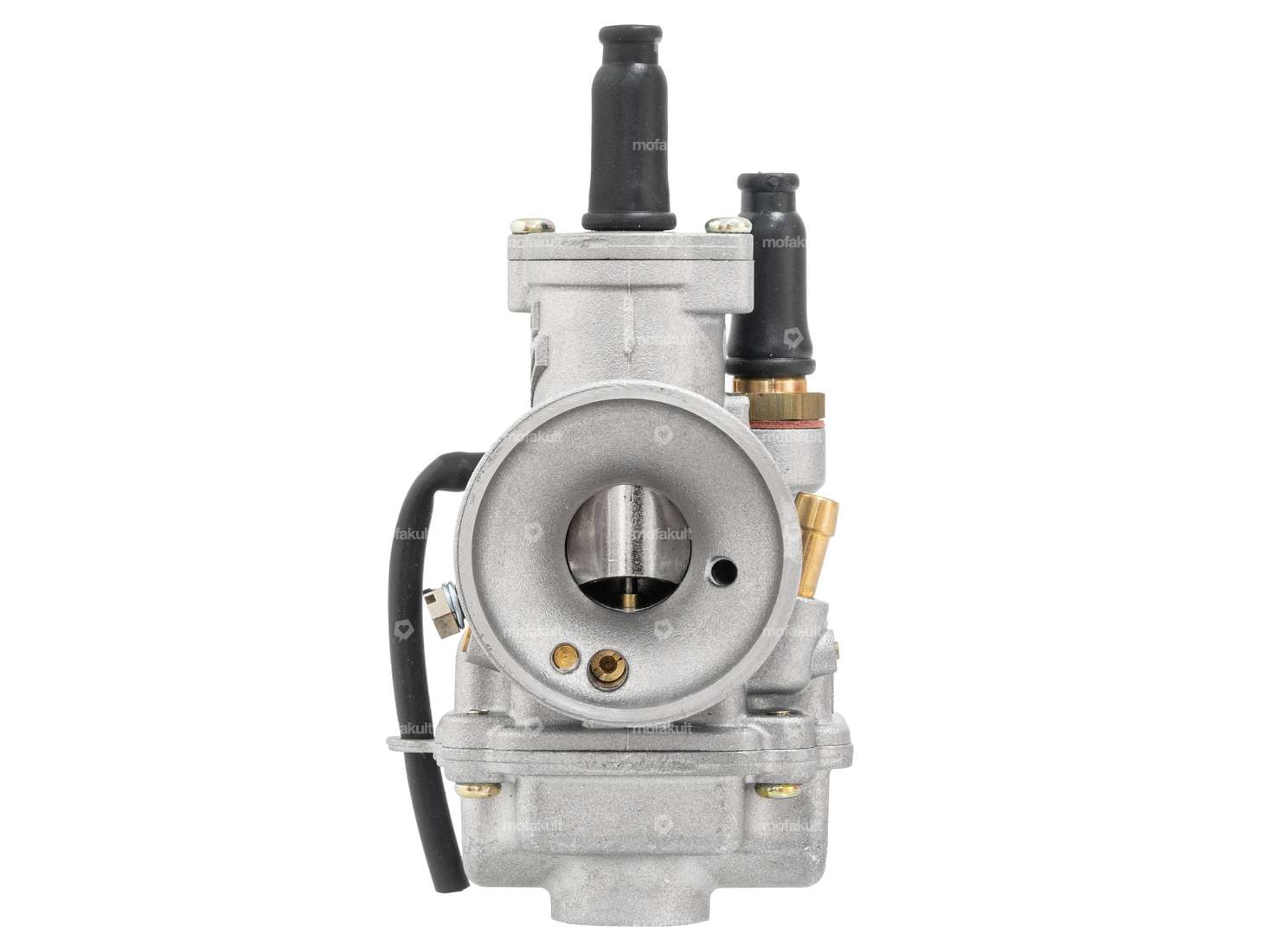

Polini has placed particular emphasis on size and weight in the development of the CP model; this carburetor is therefore particularly compact and around 40% lighter than traditional carburetors.
Due to the compact design, the intake path is very short. Unique is the concentric design of the passage, i.e. a circular passage instead of an oval one as with most other carburettors - a geometry that optimizes the air flow. Modifications to the mixing tube and the use of a larger needle ensure better atomization of the gas mixture.
This is intended to simplify carburetor tuning and enable high performance with low consumption. All CP carburetors have an oil and vacuum connection.
A rubber sleeve (item no. 15414) is used to attach the carburetor to the intake manifold.
Connection diameter of intake manifold: 25 mm
Connection diameter of air filter: 46 mm
Main diameter: 80
Side diameter: 38
Quality product from the Italian manufacturer Polini.
Details
| Manufacturer | Polini |
| Component group Carburetor | Carburetor complete |
| Nominal diameter | 17.5 mm |
| Carburetor type | CP |
| Choke control | Cable choke |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 80 |
| Mounting type | Plug connection |
| Ø Air filter connection | 46 mm |
| Area of application | Tuning |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Size of secondary nozzle | 38 |
Moped fans like you also bought:
Continental 2.00 - 2.50 x 17" tube
Manufacturer: Continental · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Wheel size [inch]: 17 " · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Tire height [%]: 100 · Valve type: TR6 car valve
EUR 17,40
Airsal intake manifold 46 / 47 mm cylinder | Puch
Manufacturer: Airsal · Material: Aluminum · Area of application: Tuning · Hole spacing inlet: 38 mm · Ø inside: 19 mm · Number of fixing points: 2 pcs · Total length: 60 mm · Mounting type: Screws · Height flange center hole: 65 mm · Total height: 75 mm · Ø External connection: 24 mm · Camouflaged: No
EUR 46,50
Polini jet set (80 - 98) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle size: 54 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 86 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98
EUR 46,50
Polini jet set (60 - 78) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 74 · Nozzle size: 76 · Nozzle size: 78
EUR 46,50
Polini auxiliary jet set 32 - 40 | CP carburetor
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Quantity: 5 pcs · Carburetor type: CP · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Secondary nozzle · Drive: Slot · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40
EUR 29,00
Polini CP 15 mm carburetor (cable choke)
Manufacturer: Polini · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: CP · Nominal diameter: 15 mm · Ø fuel hose connection: 6 mm · Nozzle size: 80 · Ø Air filter connection: 46 mm · Mounting type: Plug connection · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Cable choke · Nozzle thread: M5x0.8 (standard thread) · Size of secondary nozzle: 38
EUR 157,20

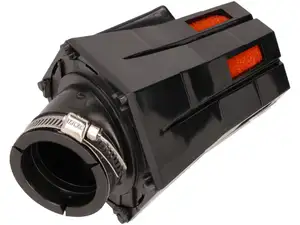

Tun'R air filter foam with splash cap Evo 45° (Ø 28 / 35 mm)
