Pinasco «EVOTEN» cylinder with 42 mm bore and 60 cc for your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.

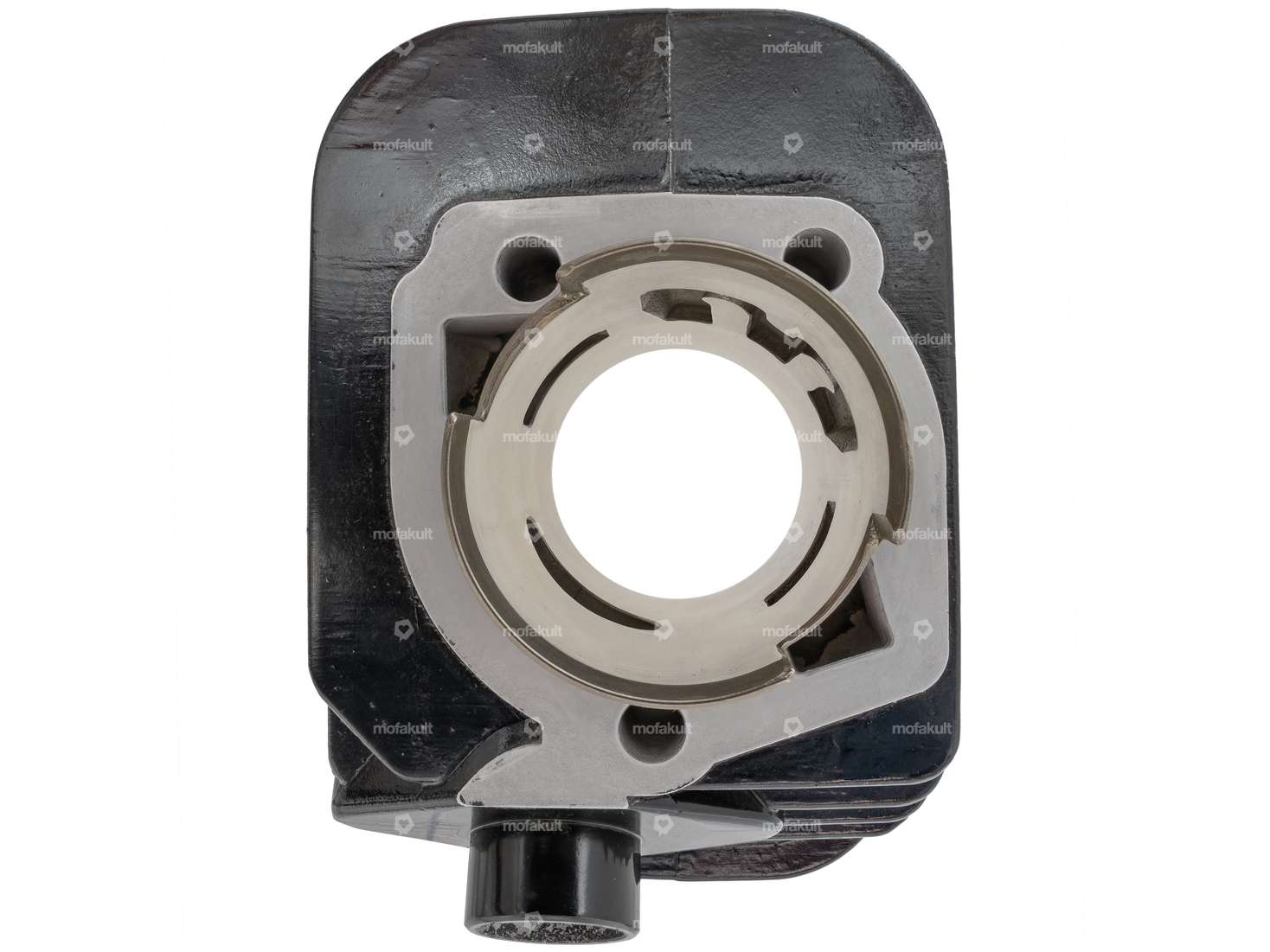

The completely üreworked 42 mm cylinder from Pinasco is now supplied with a 5-channel layout and the 5-fold bolted cylinder head manufactured for the highest loads. Various racing exhausts can be fitted to the supplied exhaust flange with 22.5 mm outer connection diameter.
The cylinder head is fitted without gasket. For optimum sealing, the tightening torque of 10 Nm for the M6 bolts and 14 Nm for the M7 stud bolts must therefore be observed.

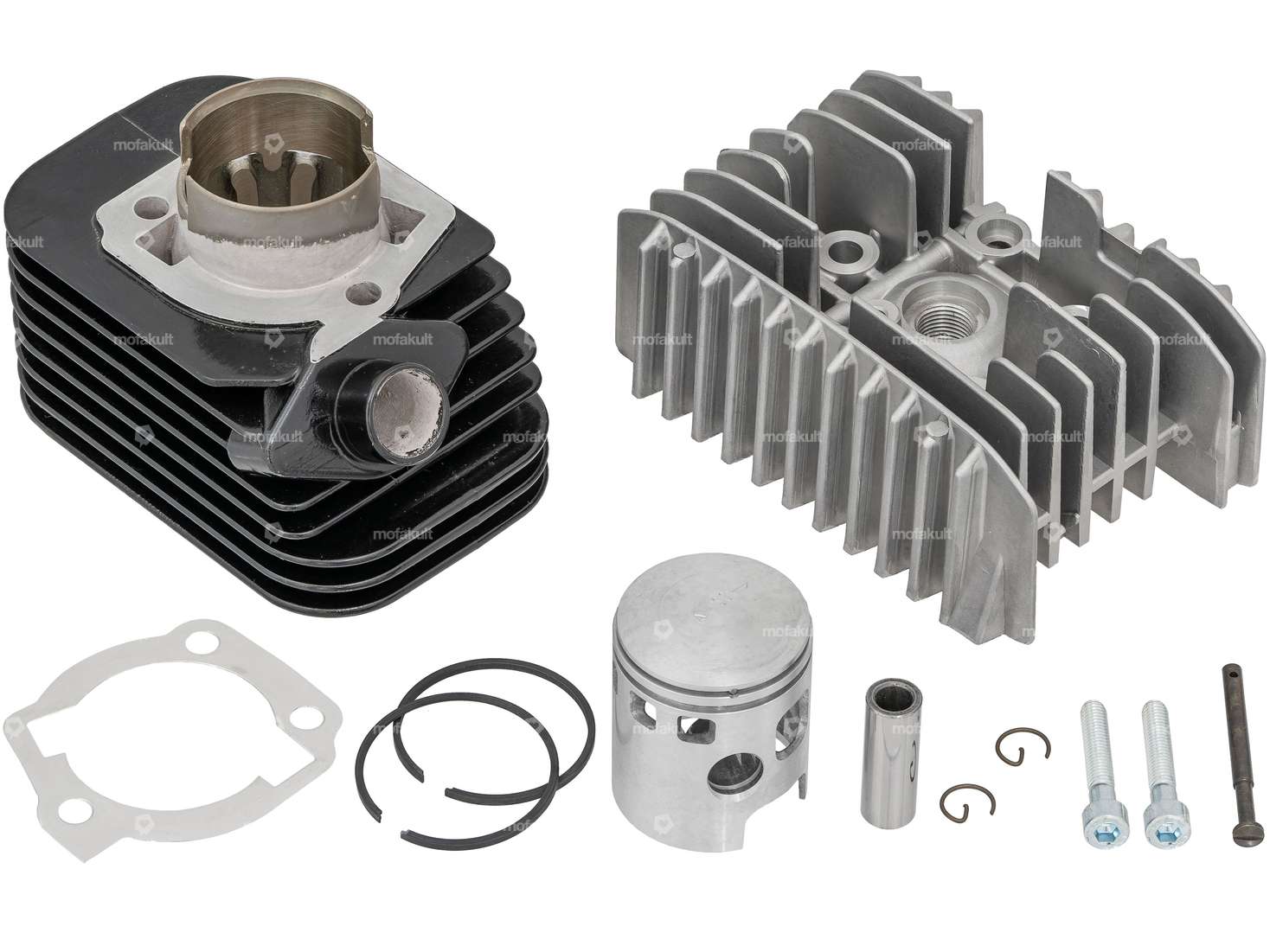

The following parts are included in the scope of delivery:
- Additional bolts for the cylinder head
- Decompressor valve (actuation not included)
- Cylinder head empty
- Cylinder and accessories
- Piston with L-ring, rectangular ring and 12 mm piston pin (axe 12)
- Various gaskets for the cylinder base
- Cylinder head with L-ring, rectangular ring and 12 mm piston pin (axe 12);for the cylinder base
- Installation instructions in Italian

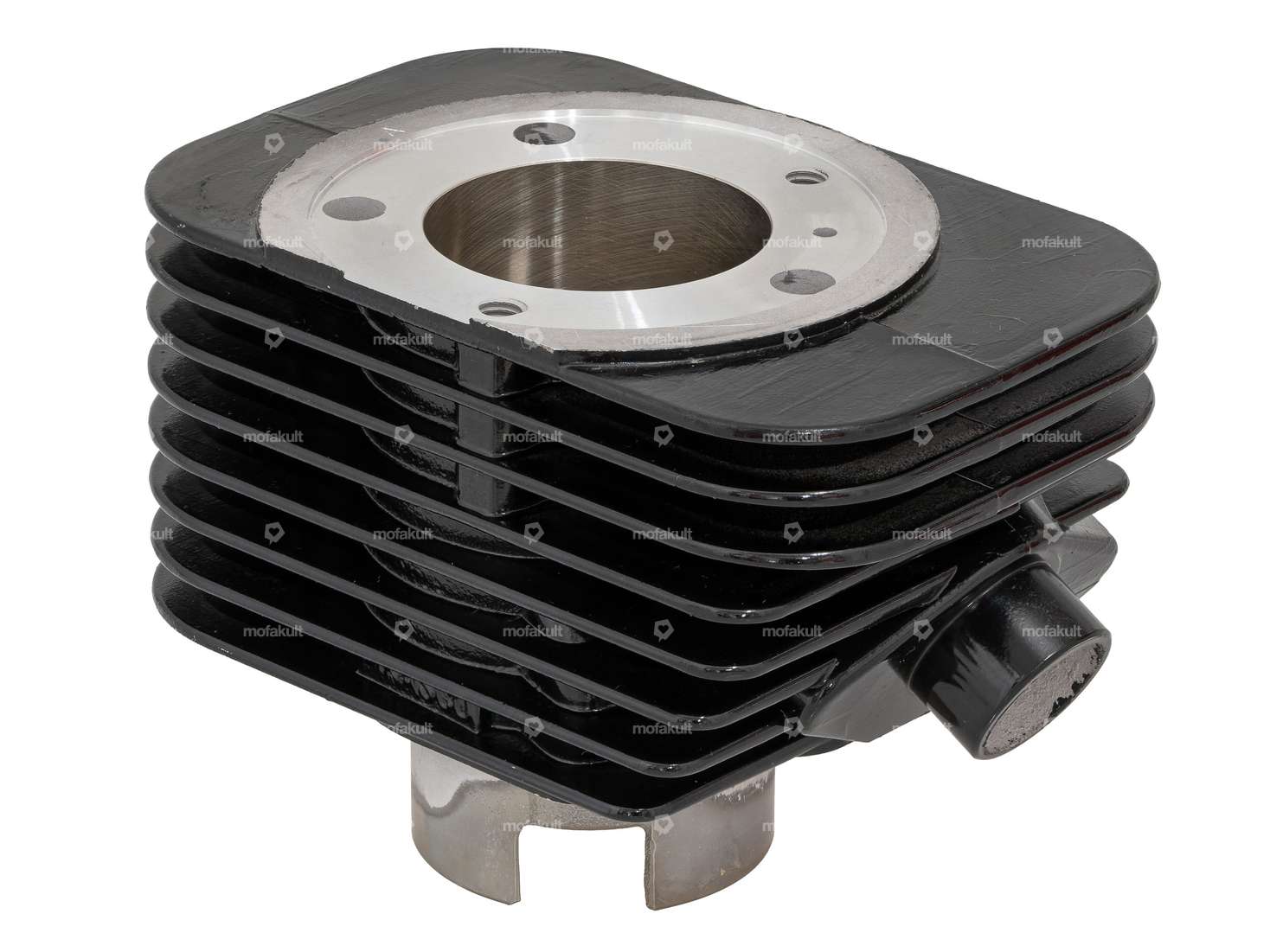

High-quality cast aluminum and durable Nikasil coating characterize this high-end tuning cylinder.
The cylinder kit develops maximum power in the mid to upper rev range. We recommend using the racing cylinder in combination with a variomatic drive.
Mounting on an original engine housing is only possible with major modifications. The cylinder kit can be mounted on the well-known Pinasco, Polini and Malossi racing cases without any adaptation work.
Note: If the cylinder kit is mounted on a Piaggio Ciao, it must be ground down on the cooling ribs on the right-hand side. However, due to the cut-out for the Ciao's cable duct, the hook on the head for the decompression cable is also missing. As a result, the cylinder cover is only suitable to a limited extent for Piaggio Si, Bravo of the newer generations or Grillo. This can be remedied by attaching the decompression cable to the cylinder head from the front, as on the Ciao or Boxer.
Corresponding attachments such as racing gearboxes, racing crankshaft, racing variator etc. can be found in the accessories section.
Quality product from the Italian manufacturer Pinasco.
Details
| Manufacturer | Pinasco |
| Area of application | Tuning |
| Material | Aluminum |
| Surface | varnished |
| Displacement | 60 ccm |
| Nominal diameter | 42 mm |
| Crankshaft stroke | 43 mm |
| Ø Outlet outside | 22.5 mm |
| Number of fixing points | 3 pcs |
| Ø piston pin (B) | 12 mm |
| Outlet type | clamped |
| Decompressor | Yes |
| Camouflaged | No |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 16.2 · Manufacturer: swiing® ingenious parts · Width: 16.2 mm · Ø outside: 15 mm · Ø inside: 12 mm · Tomos OEM number: 035548
EUR 16,30
Pinasco crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Pinasco · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Thread type: M8x1.25 (standard thread) · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Thread length: 13.5 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 12 mm · Area of application: Racing · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Weight: 712 g · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 32.5 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 146 ° · Control time before O.T: 88 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs
EUR 275,40

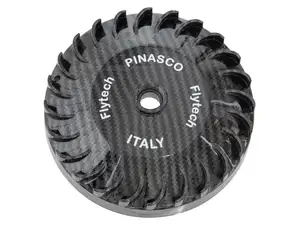

Pinasco flywheel carbon | Piaggio Ciao, SI, Bravo, Boxer
