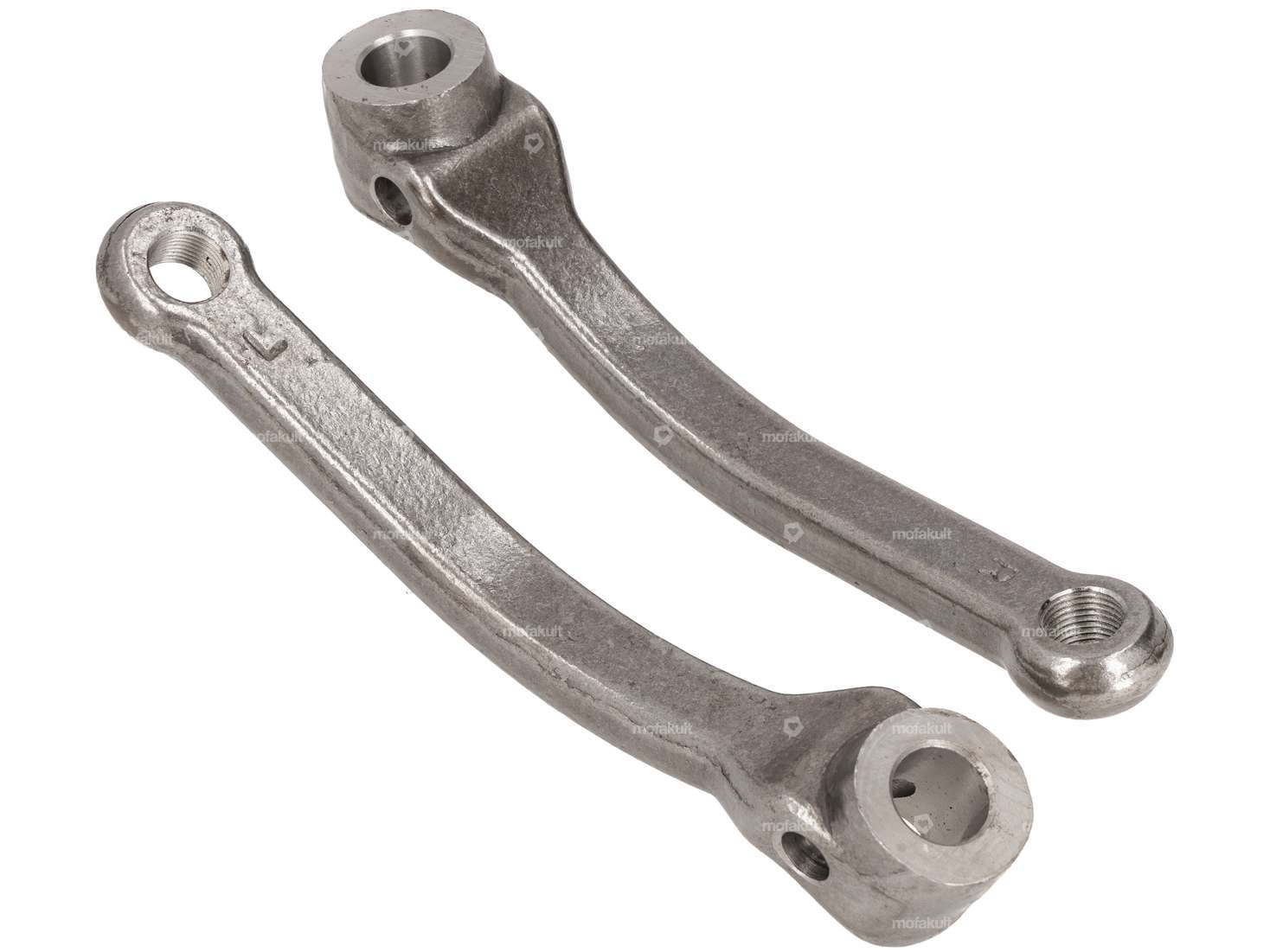

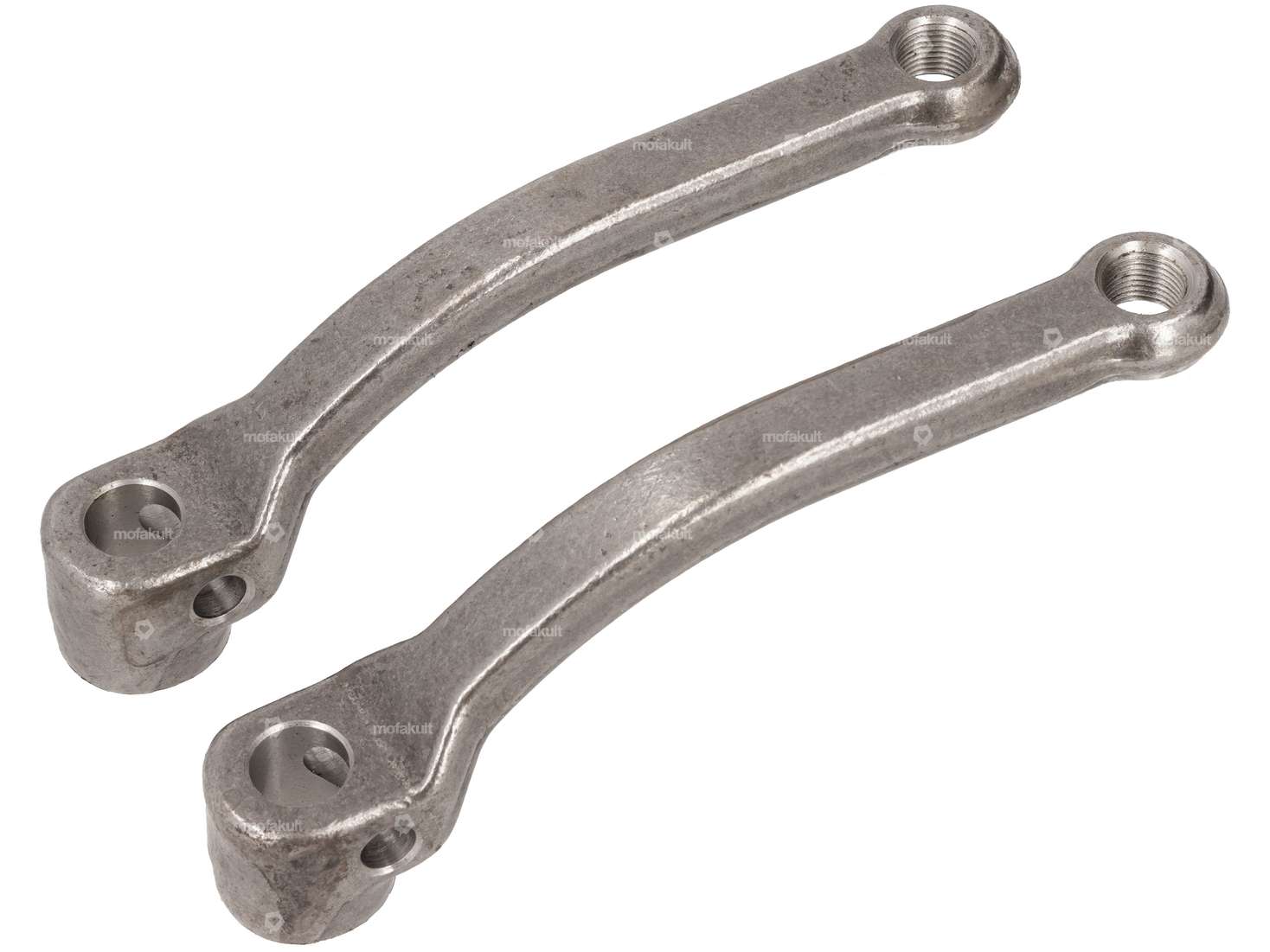

Pedal arms made of raw, untreated steel suitable for Puch Maxi, Puch Supermaxi, Puch X30 NS/NL, Puch X30 NG-2AH, Velux etc.
However, they can also be fitted to many other mopeds.
The pedal arms have a classic retro look and are therefore ideal for custom conversions.
To protect the pedal arms from rust, they should be sealed.
Take the dimensions from Figure 4:
- Crank length X (center axle - center thread): 156 mm
- Total length Y: 181 mm
- Crank length Z: 52 mm
- Diameter for axle mounting: 16 mm
9.5 mm crank keys must be used for fastening. You can find these below in the accessories
.Details
| Total length | 181 mm |
| Material | Steel |
| Surface | raw |
| Crank length (center-center) | 156 mm |
| Ø Pedal wedge | 9.5 mm |
| Ø Pedal axle | 16 mm |
| Cranking (offset) | 52 mm |
Suitable for the following models
| Universal | |
| Puch |
