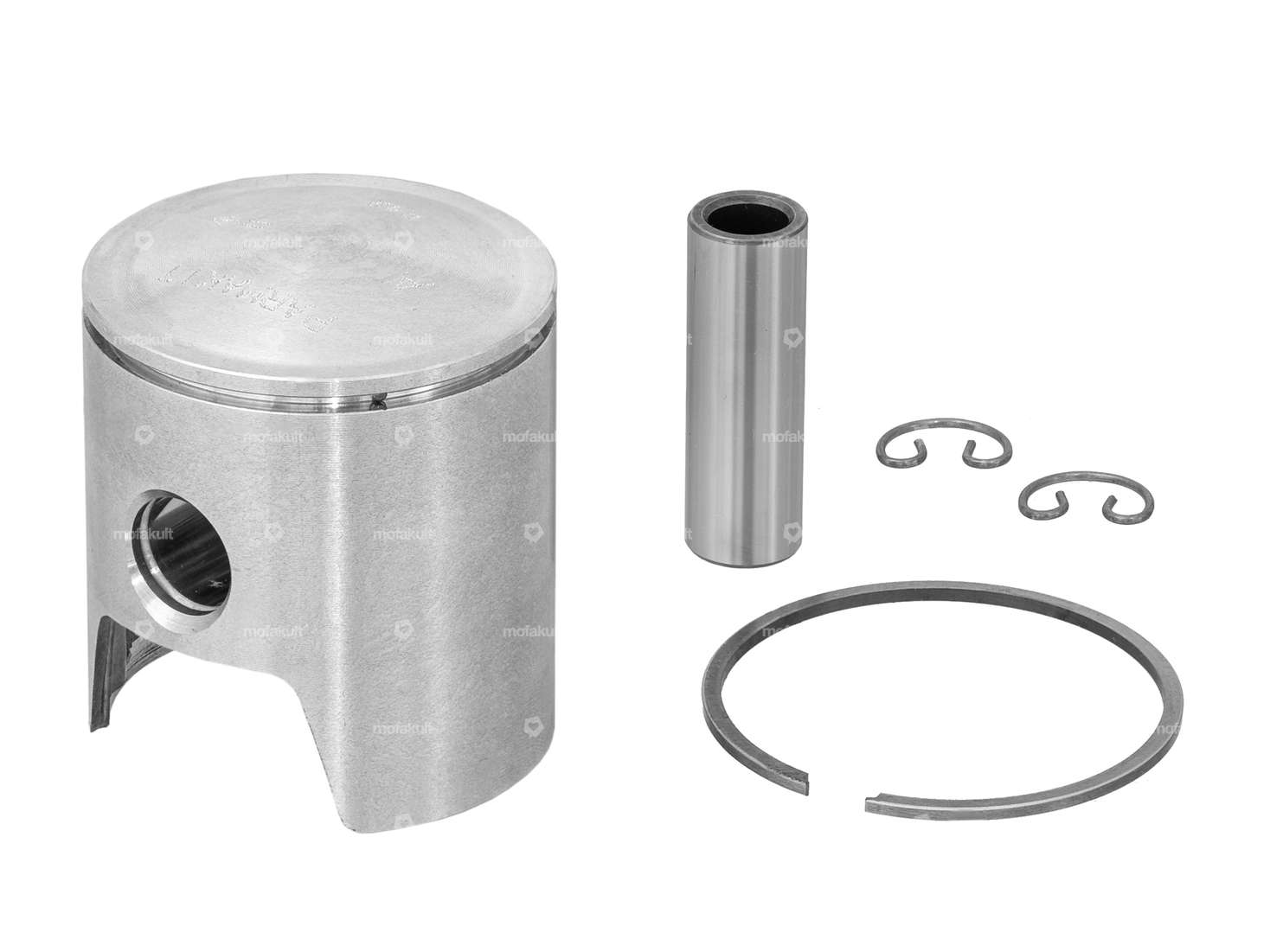

45 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for the 45 mm cylinder kits for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the images.
Tolerance type: A
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories.
Product of the Italian manufacturer Parmakit.
Details
Nominal diameter | 45 mm |
Manufacturer | Parmakit |
Ø outside piston (A) | 44.93 mm |
Compression height (C) | 21.5 mm |
Curvature (D) | 3.83 mm |
Total piston height (E) | 52.3 mm |
Number of piston rings (F) | 1 pcs |
Piston ring mold | Rectangular ring |
Piston ring impact | Internal fuse (IS) |
Piston ring height | 1.5 mm |
Ø piston pin (B) | 12 mm |
Tolerance group | A |
Suitable for the following models
Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
