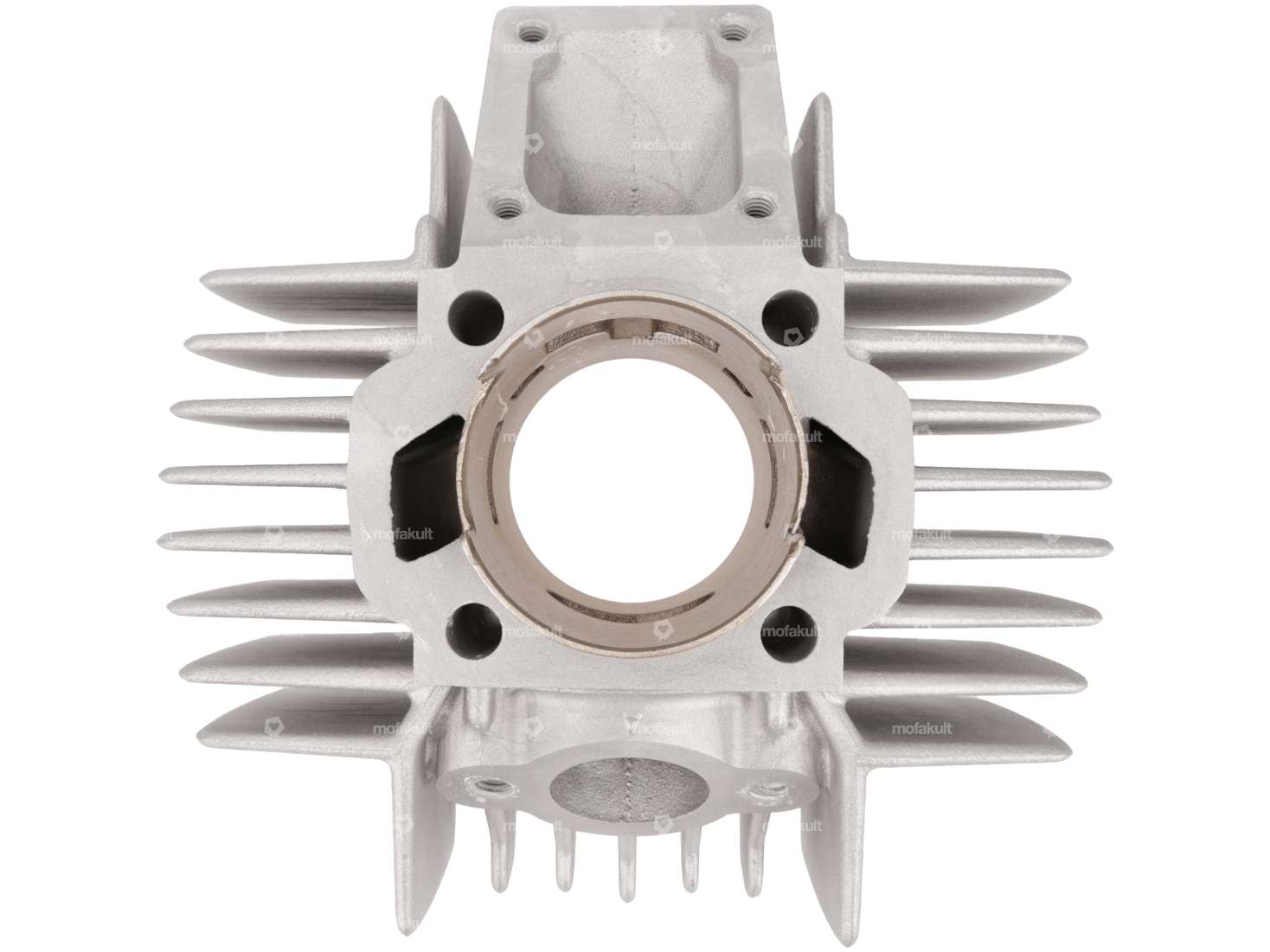

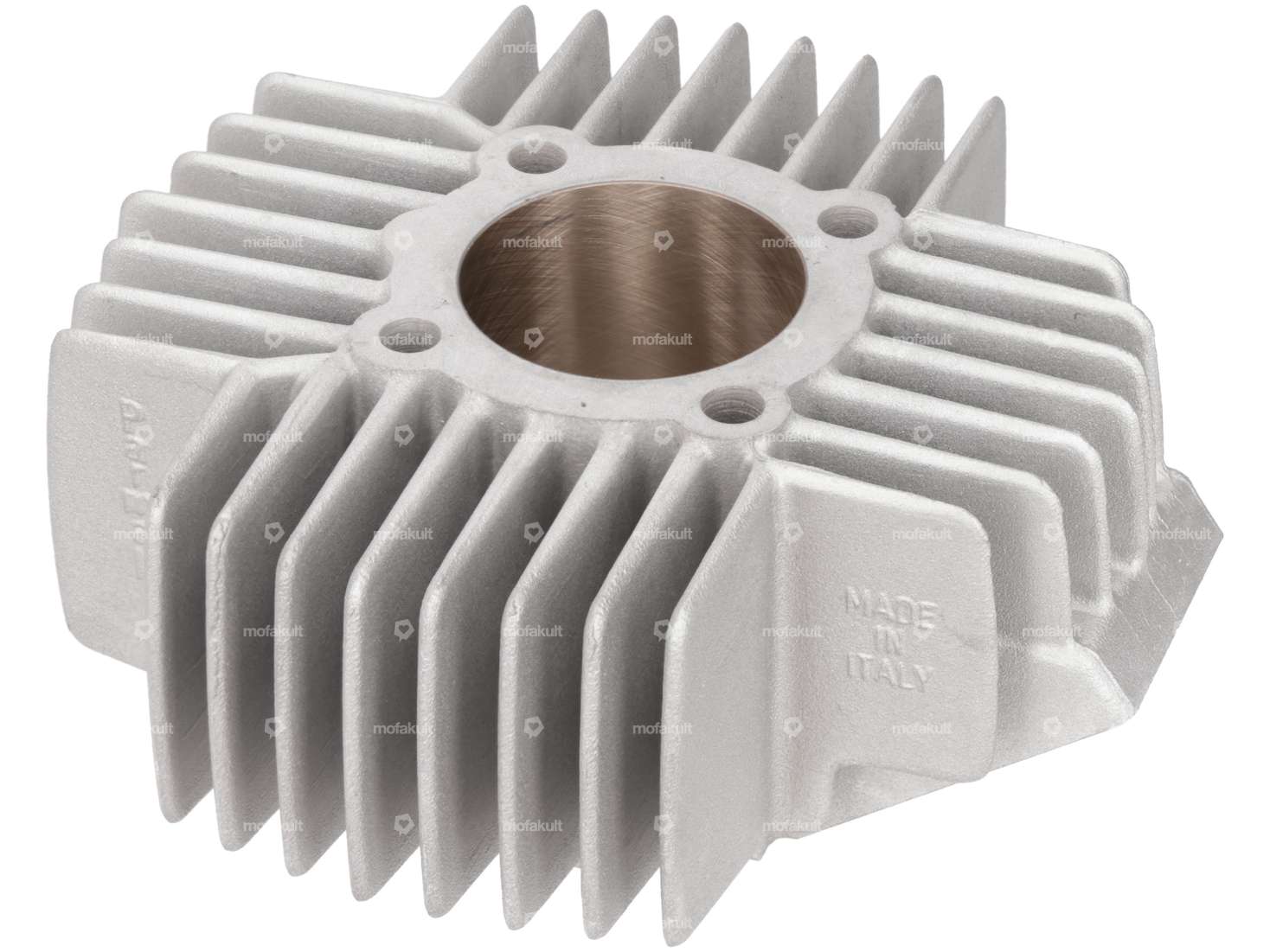

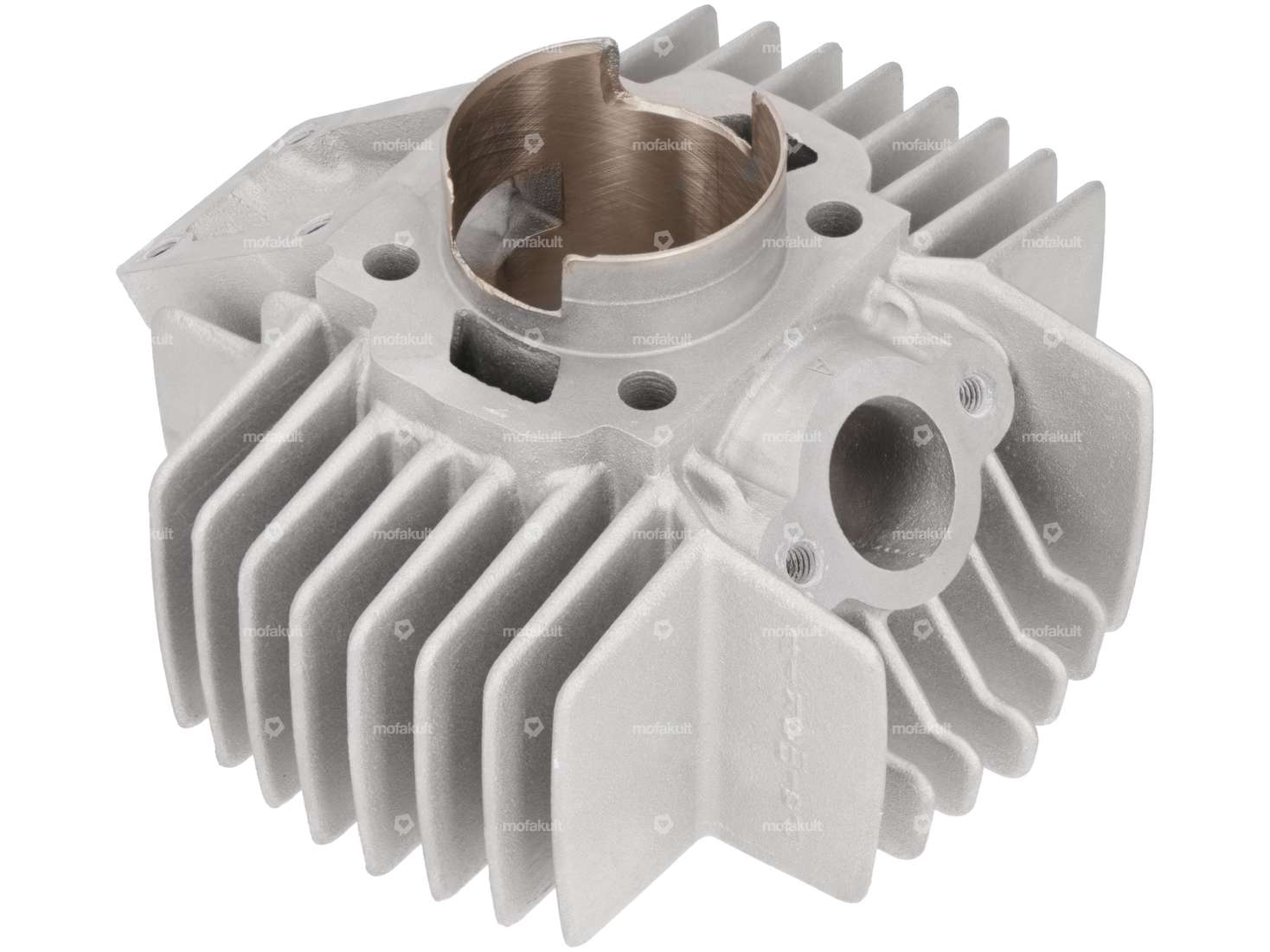

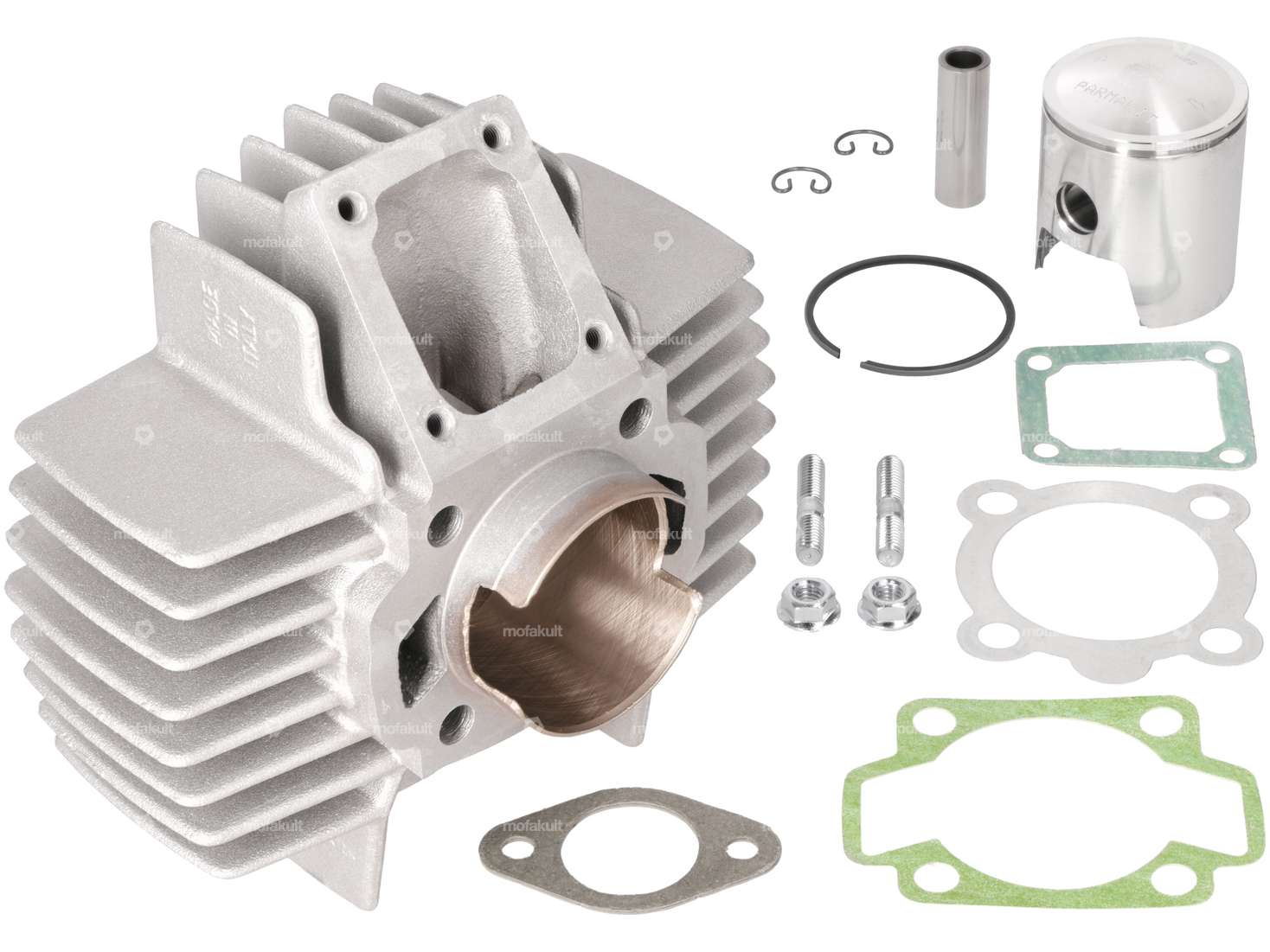

45 mm cylinder kit from the Parmakit brand.
This nikasil-coated aluminum racing kit is currently one of the best on the market.
The racing cylinder impresses with its high-quality workmanship and long service life.
In order to get the full power out of the cylinder, a racing exhaust and a larger carburetor should be fitted.
12 mm piston pin.
Fits Tomos A3 / A35.
Product of the Italian manufacturer Parmakit.
Details
| Manufacturer | Parmakit |
| Material | Aluminum |
| Surface | sandblasted |
| Displacement | 70 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 45 mm |
| Ø piston pin (B) | 12 mm |
| Thread inlet | M5x0.8 (standard thread) |
| Hole spacing outlet | 42 mm |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 44 x 44 |
| Thread outlet | M6x1 (standard thread) |
| Camouflaged | No |
| Area of application | Tuning |
Suitable for the following models
| Tomos |
Moped fans like you also bought:

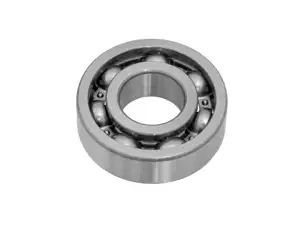

NTN 6203 C3 Ball bearing 17/40/12
Bearing type: Deep groove ball bearing · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank · Area of application: Standard · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm
EUR 10,00

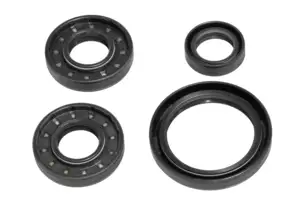

GPO Simmerring set | Tomos A35
Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: GPO · Material: NBR · Surface: rubberized · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm · Width: 7 mm
EUR 13,40

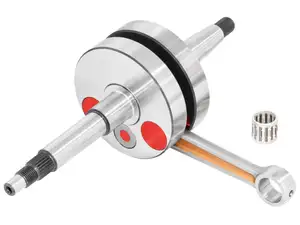

swiing crankshaft Racing Tomos
Manufacturer: swiing · Cheek type: Full cheeks · Area of application: Racing · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Wide crank webs: 34 mm · Tomos spare part no.: 223421
EUR 152,00

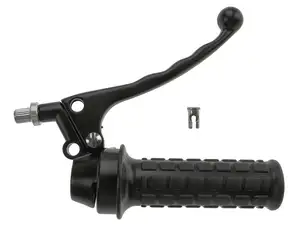

Lusito throttle twist grip black
