Operator's manual for the hand-shifted Puch X30 moped from Steyr-Daimler-Puch AG Graz Austria.

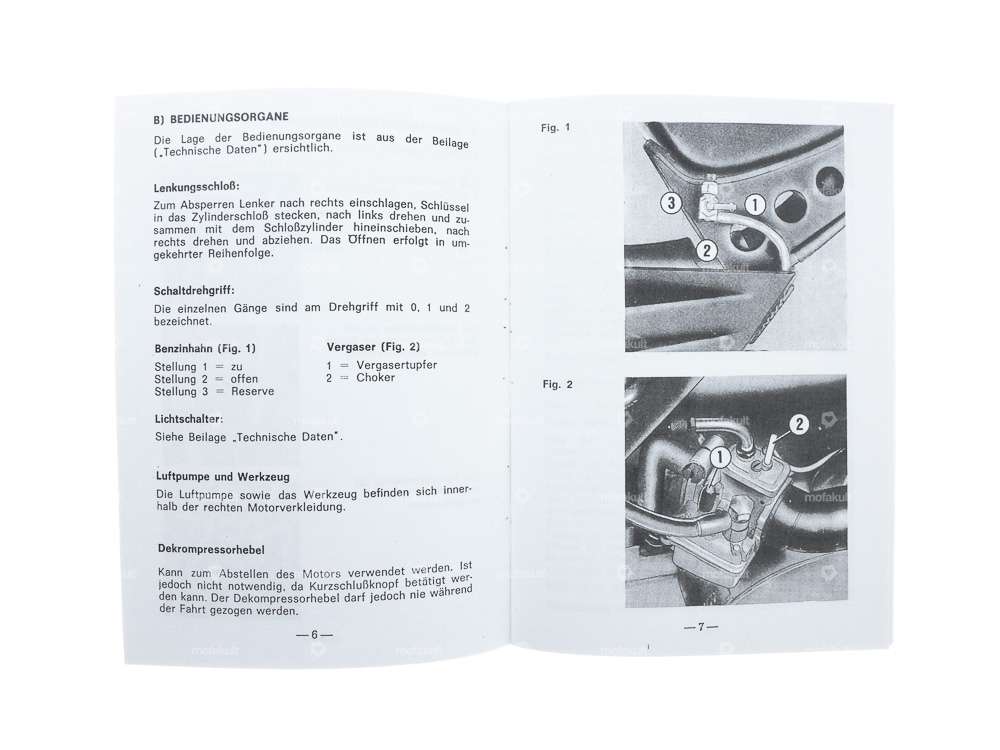

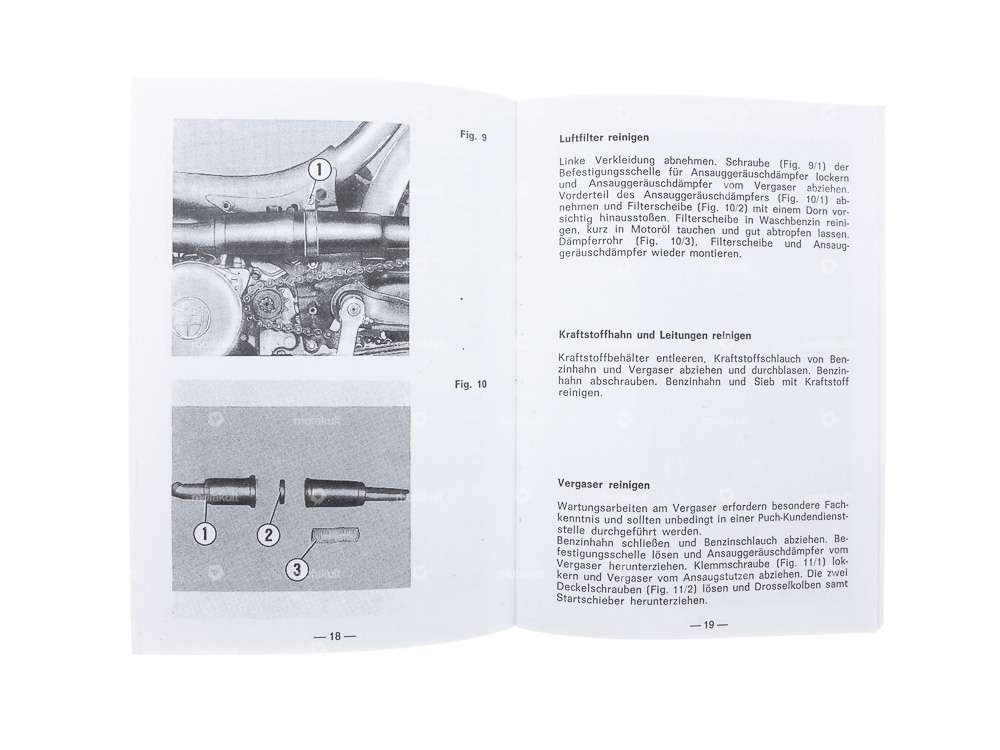

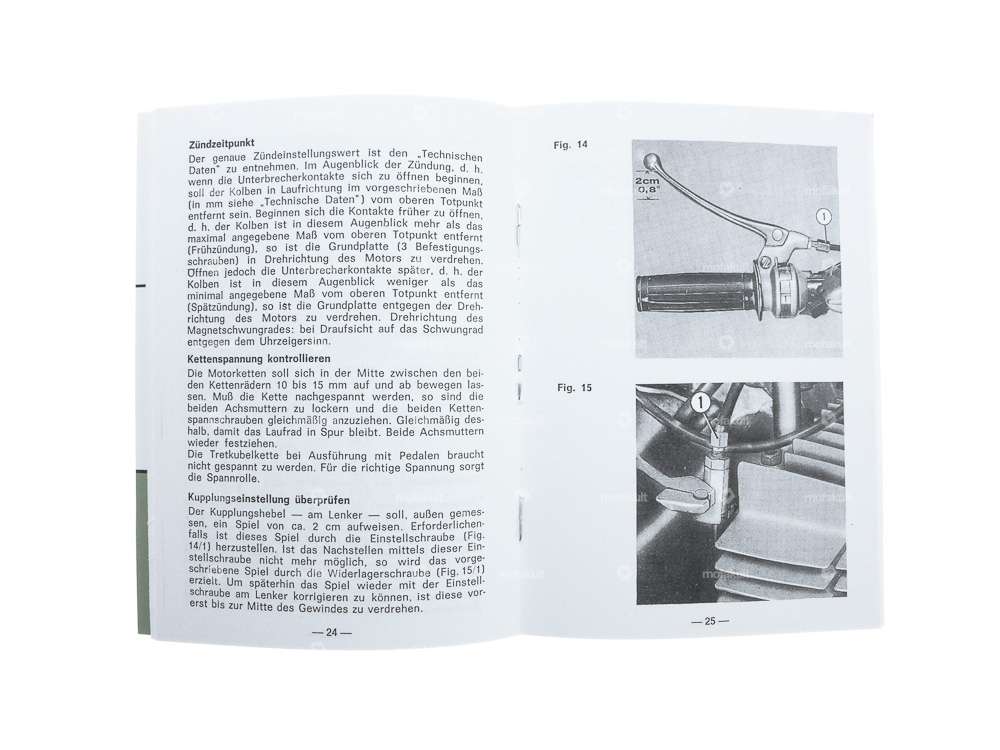

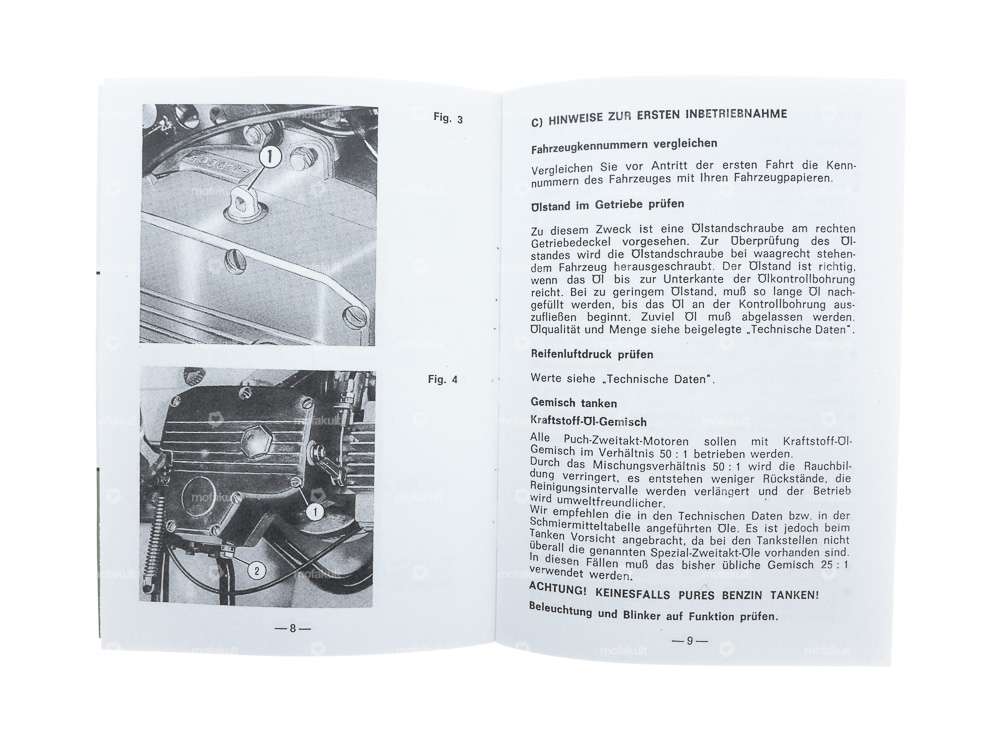

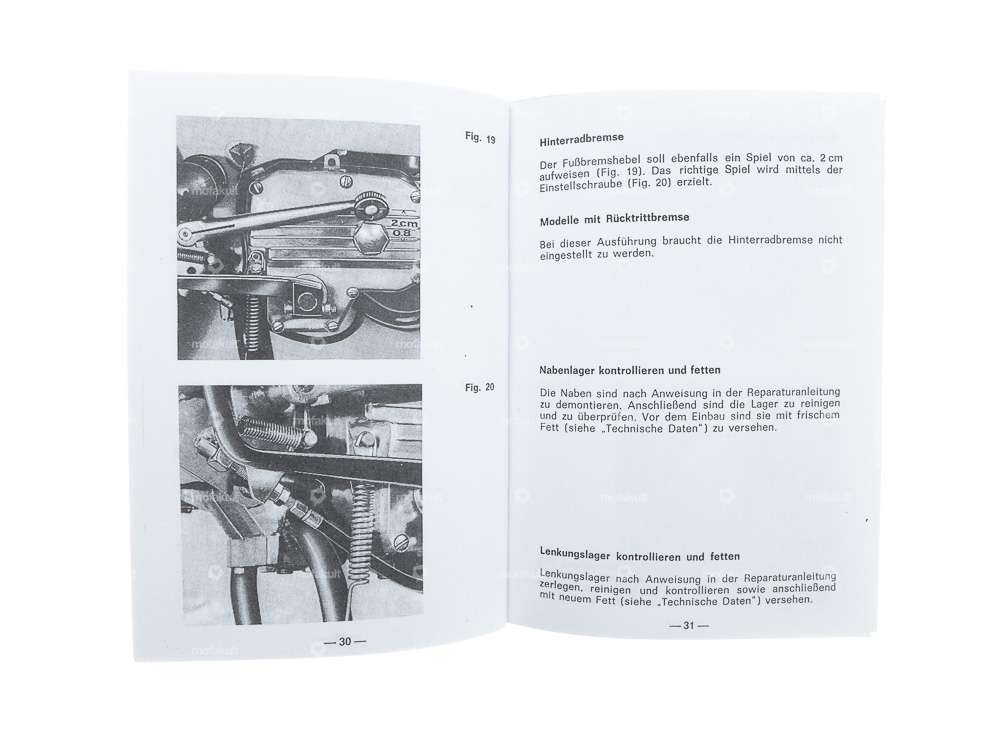

Very helpful, informative booklet. Among other things, operating elements, repair / maintenance / and adjustment work are explained.
A5 format with 48 pages. Without the additional sheet "Technical data"
Further literature can be found in the accessories section.
Details
| Material | Paper |
| DIN format | A5 |
| Number of pages | 48 pcs |
Suitable for the following models
| Puch | Z50 (X30 Sport) |
Moped fans like you also bought:
GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Beta 521
Width across flats (trigger): 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Clamping depth: 10 mm · Total length: 55 mm · Total length: 75 mm · Number of components: 1 pcs · Material: Steel · Surface: blackened · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Area of application: (Dis)assembly tool · Strength class: 8.8
EUR 11,60
Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing
Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder
EUR 3,30
Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)
Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Cable length: 2200 mm
EUR 2,80
Collection only possible with online purchase and appointment.
