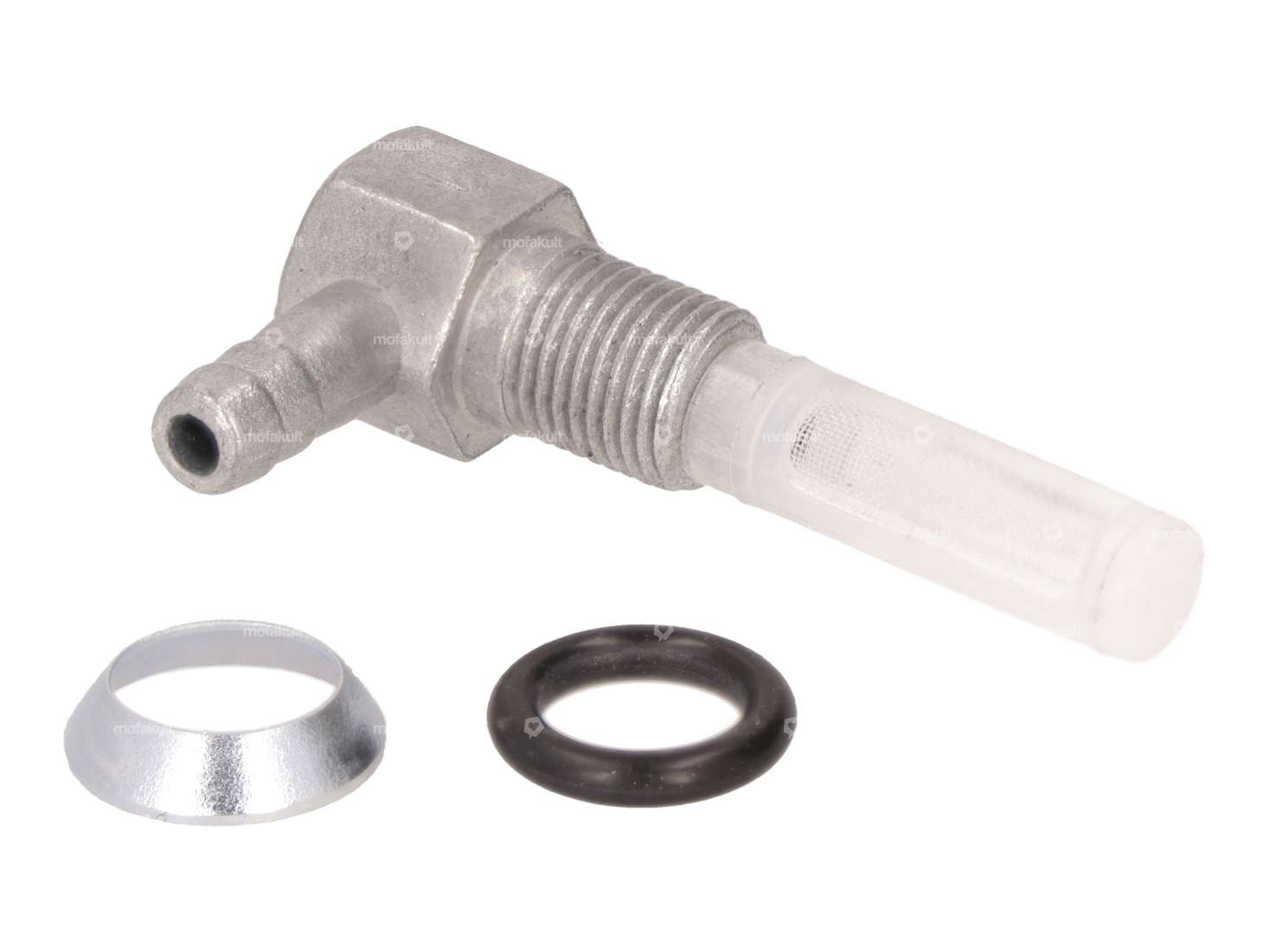

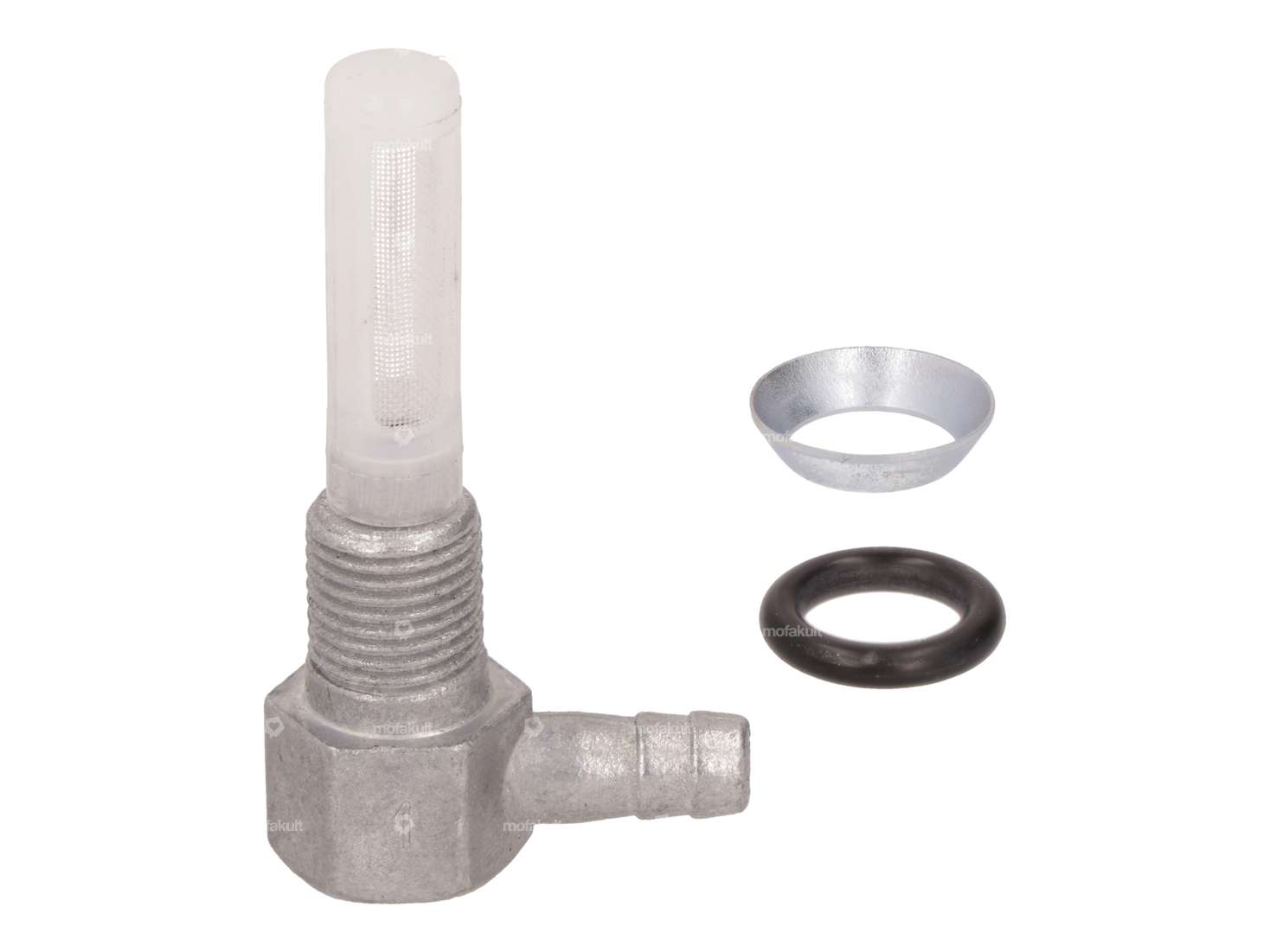

Universally usable fuel connection with M10x1 mm thread and 90° outgoing nozzle for your moped, moped or small motorcycle. The fuel outlet has no locking position and is always open.
The fuel connector has the following features:
Connection thread: MF10 x 1 mm (fine thread)
Connection type: screw-in thread
Screw width (SW): 13 mm
Positions: open
Ø fuel hose connection: 6 mm / 5.5 mm
Filter length: 25 mm
Total length: 48 mm
Fuel hose, fuel filter and a fuel tap for between the fuel line can be found in the accessories.
Quality product from the Italian manufacturer OMG.
Details
| Thread type | MF10x1 (fine pitch thread) |
| Manufacturer | OMG |
| Outer width | 13 mm |
| Material | Aluminum, Plastic |
| Filter type | Plastic net |
| Installation direction | vertical / vertical |
| Outlet direction | any |
| Mounting type | screw in (thread) |
| Ø fuel hose connection | 6 mm, 5.8 mm |
