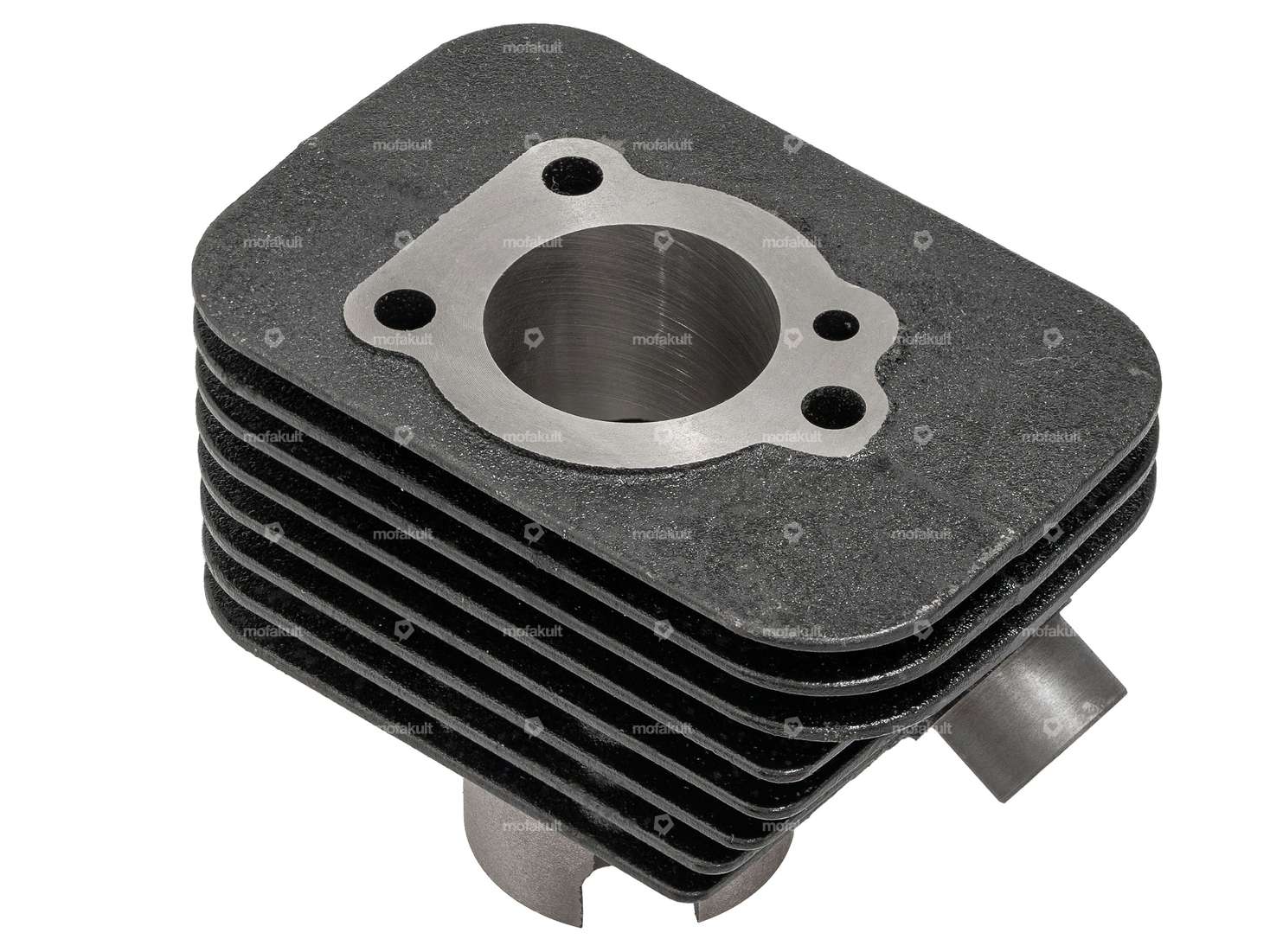

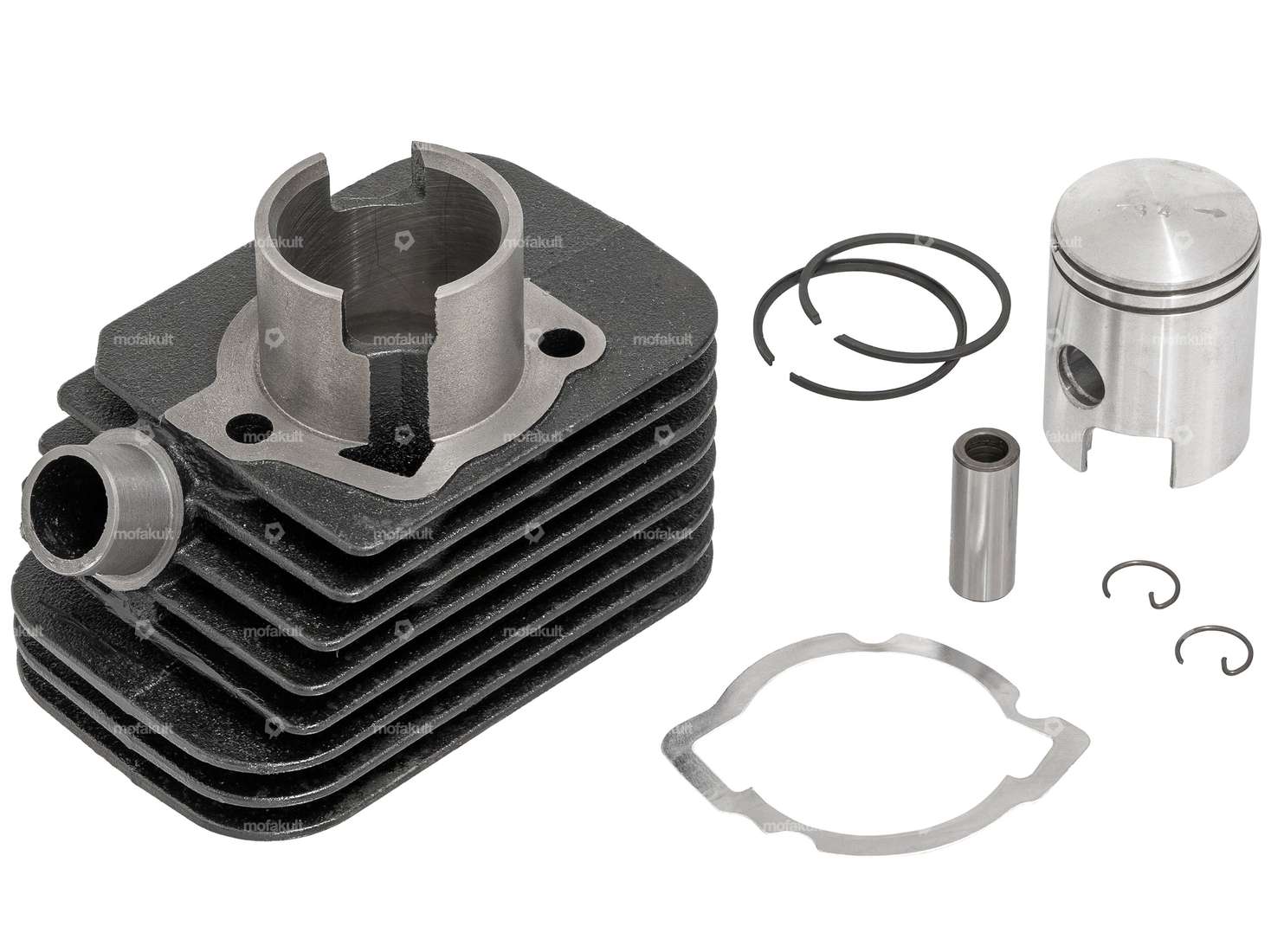

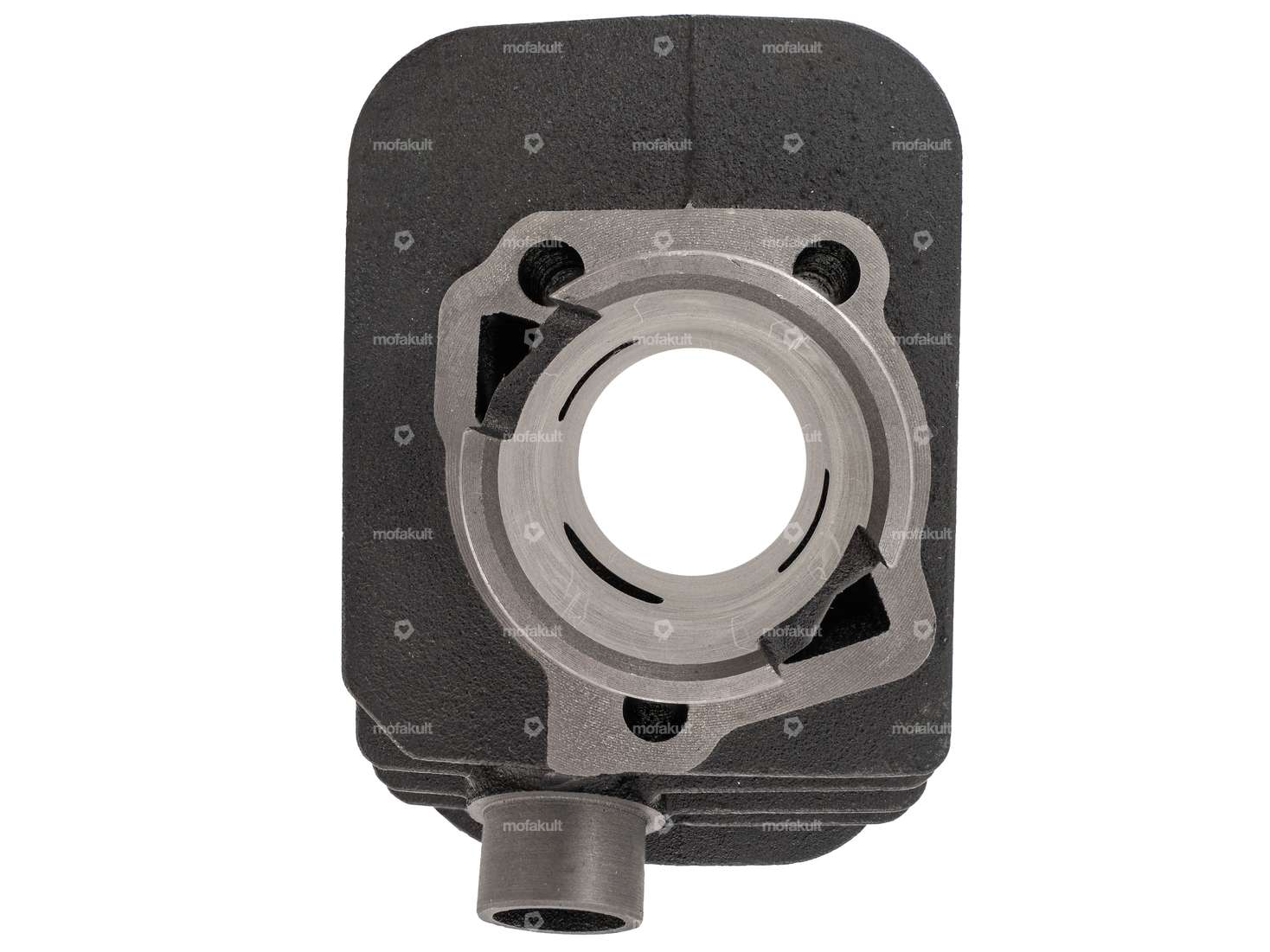

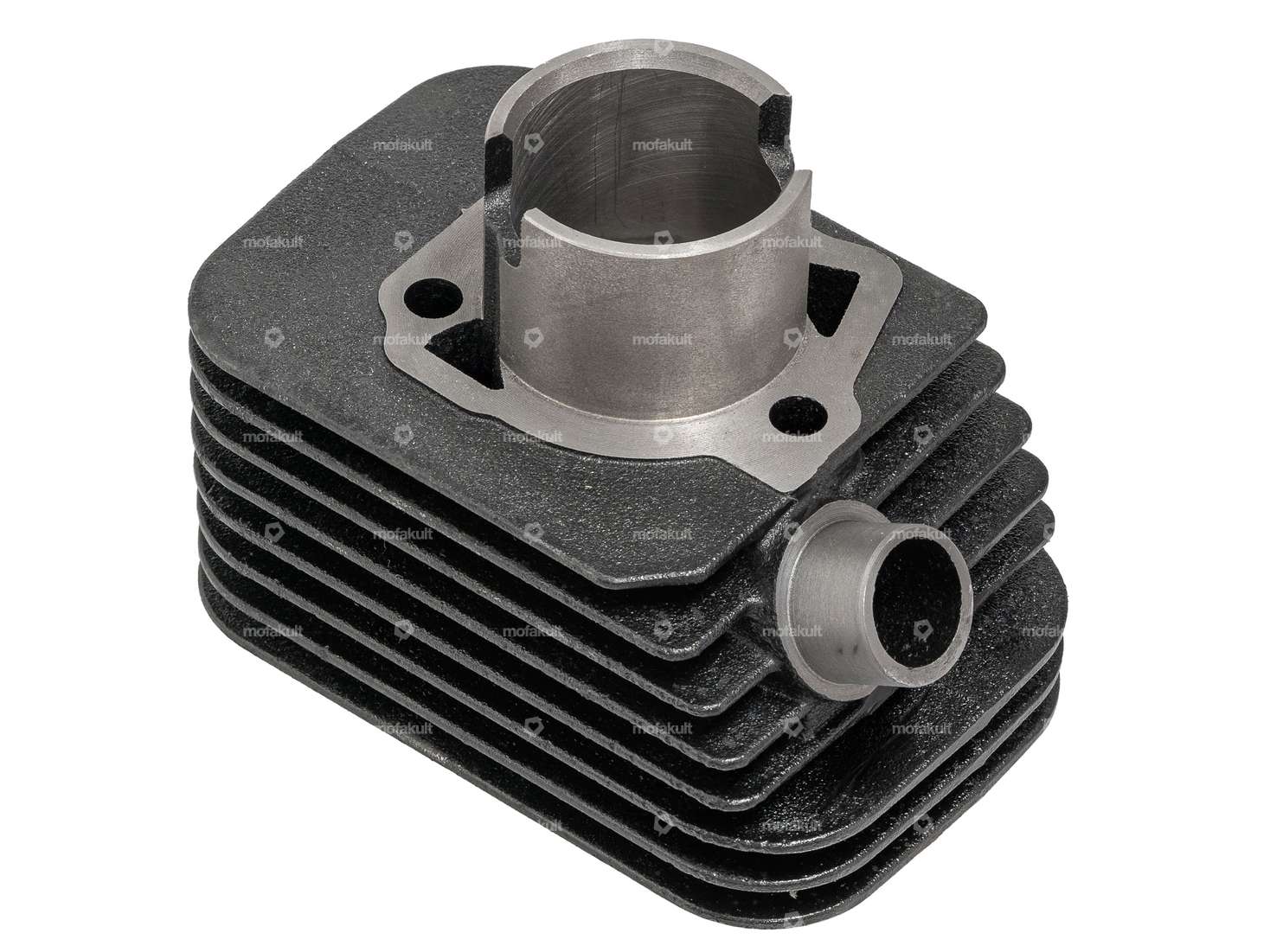

This cast iron cylinder from the Italian brand manufacturer Olympia fits all Piaggio mopeds / mopeds.
Execution with 2 overflow springs.
Note: Check the piston ring joint before installation using a reed gauge. This should be between 0.15 - 0.4 mm to prevent the piston from jamming.
Details
| Manufacturer | Olympia |
| Material | Gray cast iron |
| Surface | varnished |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 46 mm |
| Nominal diameter | 38.4 mm |
| Ø Outlet outside | 22.4 mm |
| Ø outlet inside | 17.6 mm |
| Ø piston pin (B) | 10 mm |
| Number of fixing points | 3 pcs |
| Hole pattern [mm] | 55 x 34 |
| Outlet type | clamped |
| Decompressor | Yes |
| Camouflaged | No |
| Area of application | Tuning |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
