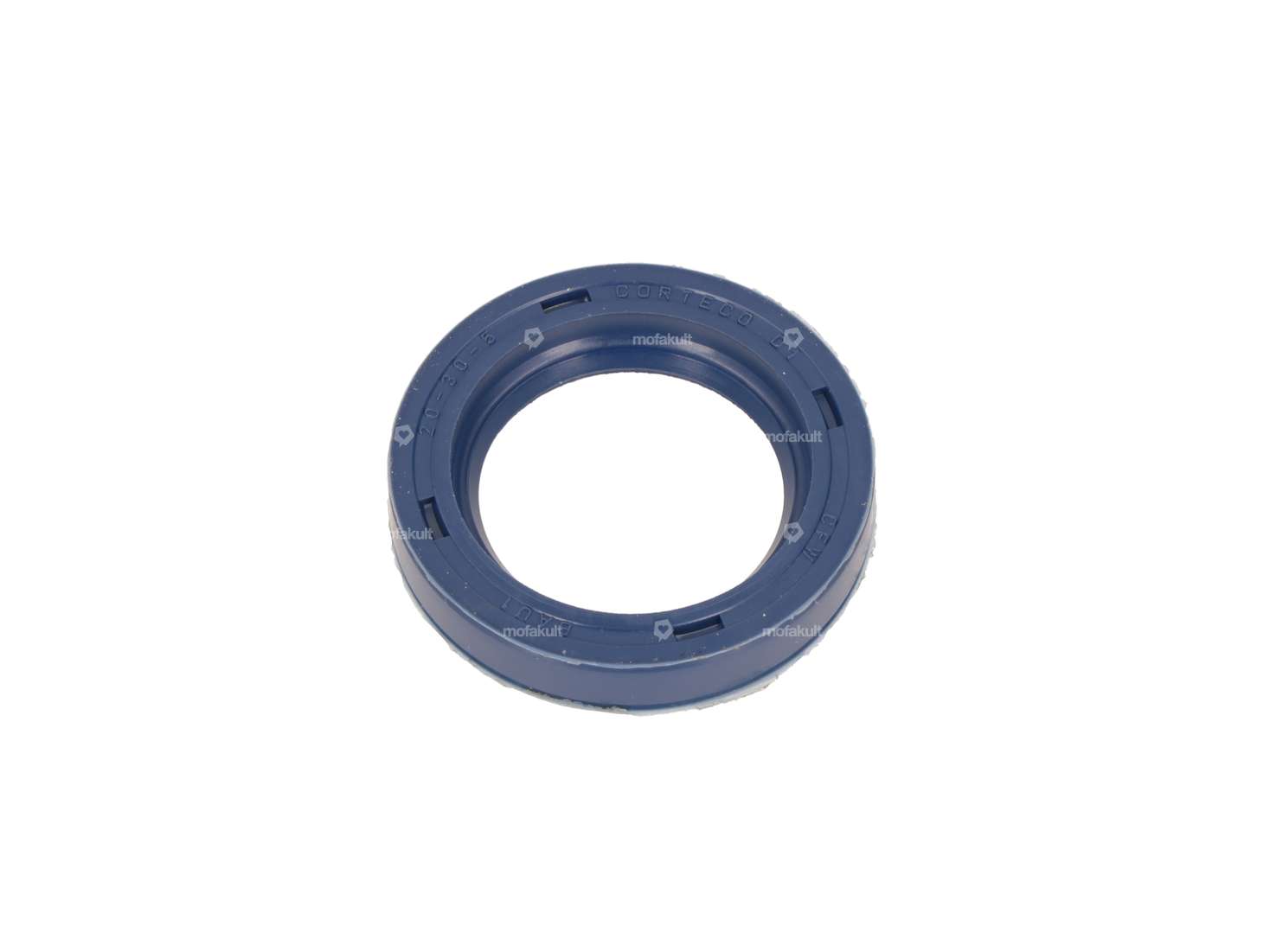

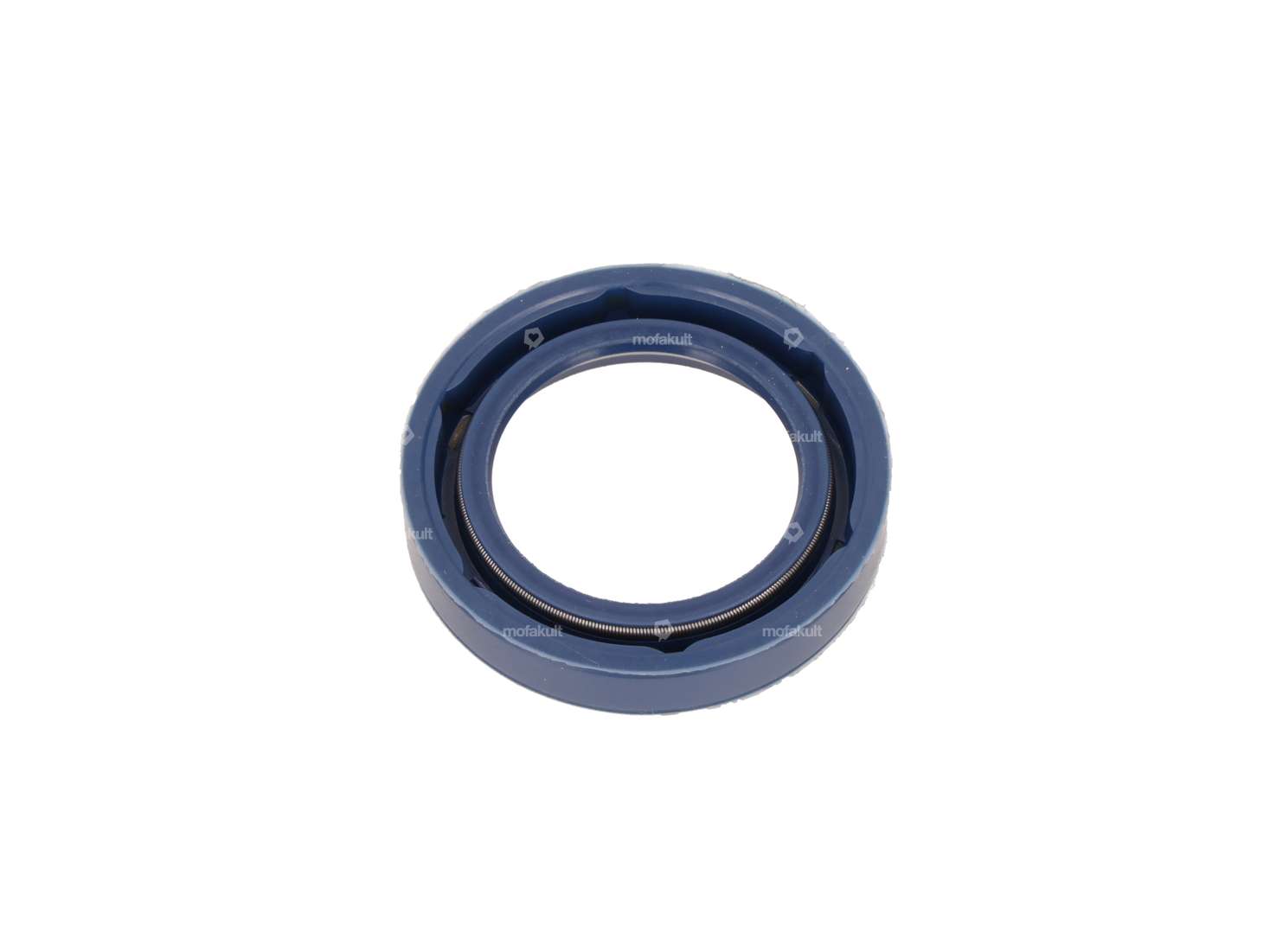

High-quality oil seal (also known under the protected brand name Simmerring®) 20x30x5 mm for use on the mono or Vario gearbox of your Piaggio Ciao, Si, Bravo, Boxer moped / moped.
This radial shaft seal is mounted in the gearbox on the brake pad side.
Note: If you own the first Ciao model C9 with rigid forks and a splined gearbox, you must install a 22x35x6 mm seal ring on the brake side.
You can find this oil seal and other transmission parts in the accessories section.
A quality product manufactured in Italy.
Original Piaggio spare part number: 131511
Details
| Place of use | Gear hub |
| Temperature resistance (min.) | -30 - 100 °C |
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Made in Italy |
| Material | NBR |
| Surface | rubberized |
| Ø outside | 30 mm |
| Ø inside | 20 mm |
| Width | 5 mm |
| Piaggio OEM number | 131511 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo Gilera CBA Gilera Citta |
