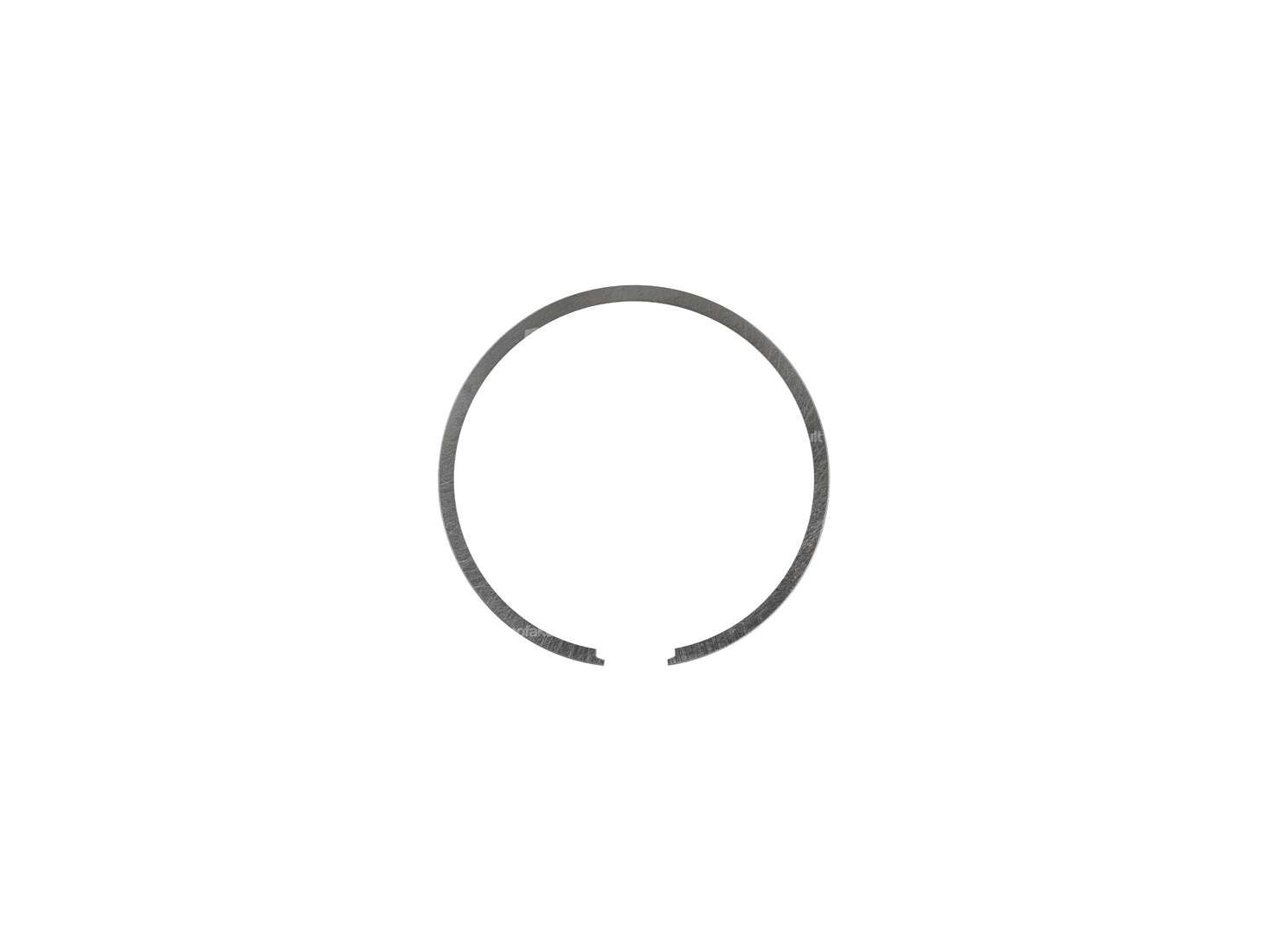

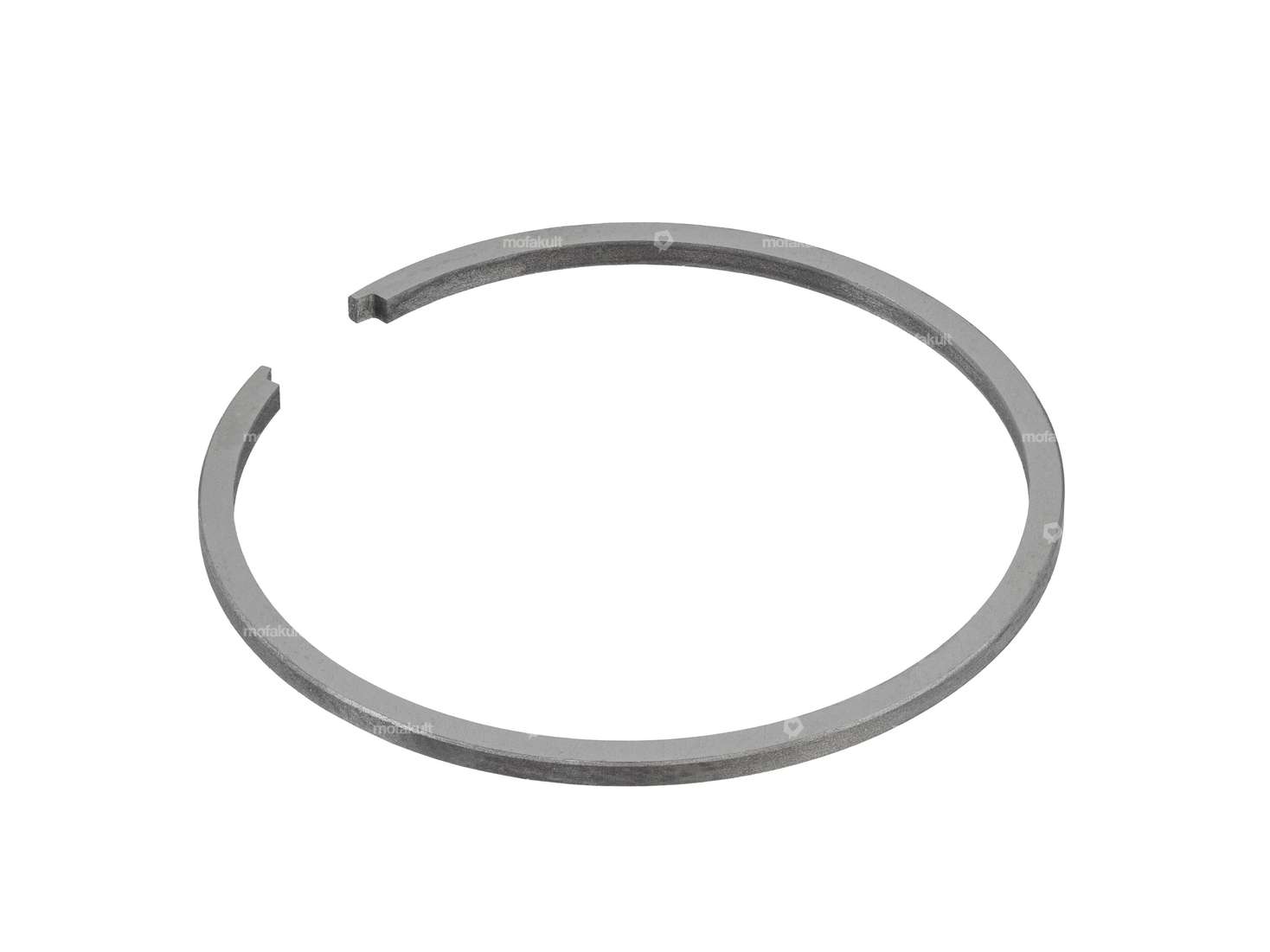

Original 38.0 x 1.5 mm compression ring (rectangular ring) suitable for Sachs 503 ADV engines with catalytic converter.
Diameter: 38.00 mm
Height: 1.50 mm
Thickness: 1.60 mm
Piston ring shape: Rectangular ring

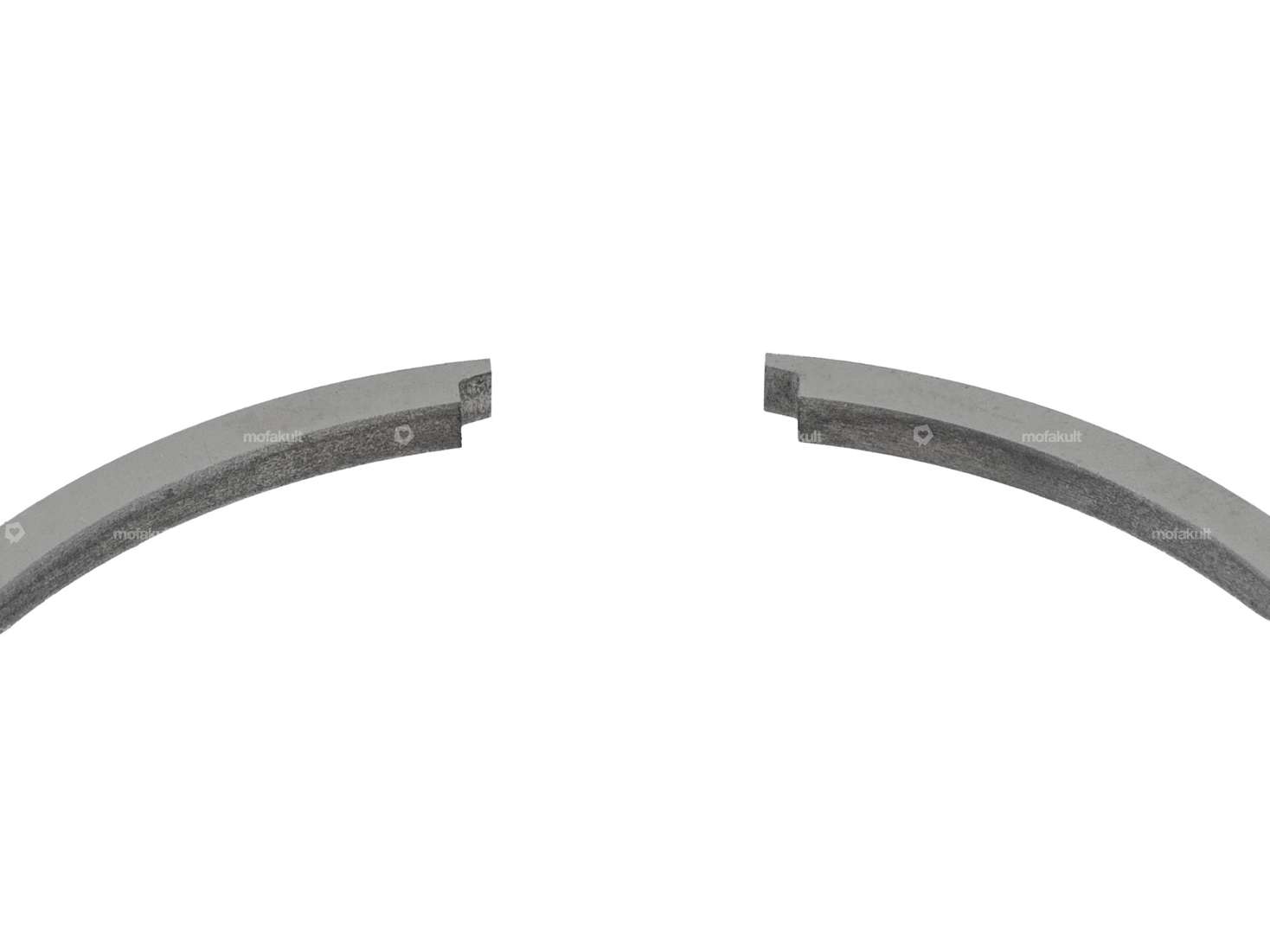

Piston ring joint: Internal locking (IS)
The scope of delivery corresponds to one piece.
Matching pistons, assembly tools and lubricant can be found in the accessories section.
Original Sachs spare part number: A3336
Quality product from the Italian manufacturer Meteor.
The set includes the following fixed parts:
Details
| Manufacturer | Meteor |
| Thick piston ring | 1.6 mm |
| Nominal diameter | 38 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Height | 1.5 mm |
Suitable for the following models
| Sachs | 503 - ADV |
