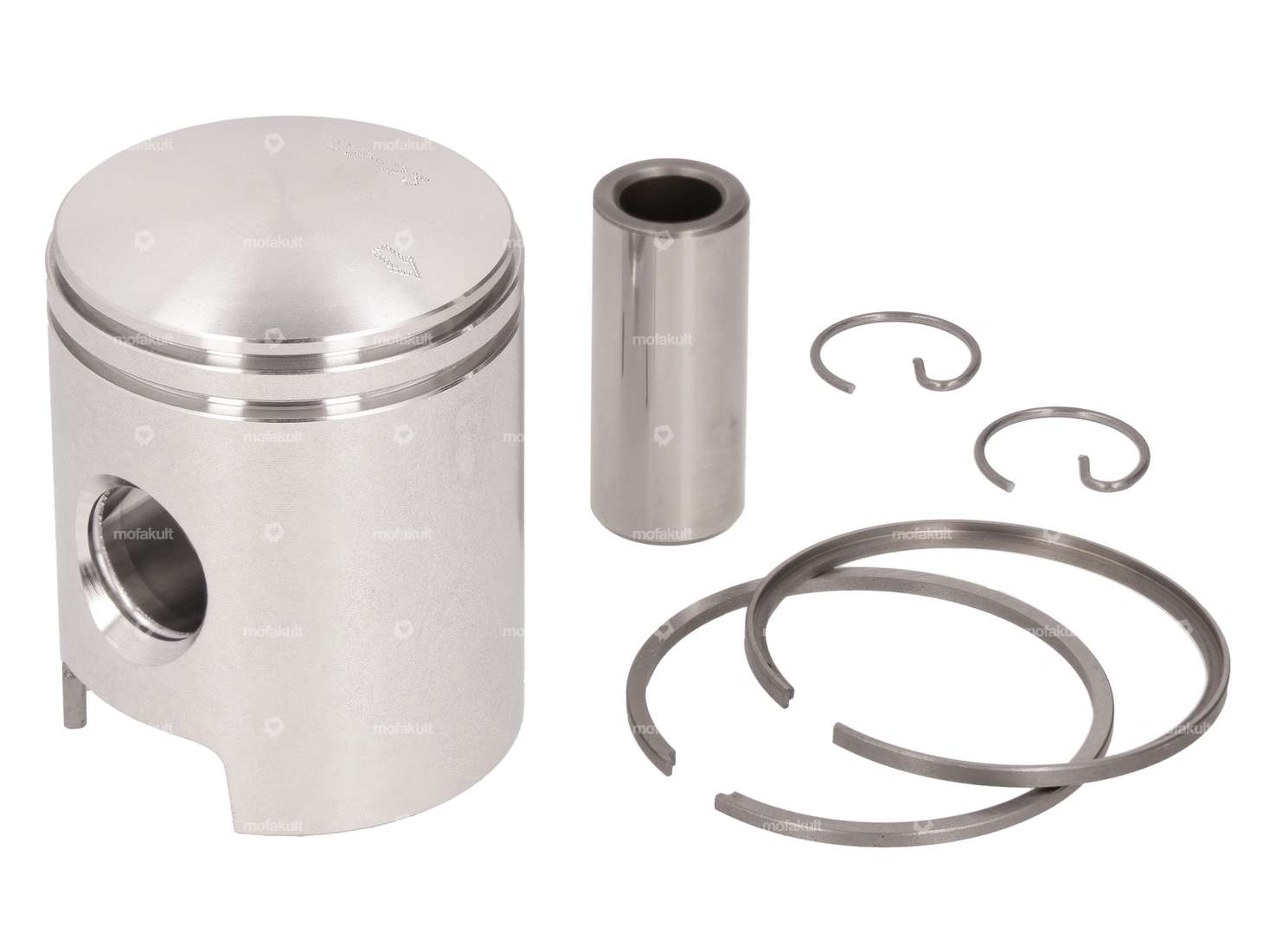

40.0 mm replacement piston with a 2 mm L-piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Kreidler Florett RS small engine bikes with 40 mm cylinder.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
Tolerance type: E
The piston kit contains piston pins, piston clips and piston rings.
You will find the appropriate assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
Details
| Manufacturer | Meteor |
| Ø outside piston (A) | 39.97 mm |
| Ø piston pin (B) | 14 mm |
| Compression height (C) | 27 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 51 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 40 mm |
| Piston ring mold | Rectangular ring, L-ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm, 2 mm |
| Tolerance group | E |
| Piston weight | 99 g |
Suitable for the following models
| Kreidler |
Accessories & related products
Meteor piston 39.95 mm (14 mm KoBo) A | Kreidler Florett RS
Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.95 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: A · Piston weight: 99 g
EUR 70,20
Meteor piston 39.955 mm (14 mm KoBo) B | Kreidler Florett RS
Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.955 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: B · Piston weight: 100 g
EUR 70,20
Meteor piston 39.96 mm (14 mm KoBo) C | Kreidler Florett RS
Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.96 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: C · Piston weight: 100 g
EUR 70,20
Meteor piston 39.965 mm (14 mm KoBo) D | Kreidler Florett RS
Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.965 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: D · Piston weight: 100 g
EUR 70,20
Meteor piston 39.975 mm (14mm KoBo) F | Kreidler Florett RS
Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.975 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: F · Piston weight: 99 g
EUR 70,20
Meteor piston 38.0 mm (14 mm KoBo) B | Sachs 50
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.96 mm · Ø piston pin (B): 14 mm · Compression height (C): 28 mm · Curvature (D): 2 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: B · Piston weight: 86 g
EUR 73,70
Moped fans like you also bought:

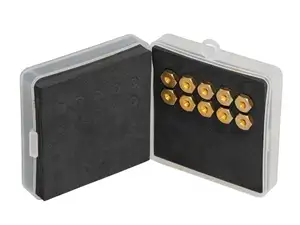

Nozzle set M6 (76 - 94) Bing SLH
