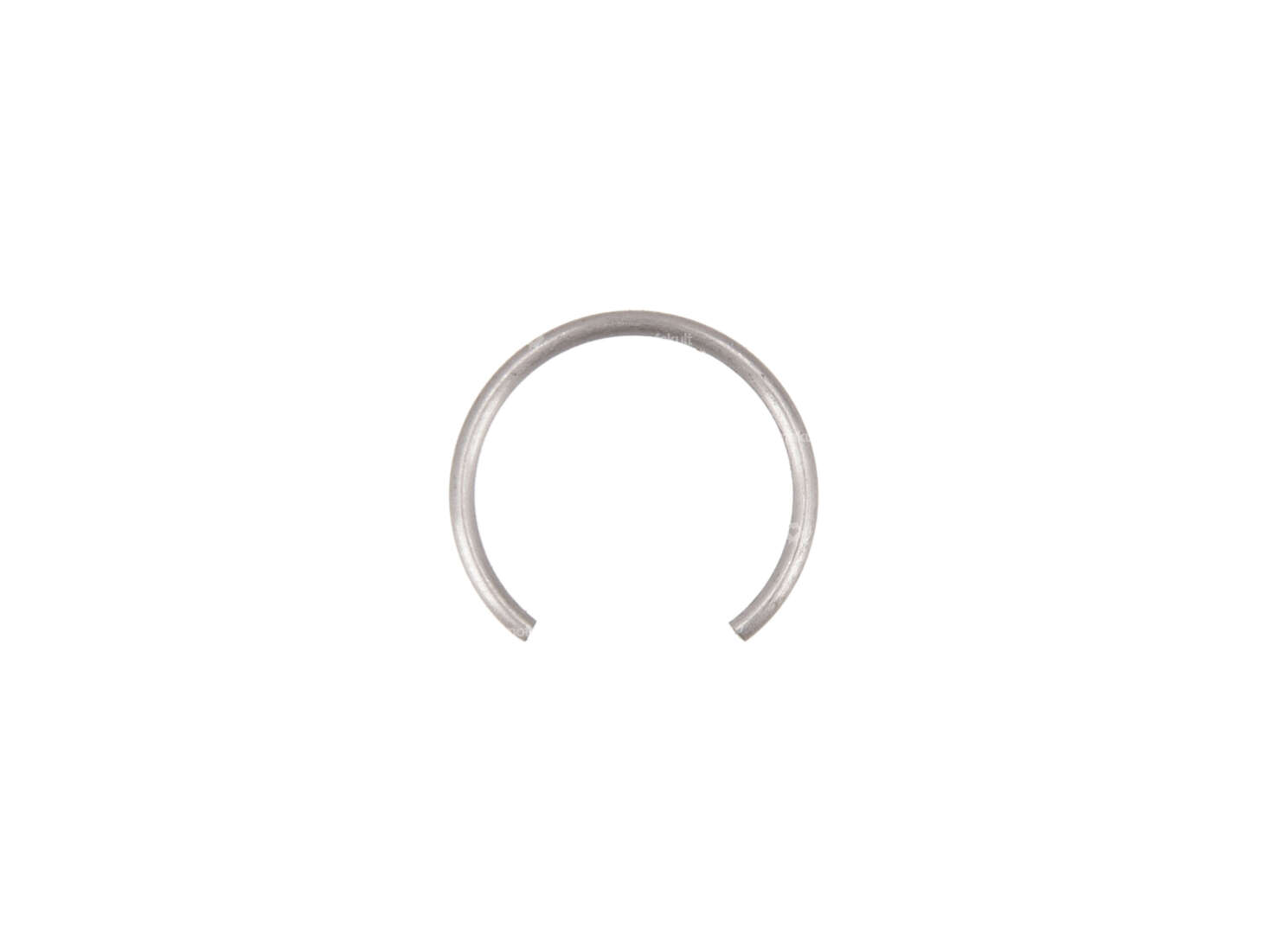

Malossi piston pin lock Ø 10 mm

Naraku assembly tool 10 mm C-piston clip

Diameter: 10 mm · Total length: 134 mm · Ø Pin: 4.5 mm · Manufacturer: Naraku · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished

Engine gasket | Piaggio Ciao, SI, Bravo, Boxer

Width: 95 mm · Total length: 125 mm · Ø inside: 75 mm · Ø outside: 85 mm · Material: Sealing paper · Color: black · Number of components: 1 pcs · Thickness: 0.2 mm · Number of fixing points: 7 pcs · Piaggio spare part no.: 112967

Malossi gasket set 43 mm cylinder kit

Manufacturer: Malossi · Area of application: Tuning · Ø cylinder: 43 mm · Decompressor: Yes · Number of components: 2 pcs

Wedge 12.1x4.9x3 mm

Width: 3 mm · Height: 4.9 mm · Total length: 12.5 mm · Material: Steel

Malossi piston rings Ø 43 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Nominal diameter: 43 mm · Thick piston ring: 1.75 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm

Oil seal NBR 15/24/5 AS

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 24 mm · Material: NBR · Surface: rubberized · Width: 5 mm · Temperature resistance (min.): -30 - 100 °C

NGK B7ES spark plug long thread

Width across flats SW: 21 mm · Manufacturer: NGK · Candle designation: B7ES · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Candle thread type: long · Spark plug socket: M4 · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: SAE · Suppressed: No

Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Weight: 698 g · Area of application: Racing · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Ø piston pin (B): 10 mm · Thread type: M8x1.25 (standard thread) · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs

Malossi piston pin lock Ø 12 mm

Ø outside: 12 mm · Manufacturer: Malossi · Material: Spring steel · Surface: blank

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Total length: 12.1 mm · Width: 3 mm · Height: 4.9 mm

Airsal piston pin lock Ø 10 mm (single)

Ø outside: 10 mm · Manufacturer: Airsal · Material: Spring steel · Surface: blank · Number of sensors / lugs: 1 pcs
